The Desay Series H rules.

Introducing our new Supreme Leader.

Pixels

Pixel to pixel spacing begins at an impressive 2.80 millimeters to create a display resolution of more than
127,000 LEDs per square meter.
Each millimeter of spacing supports one meter of viewing distance which means that the Series H2.8 looks great from just 3 meters away.

Dimensions

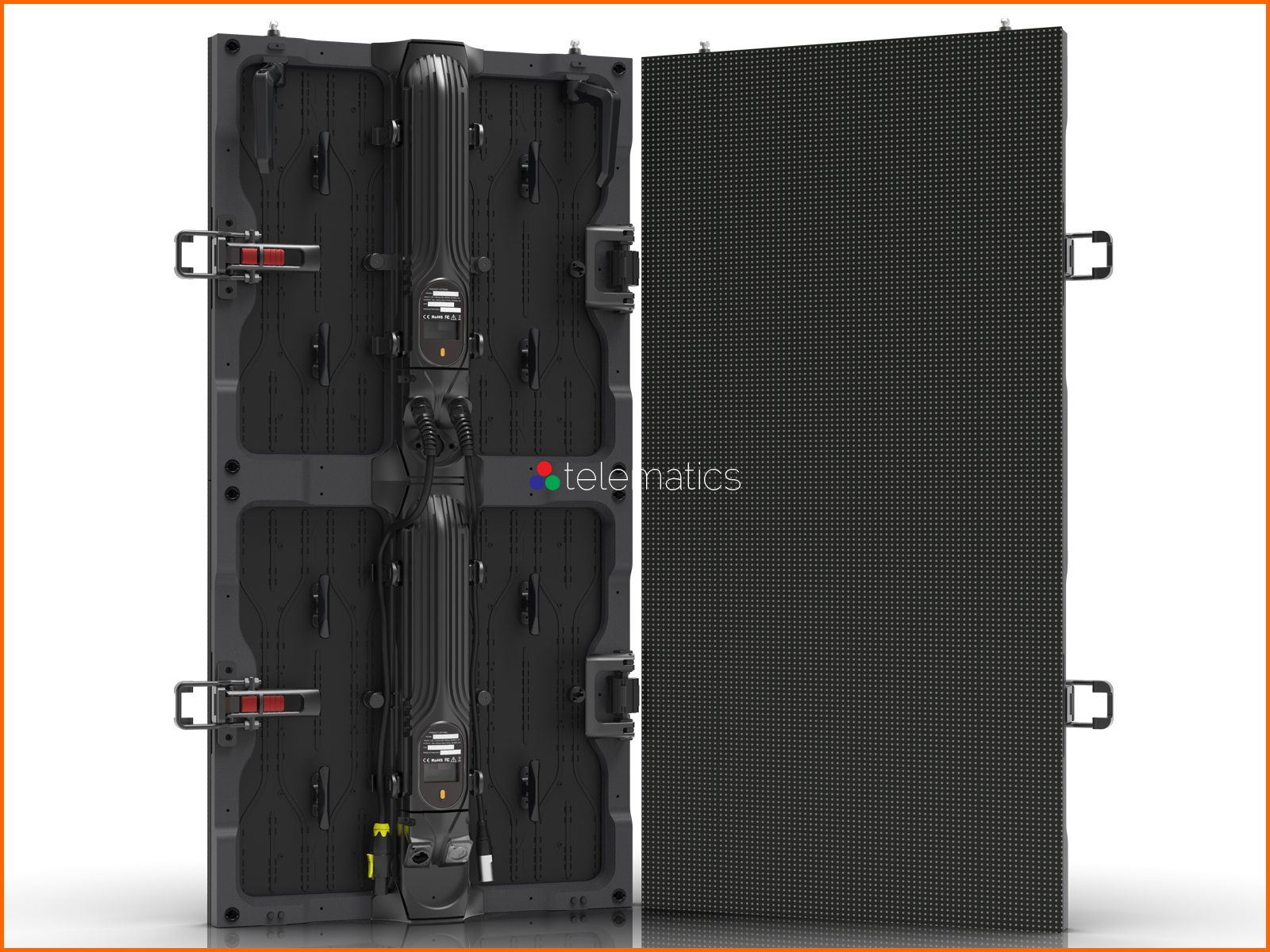

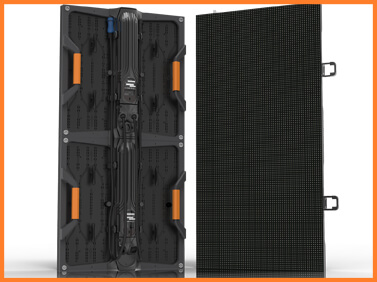

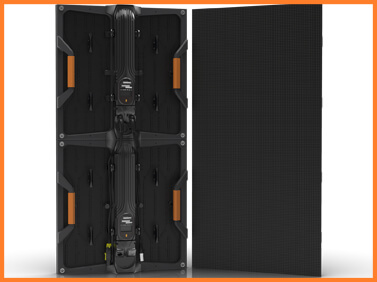

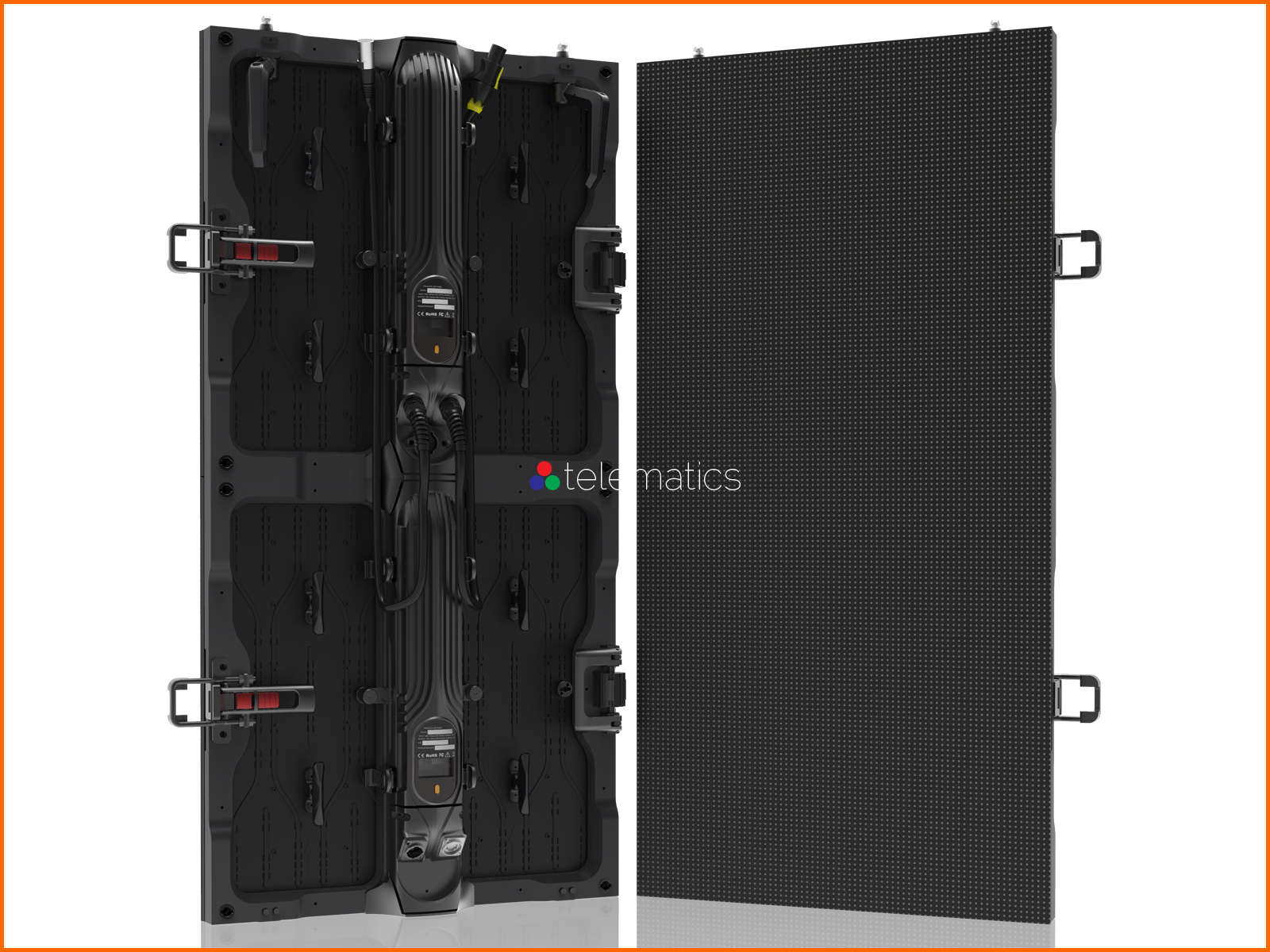

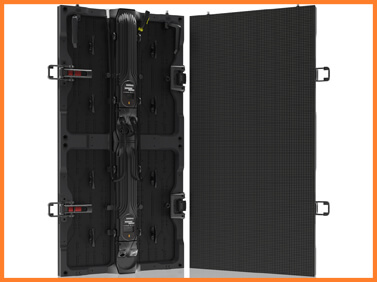

The Series H is a carbon fiber panel that weighs approximately
12 kilograms with XYZ dimensions of
1000 * 500 * 90 millimeters.
When we convert those numbers to the Exchequer Standards of 1825 that works out to 39 * 20 * 4 inches
and a featherweight 26 pounds.

Viewing

Display brightness levels extend from 1000 cd/m² to 5000 cd/m².
Screen refresh are exceptional at up to 3840 Hz for flicker-free video.
Off-axis viewing is 60° to 80° which means that pretty much everyone in the room can see the Series H whether coming or going.

Performance

Colors are amazing with levels of red¹⁴ * green¹⁴ * blue¹⁴ that provide for a combined 4,400 billion colors and a silky 16,384 shades of grey.
Life expectancy is projected to be 100,000 hours which works out to just over 11 years. We look forward to seeing you again sometime in 2030.

Power

Rated power consumption is a modest 182 ~ 245 Watts per square meter and up to 700 Watts on full load depending on the model.
Variable voltage power supplies accept 100V ~ 240V. Our technicians will provide an electrical schematic specific to your project on request.

Installation

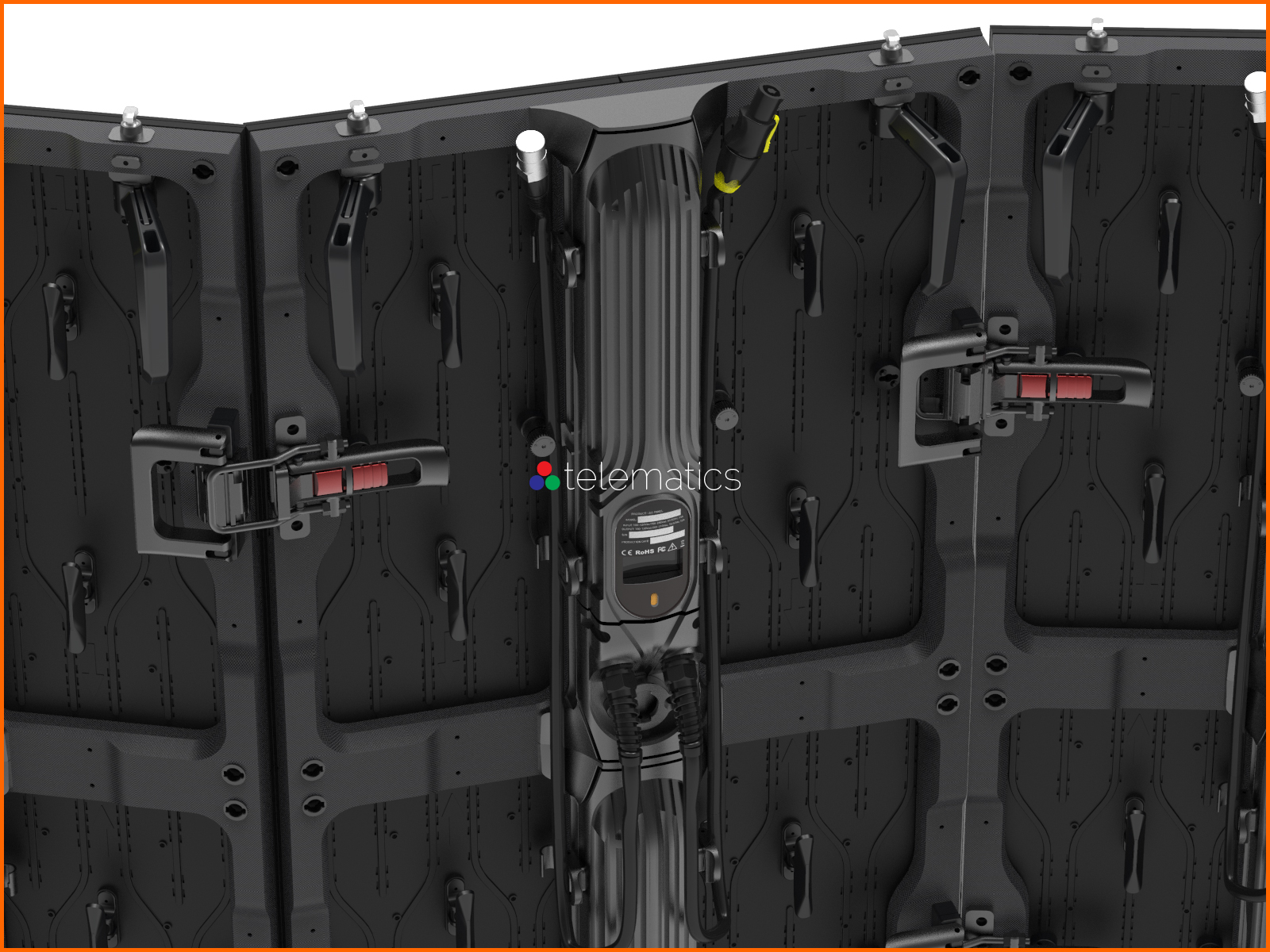

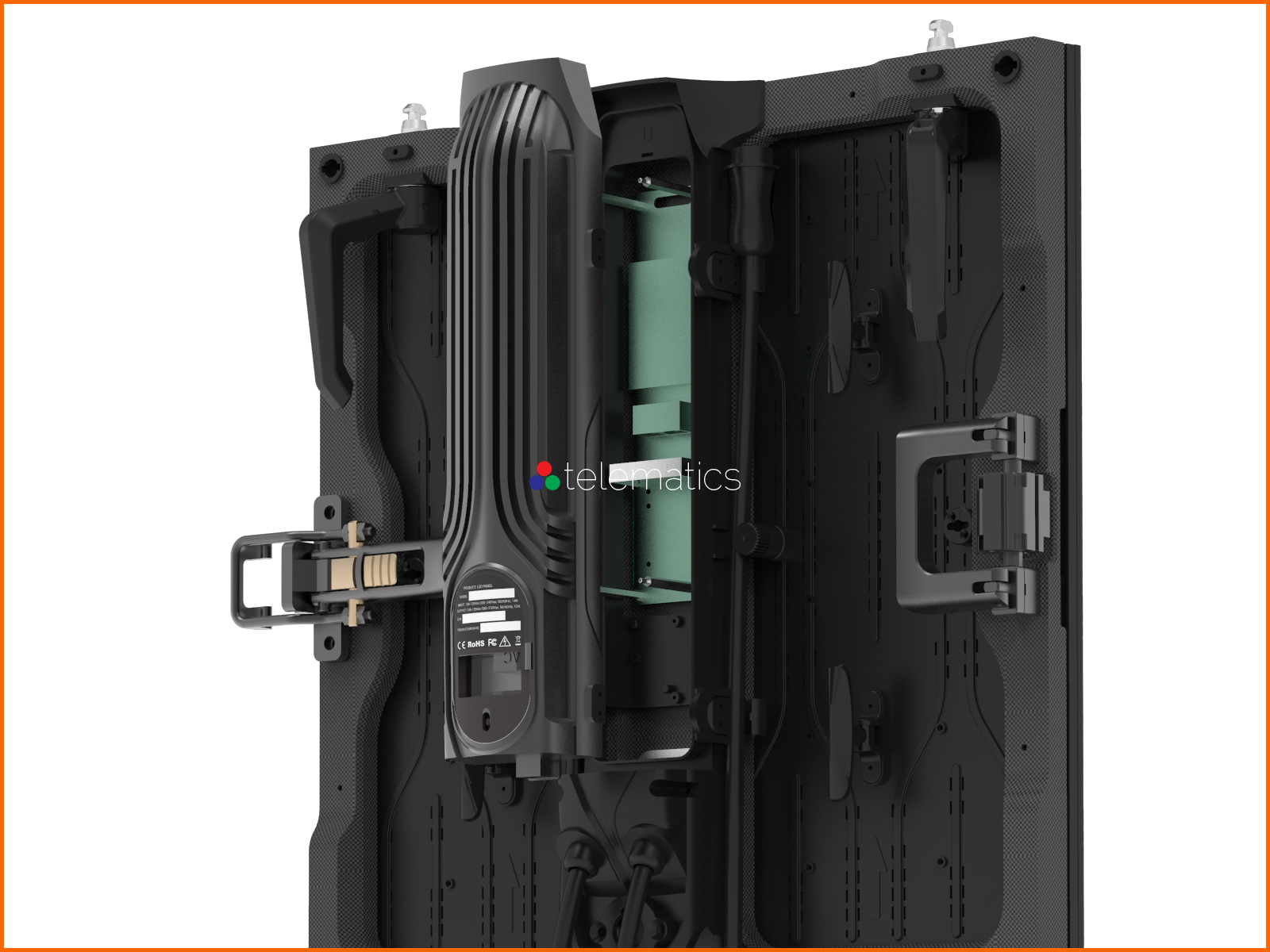

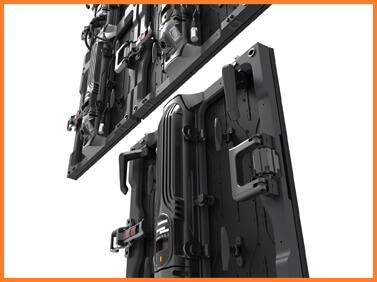

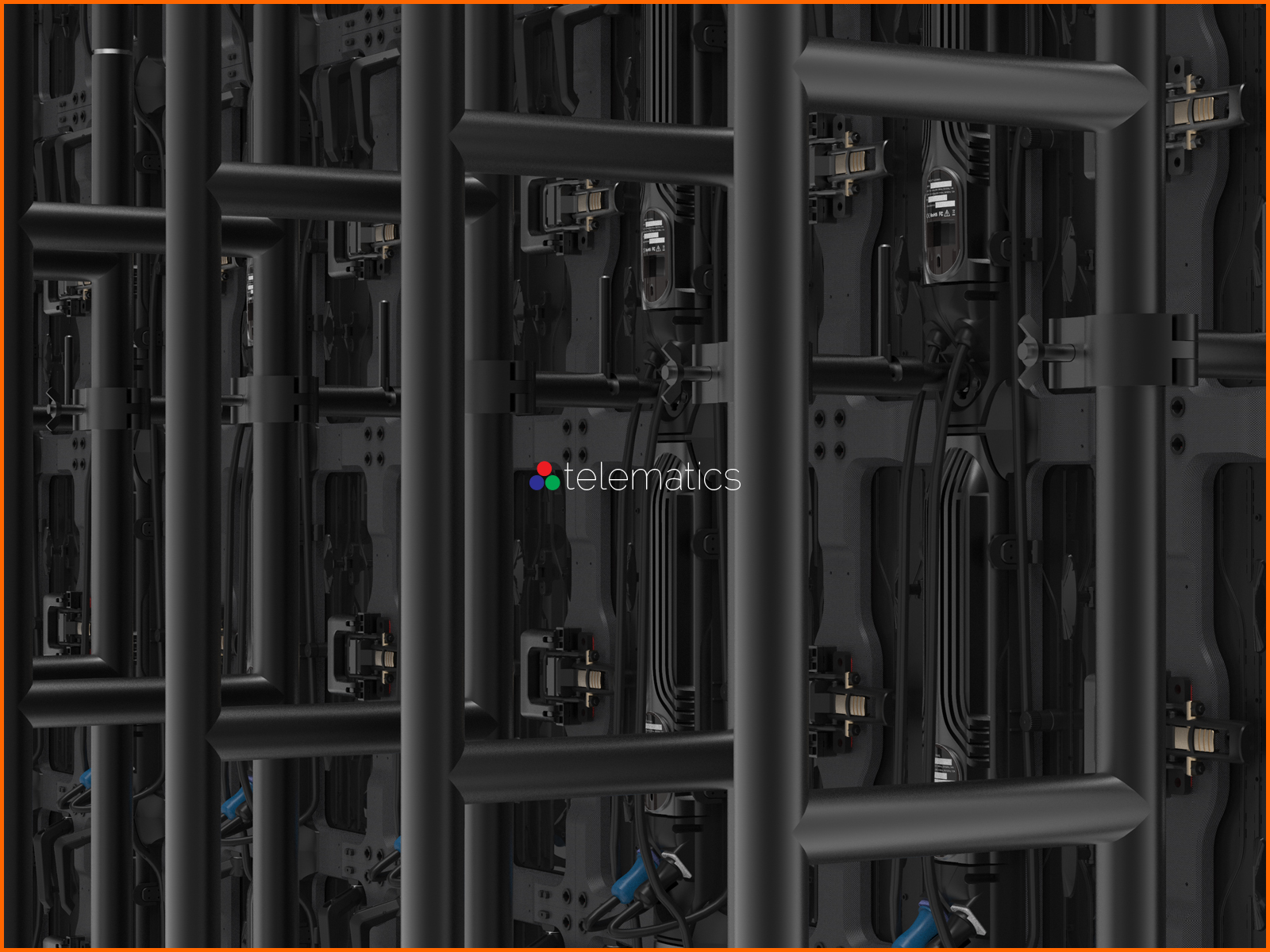

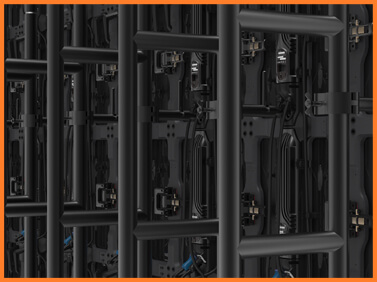

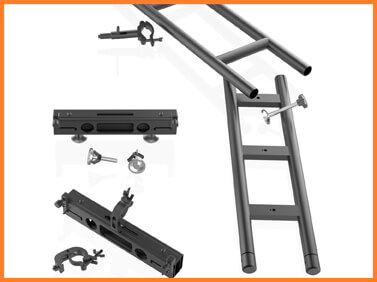

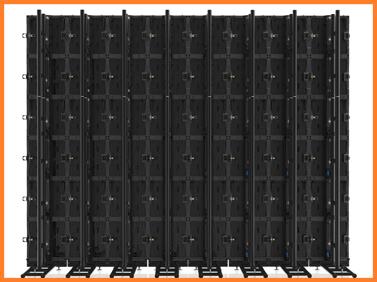

The Series H features a fast-locking patented flexible design that allows up to 5 degrees of concave and convex settings. Attach to a frame or use hanging bars or ground supports. Power and data cabling is simple and intuitive with quick-release Neutrik components.

Specifications · Desay Series H

Carbon well captured.

Therefore, in your deliberations, when seeking to determine the military conditions, let them be made the basis of a comparison. ~ Sun Tzu

Series	H2^84ⁱ	H3^90ⁱ	H3⁹⁰	H4⁸⁰	H6⁹⁰
Pixels ^{mm · meters}
Resolution ^{· ctc distance · mm}	2.84	3.90	3.90	4.80	6.90
Resolution ^{· per linear meter}	357	256	256	208	144
Resolution ^{· per square meter}	127449	65536	65536	43264	20736
Dimensions ^{mm · (inch)}
Width ^{· half or full panel}	500 ^(19.7)	500 ^(19.7)	500 ^(19.7)	500 ^(19.7)	500 ^(19.7)

Height ^{· half panel}	500 ^(19.7)	500 ^(19.7)	500 ^(19.7)	500 ^(19.7)	500 ^(19.7)
Height ^{· full panel}	1000 ^(39.4)	1000 ^(39.4)	1000 ^(39.4)	1000 ^(39.4)	1000 ^(39.4)

Depth ^{· at panel edge}	33 ^(1.3)	33 ^(1.3)	33 ^(1.3)	33 ^(1.3)	33 ^(1.3)
Depth ^{· at single power box}	75 ^(2.9)	75 ^(2.9)	75 ^(2.9)	75 ^(2.9)	75 ^(2.9)
Depth ^{· at double power box}	90 ^(3.5)	90 ^(3.5)	90 ^(3.5)	90 ^(3.5)	90 ^(3.5)
Weight ^{kilo · (pound)}
Panel ^{· H · half panel}	6.3 ^(13.8)	6.3 ^(13.8)	6.4 ^(14.1)	6.4 ^(14.1)	4.9 ^(10.8)
Panel ^{· H · full panel}	12.5 ^(27.5)	12.5 ^(27.5)	12.8 ^(28.2)	12.8 ^(28.2)	9.8 ^(21.6)
Viewing ^(upgrade)
Brightness ^{· candela/m²}	1000 ⁽¹²⁰⁰⁾	1000 ⁽¹²⁰⁰⁾	5000	5000	4500	4000

Refresh ^{· hertz}	1920 ⁽³⁸⁴⁰⁾	1920 ⁽³⁸⁴⁰⁾	1920 ⁽³⁸⁴⁰⁾	1920 ⁽³⁸⁴⁰⁾	1920 ⁽³⁸⁴⁰⁾	1920 ⁽³⁸⁴⁰⁾

Angle ^{· 50% brightness}	80° ↔ 80°	80° ↔ 80°	70° ↔ 70°	70° ↔ 70°	80° ↔ 80°	80° ↔ 80°
Angle ^{· 50% brightness}	70° ↕ 70°	70° ↕ 70°	50° ↕ 50°	25° ↕ 45°	80° ↕ 80°	80° ↕ 80°
Performance
Colors ^{· rgb · bit depth}	2¹³	2¹⁴	2¹⁴	2¹⁴	2¹⁴
Control ^{· brightness levels}	255	255	255	255	255
Lifetime ^{· 50% brightness · years}	11.4	11.4	11.4	11.4	11.4
Power ^{square meter}
Watts ^{· 1 PSU · (average draw)}	520 ^(35%)	510 ^(35%)	550 ^(35%)	550 ^(35%)	570 ^(35%)
Watts ^{· 2 PSU · (average draw)}	650 ^(35%)	640 ^(35%)	680 ^(35%)	680 ^(35%)	700 ^(35%)

Voltage ^{· VAC · adaptable}	100 ⌁ 240	100 ⌁ 240	100 ⌁ 240	100 ⌁ 240	100 ⌁ 240
Installation
Wall ^{· custom steel frame}	⬚	⬚	⬚	⬚	⬚

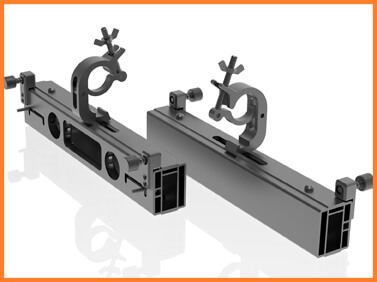

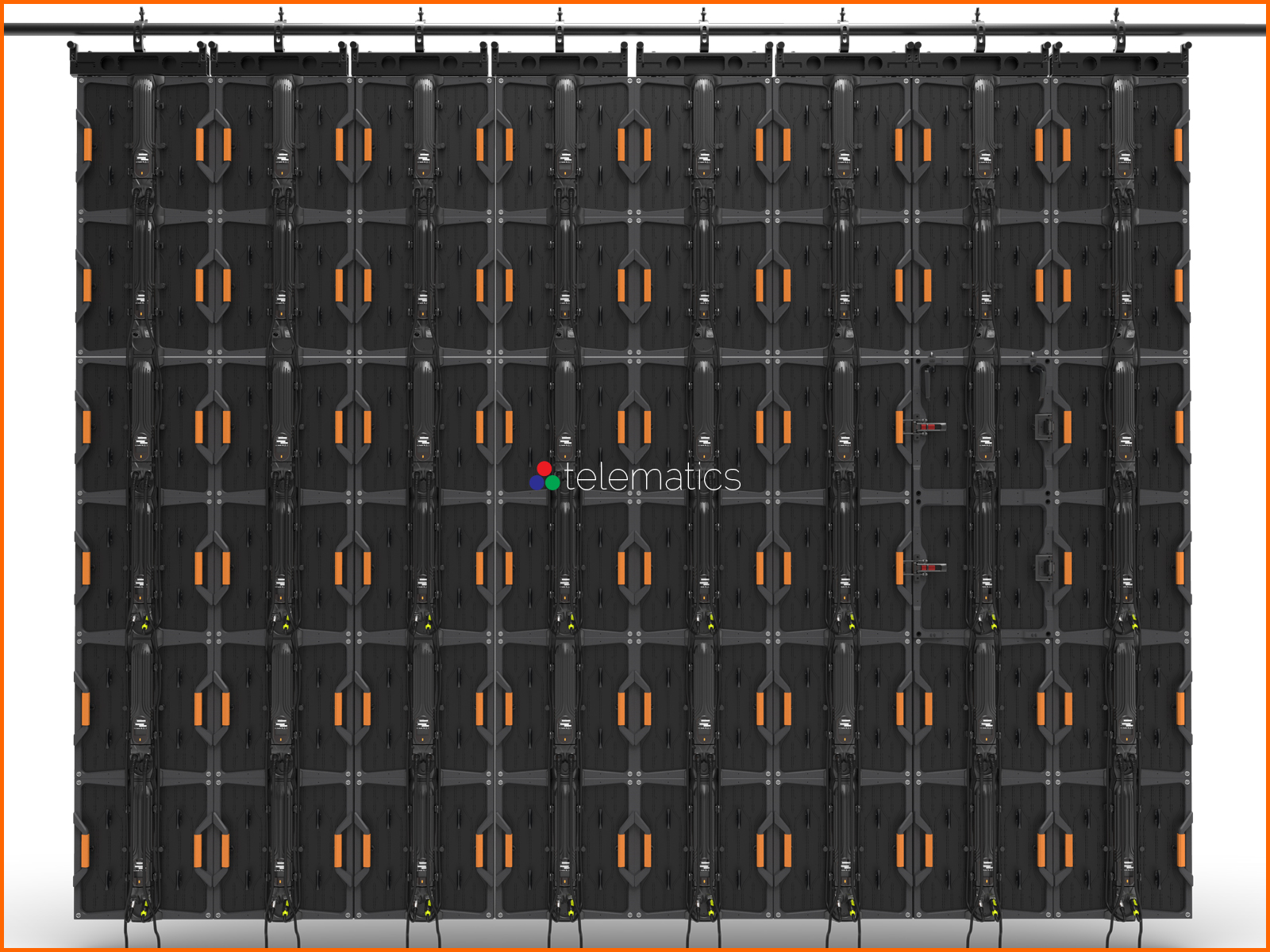

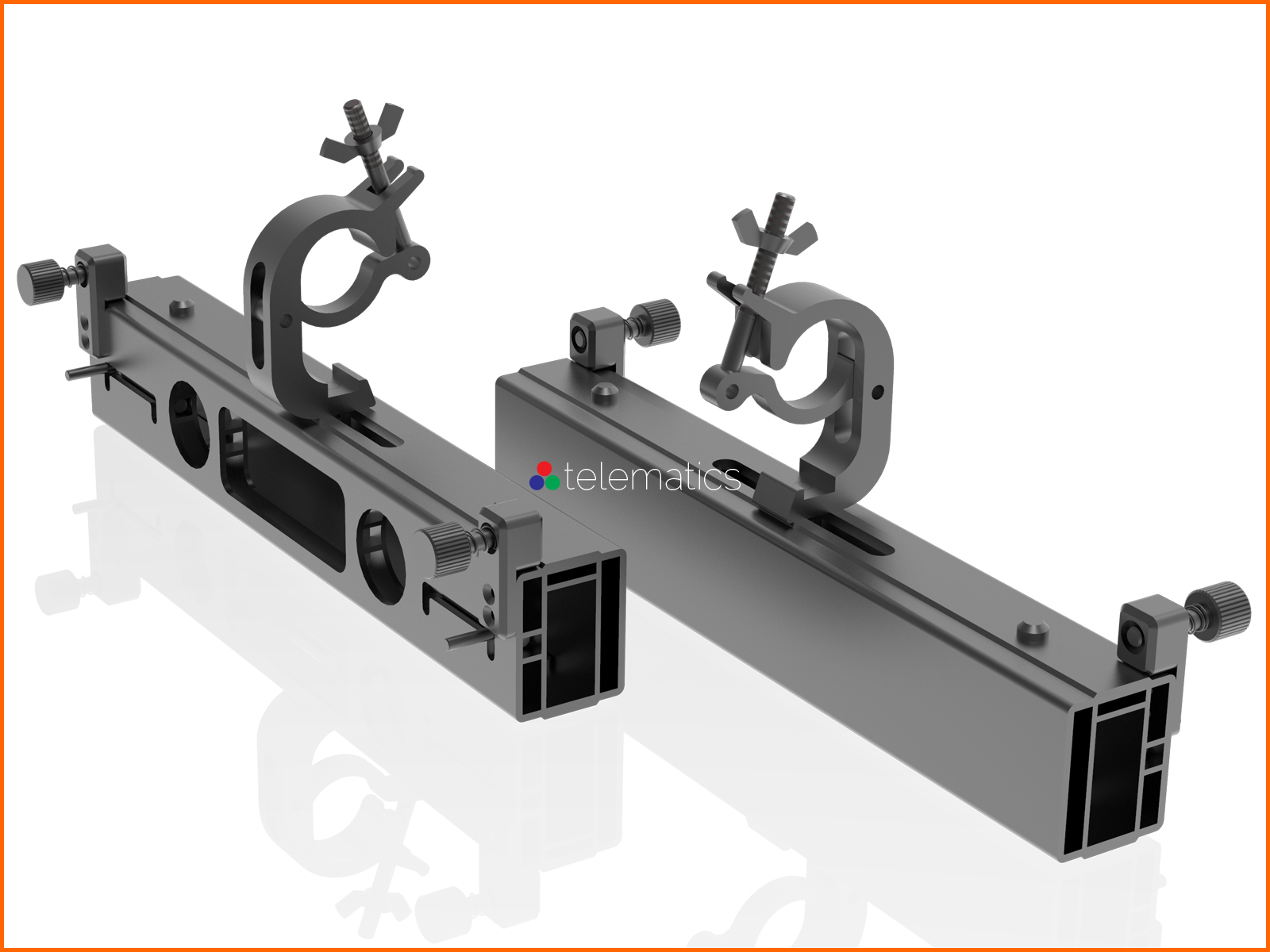

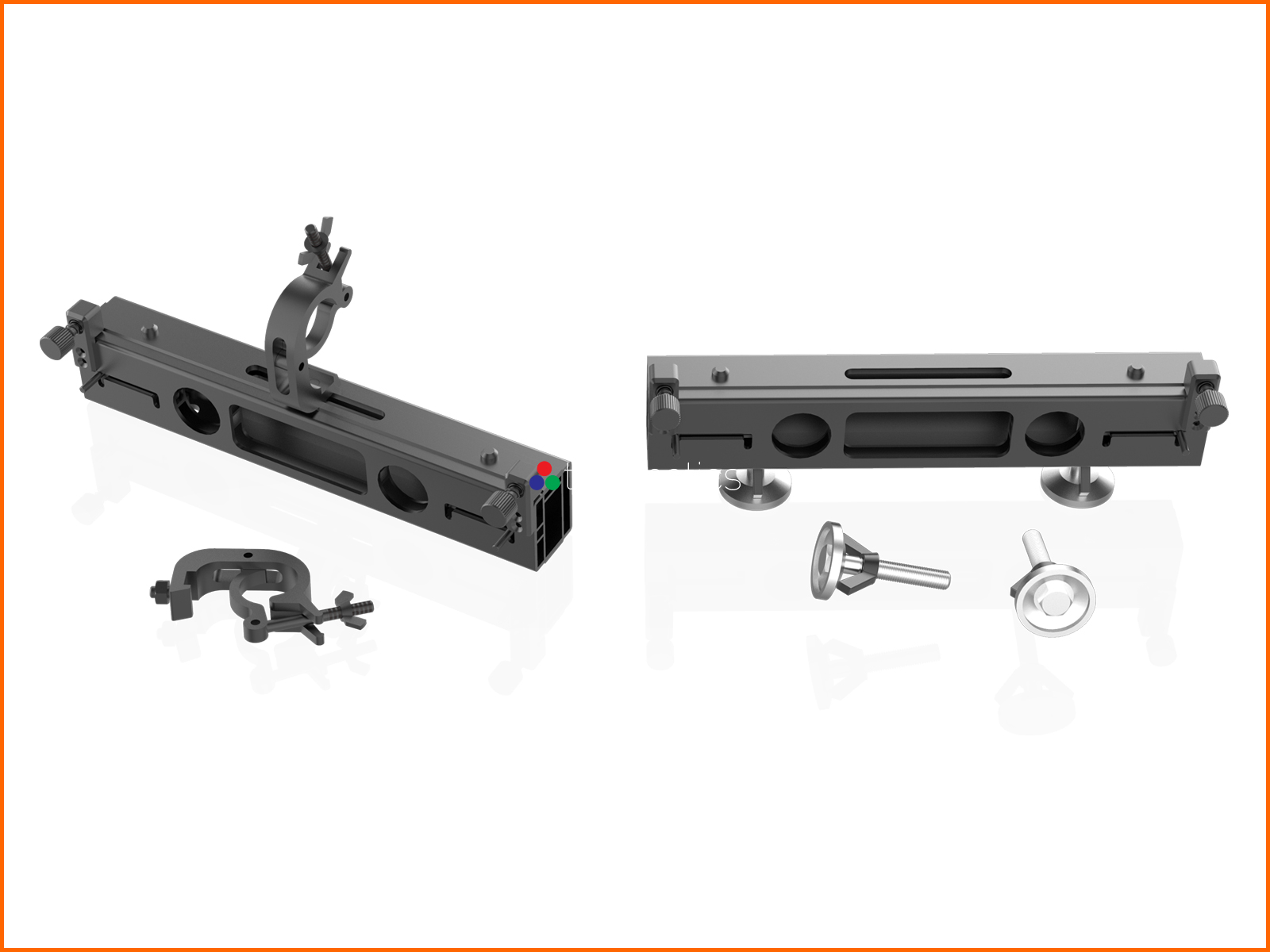

Ceiling ^{· fly bar}	⭭	⭭	⭭	⭭	⭭

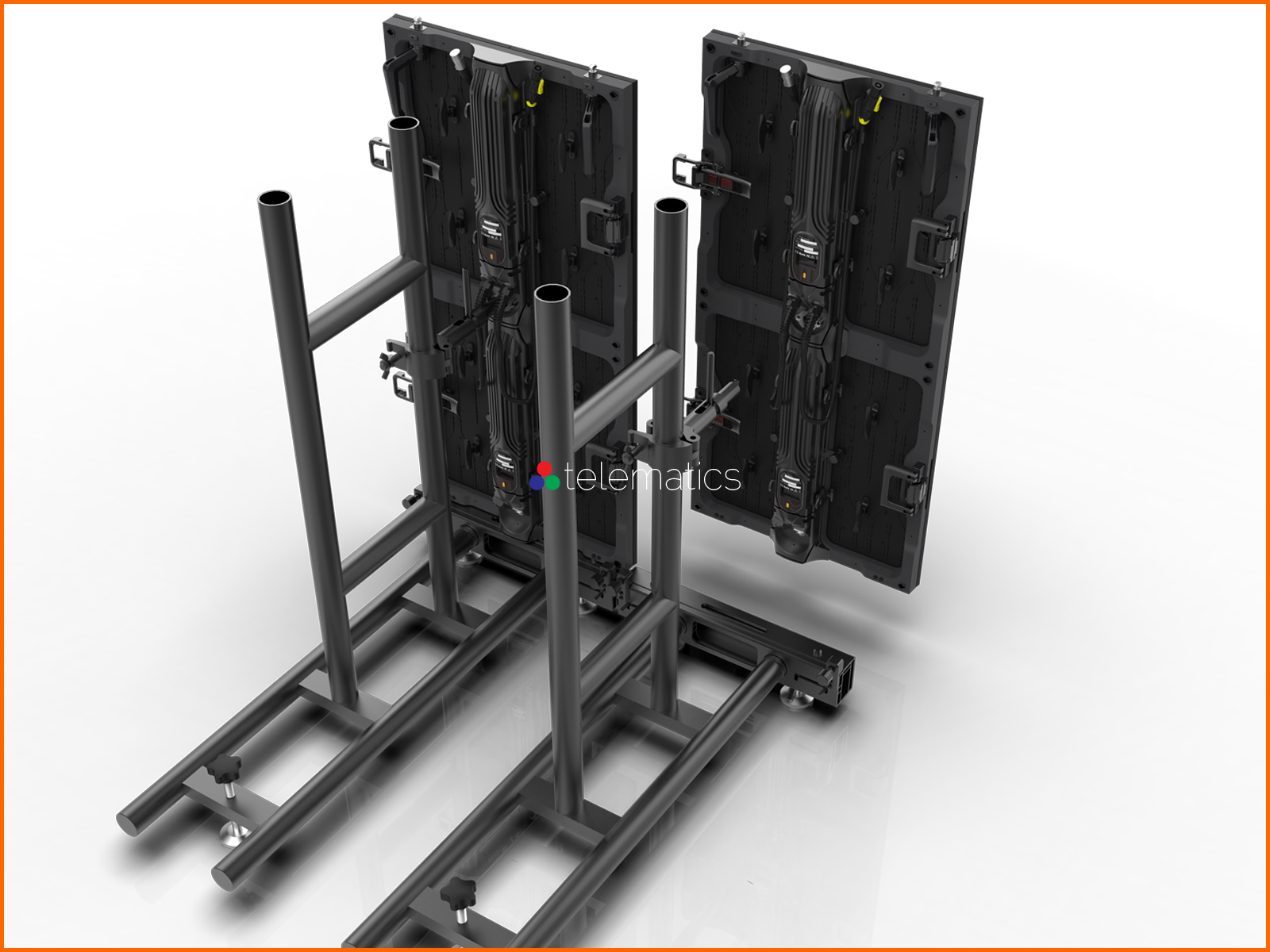

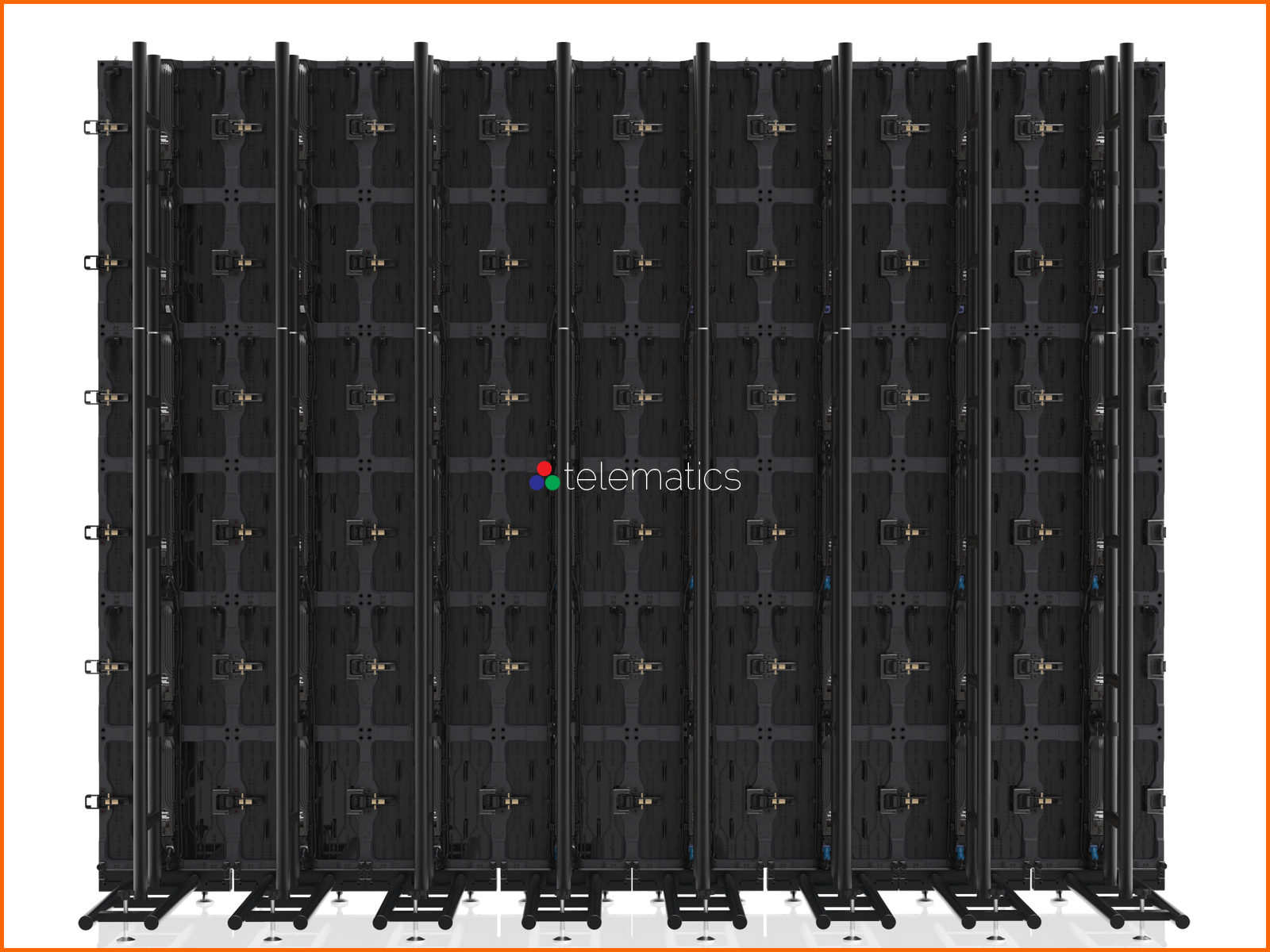

Floor ^{· floor support}	⭫	⭫	⭫	⭫	⭫

IP Code ^{· front · rear}	30 · 40	30 · 40	65 · 65	65 · 65	65 · 65
Operating ^{· celsius · (fahrenheit)}	-10 ⁽¹⁴⁾ · 40 ⁽¹⁰⁴⁾	-10 ⁽¹⁴⁾ · 40 ⁽¹⁰⁴⁾	-20 ^(-4) · 45 ⁽¹¹³⁾	-20 ^(-4) · 45 ⁽¹¹³⁾	-20 ^(-4) · 45 ⁽¹¹³⁾

Fine Print

Specifications	Desay and Telematics reserves the right to change any specifications without prior notice.

Factory Warranty	Faulty components to be repaired or exchanged for 2 years from the date of shipping.

Extended Factory Warranty	The Desay factory warranty may be extended to 5 years at a modest premium.

The Sales Pitch

So here's the deal...

Energy may be likened to the bending of a crossbow; decision, to the releasing of a trigger. ~ Sun Tzu

About Telematics

Telematics is a federally-incorporated company based in Vancouver since 2000. Our global partners manufacture innovative LED display panels, cabinets, curtains, interactive video floors and the systems that control them. We distribute the world's most advanced touch skins and rear projection films that turn any window into a massive display.

Our high-volume relationship with our manufacturers and low corporate profile allows us to provide aggressive pricing and personalized service to a world-wide network of principals and project managers in the audio-video and digital signage industry. We also sell directly to businesses and individuals who select and install their own systems with the assistance of local tradesmen and engineers.

Desay Series H

The Series H is one more step towards the ultimate performance panel for the stage and complements our already very awesome Series X and Series M panels.

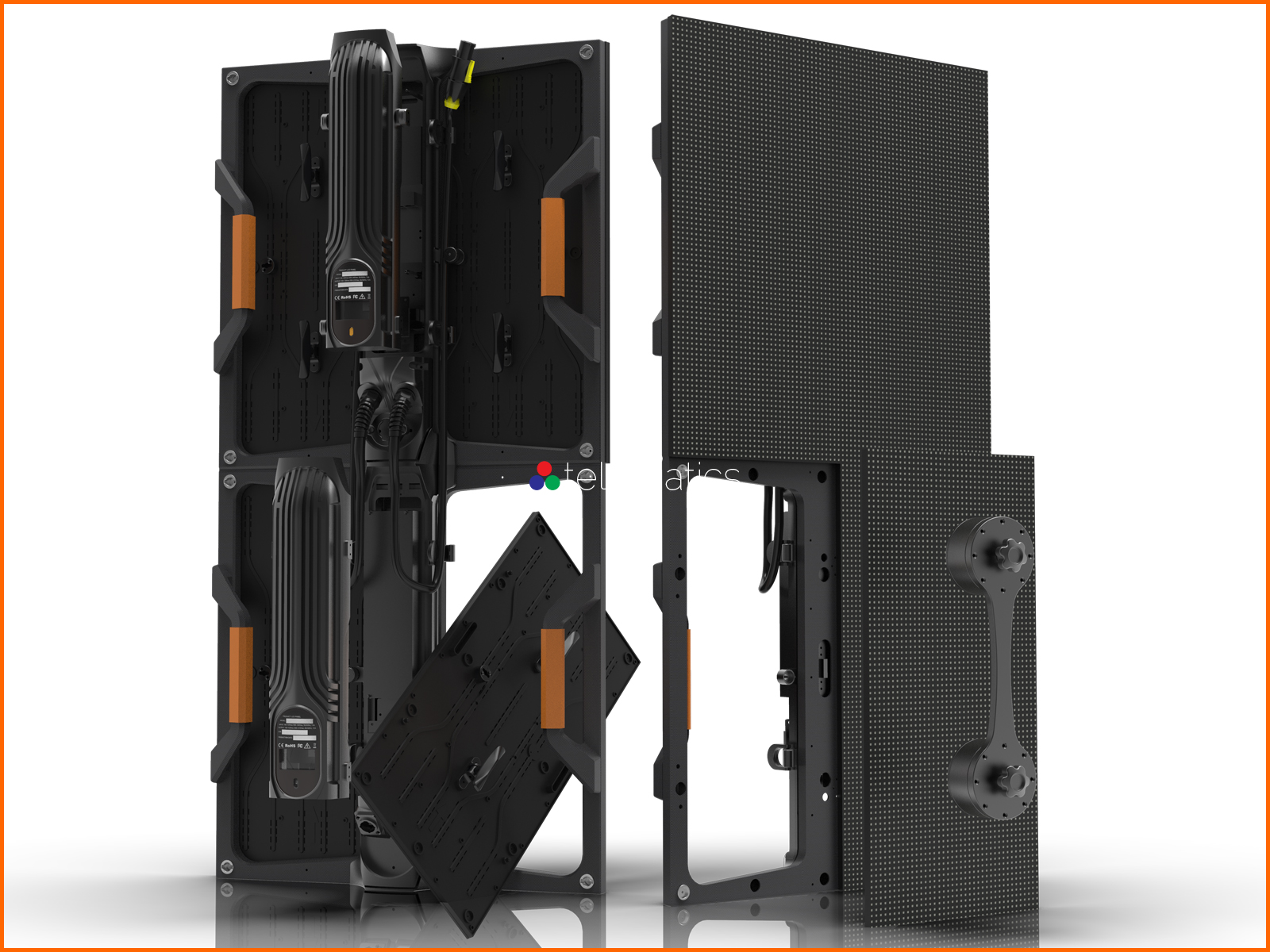

The extra-large dimensions of 500 * 1000 millimeters clearly save time on setup and tear-down, but would otherwise be a little less inviting if we used aluminum. Which is why we use Carbon Fiber to bring the weight down to just 5 or 6 kilograms per panel. Your roadies will be giddy with delight..

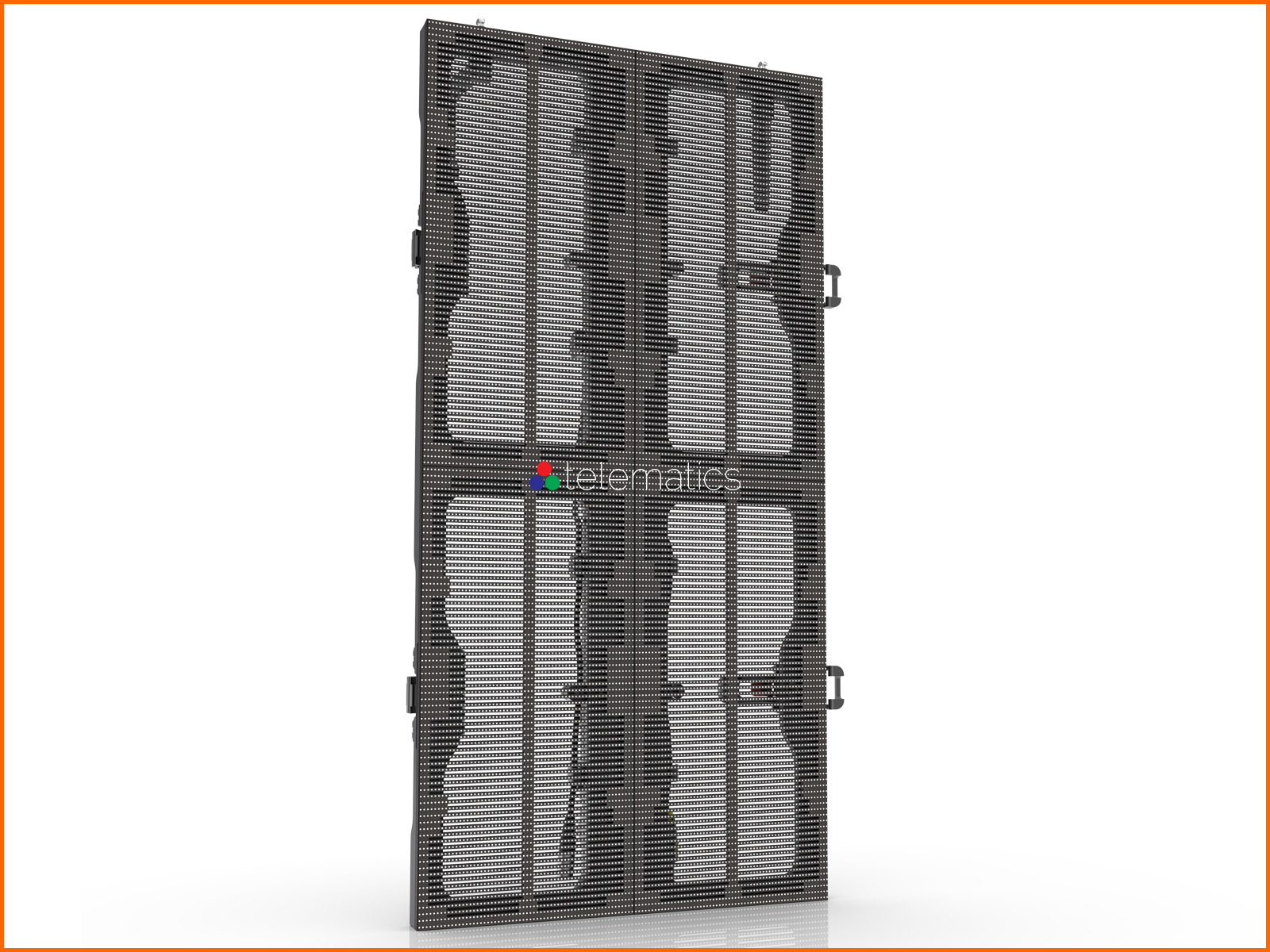

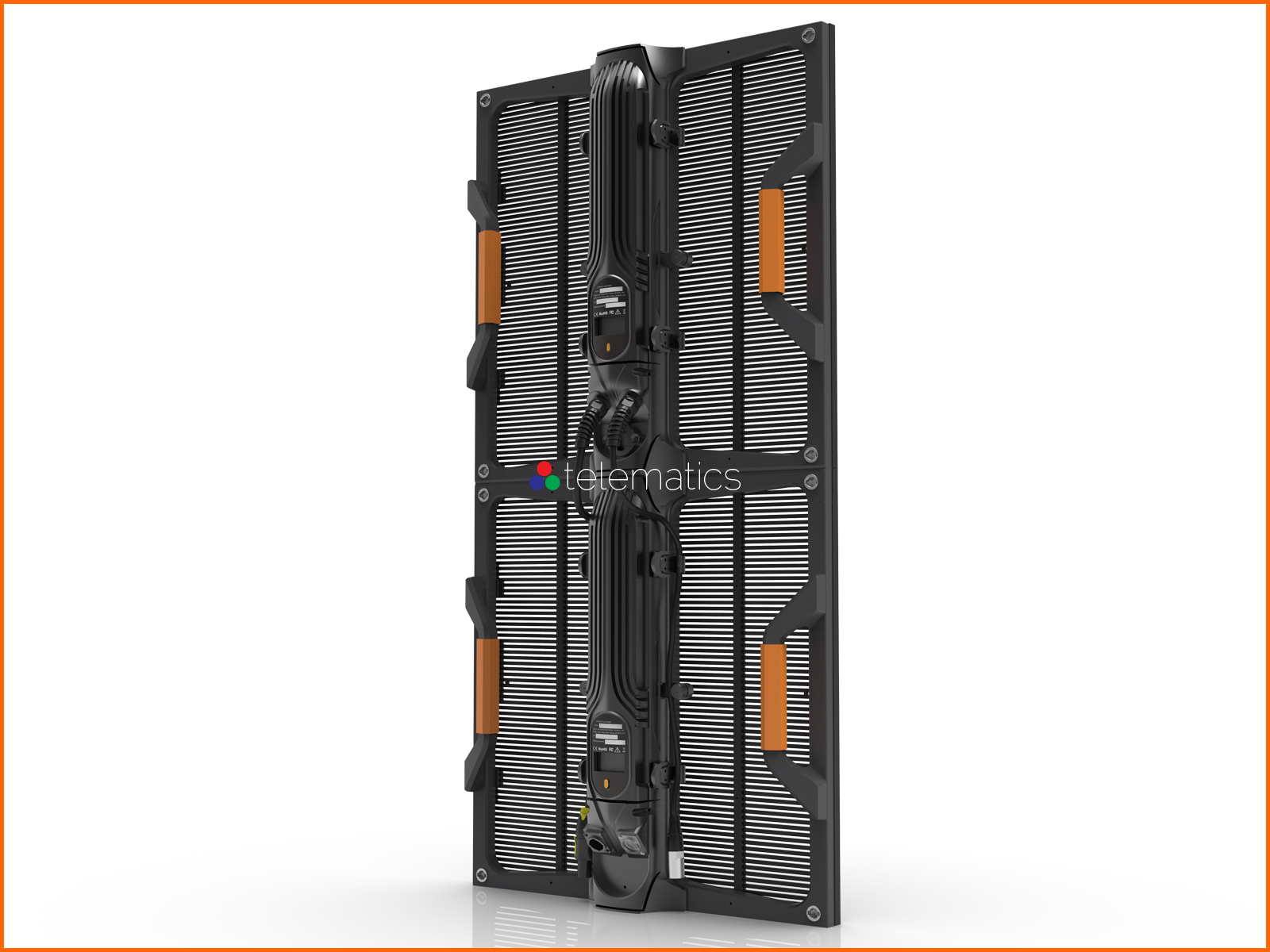

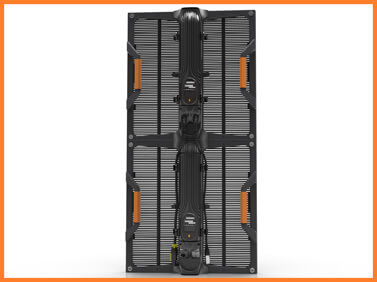

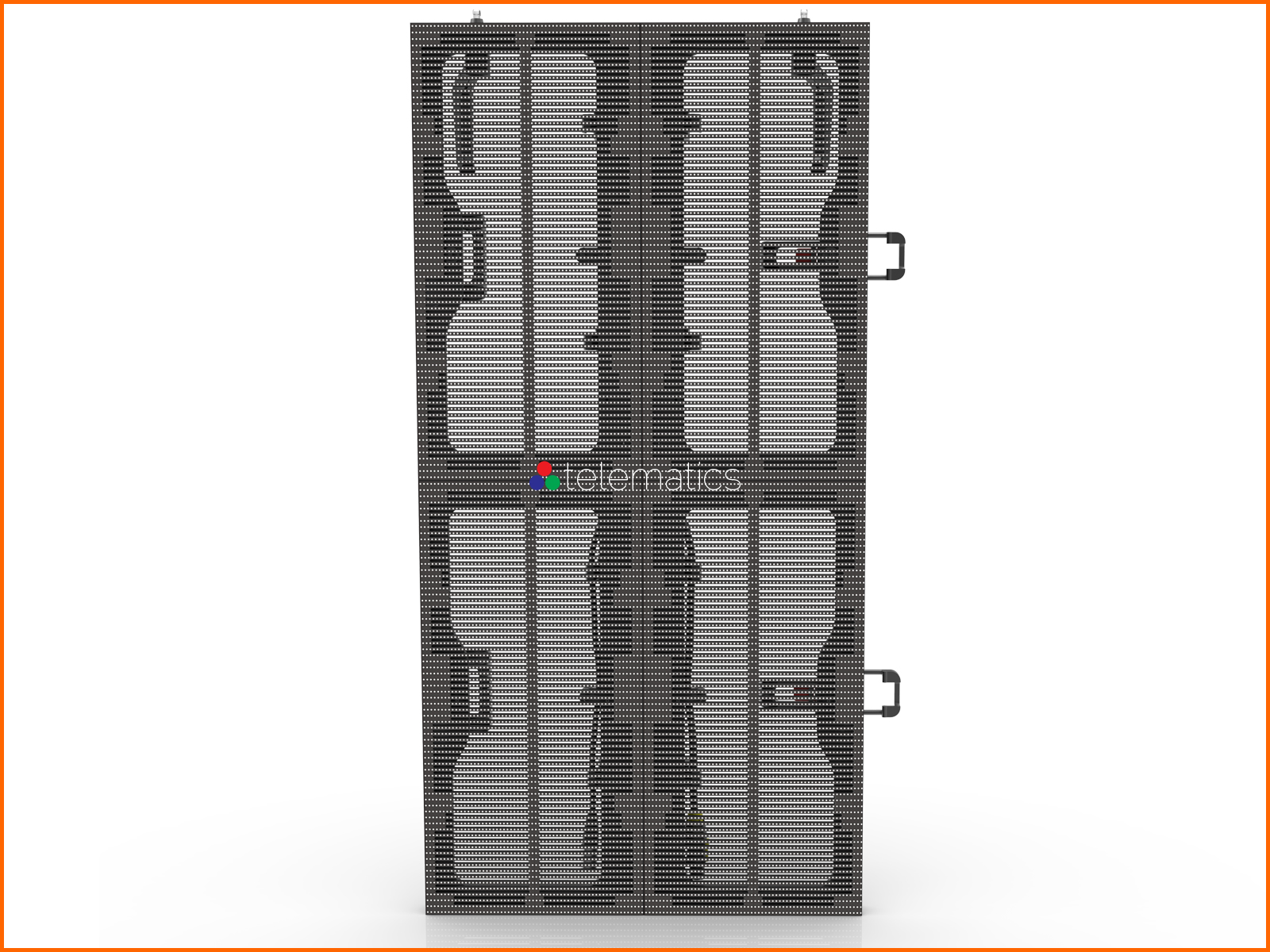

With the Series H, Desay has covered more bases than Willy Mays. Choose a fine-pixel indoor panel or a fine-pixel outdoor panel. We even have a broad-pixel mesh panel for pretty much any application you can come up with.

Pixel density begins at 20,736 and reaches 127,449 pixels per square meter. Refresh rates are 3840 Hz and Neutrik power cables and data connectors join the panels together.

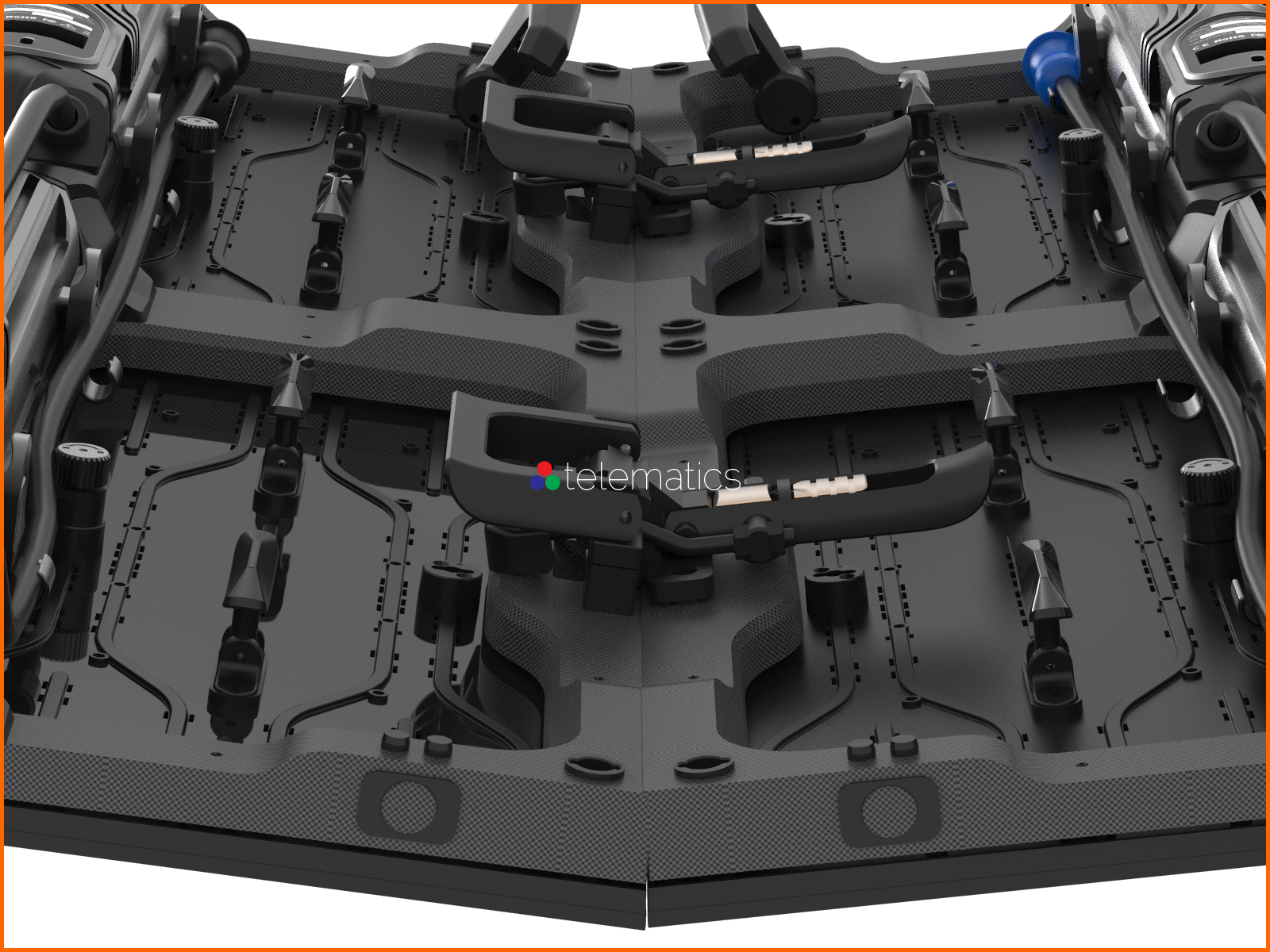

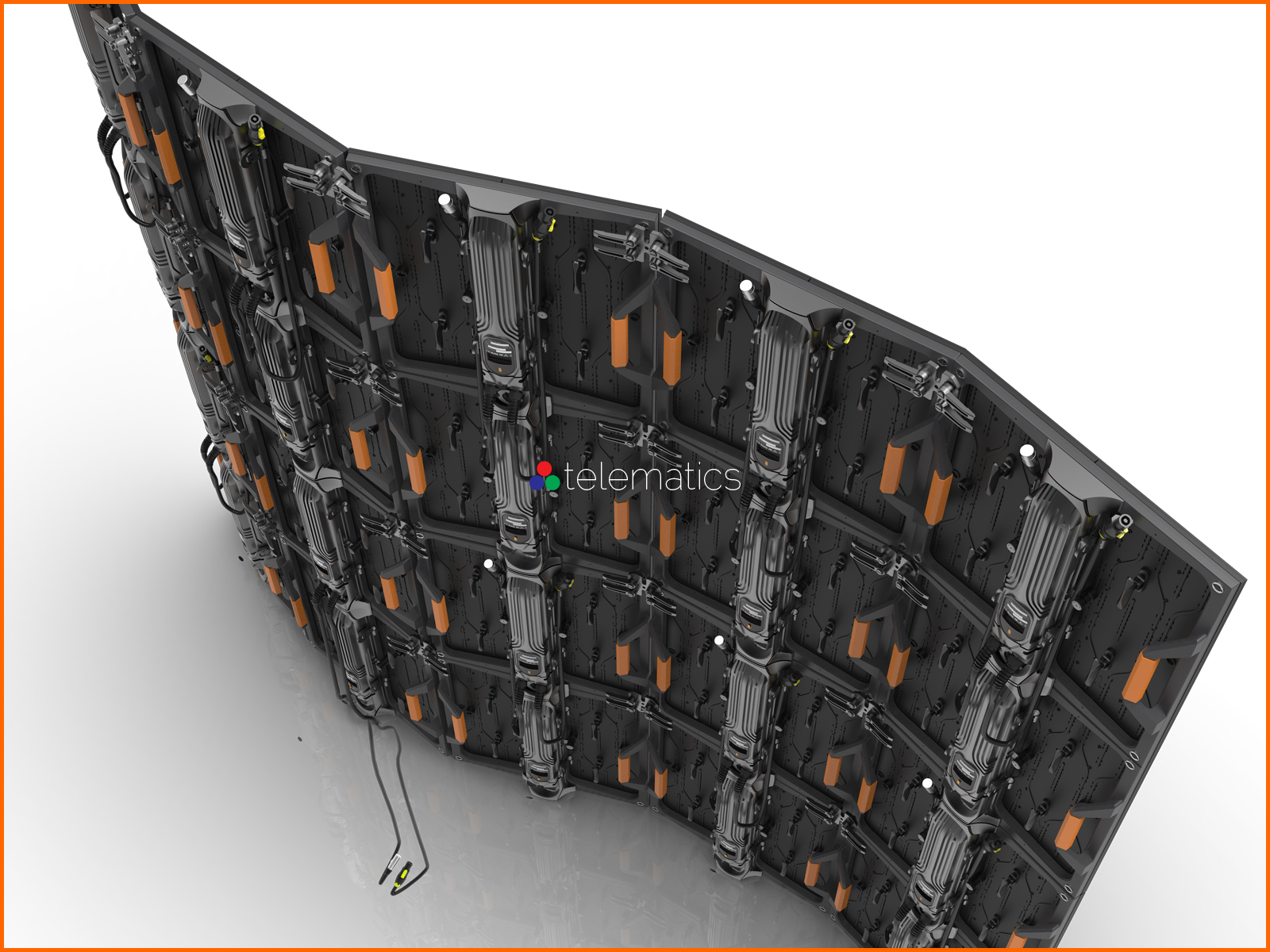

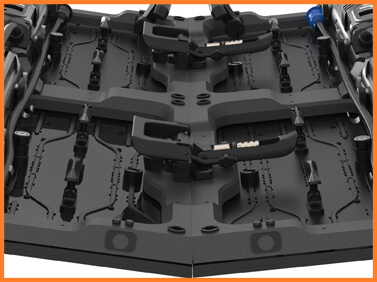

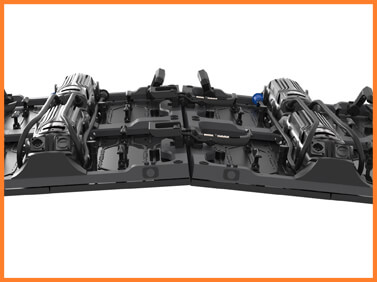

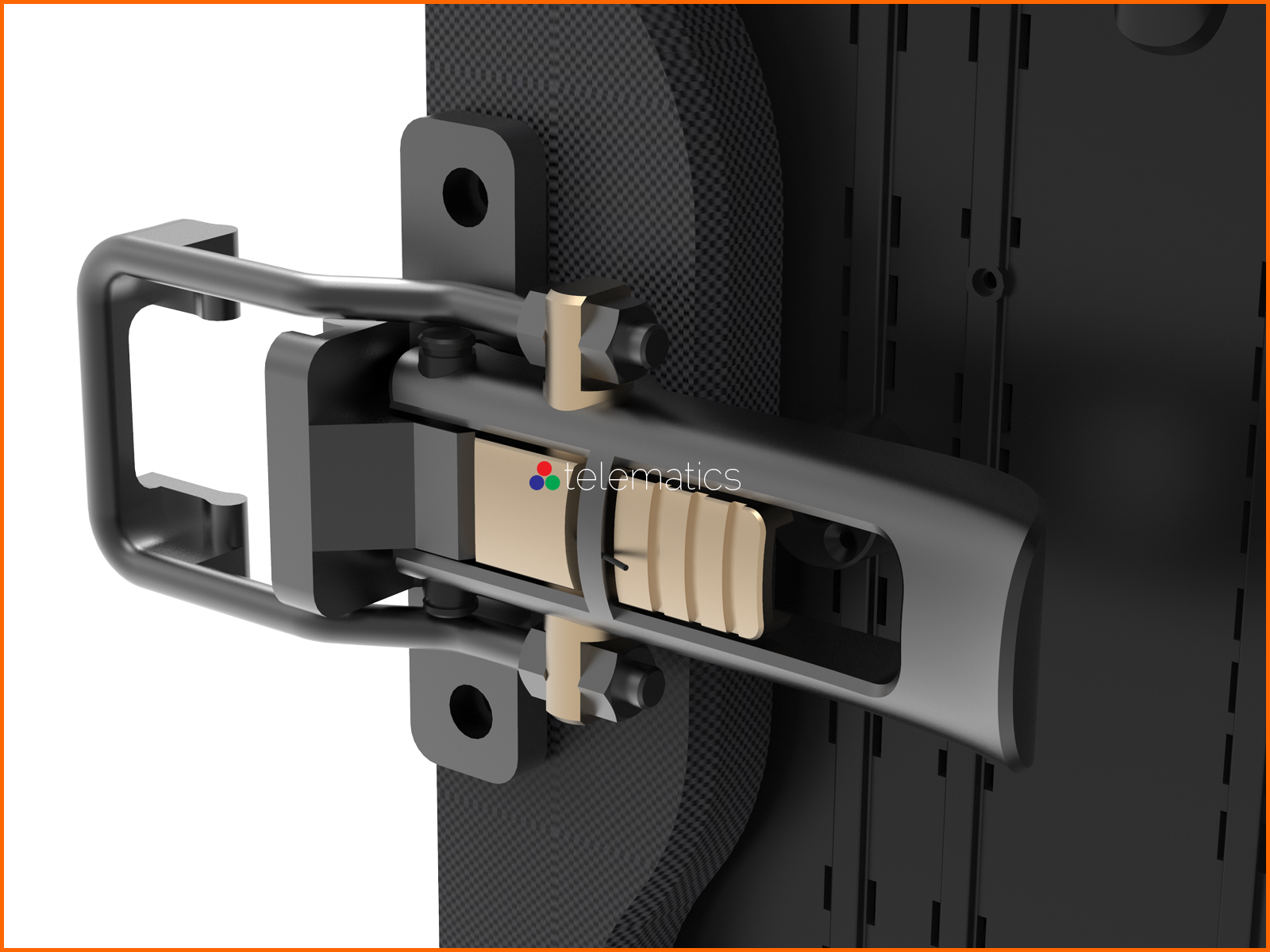

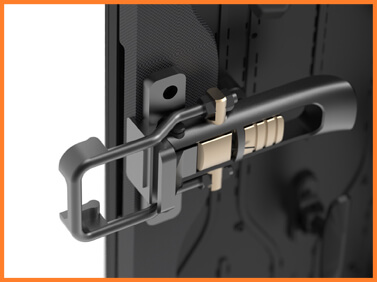

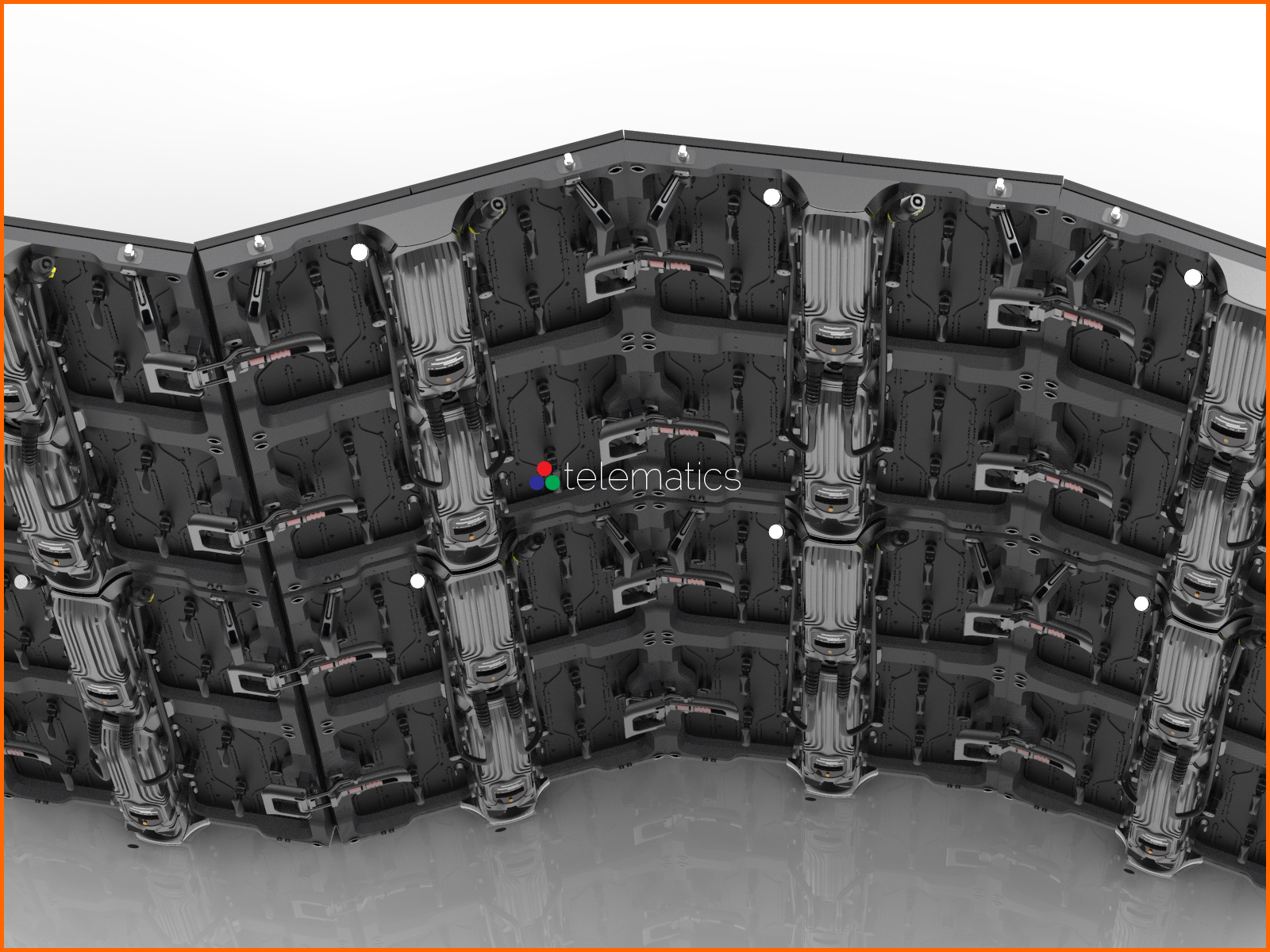

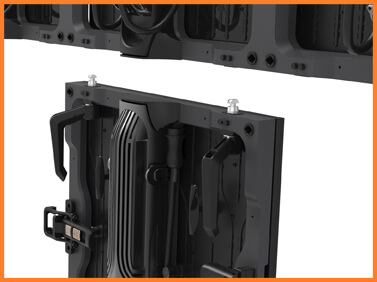

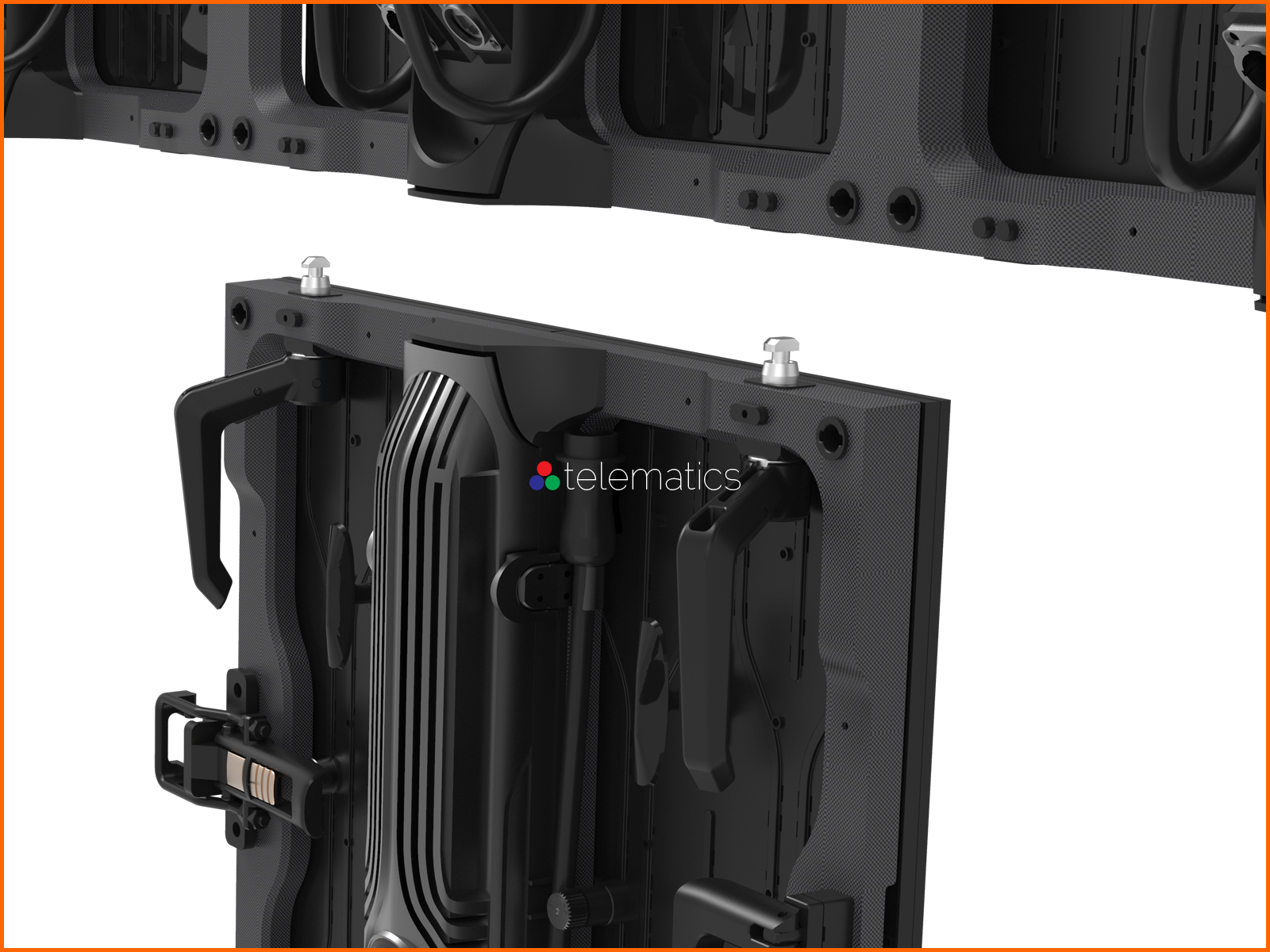

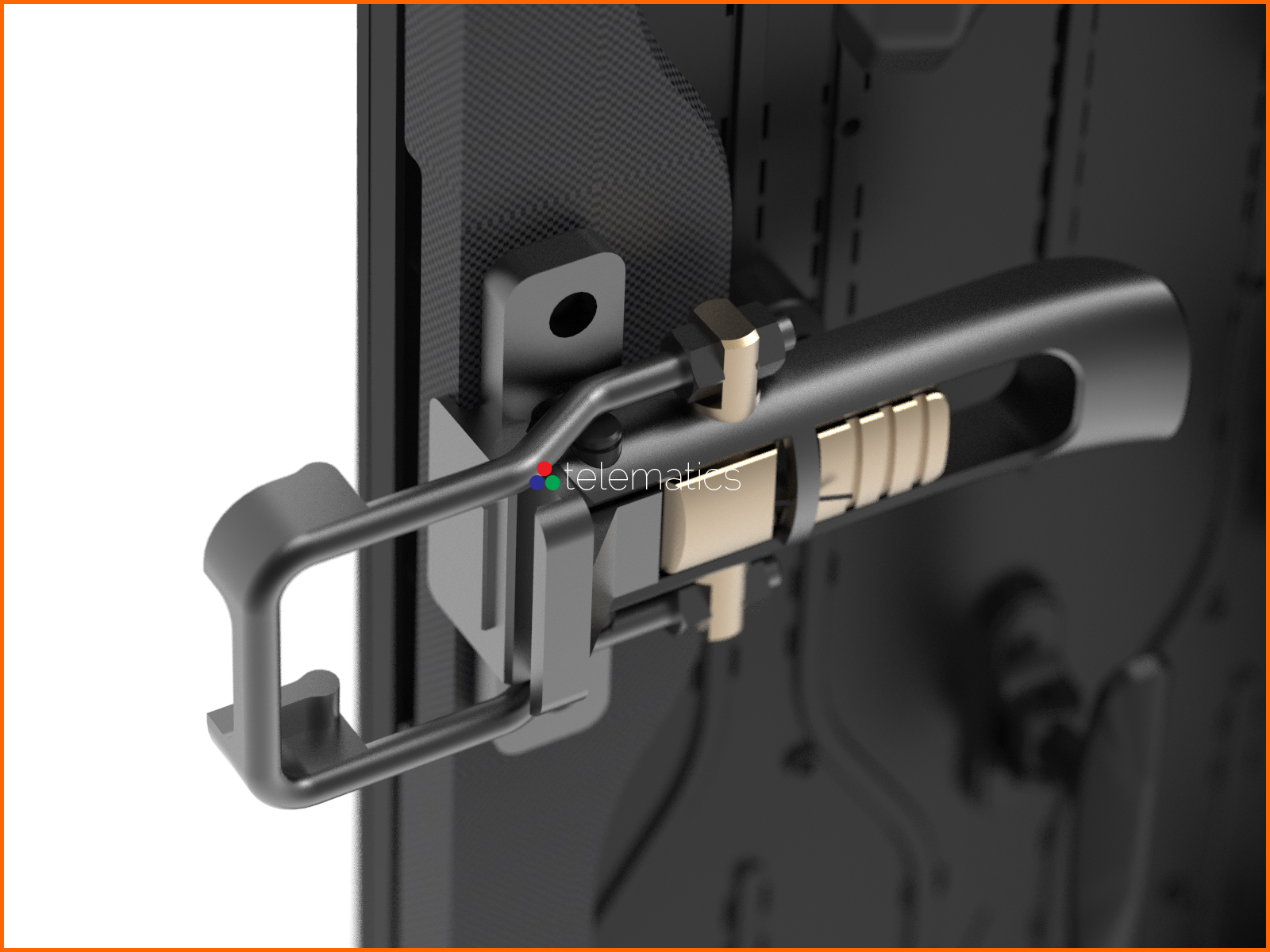

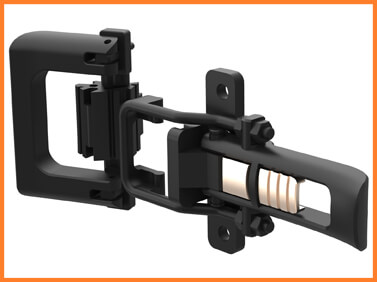

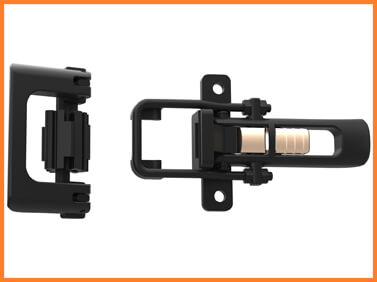

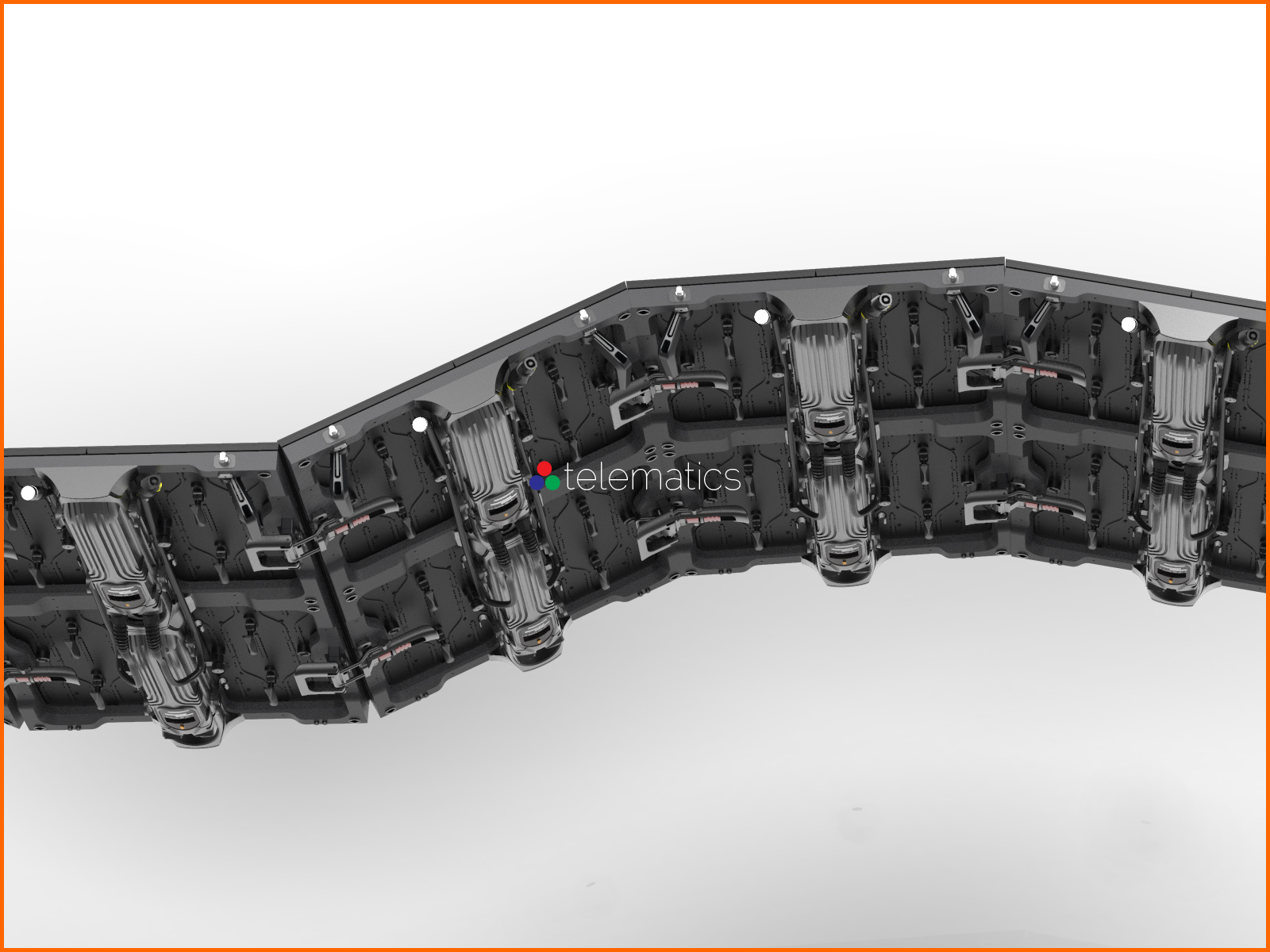

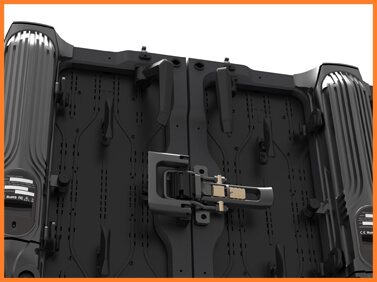

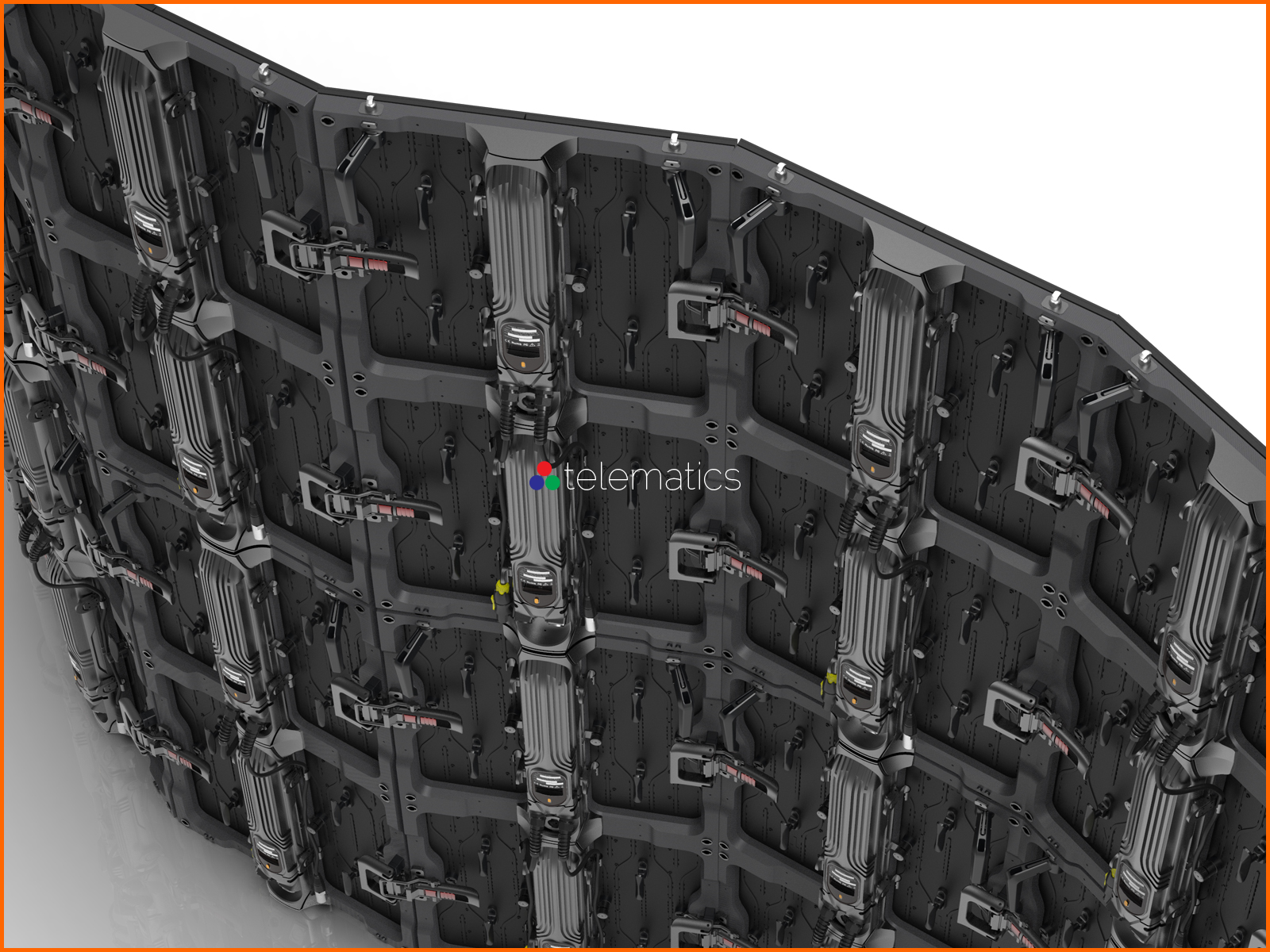

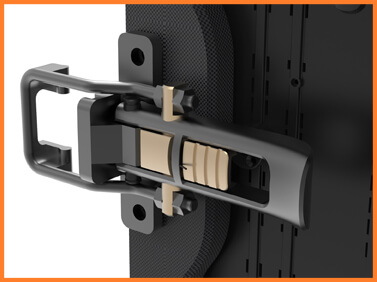

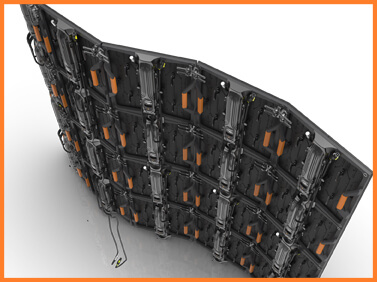

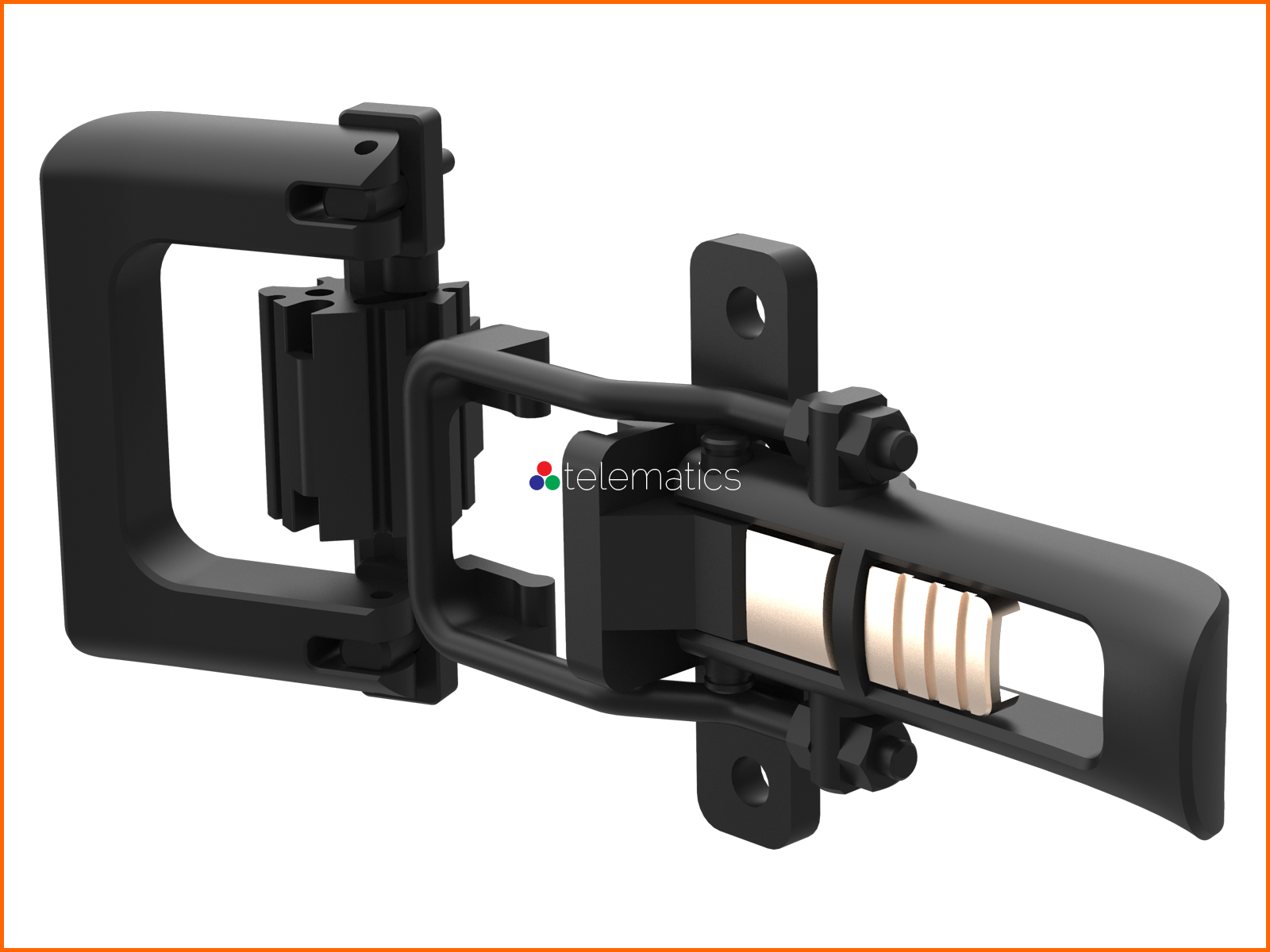

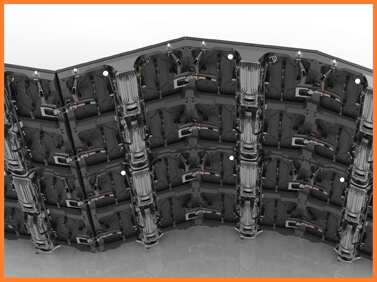

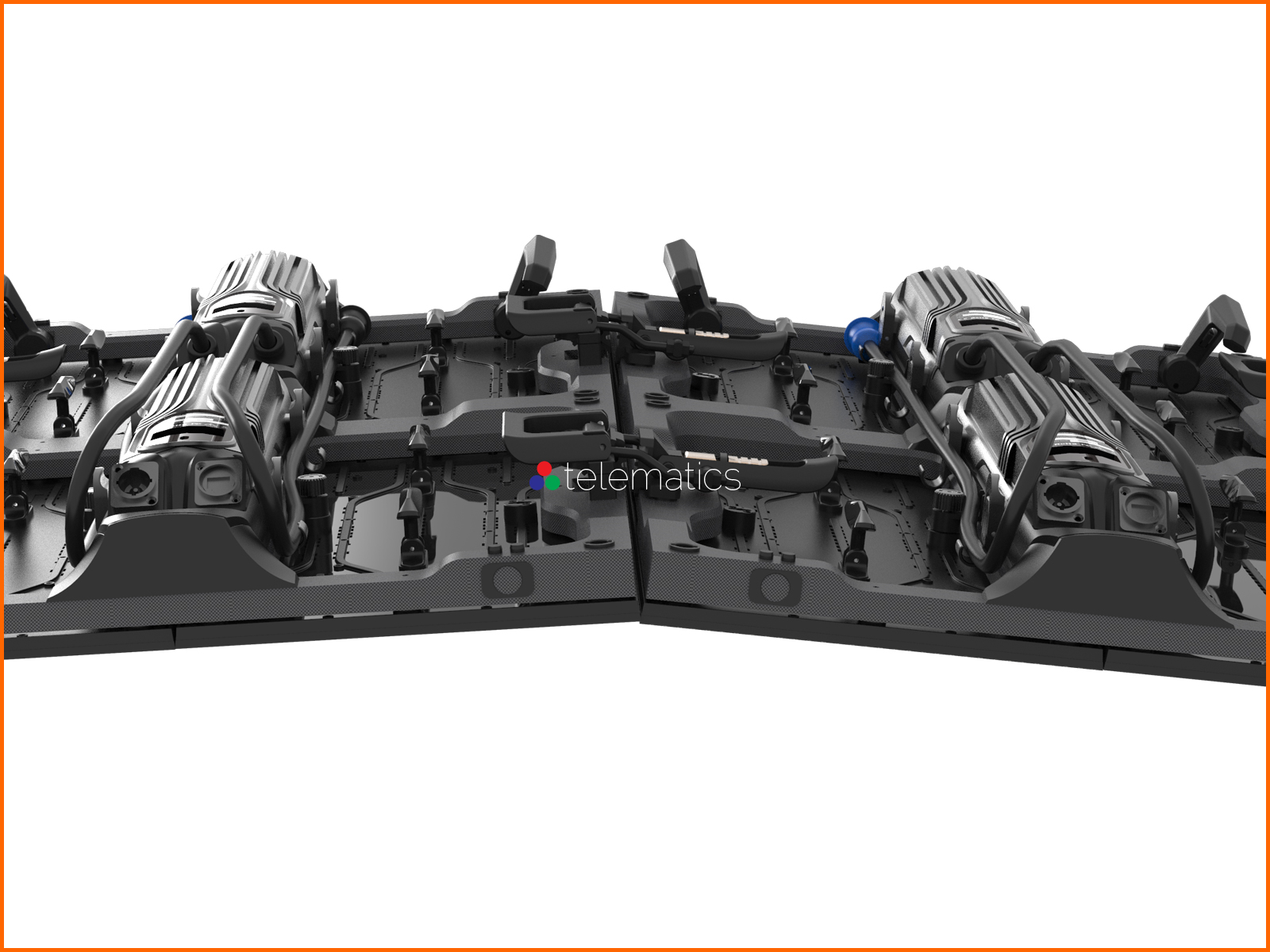

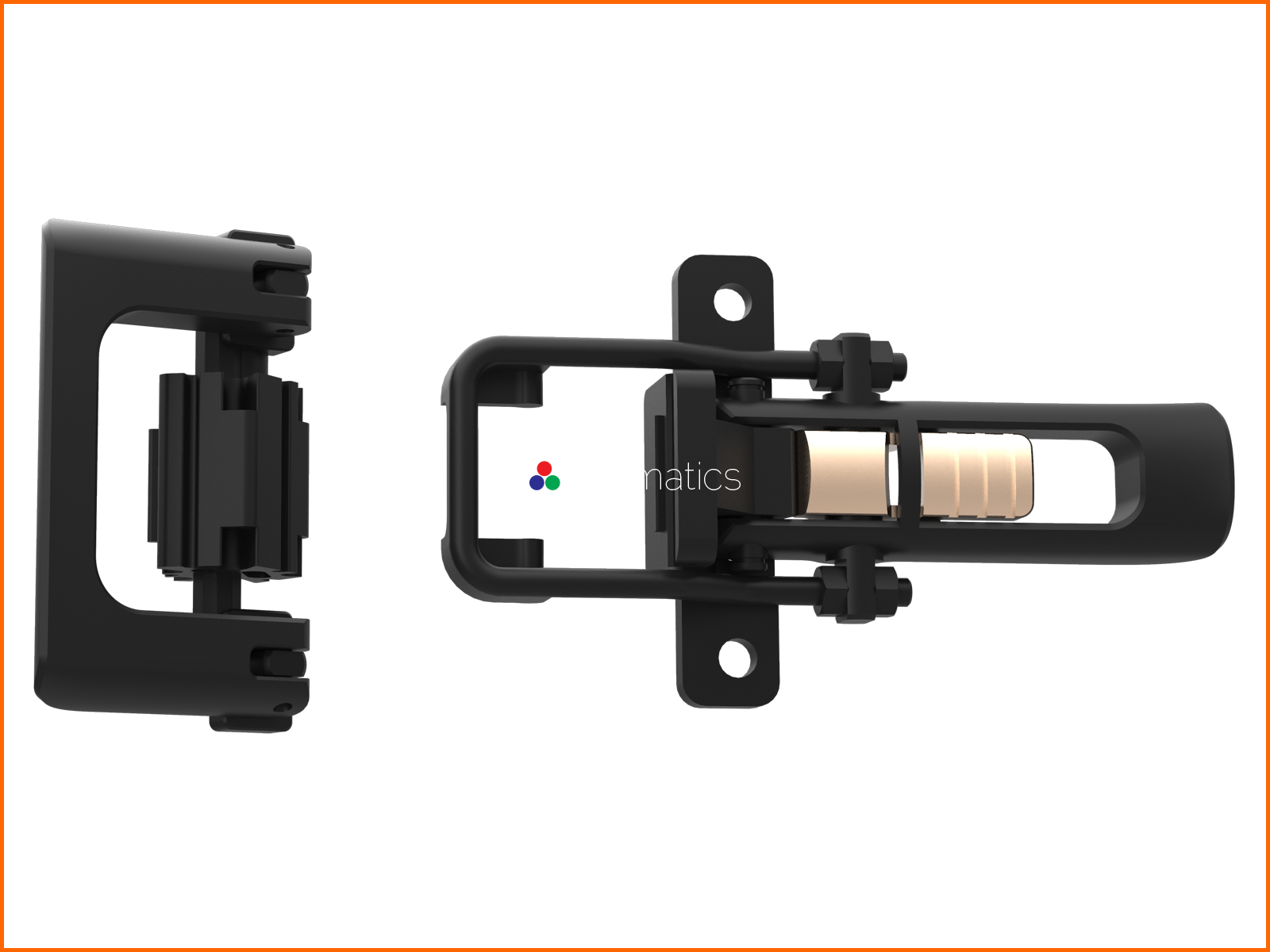

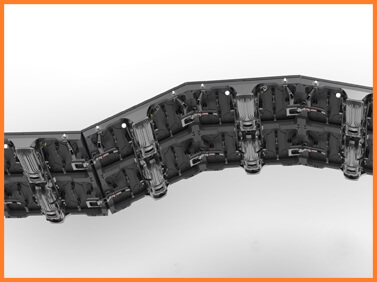

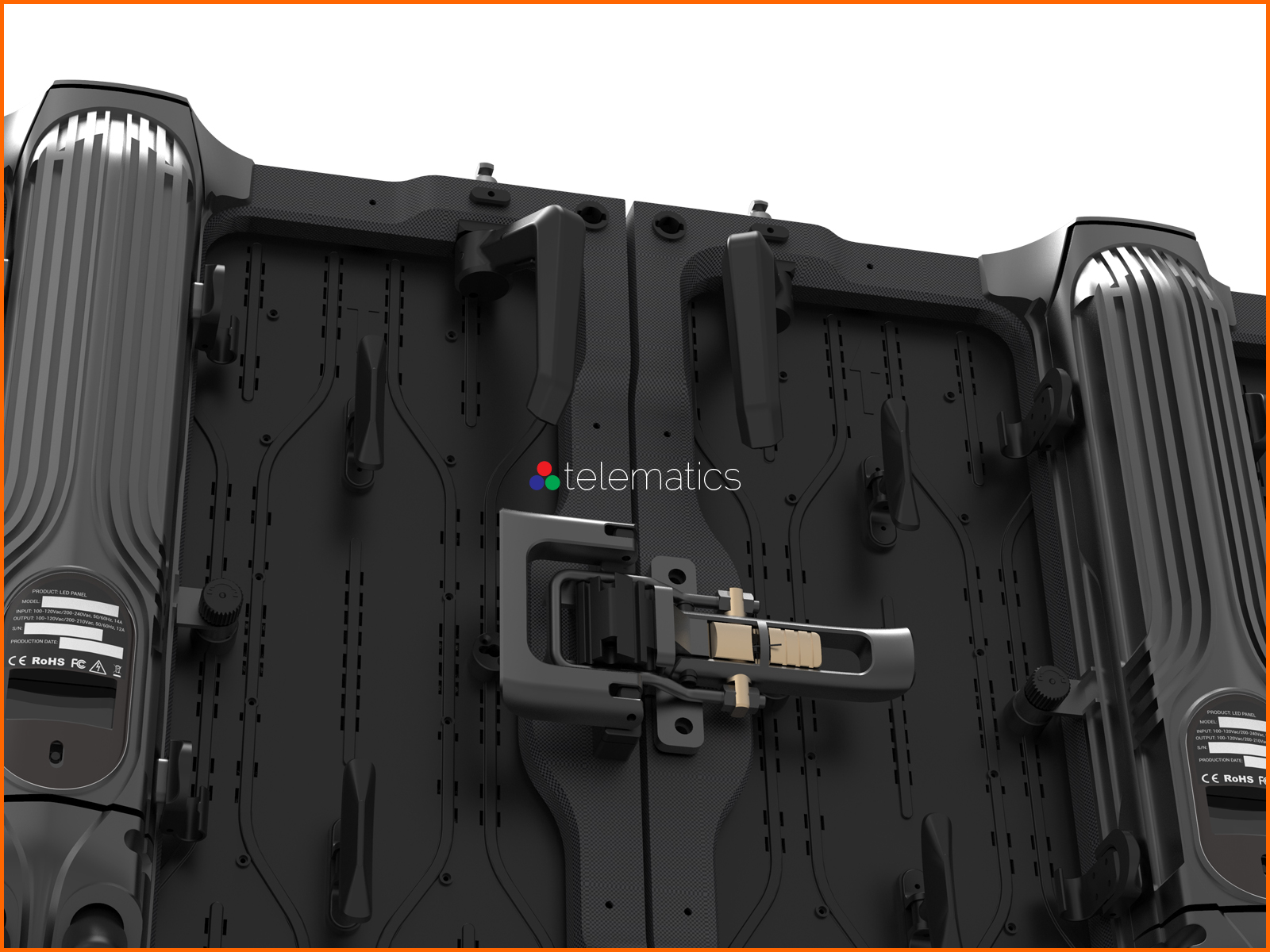

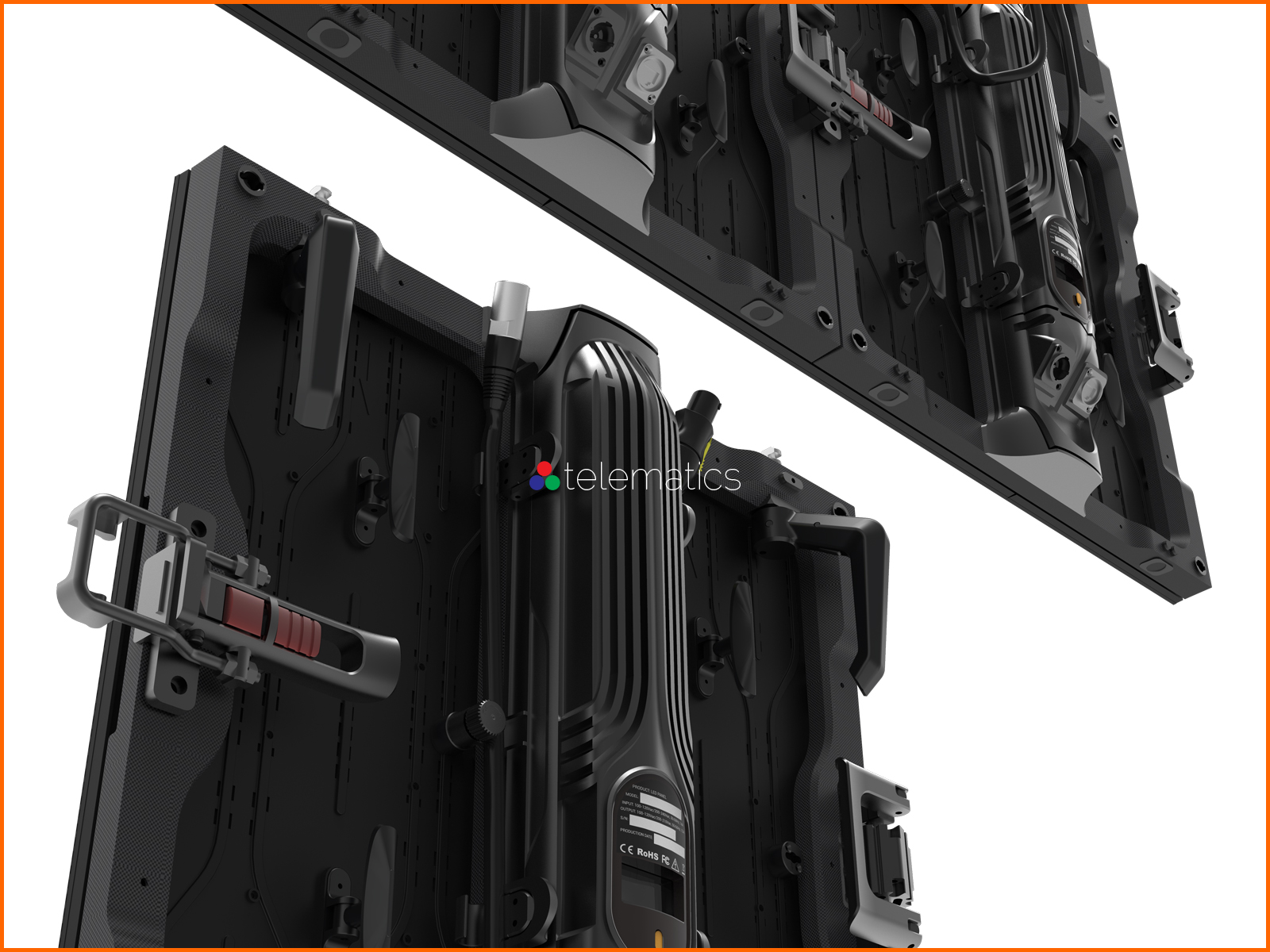

Connect the Series H using Desay's new patented push to lock and pull to unlock system. And if a lovely flat display is not what you had in mind, specify 3° or 5° concave and convex angles for something more flexible.

If you are looking to hit it out of the park with Brompton Technology’s High Dynamic Range (HDR) in your next display, the Desay Series H is the first of our panels to offer a combination of the Tessera M2 or Tessera SX40 LED Processors and the Brompton Tessera R2 Receiver Cards.

Content can also be handled by any of our NovaStar controllers. Good chance that might be one of our 4K controllers or the new Taurus Series.

The Series H is our newest addition to the Desay family and like any demanding stage parents we can't wait to get our little darling out on tour with the band!

Our Manufacturers

Desay is a public corporation (002920) established in 1983 and diversified in the fields of automotive electronics, advanced batteries, industrial automation, microelectronics and since 2001, a leader in optoelectronic LED production.

Desay's optoelectronic division has quietly emerged as an industry leader ranked #1 in Asia and #3 worldwide for the past decade with annual sales measured in tens of thousands of panels and cabinets.

The company owns 3 industrial zones with a total area over one and half million square meters. Huizhou is home to the Desay factory and offices with additional offices in Shenzhen.

Desay enjoys a well-earned reputation defined by developing and producing some of the highest-quality LED displays in the world.

Our Customers

For 19 years we have developed business relationships with thousands of people from every corner of the world.

Many are AV Professionals and Consultants who need to source premium equipment for their clients or their own rental inventory for the entertainment industry. Others are Architects and Designers looking for solutions to create fantastic high-resolution LED displays spanning a wall of an office or the facade of a building. And some are end-users prepared to take on the challenge of setting up their own digital displays for their storefronts.

In each case, we provide our customers with the answers they need and endeavor to offer solutions that are affordable, effective and reliable.

And we always keep their secrets to ourselves.

Our Cool Photos

A picture is worth a thousand clicks.

There are not more than five primary colors, yet in combination they produce more hues than can ever been seen.~ Sun Tzu

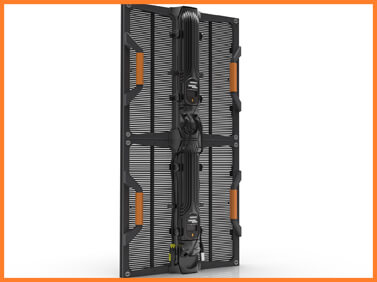

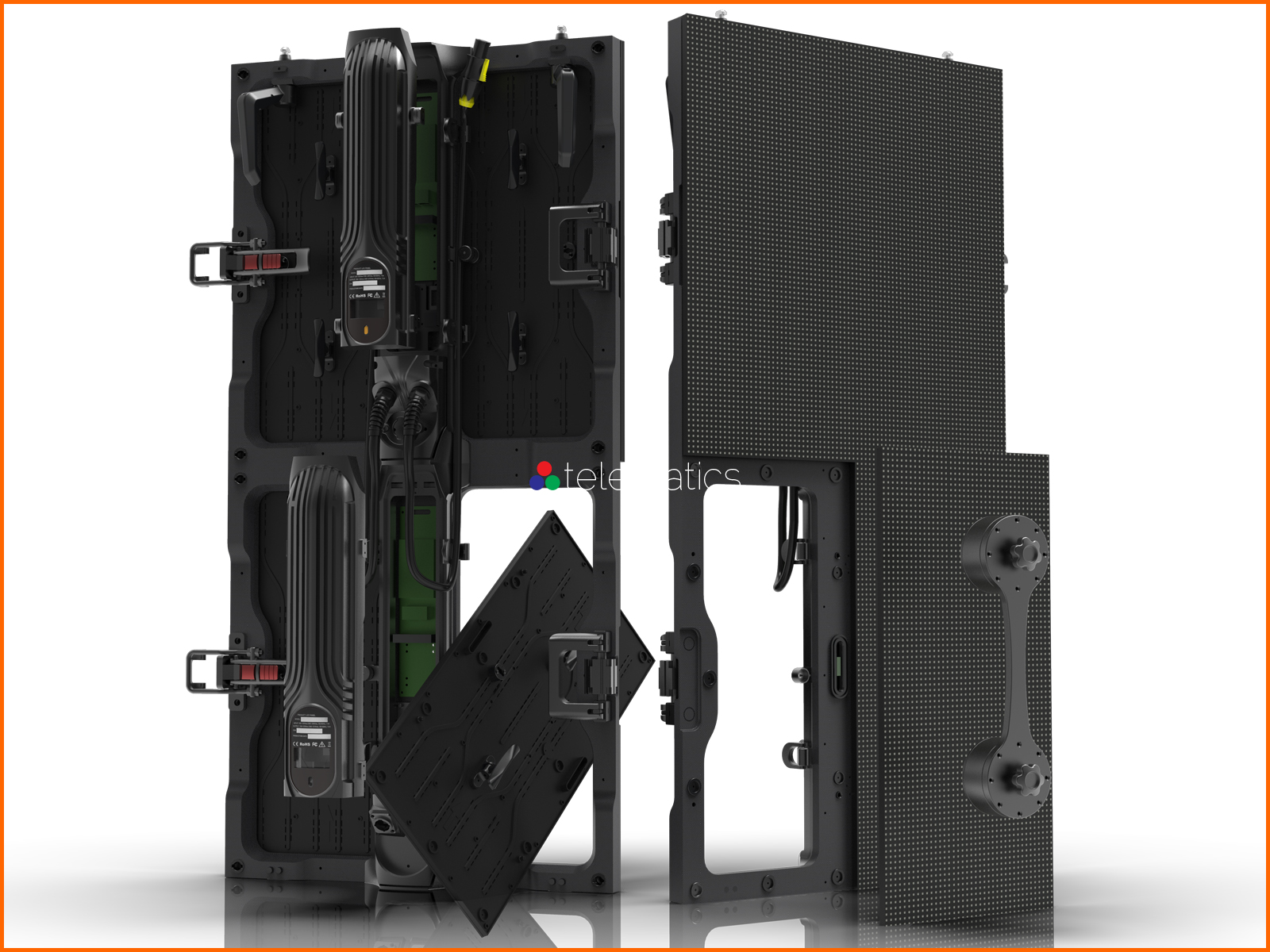

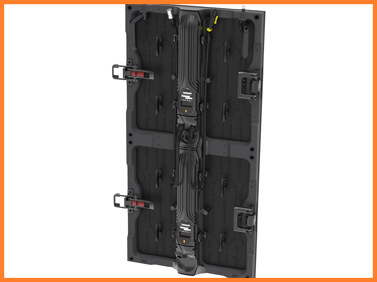

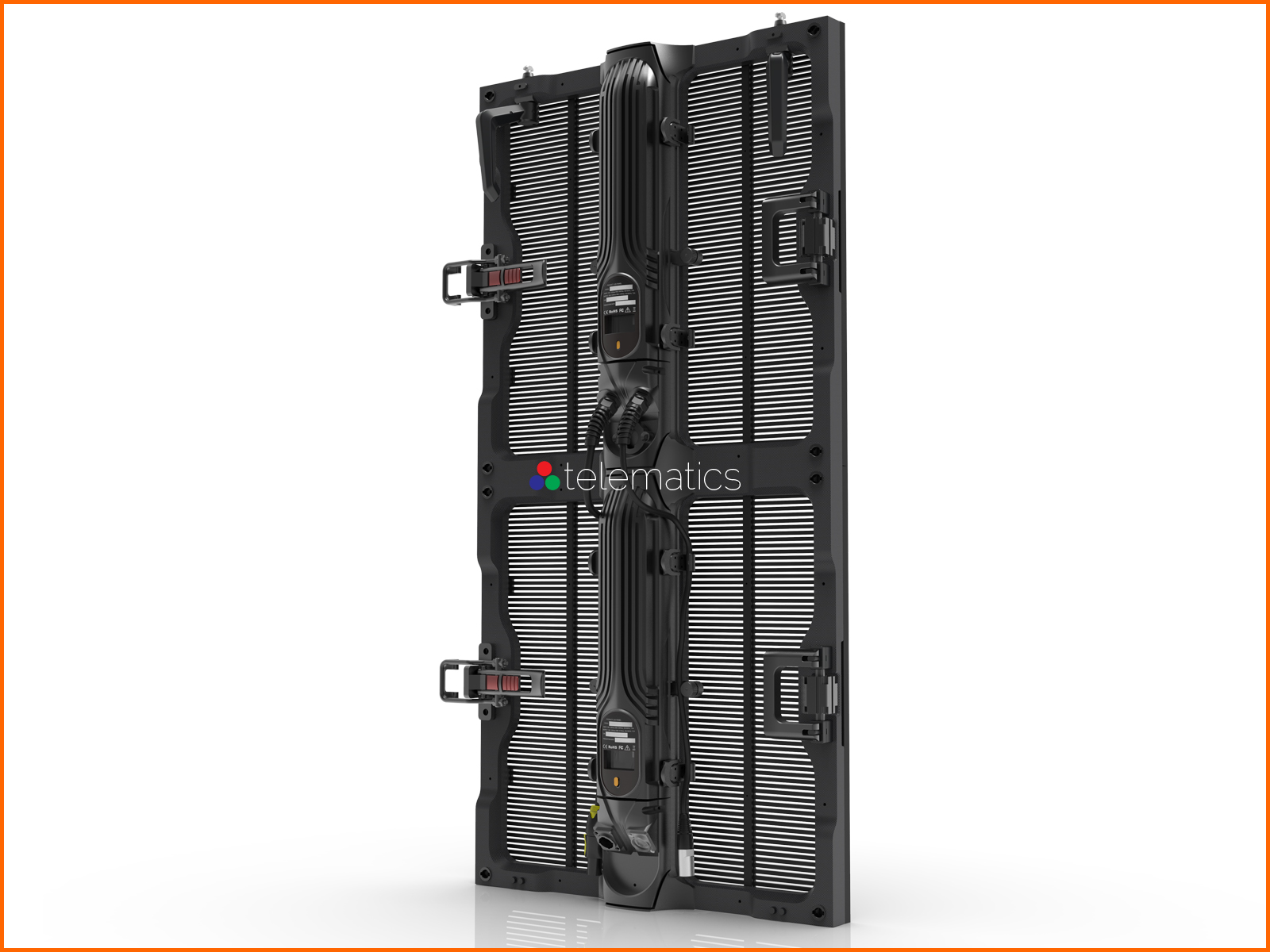

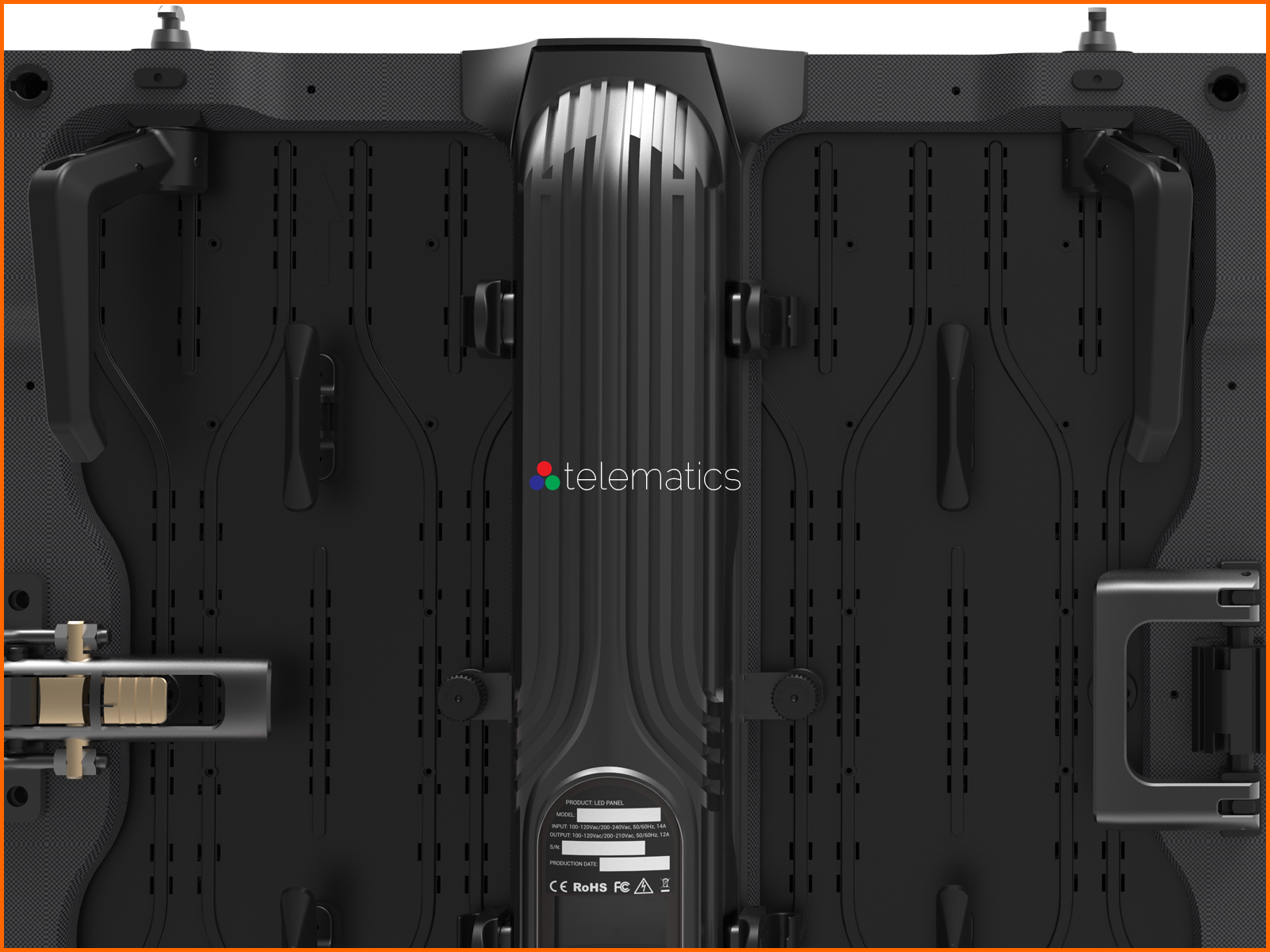

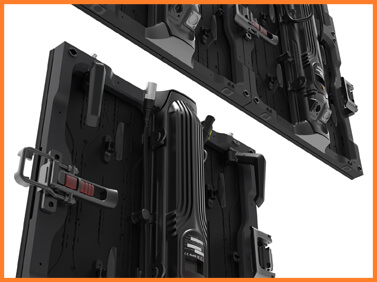

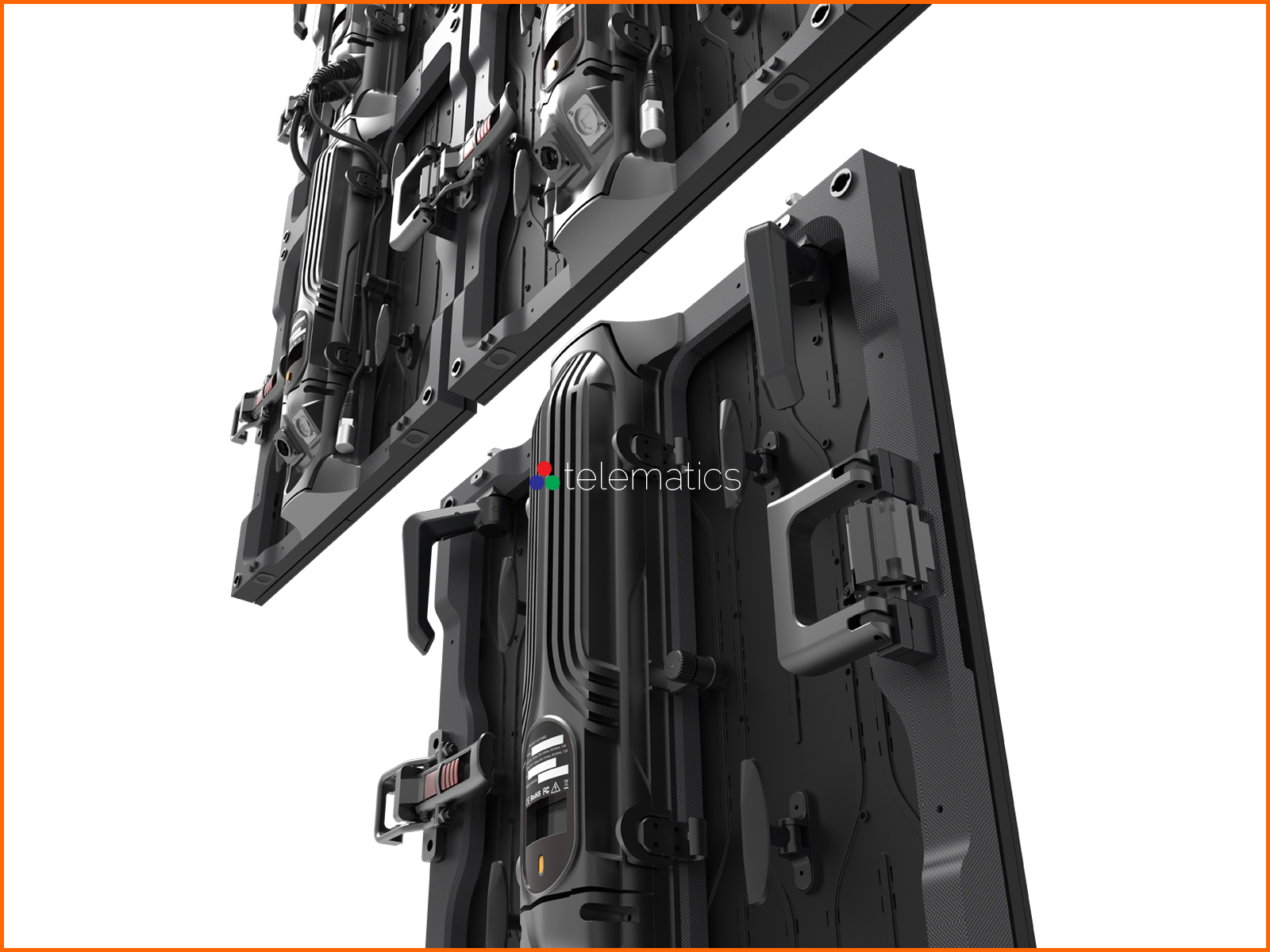

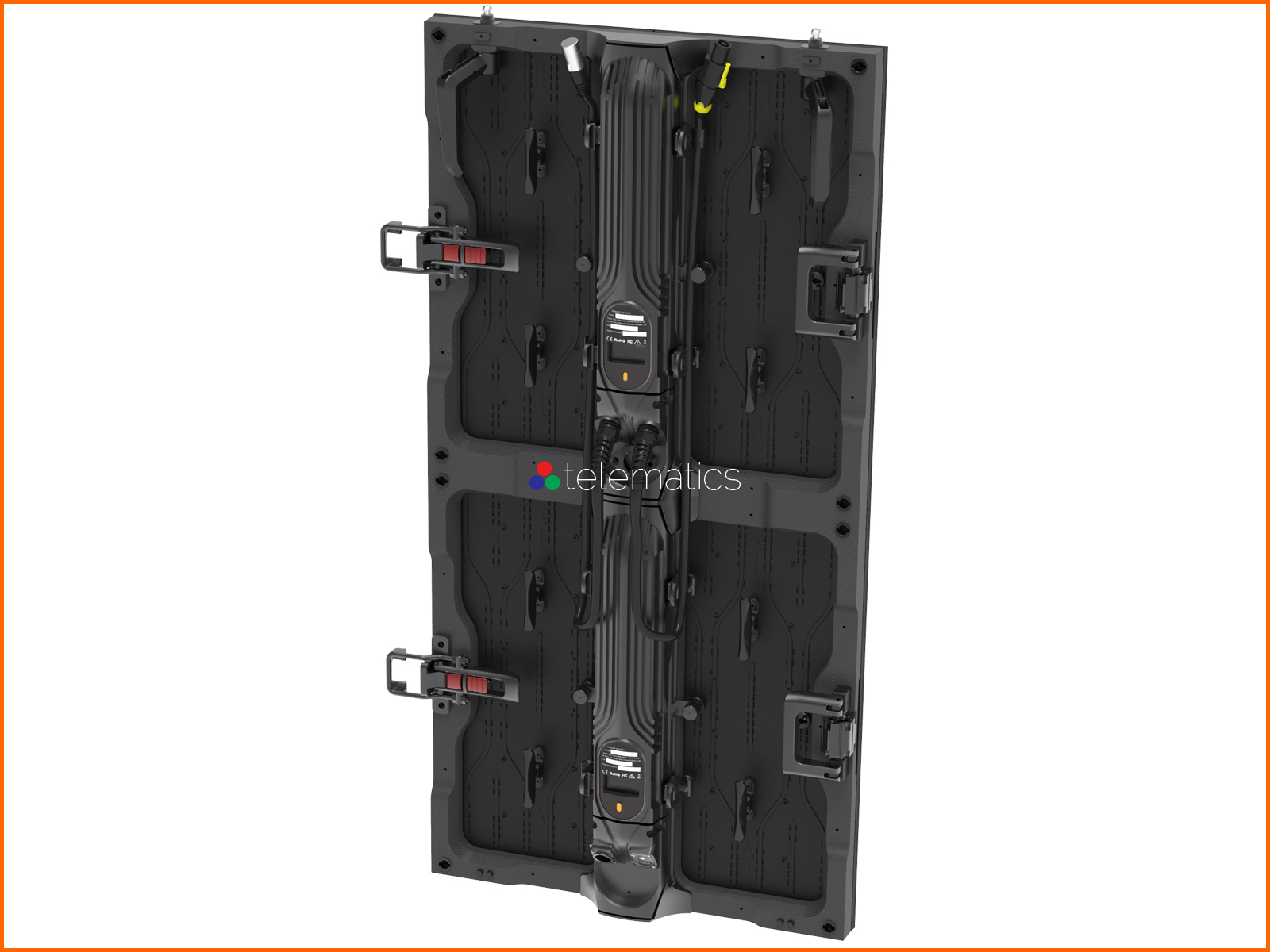

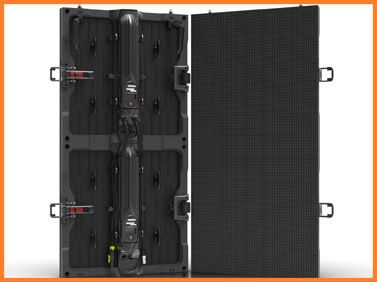

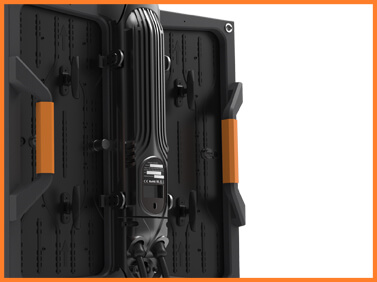

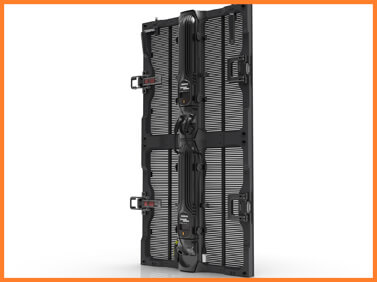

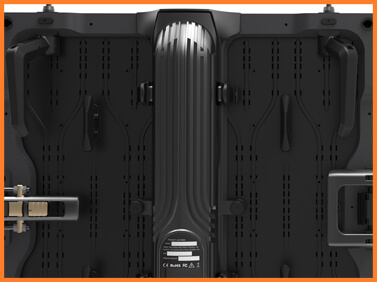

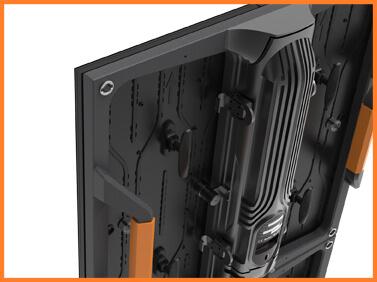

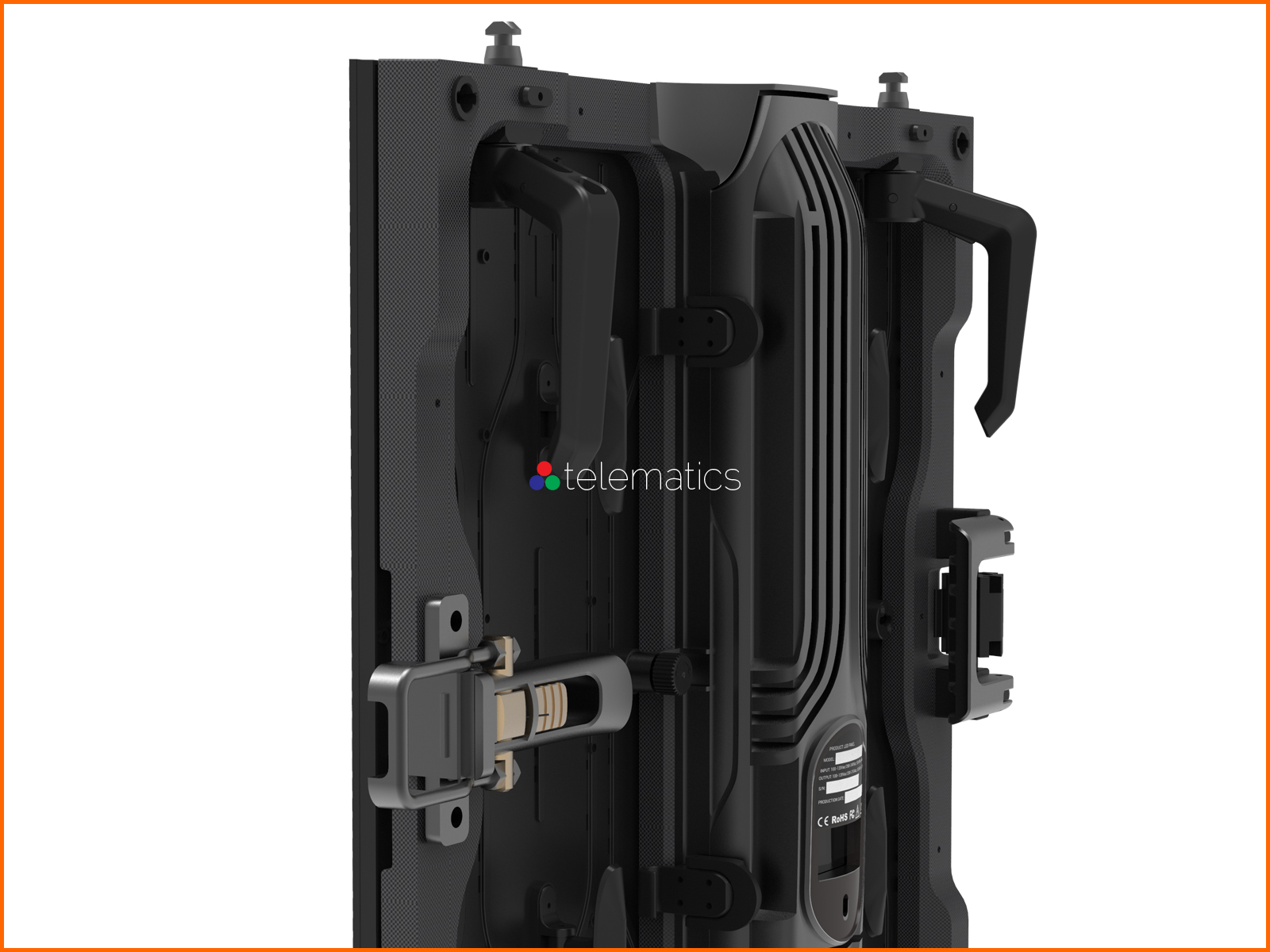

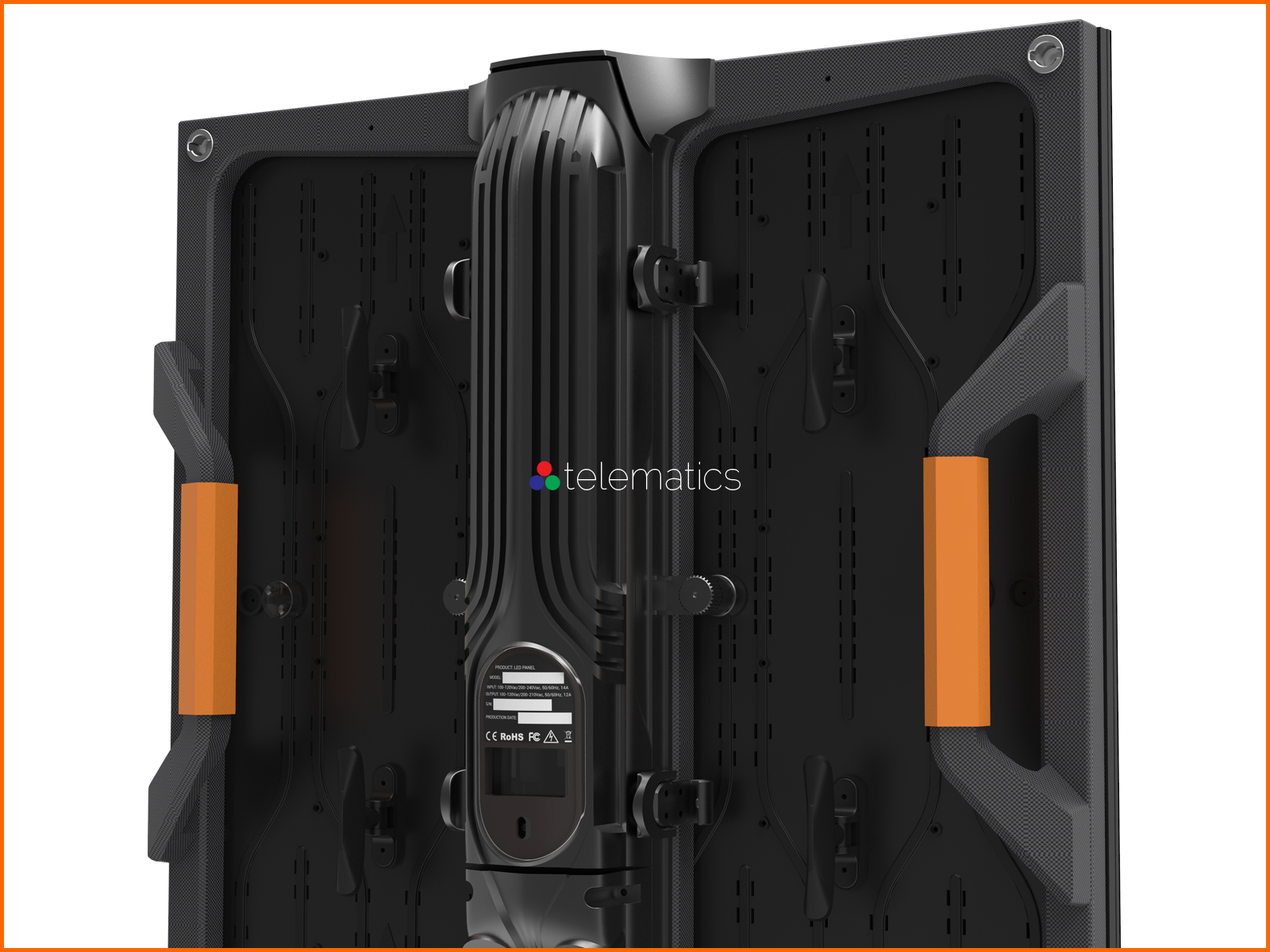

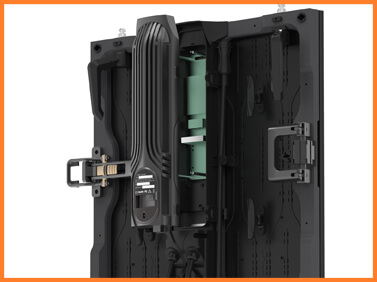

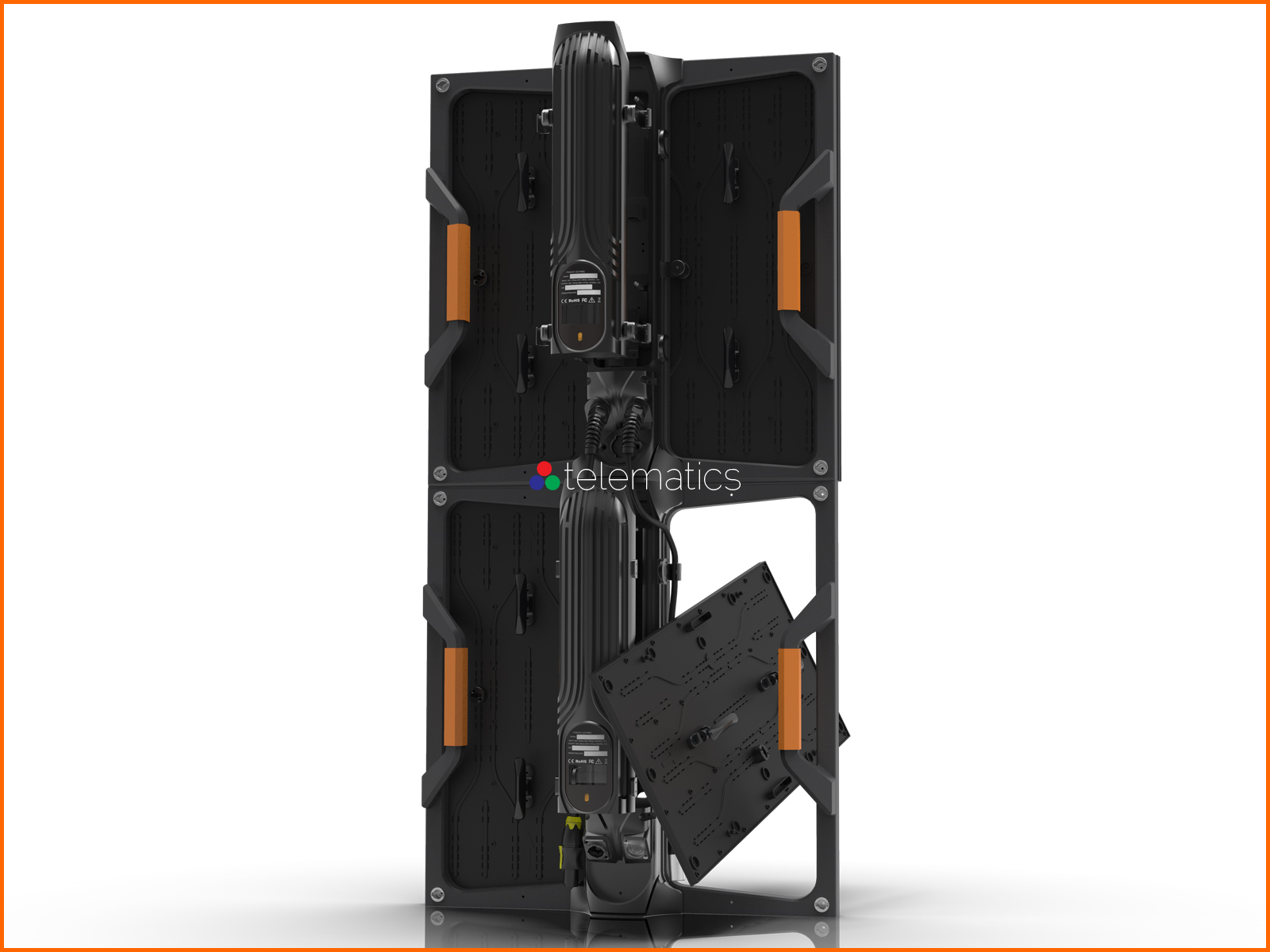

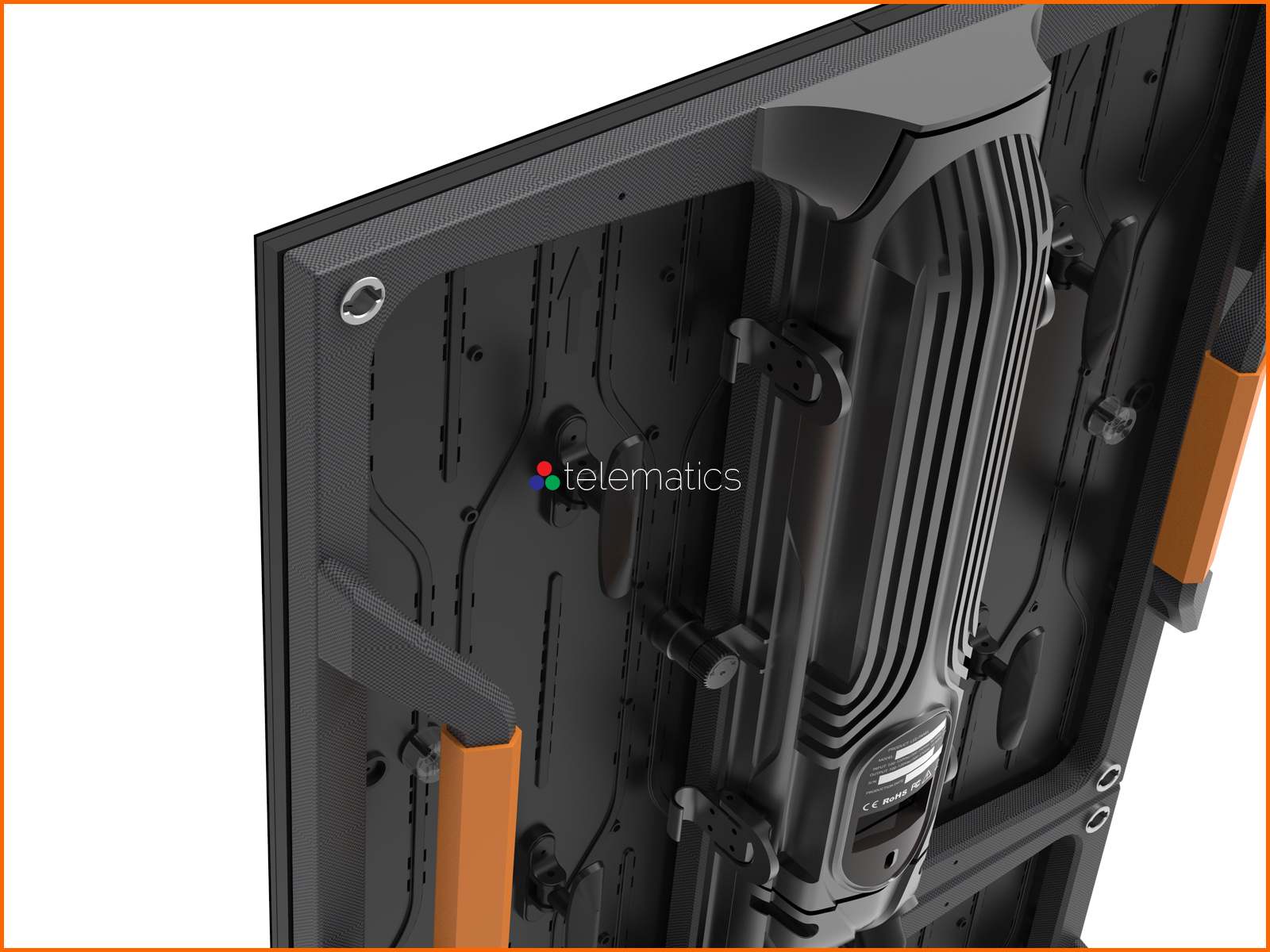

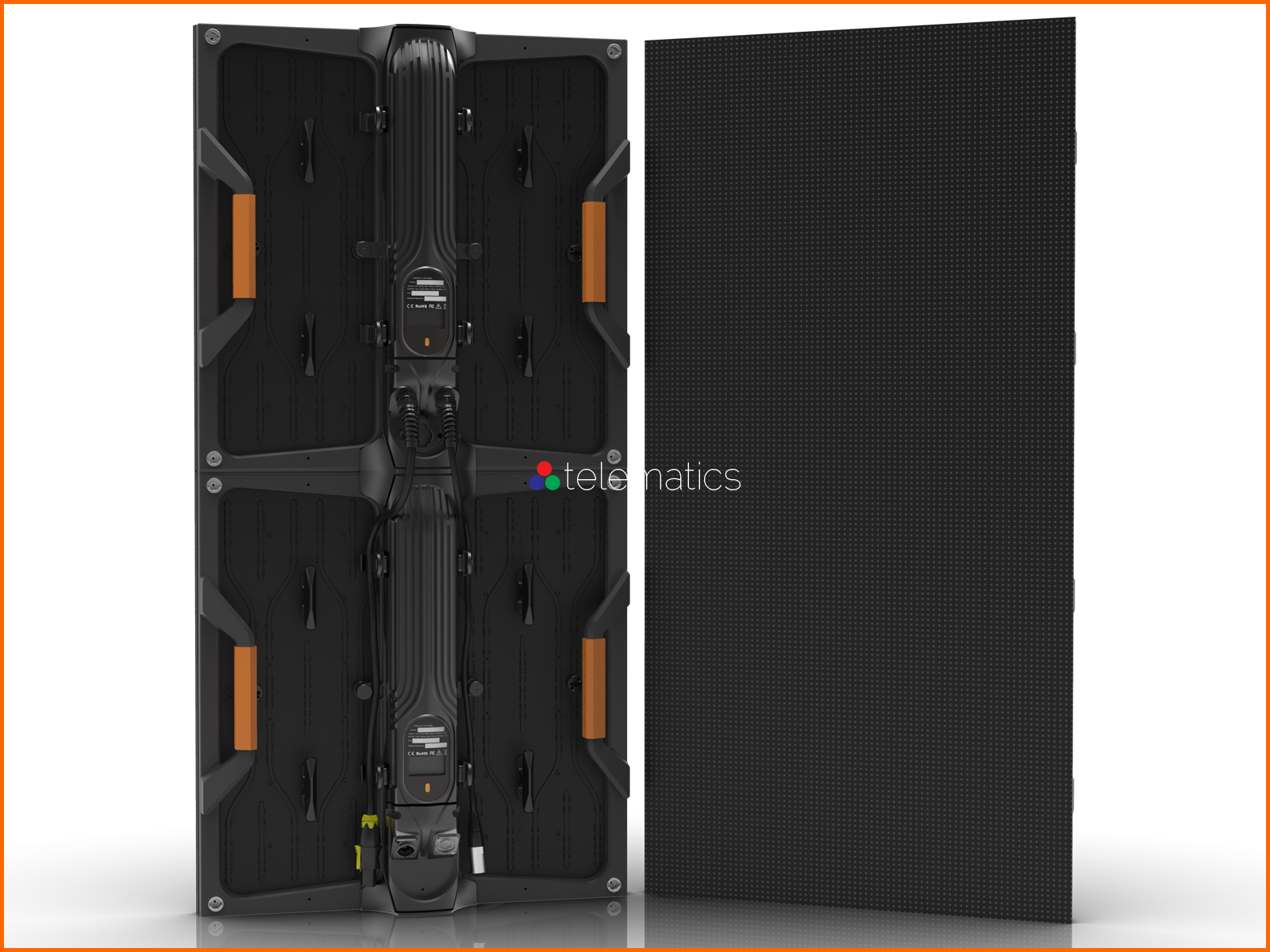

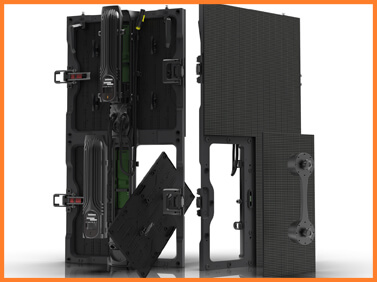

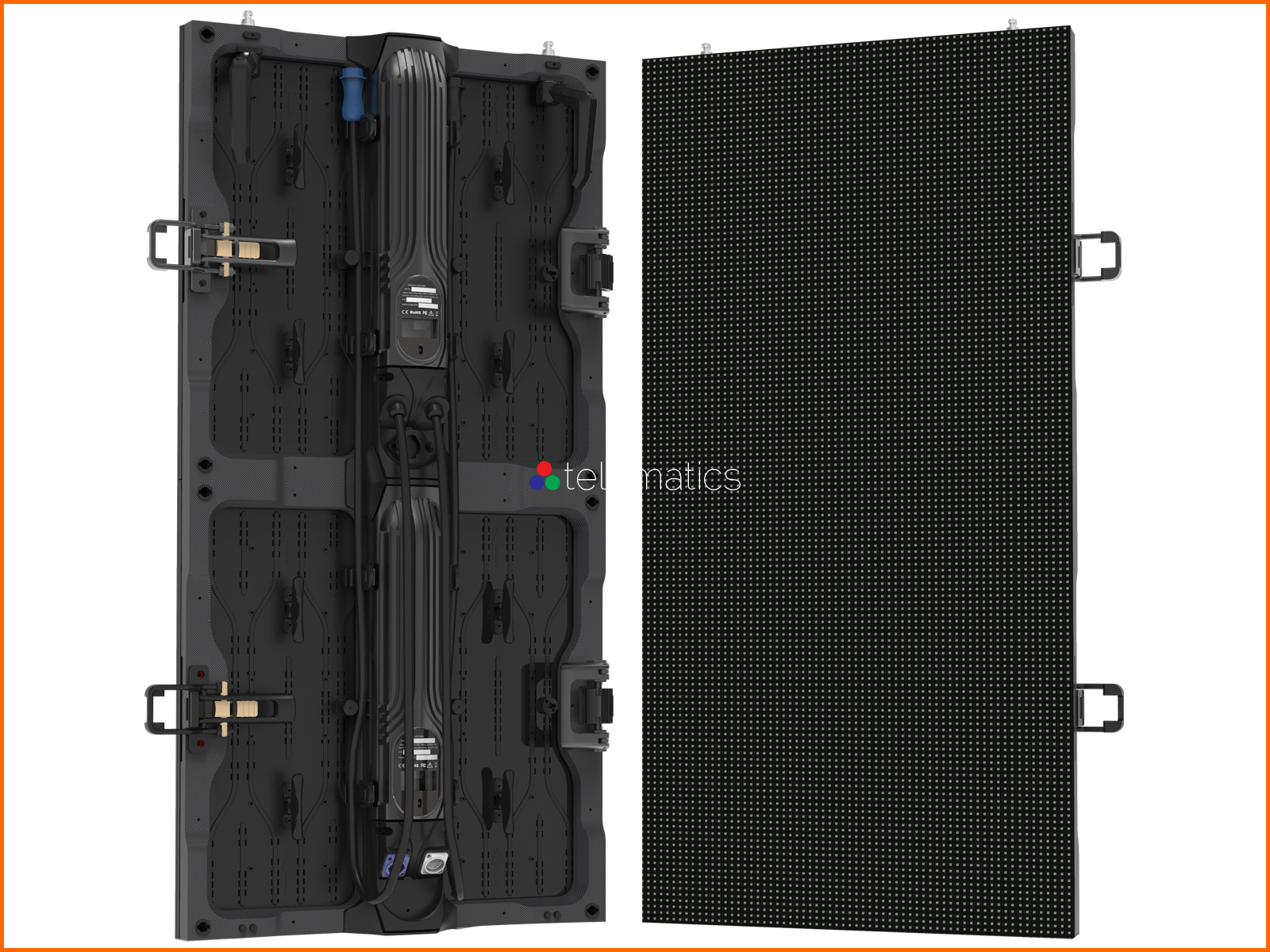

Series H Photos · Panel ⁽²⁴⁾

Series H

Series H

Series H

Series H

Series H

Series H

Series H

Series H

Series H

Series H

Series H

Series H

Series H

Series H

Series H

Series H

Series H

Series H

Series H

Series H

Series H

Series H

Series H

Series H

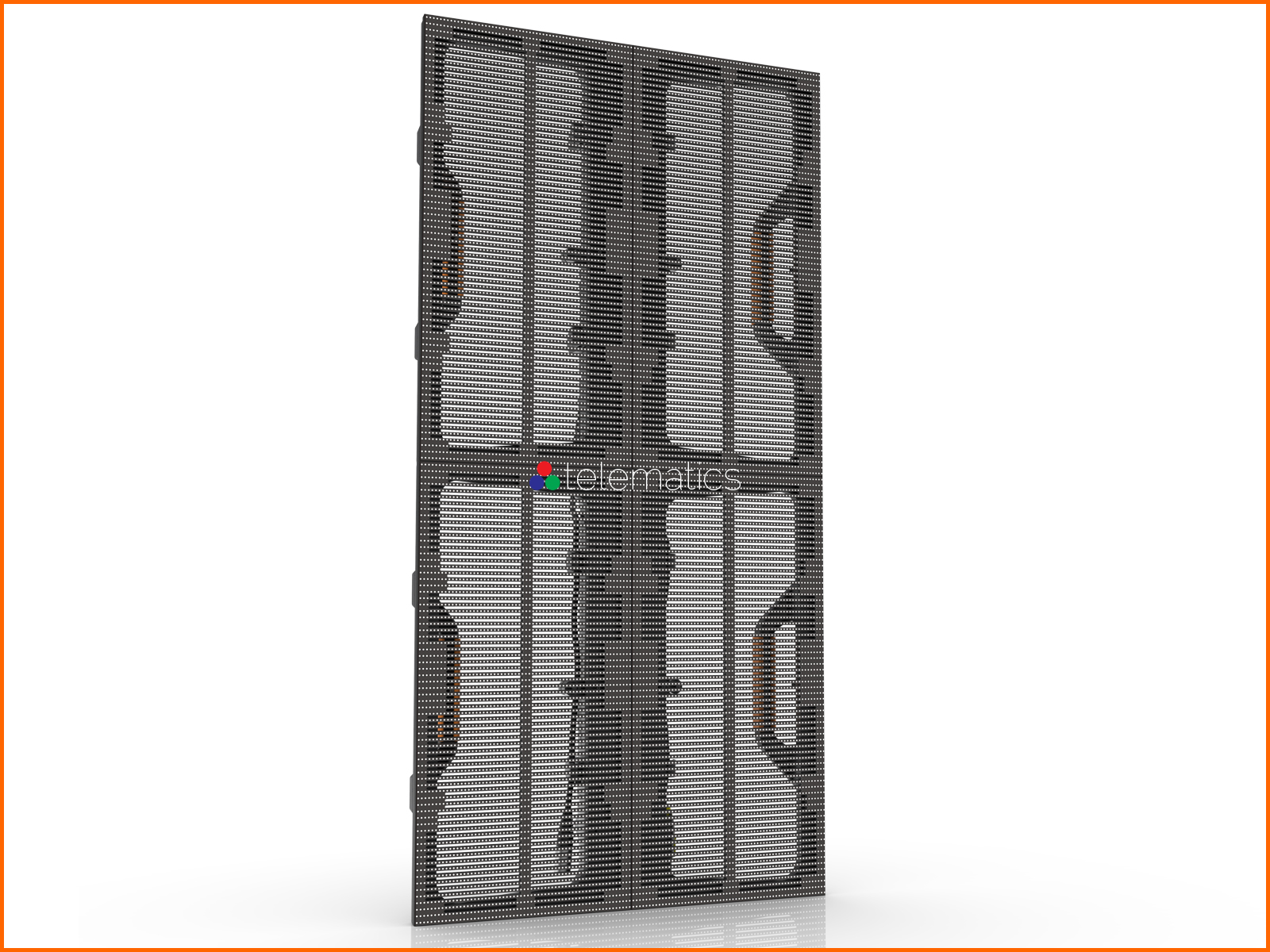

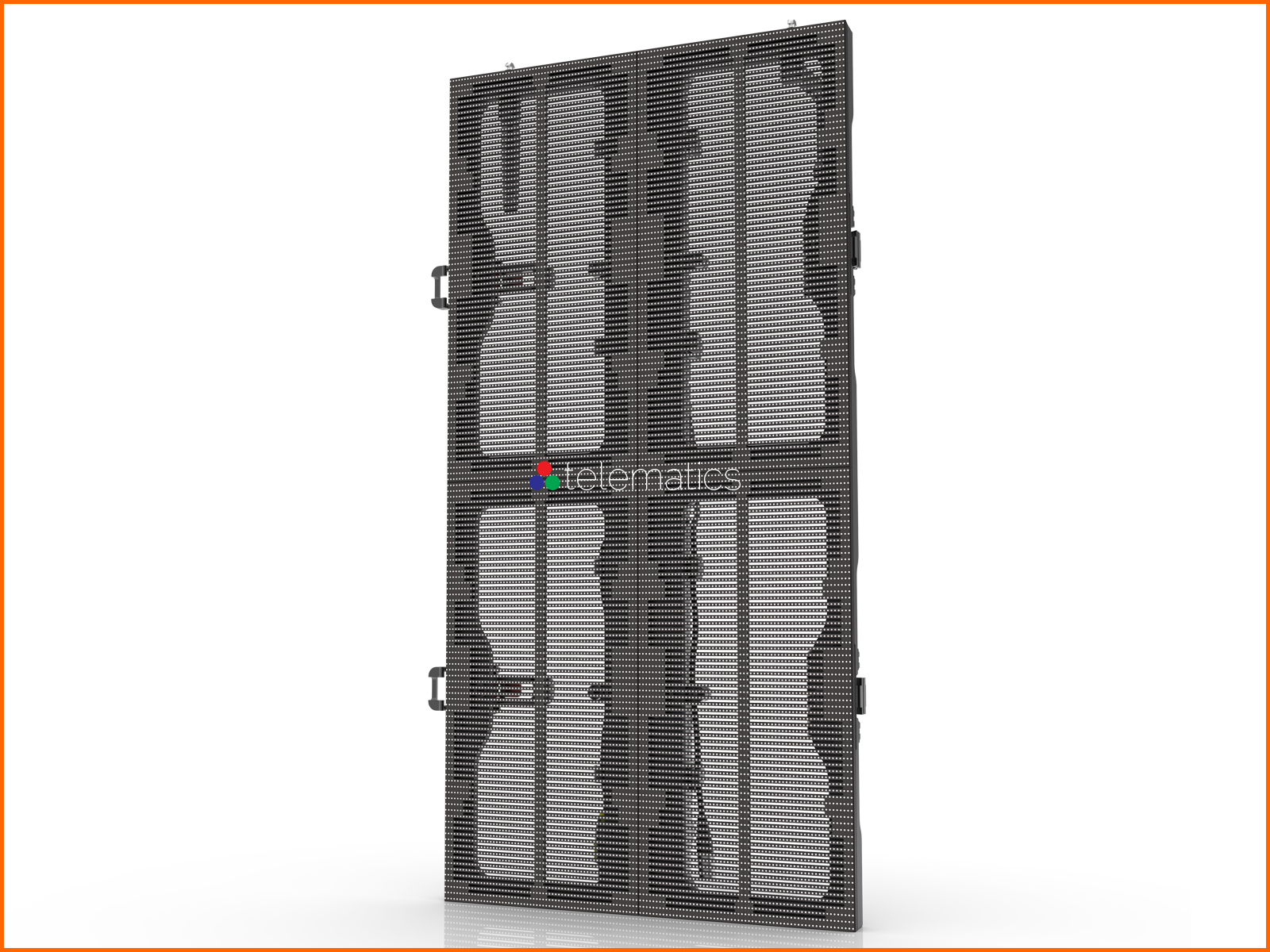

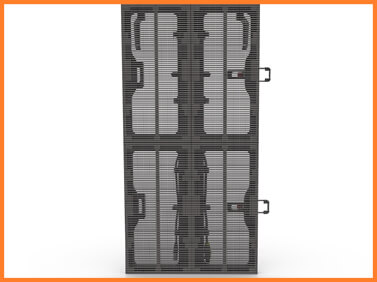

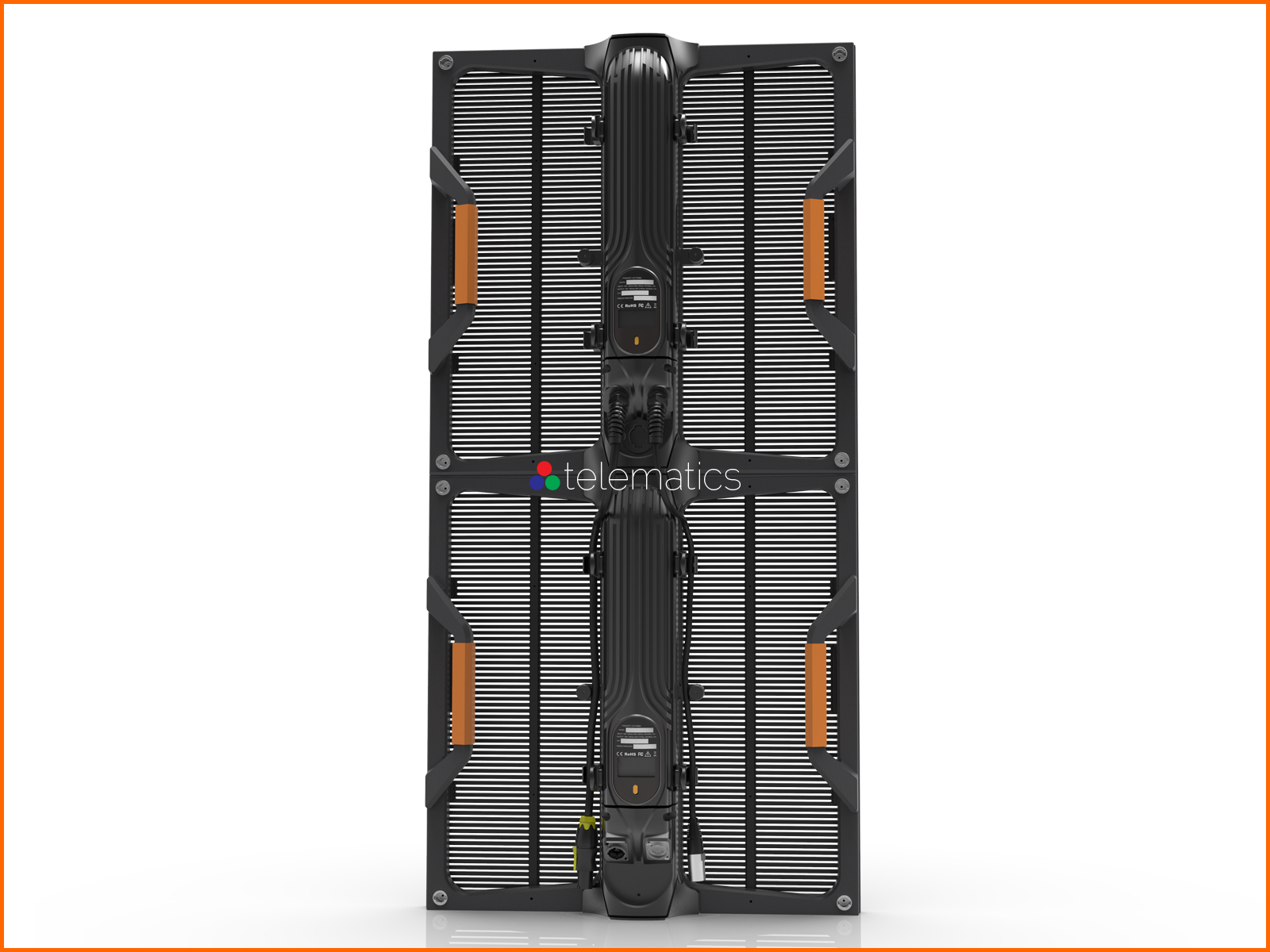

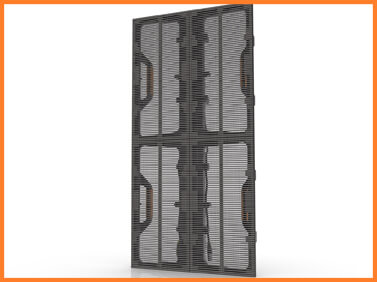

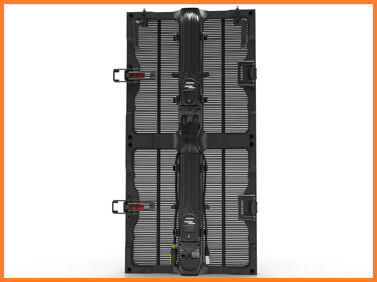

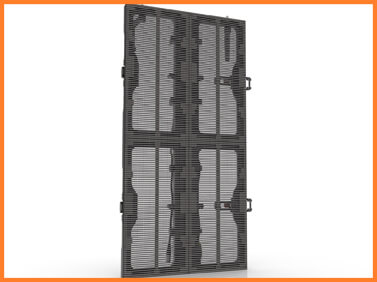

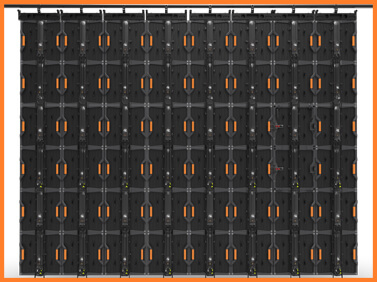

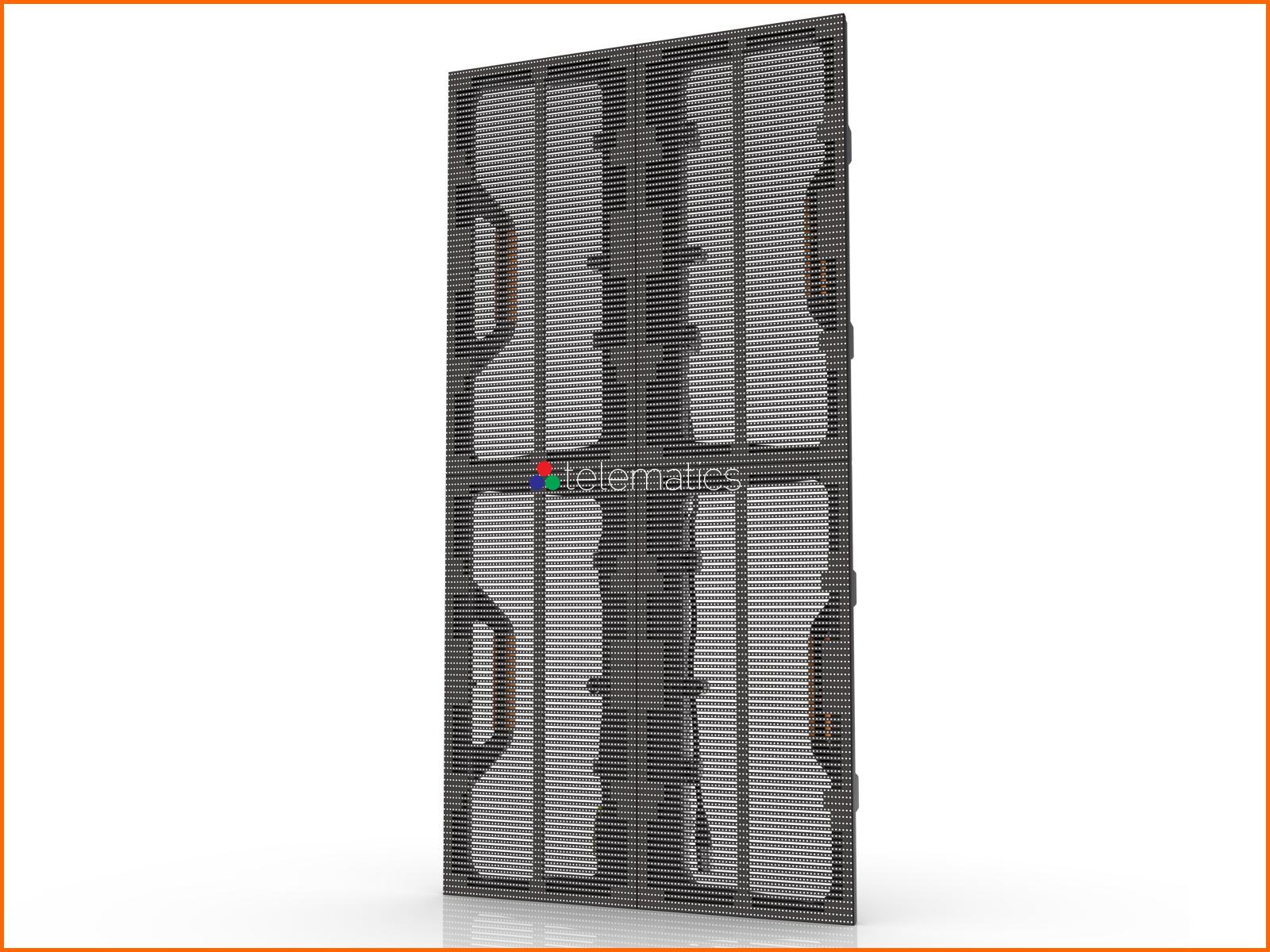

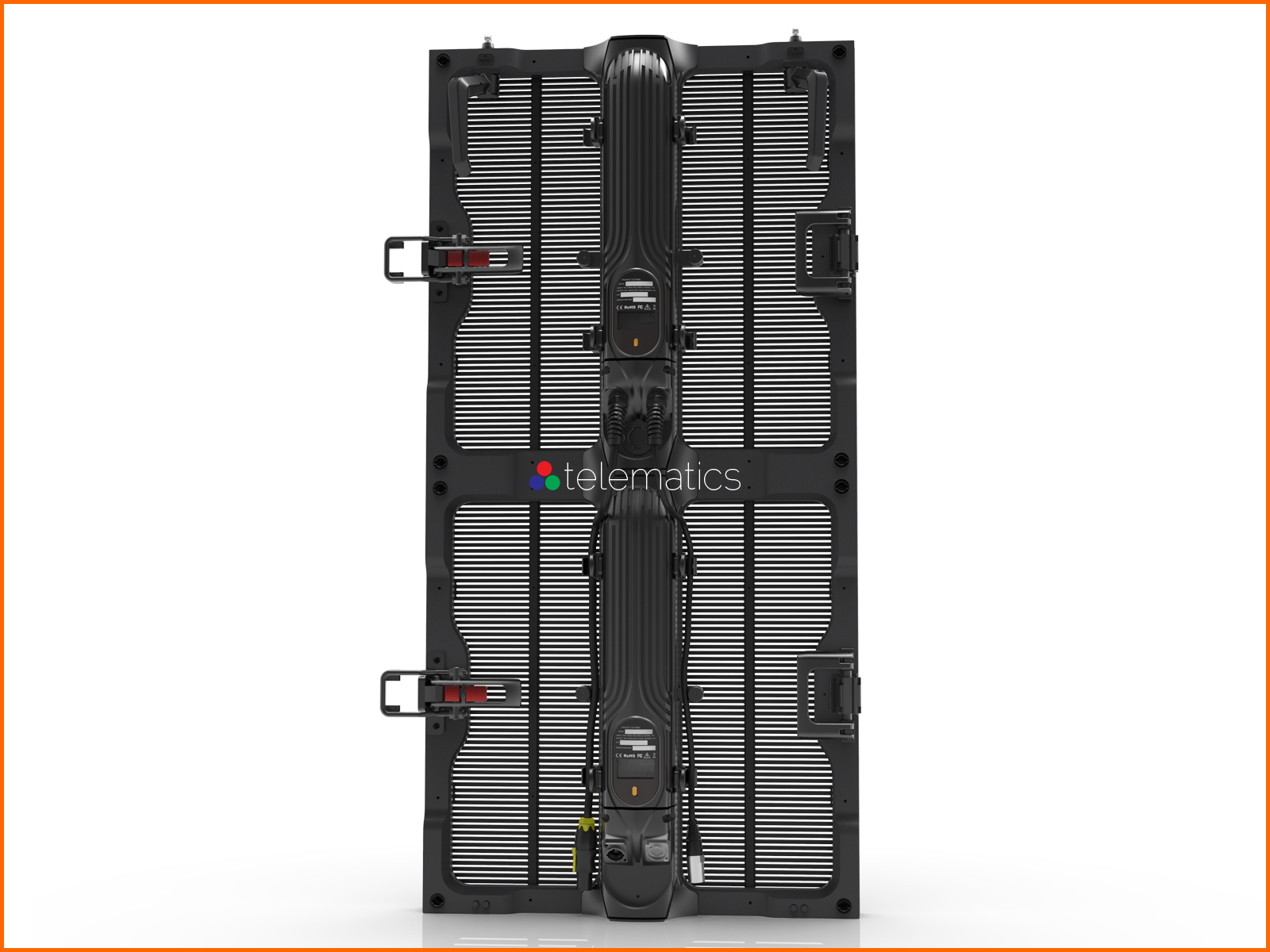

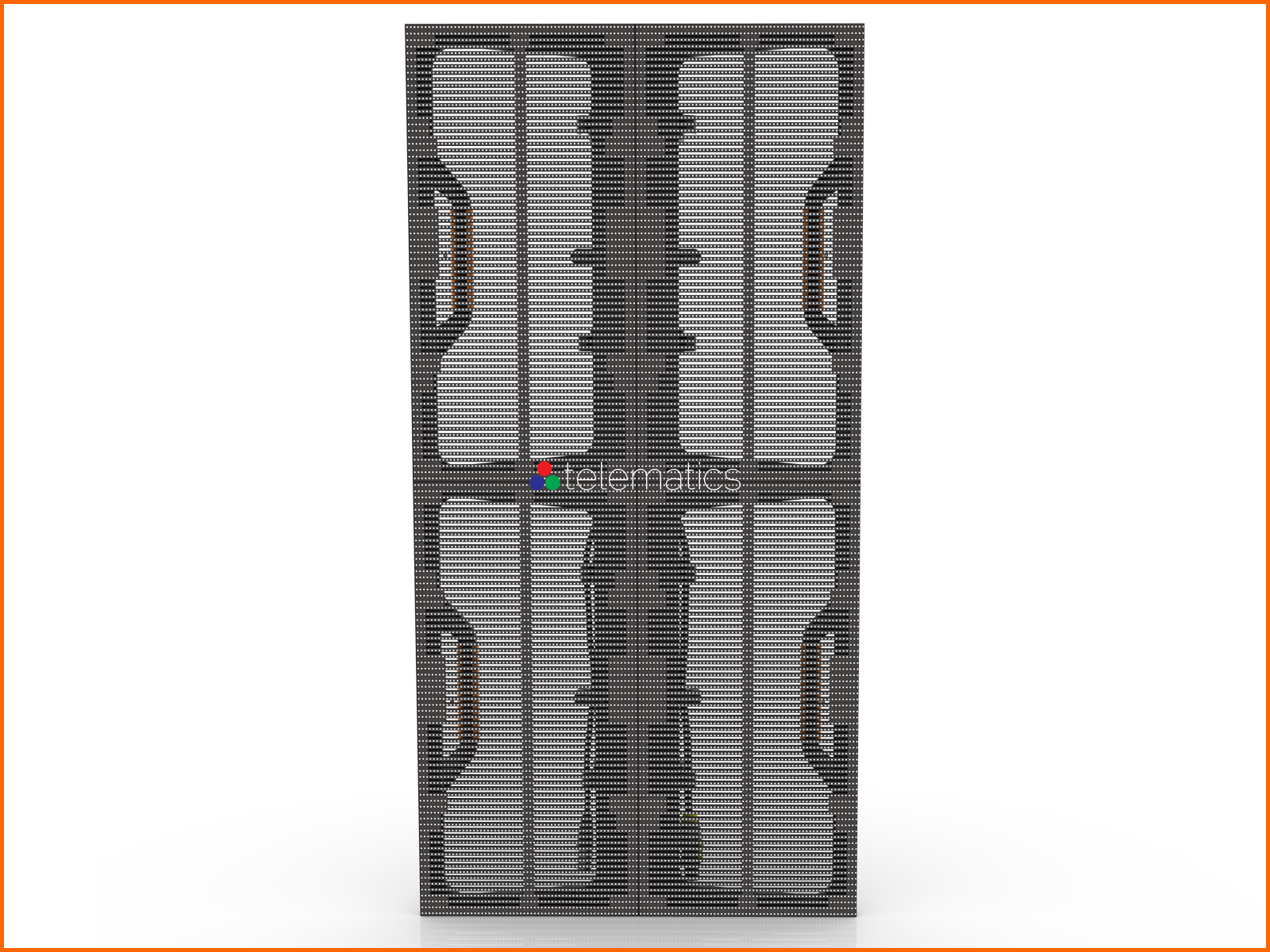

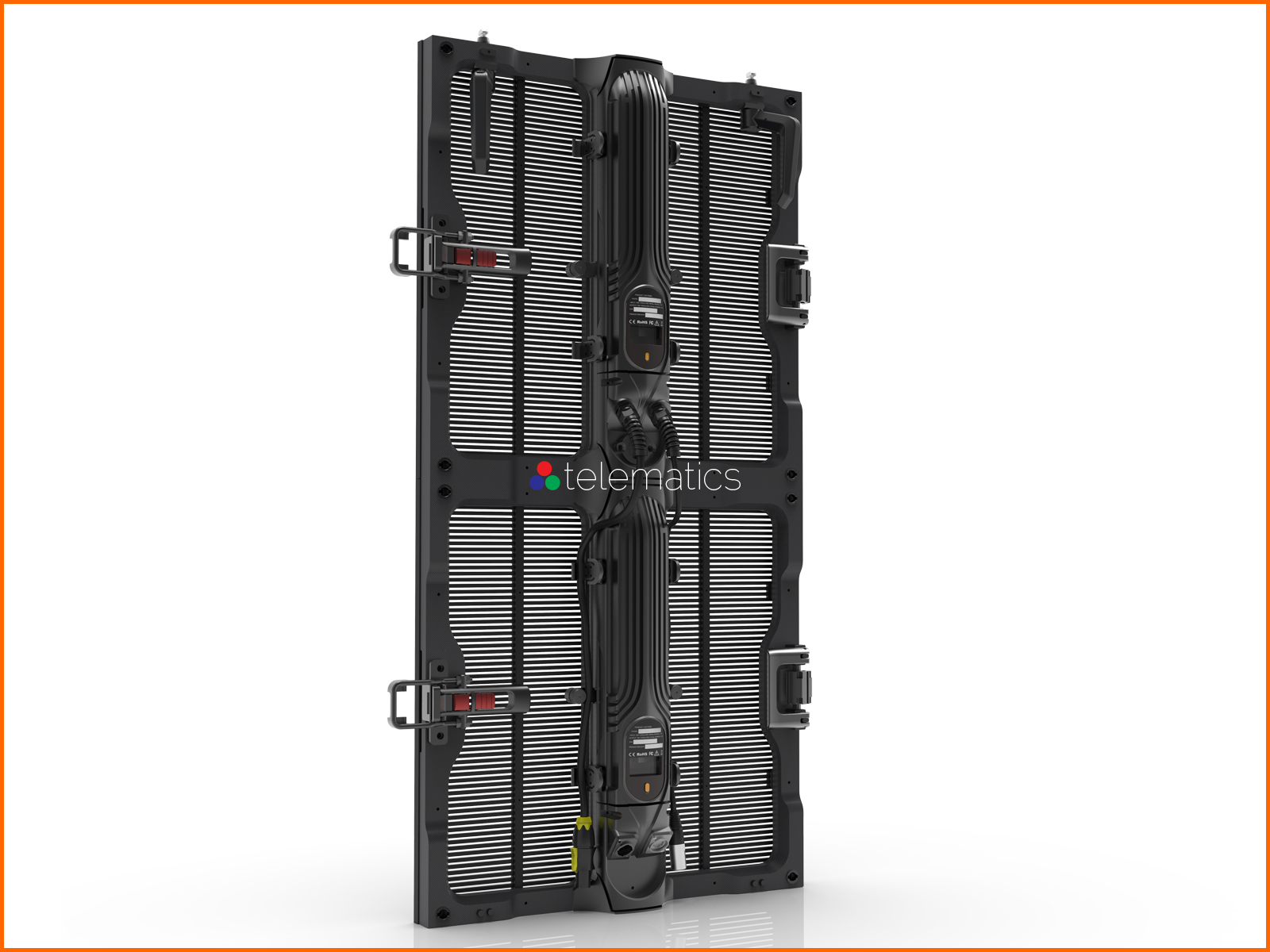

Series H Photos · Mesh ⁽⁶⁾

Series H

Series H

Series H

Series H

Series H

Series H

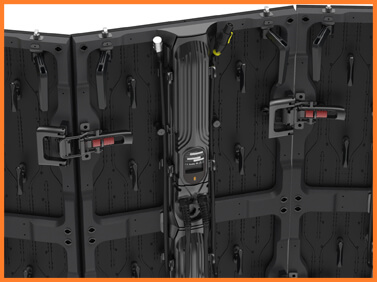

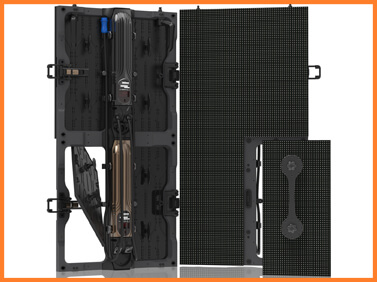

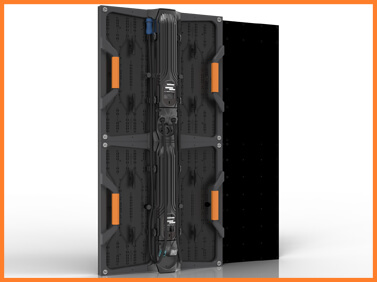

Series H Photos · Panel ⁽¹⁸⁾

Series H

Series H

Series H

Series H

Series H

Series H

Series H

Series H

Series H

Series H

Series H

Series H

Series H

Series H

Series H

Series H

Series H

Series H

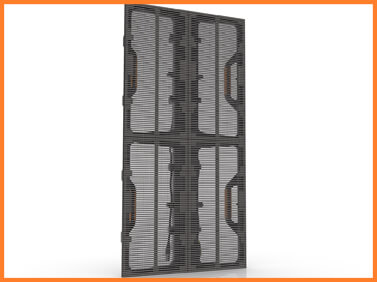

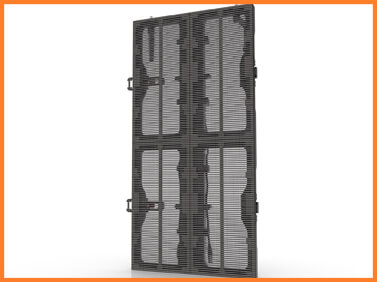

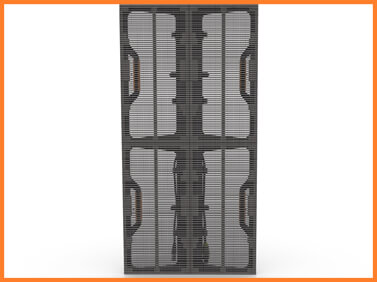

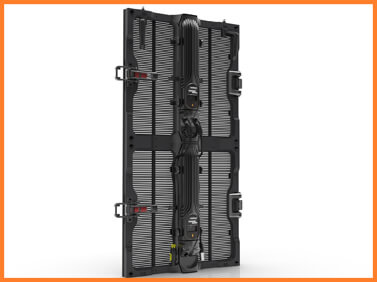

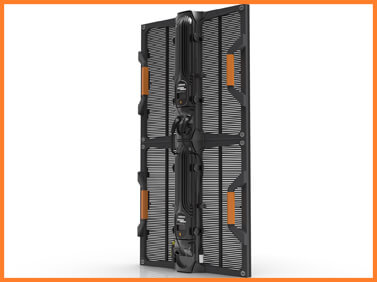

Series H Photos · Mesh ⁽⁶⁾

Series H

Series H

Series H

Series H

Series H

Series H

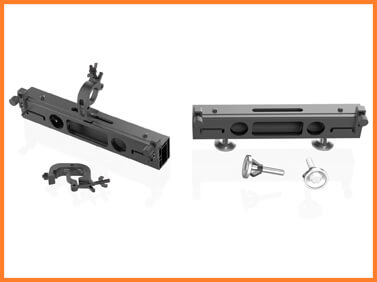

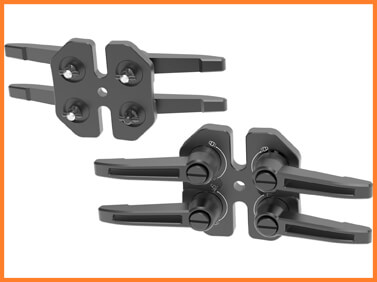

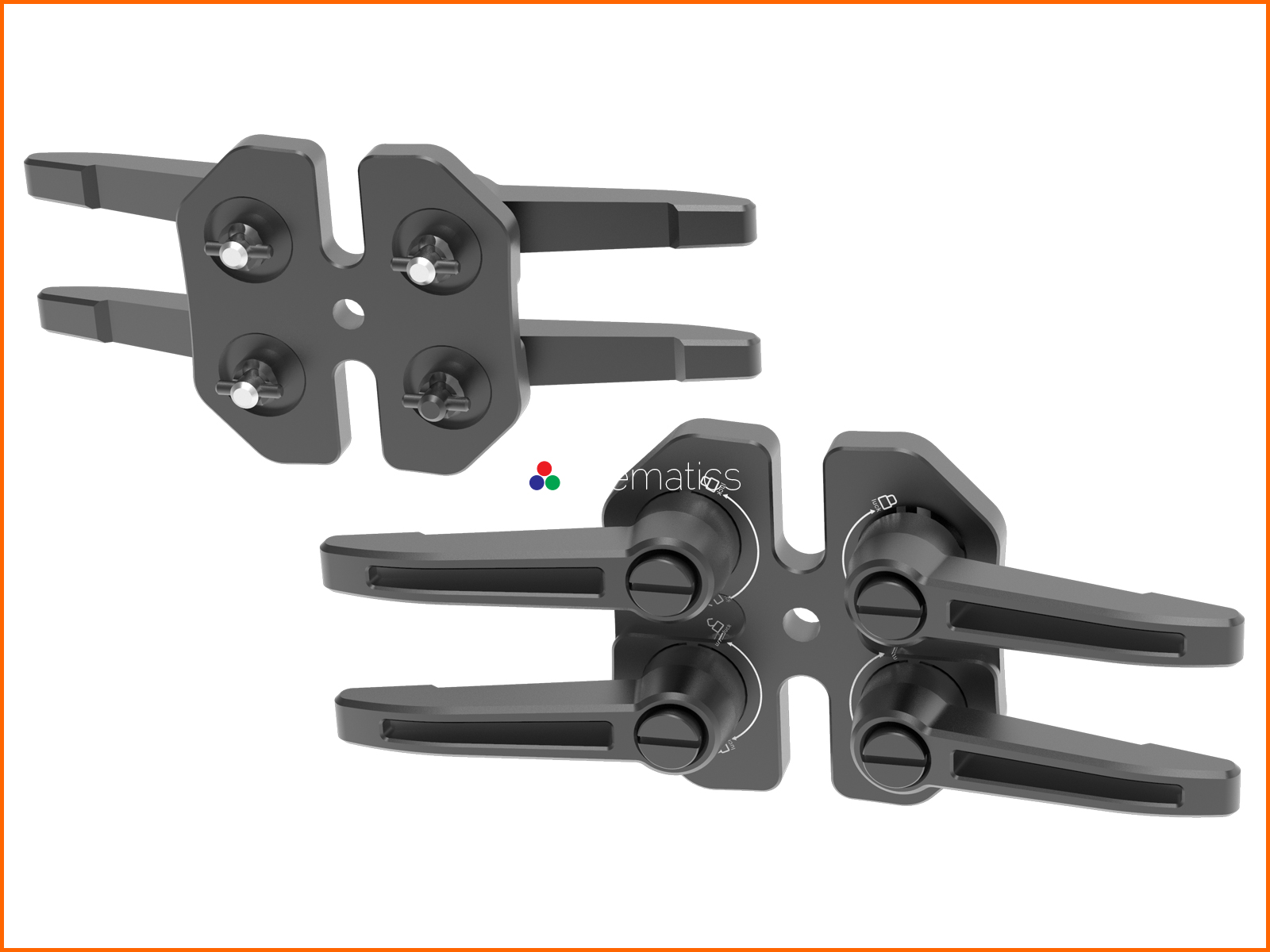

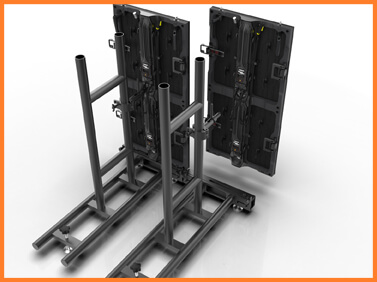

Series H Photos · Accessories ⁽⁶⁾
