Desay QF. We think 'Quite Fine' sums it up.

Time to actually think outside the box. On account of there isn't one.

Pixels

Pixel to pixel spacing begins at an impressive 2.58 millimeters to create a display resolution of more than
150,000 LEDs per square meter.
Each millimeter of spacing supports one meter of viewing distance which means that the Series FS2.5 looks great from under 3 meters away.

Dimensions

The Series FS is a frame-ready panel that weighs approximately
10 kilograms with XYZ dimensions of
496 * 496 * 55 millimeters.
When we convert those numbers to the Exchequer Standards of 1825 that works out to 20 * 20 * 2 inches
and a featherweight 22 pounds.

Viewing

Indoor display brightness levels are set at an impressive 1000 cd/m².
Screen refresh rates are spec'd at 2880 Hz for smooth video transitions.
Off-axis viewing is exceptional at 70° which means that pretty much everyone in the room can see the Series FS whether coming or going.

Performance

Colors are amazing with levels of red¹³ * green¹³ * blue¹³ that provide for a combined 549 billion colors and a silky smooth 8,192 shades of grey.
Life expectancy is projected to be 100,000 hours which works out to just over 11 years. We look forward to seeing you again sometime in 2030.

Power

Rated power consumption is a modest 168 ~ 175 Watts per square meter and up to 500 Watts on full load depending on the model.
Variable voltage power supplies accept 100V ~ 240V. Our technicians will provide an electrical schematic specific to your project on request.

Installation

The Series FS is all about a quick installation and tear-down. Power and data cabling is simple and intuitive with quick-release Neutrik components. Instead of making apologies, you may just make it home for that family dinner after all. Well, maybe not that quick.

Specifications · Desay Series QF

Bring your inner creative side outdoors.

Therefore, in your deliberations, when seeking to determine the military conditions, let them be made the basis of a comparison. ~ Sun Tzu

Series	QF3⁹⁰
Pixels ^{mm · meters}
Resolution ^{· ctc distance · mm}	3.90
Resolution ^{· per linear meter}	256
Resolution ^{· per square meter}	65536
Dimensions ^{mm · (inch)}
Width	250 ^(9.8)

Height	250 ^(9.8)

Depth ^{· at module edge}	- ^(-)
Depth ^{· at power box}	62 ^(2.4)
Weight ^{kilo · (pound)}
Module	0.7 ^(1.5)
Viewing ^(upgrade)
Brightness ^{· candela/m²}	5500

Refresh ^{· hertz}	1920

Angle ^{· 50% brightness}	60° ↔ 60°
Angle ^{· 50% brightness}	50° ↕ 50°
Performance
Colors ^{· rgb · bit depth}	2¹⁴
Control ^{· brightness levels}	255
Lifetime ^{· 50% brightness · years}	11.4
Power ^{square meter}
Watts ^{· (average draw)}	650 ^(35%)

Voltage ^{· VAC · adaptable}	100 ⌁ 240
Installation
Custom Frame	⬚⬚⬚

IP Code ^{· module · box}	66 · 43
Operating ^{· celsius · (fahrenheit)}	-40 ^(-40) · 50 ⁽¹²²⁾

Fine Print

Specifications	Desay and Telematics reserves the right to change any specifications without prior notice.

Factory Warranty	Faulty components to be repaired or exchanged for 2 years from the date of shipping.

Extended Factory Warranty	The Desay factory warranty may be extended to 5 years at a modest premium.

The Sales Pitch

So here's the deal...

Energy may be likened to the bending of a crossbow; decision, to the releasing of a trigger. ~ Sun Tzu

Desay Series QF

The Series QF has a very small niche to fill which is a 250 * 250 millimetre void in a custom steel frame of your design.

Build out whatever your imagination can imagine and the Desay Series QF will be there to offer its full support to get your point and product across to your audience.

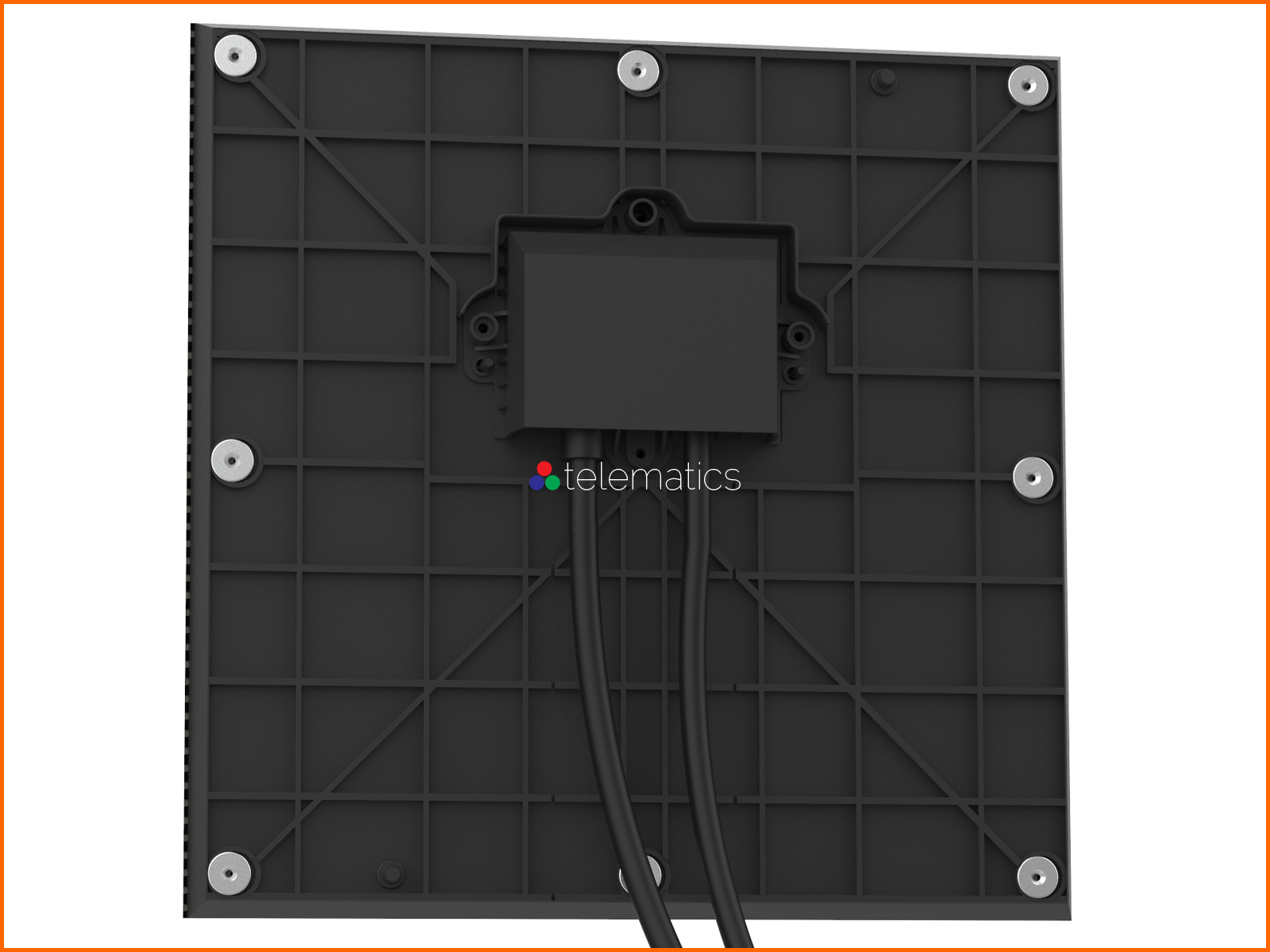

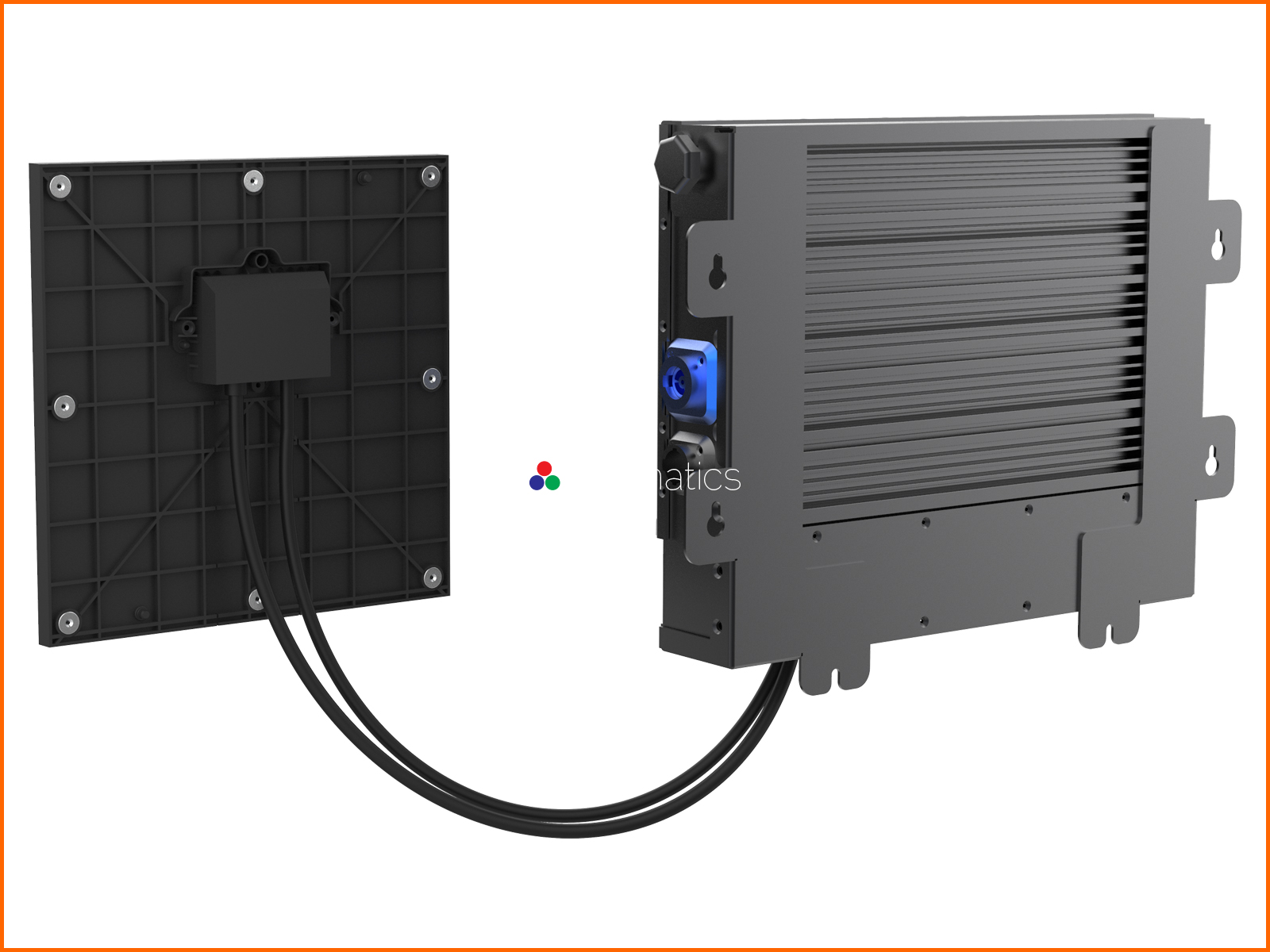

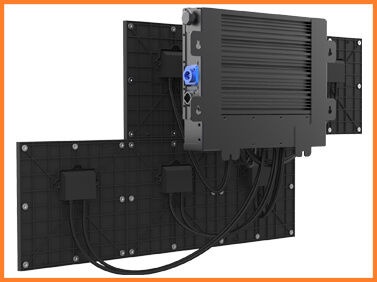

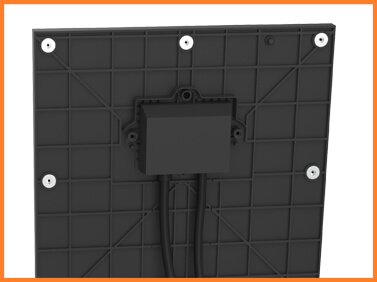

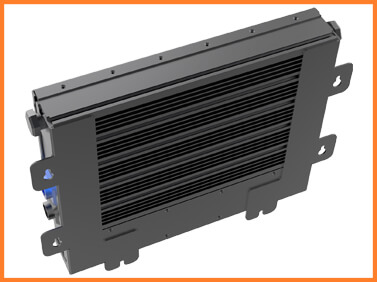

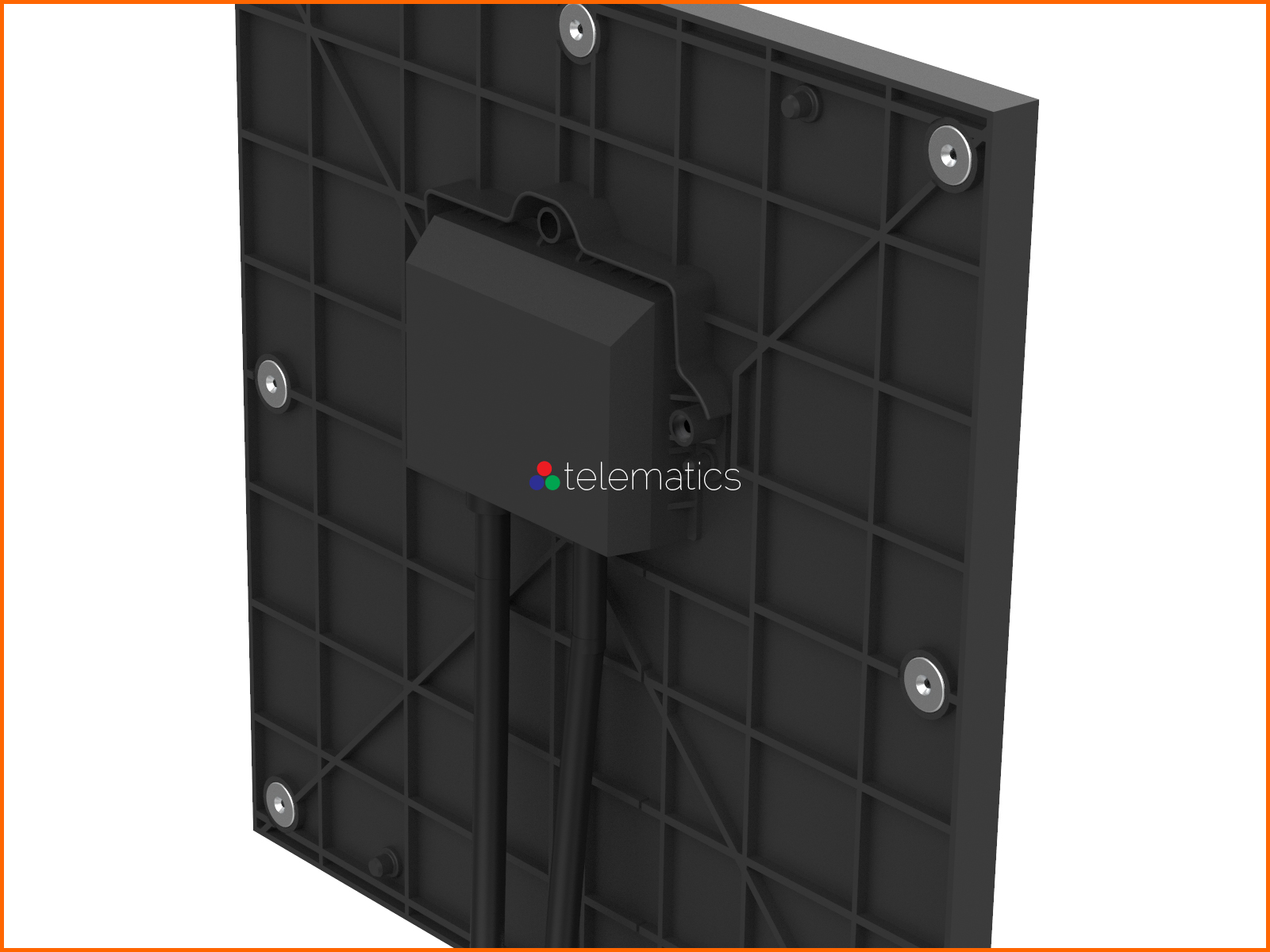

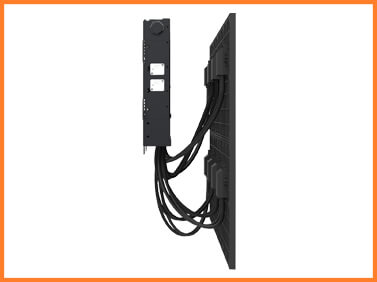

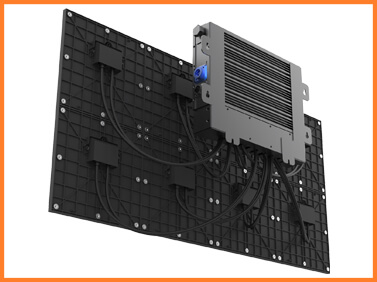

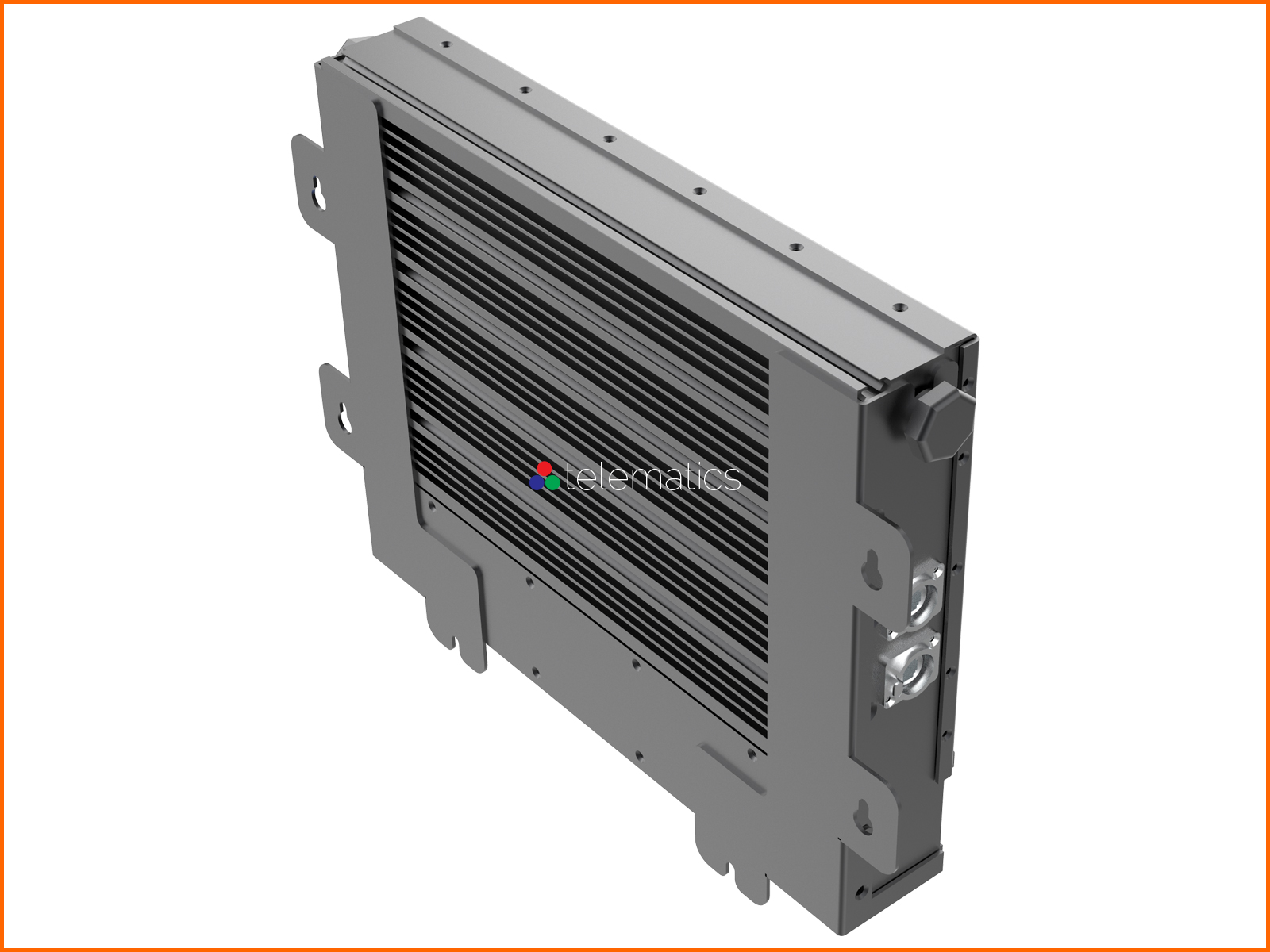

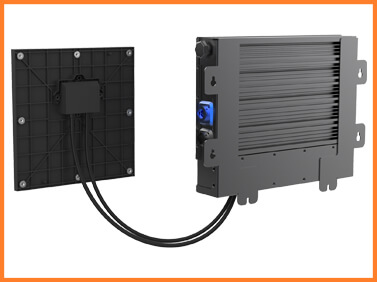

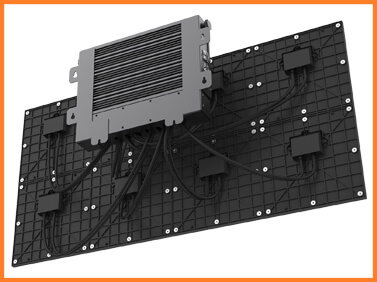

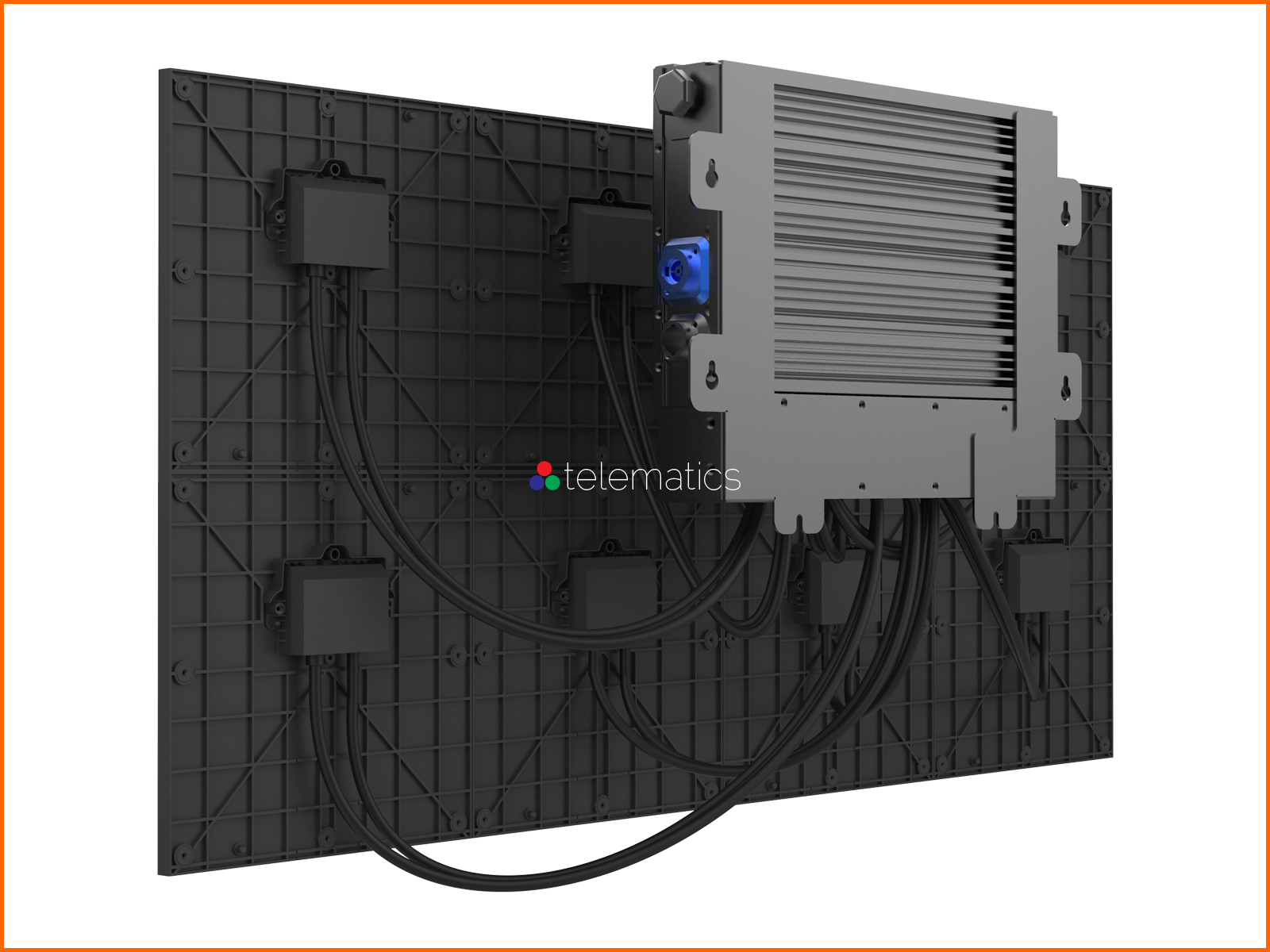

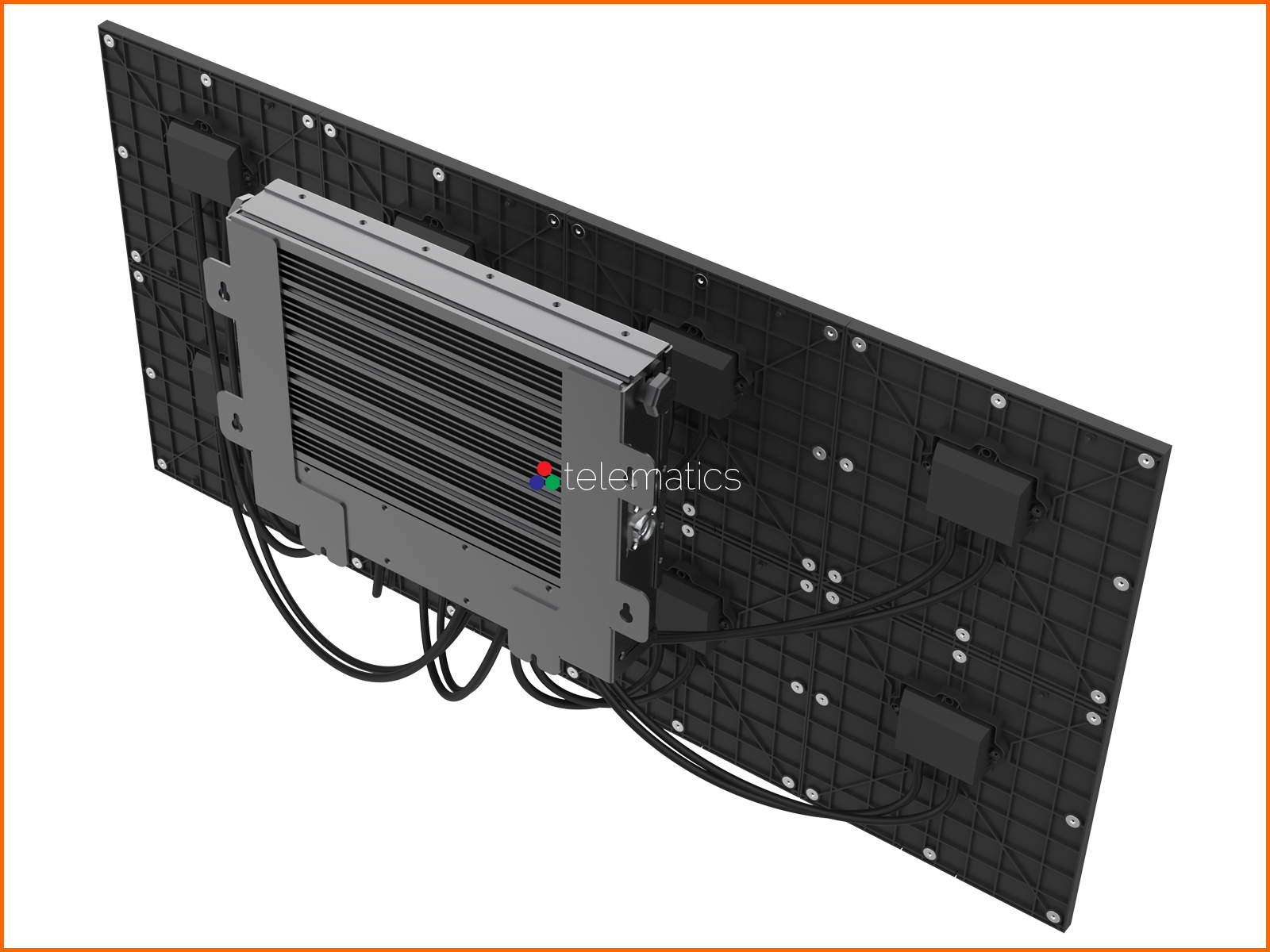

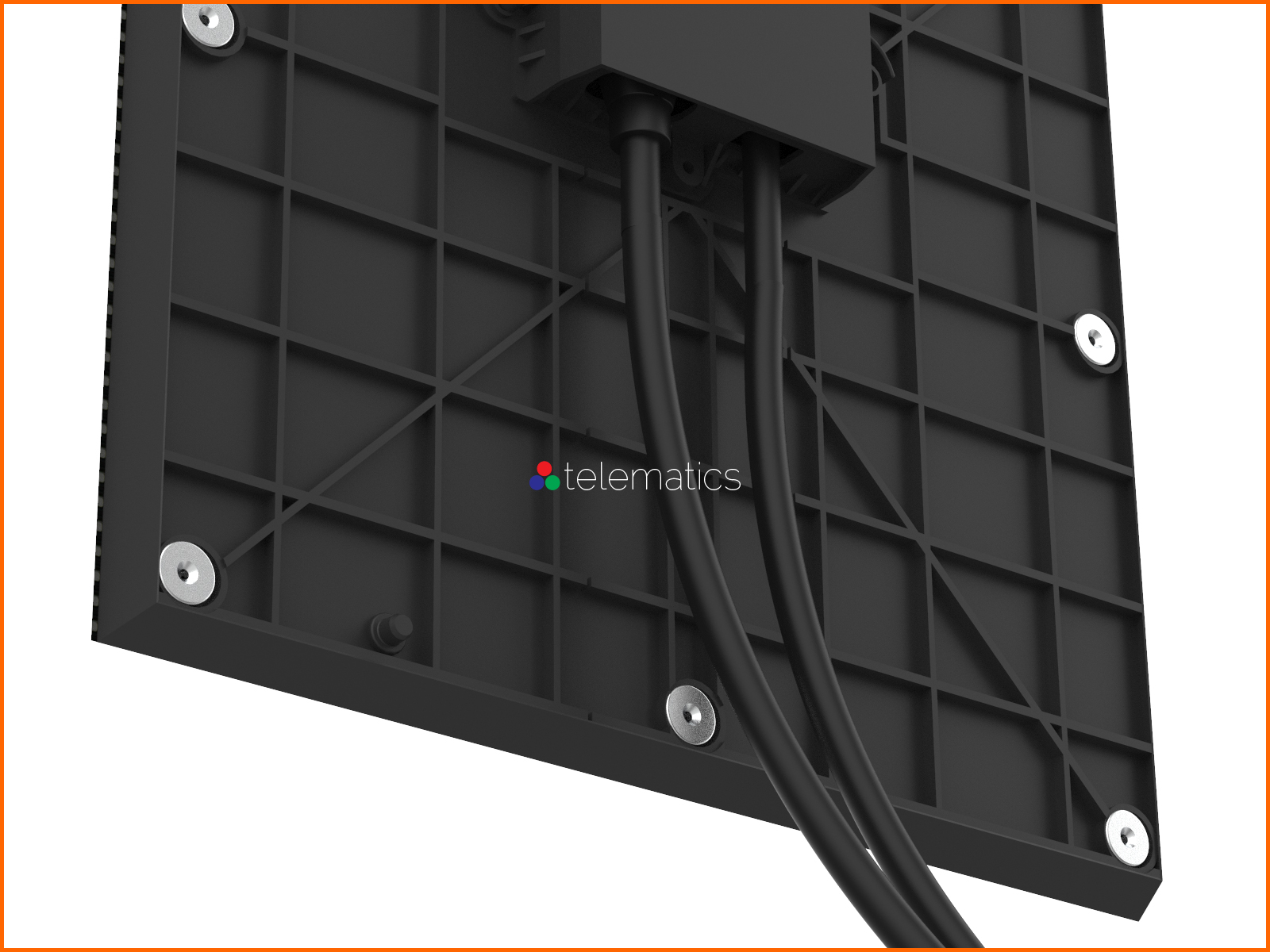

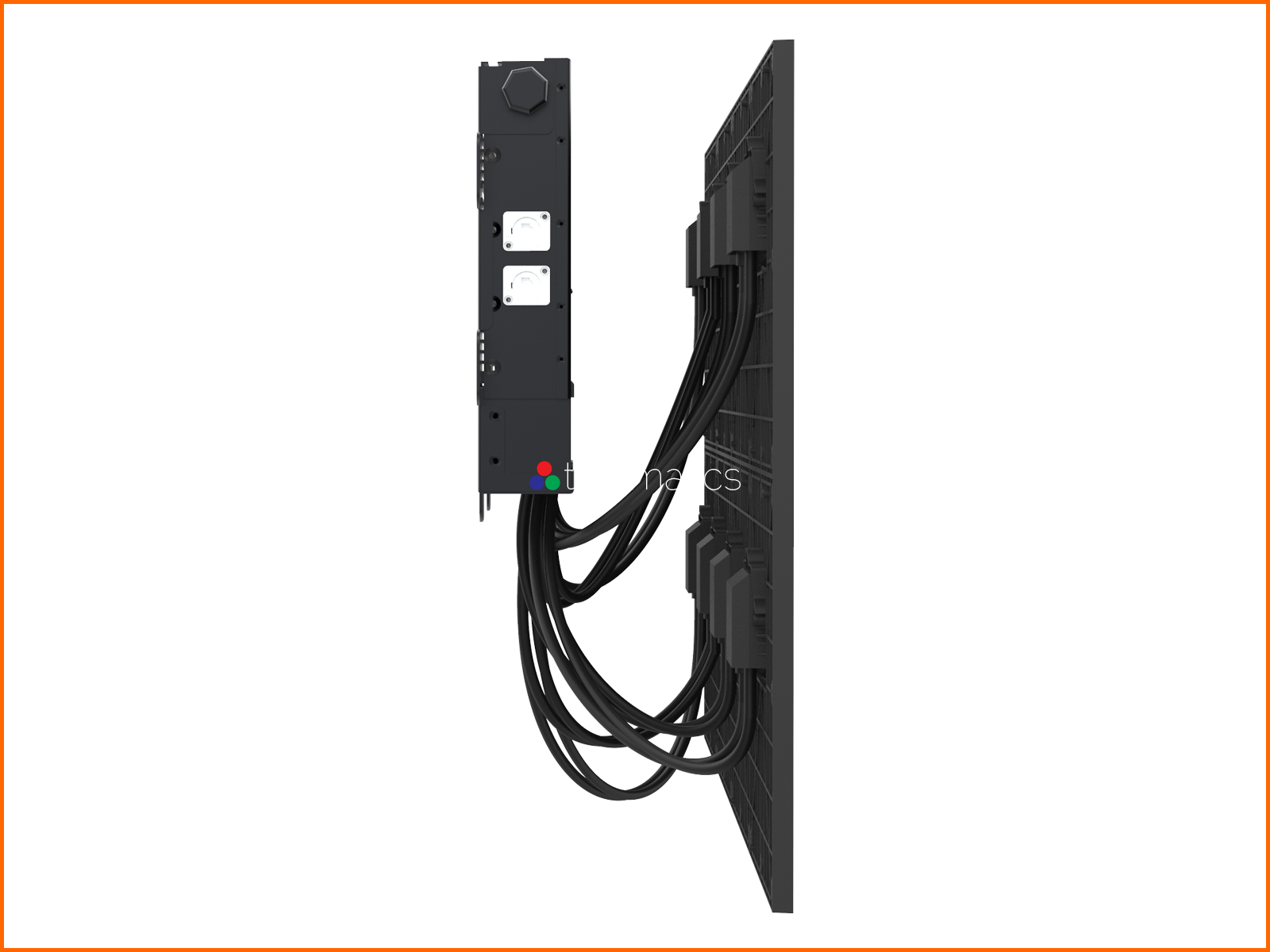

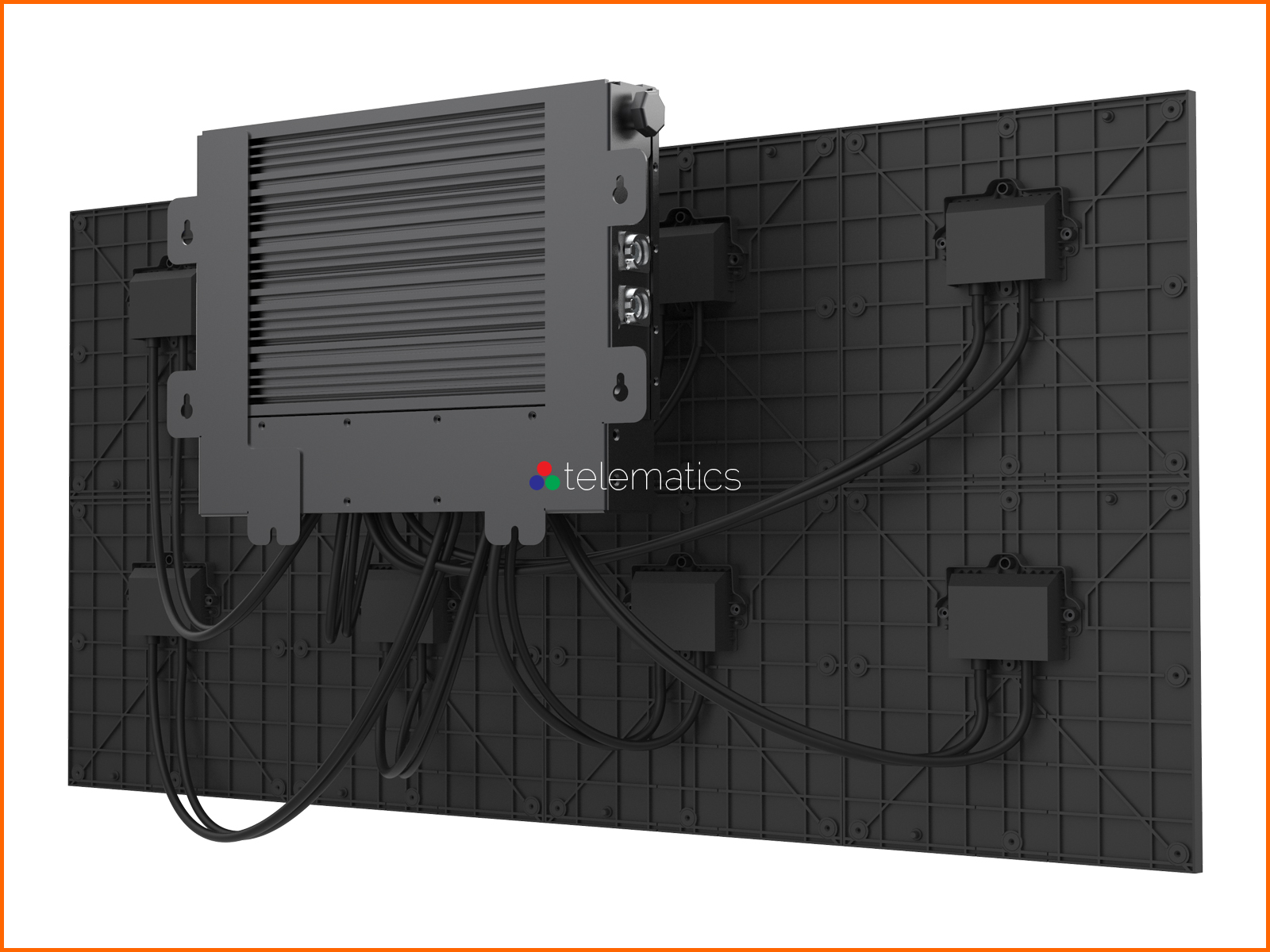

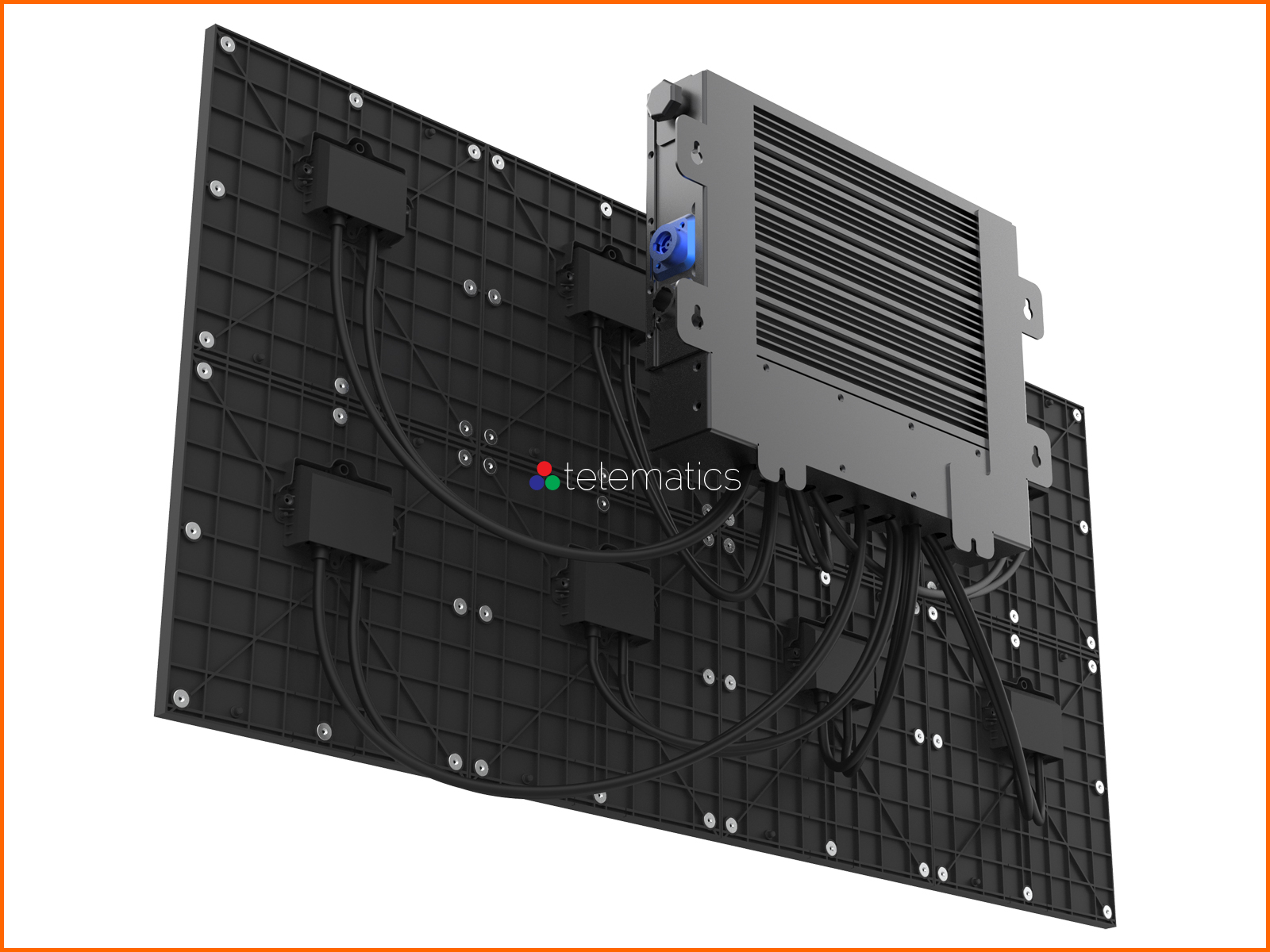

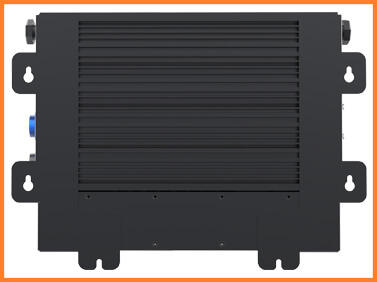

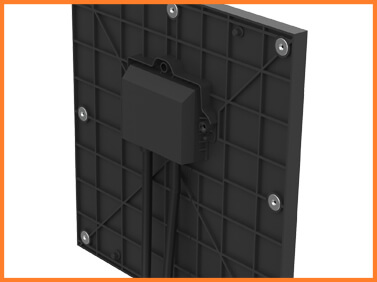

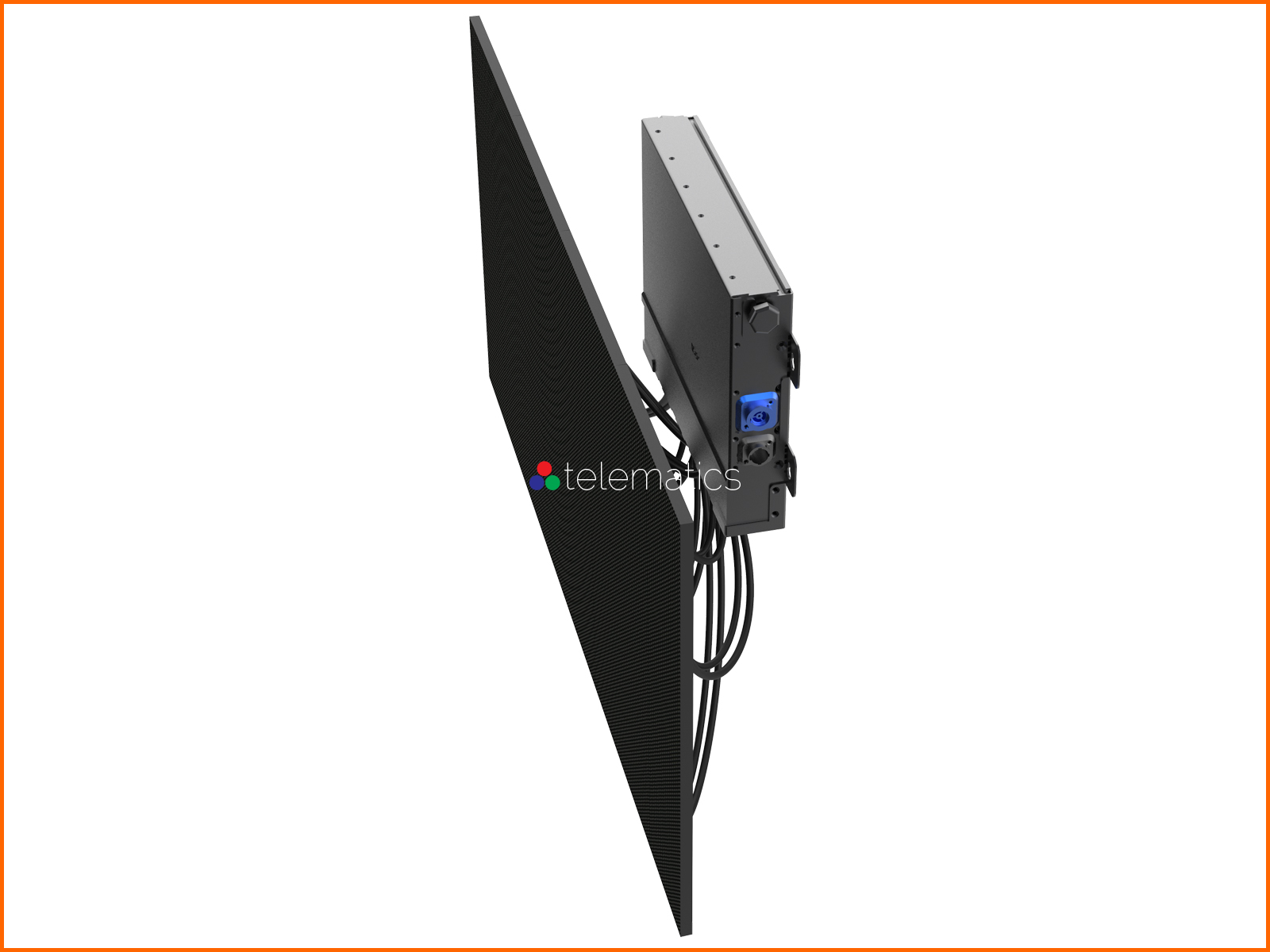

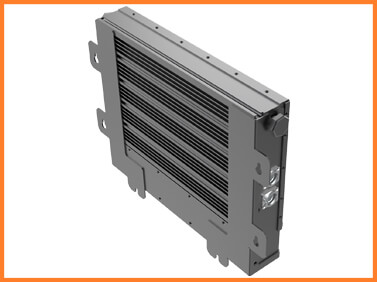

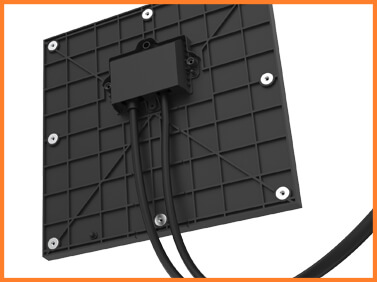

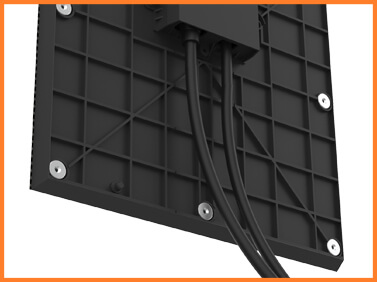

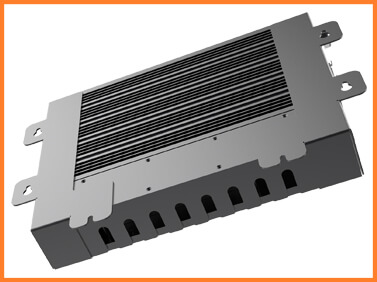

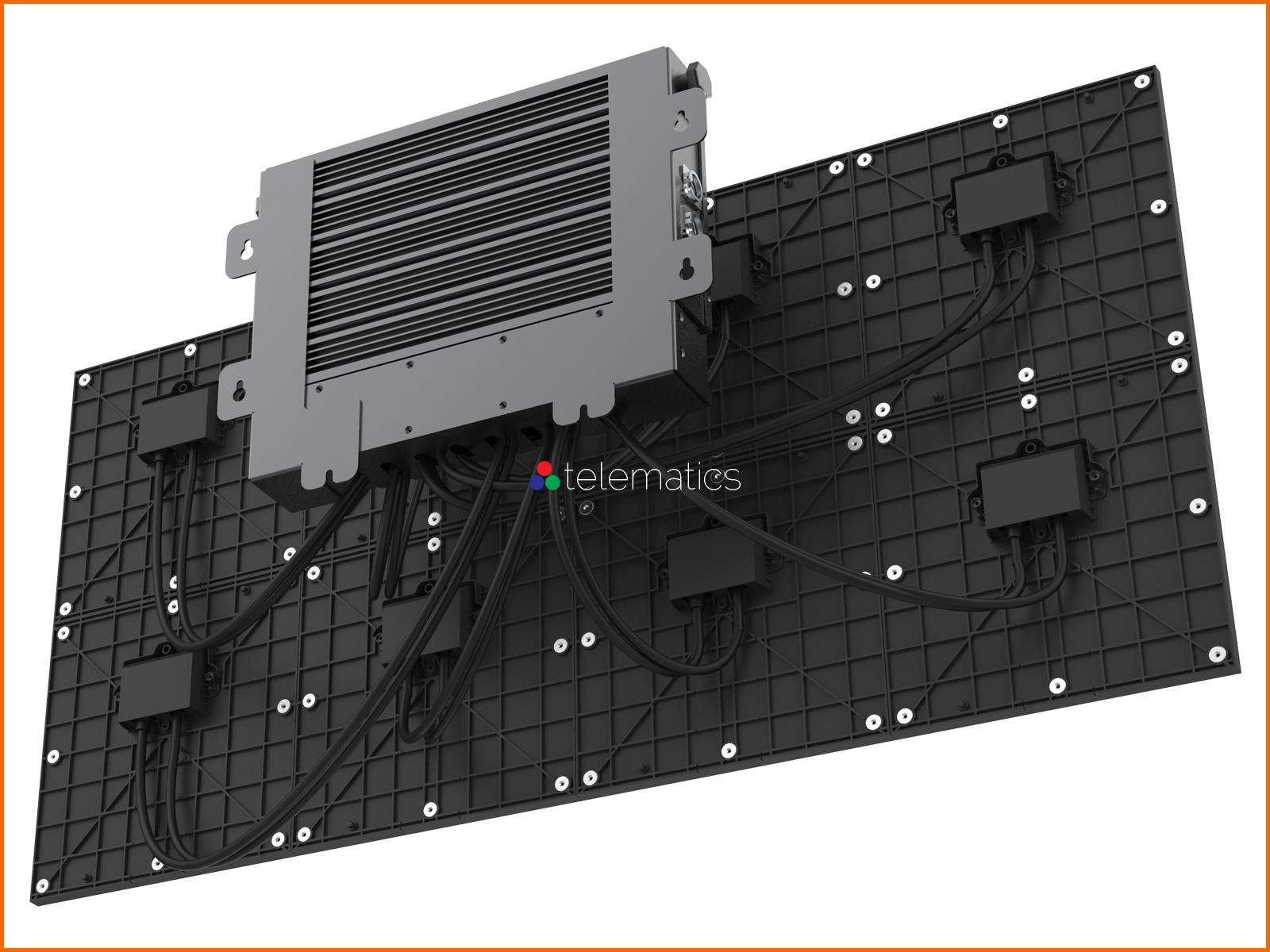

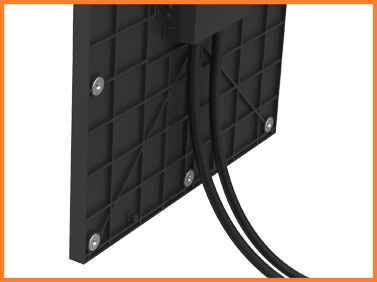

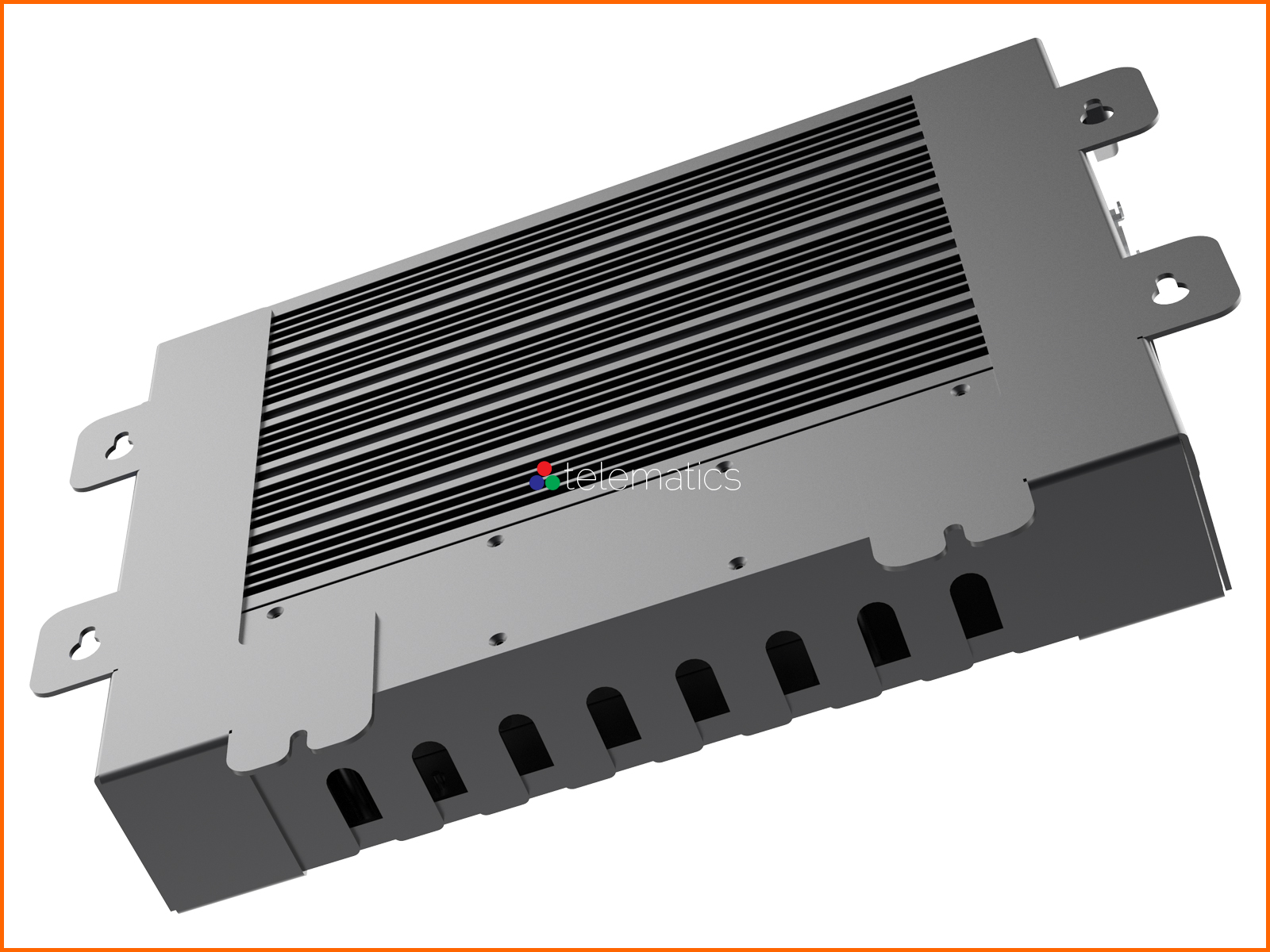

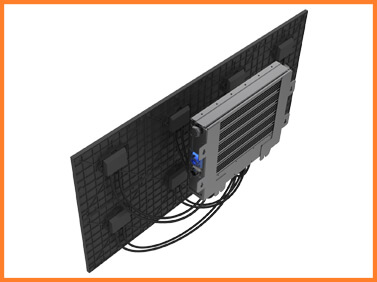

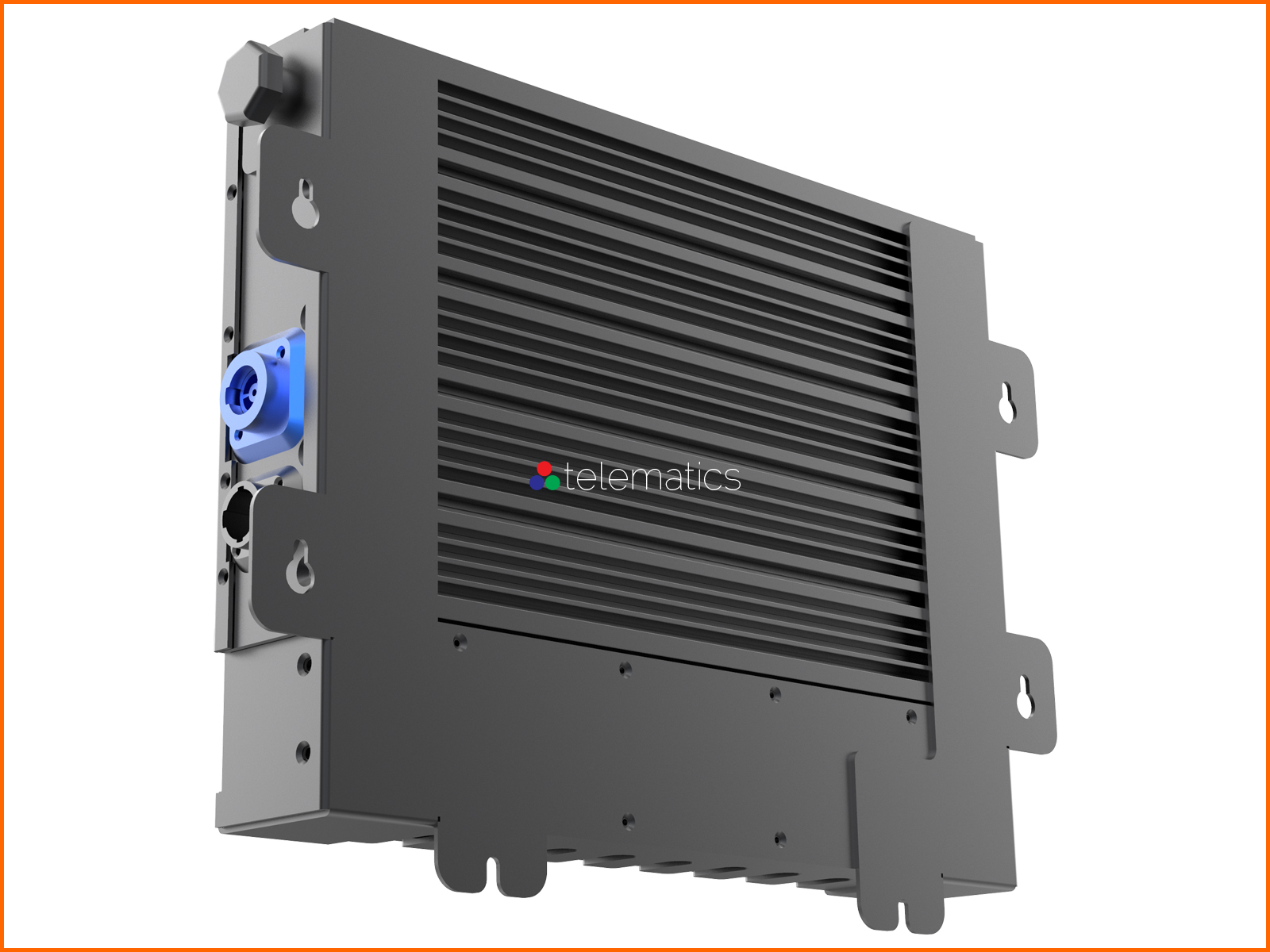

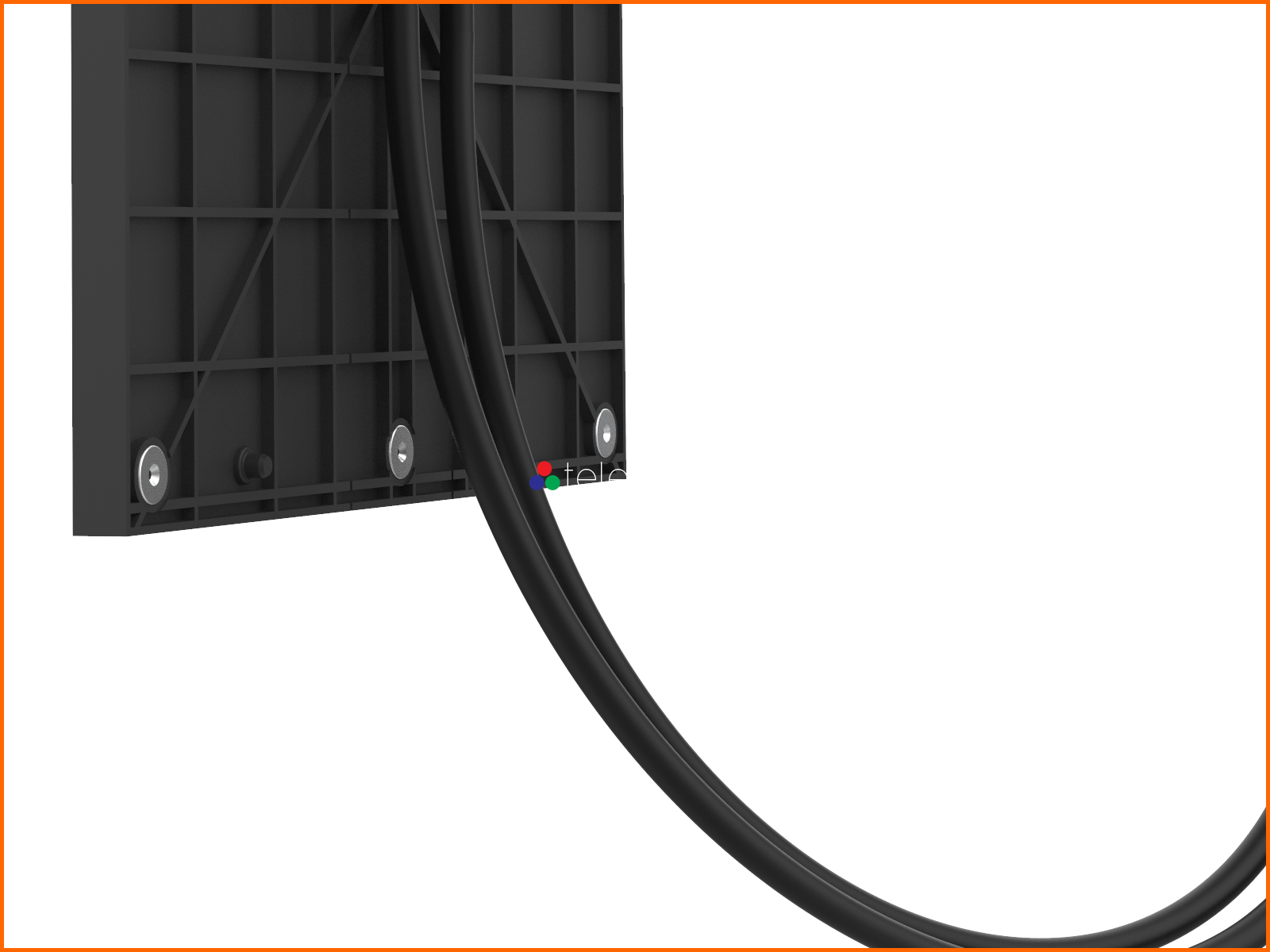

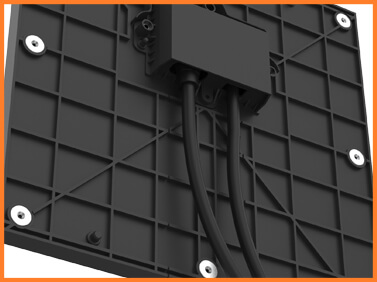

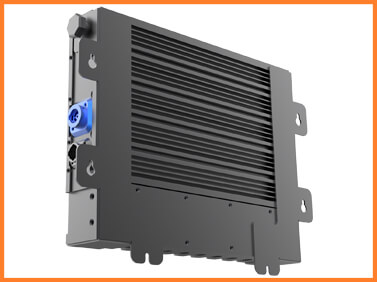

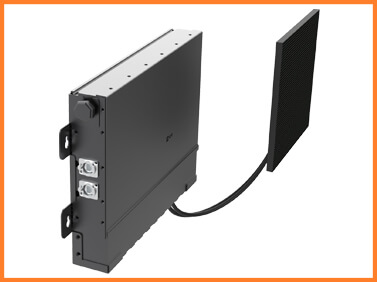

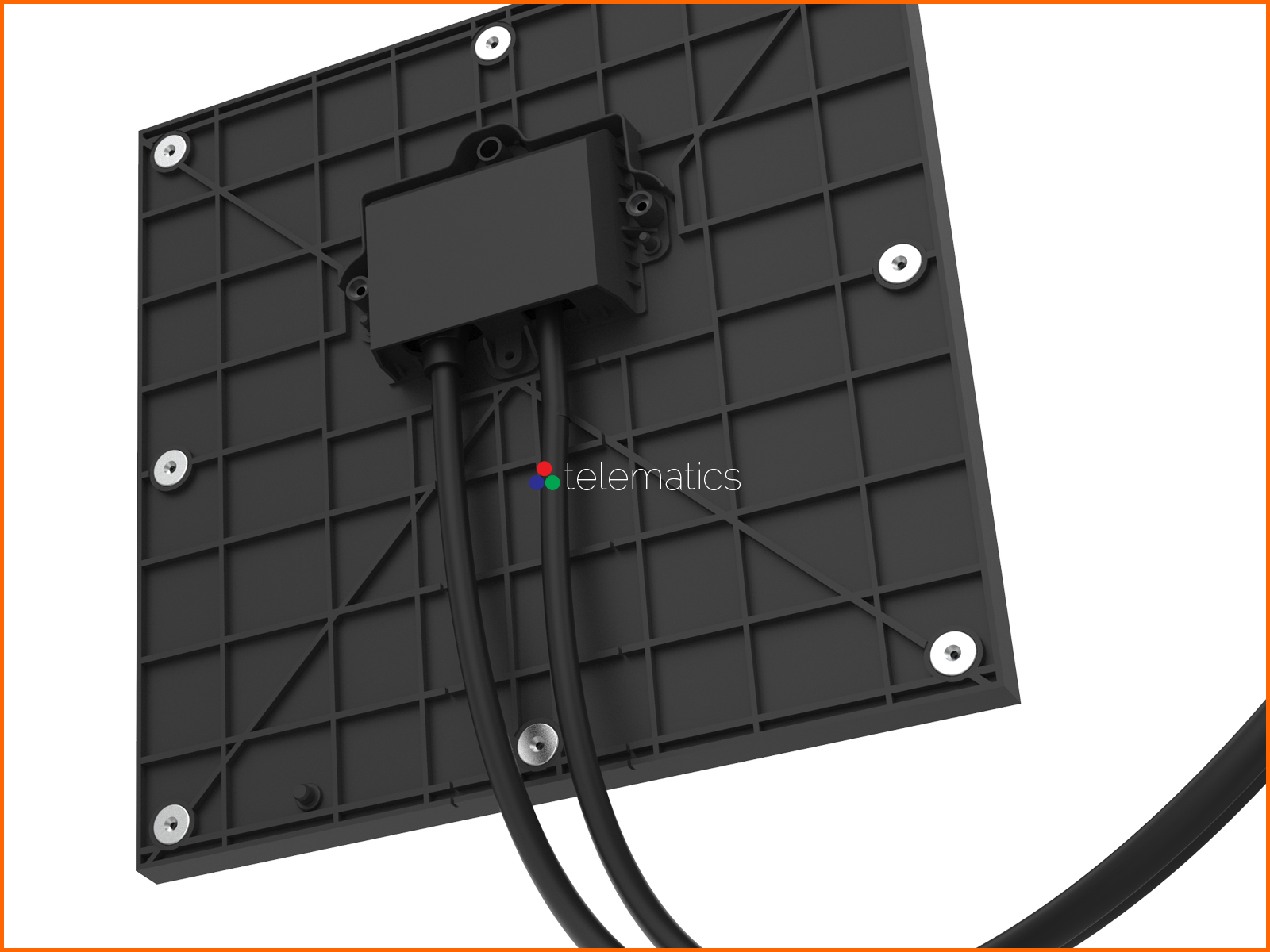

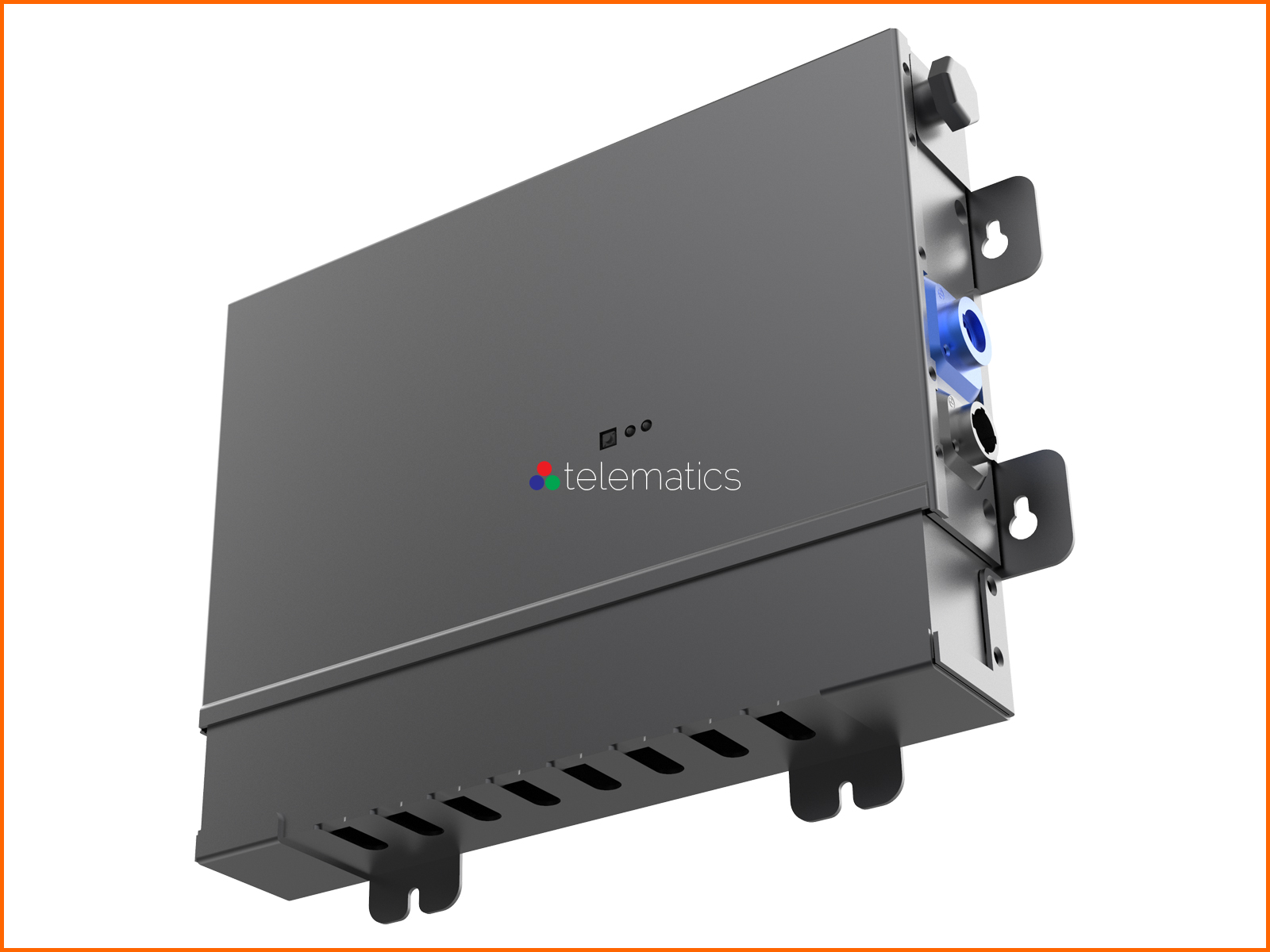

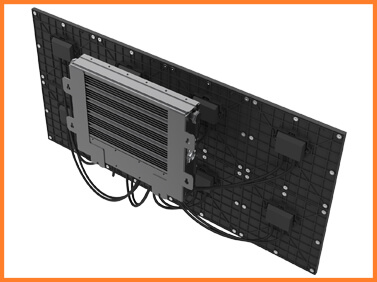

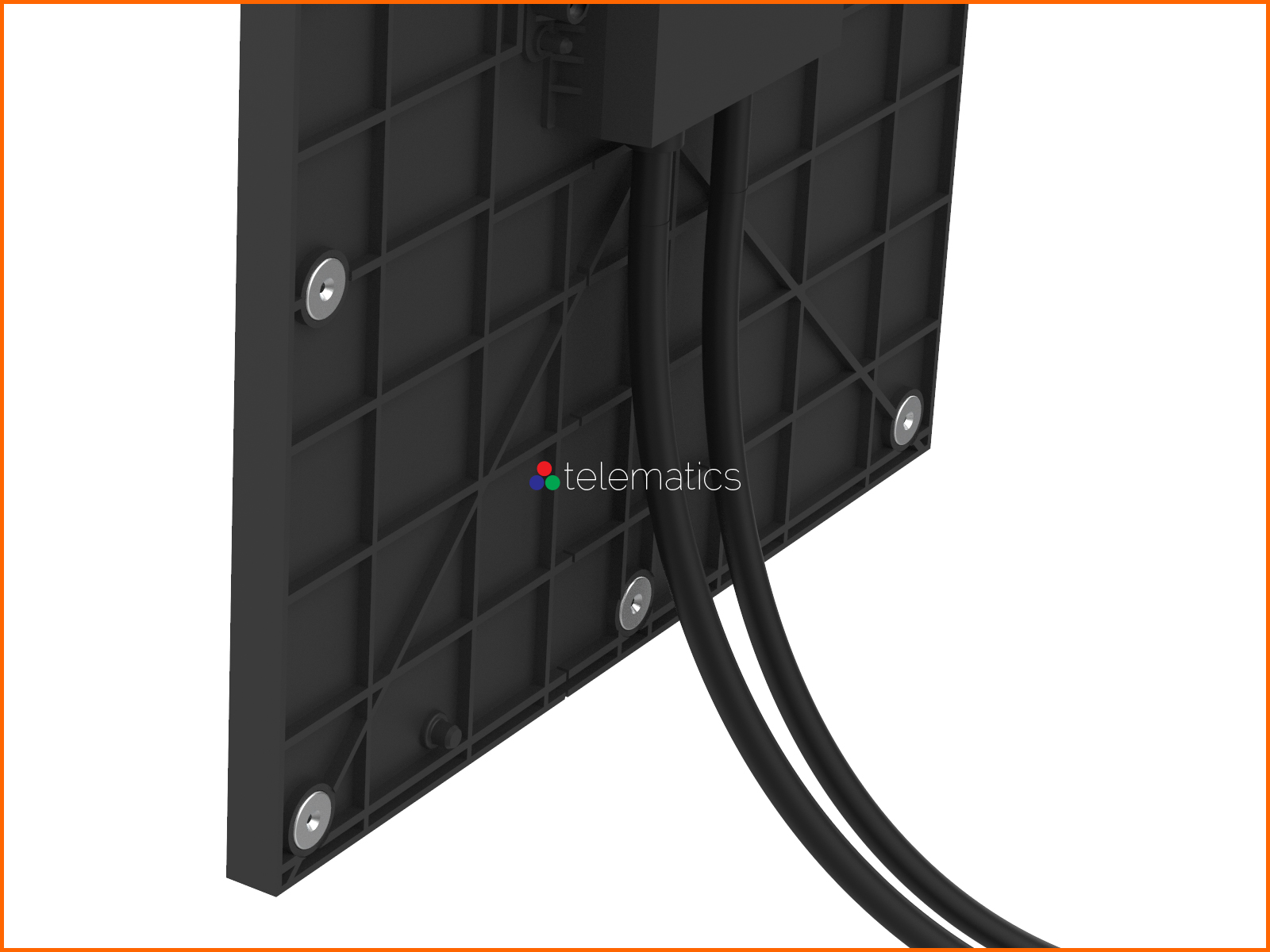

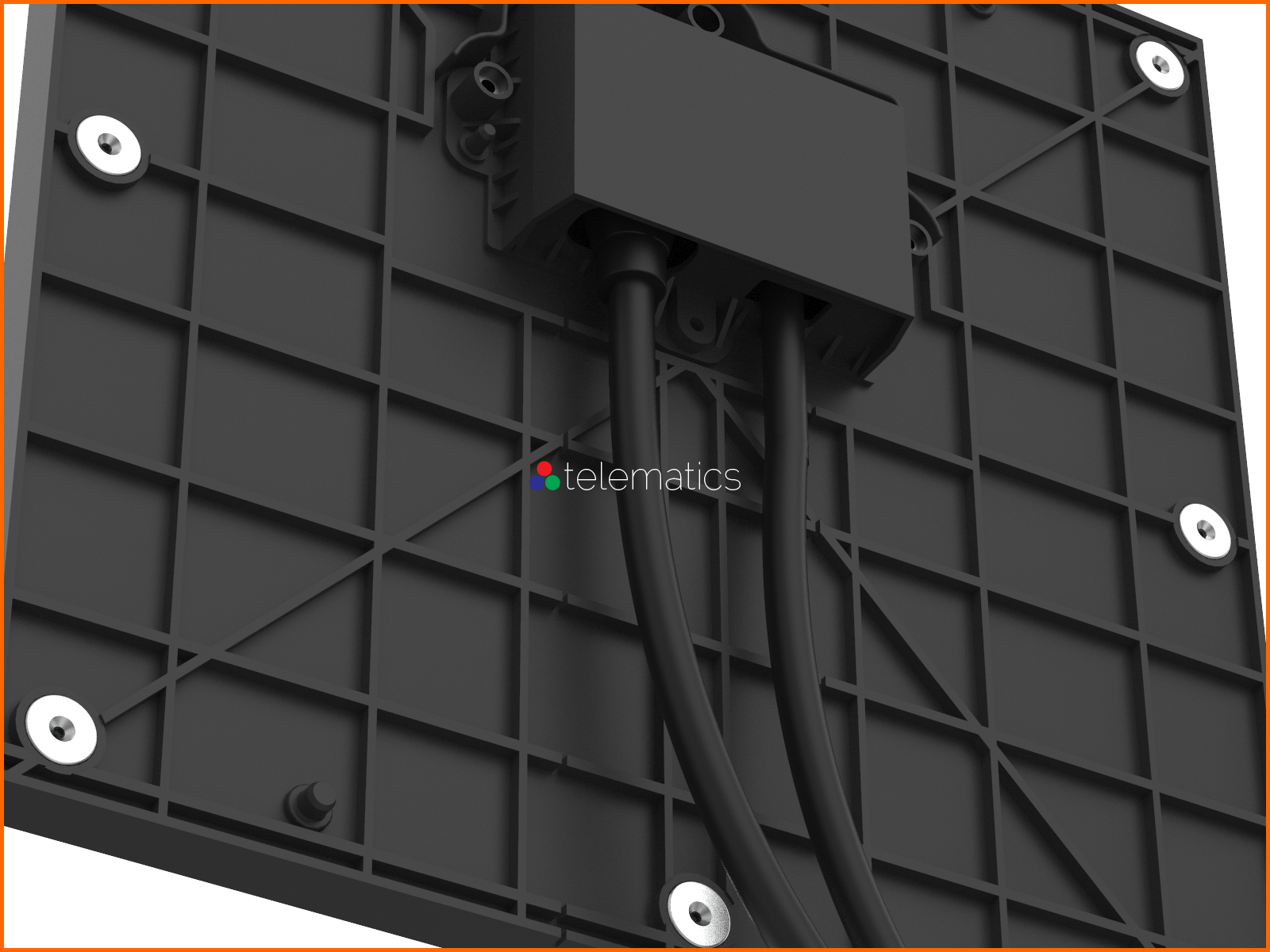

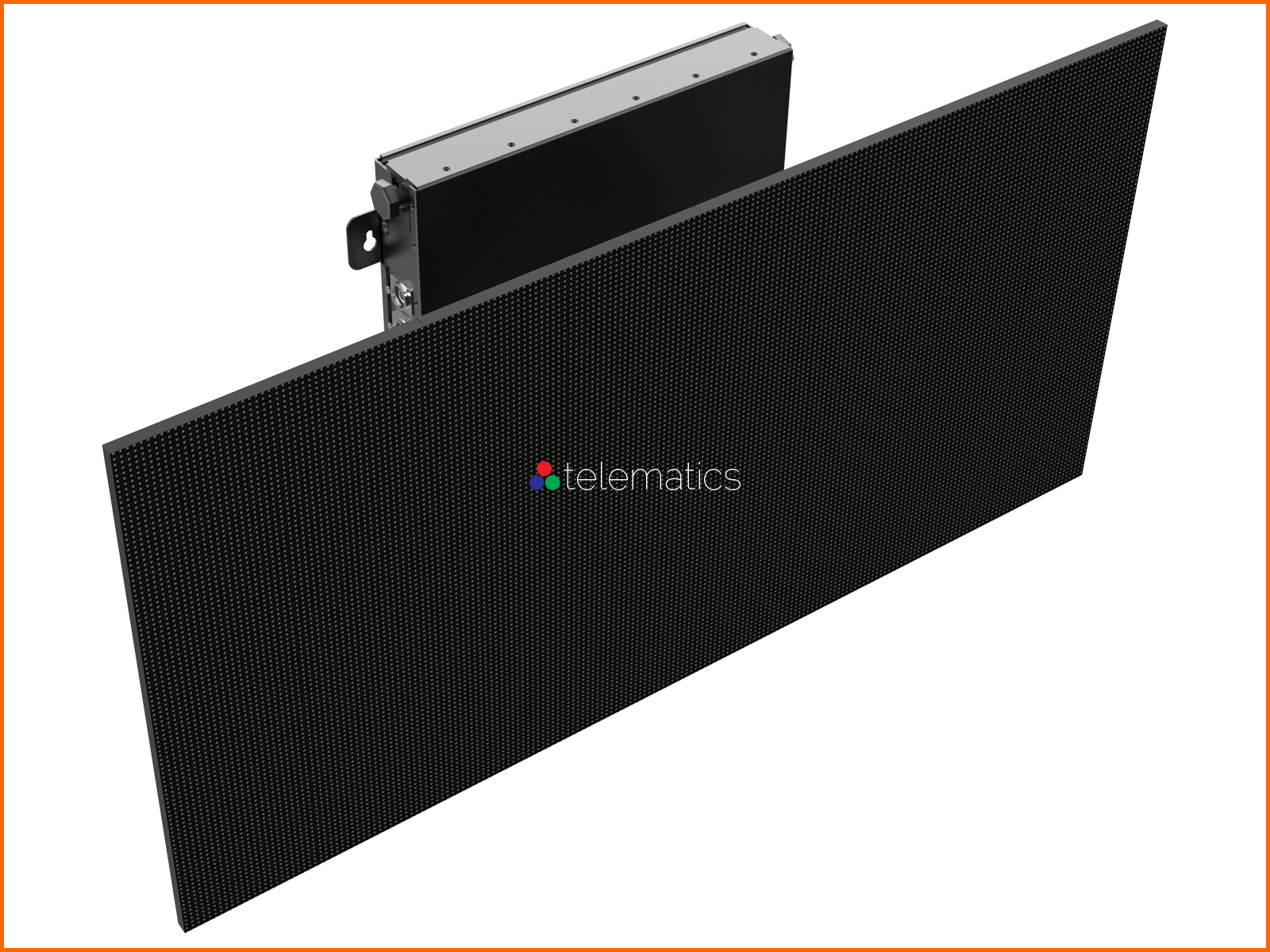

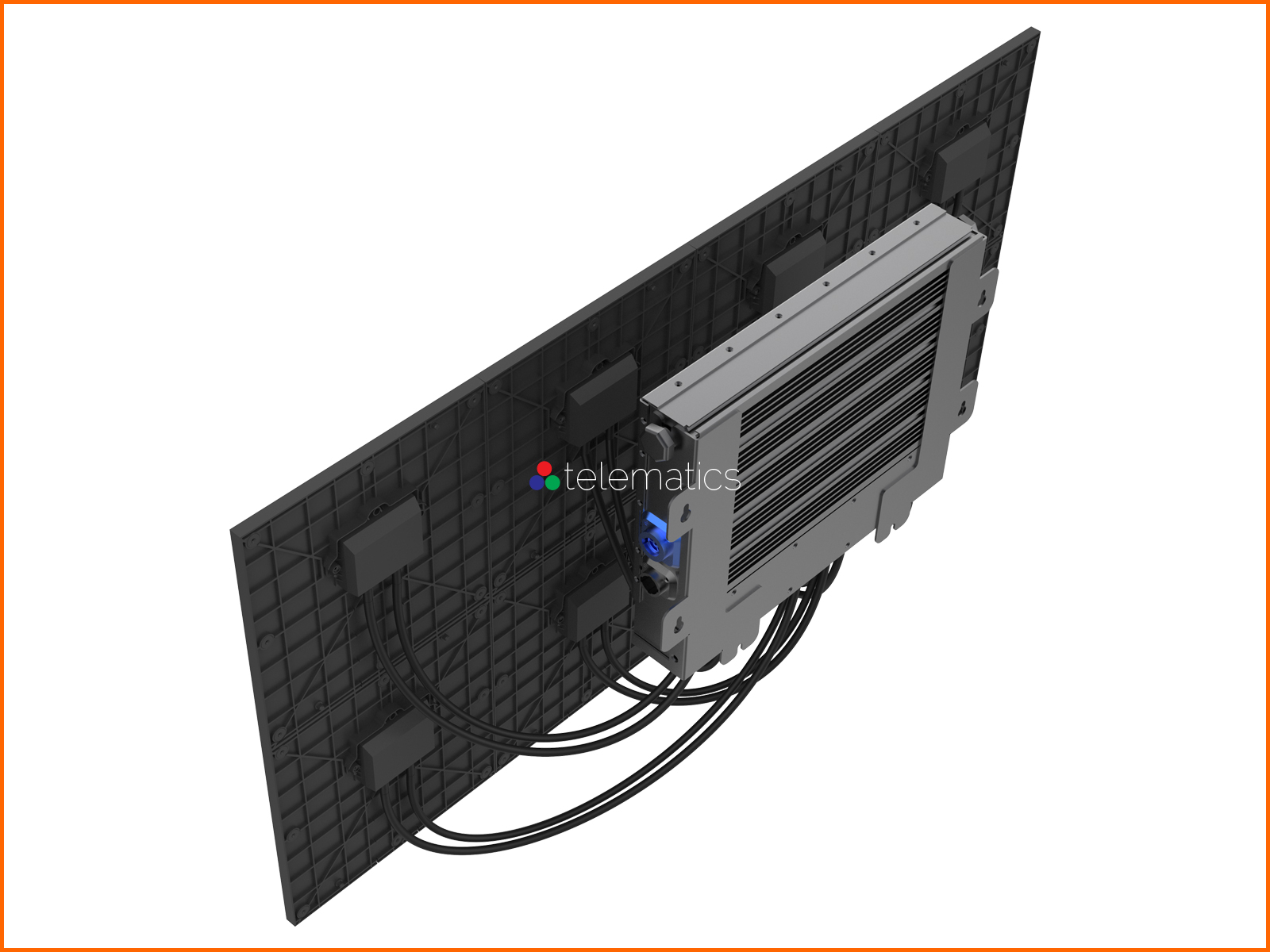

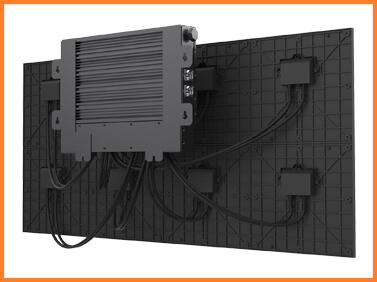

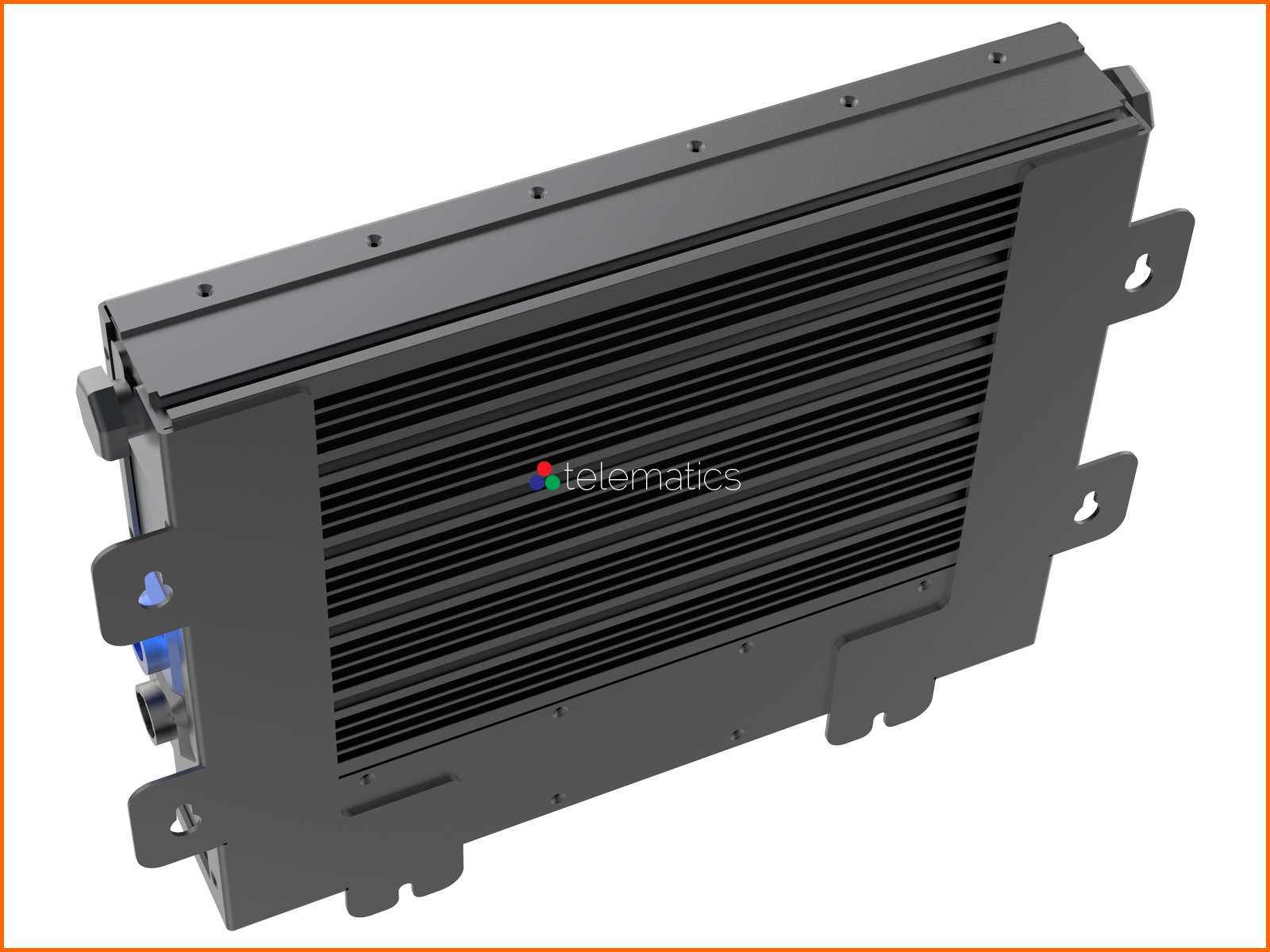

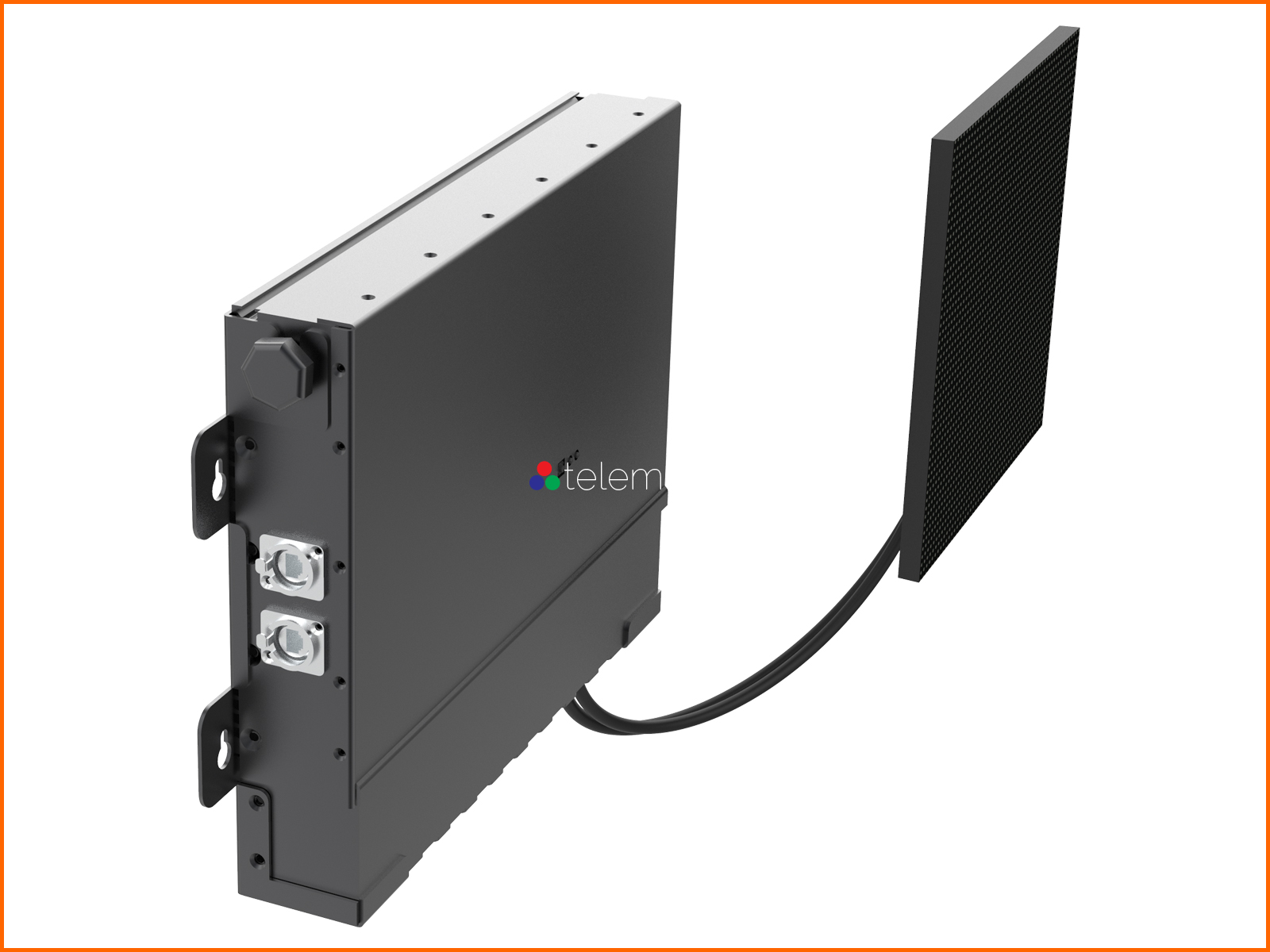

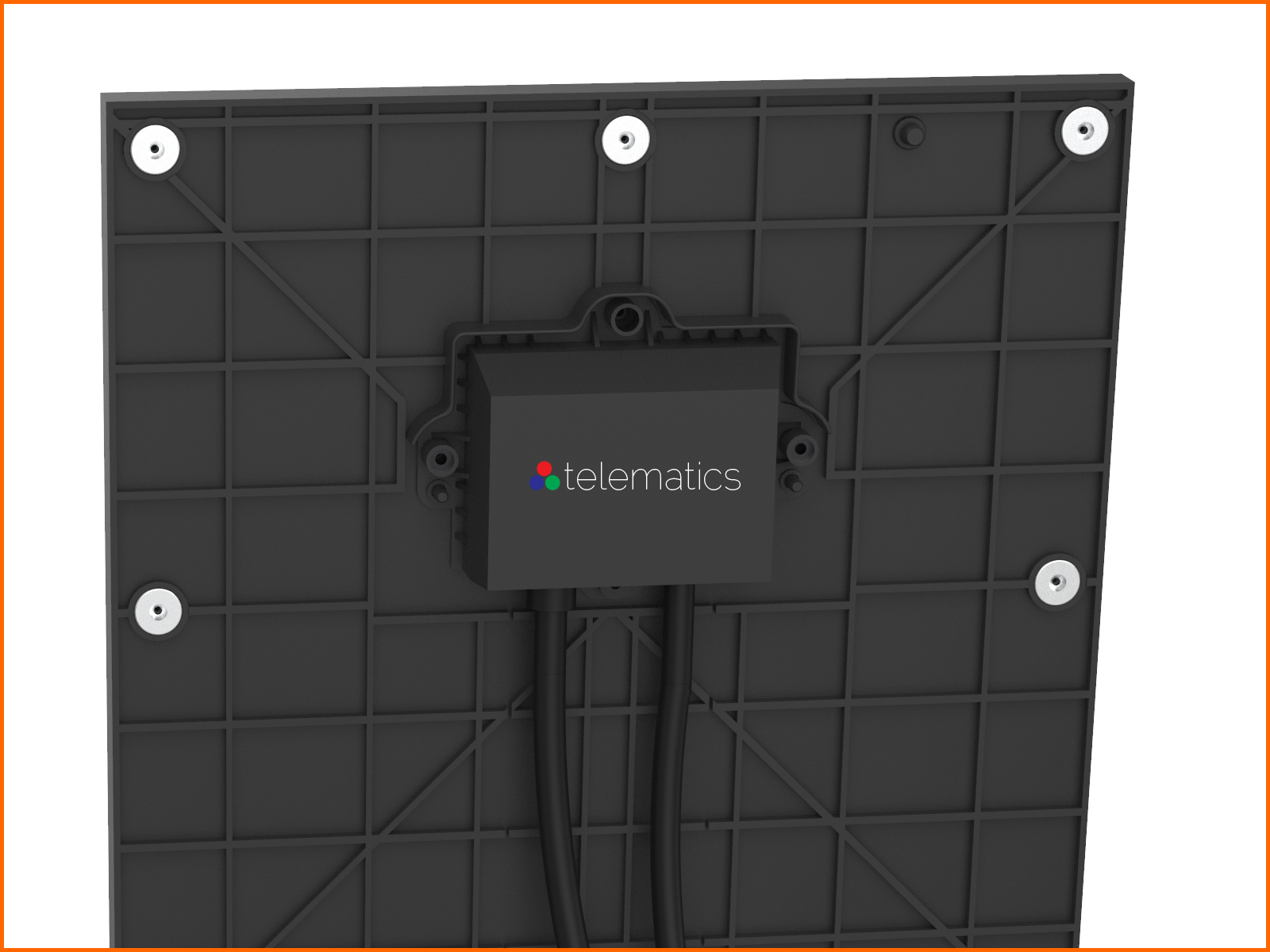

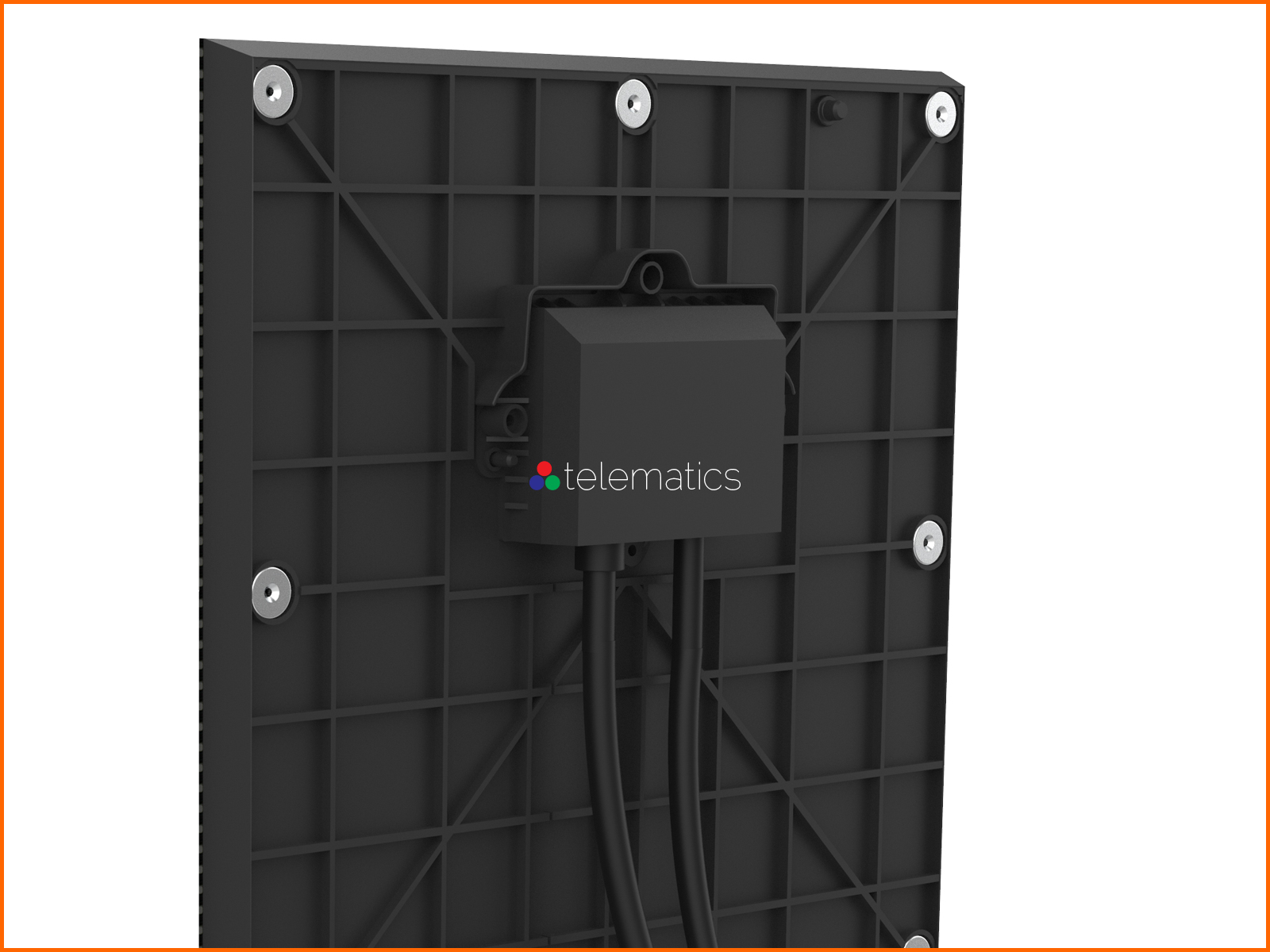

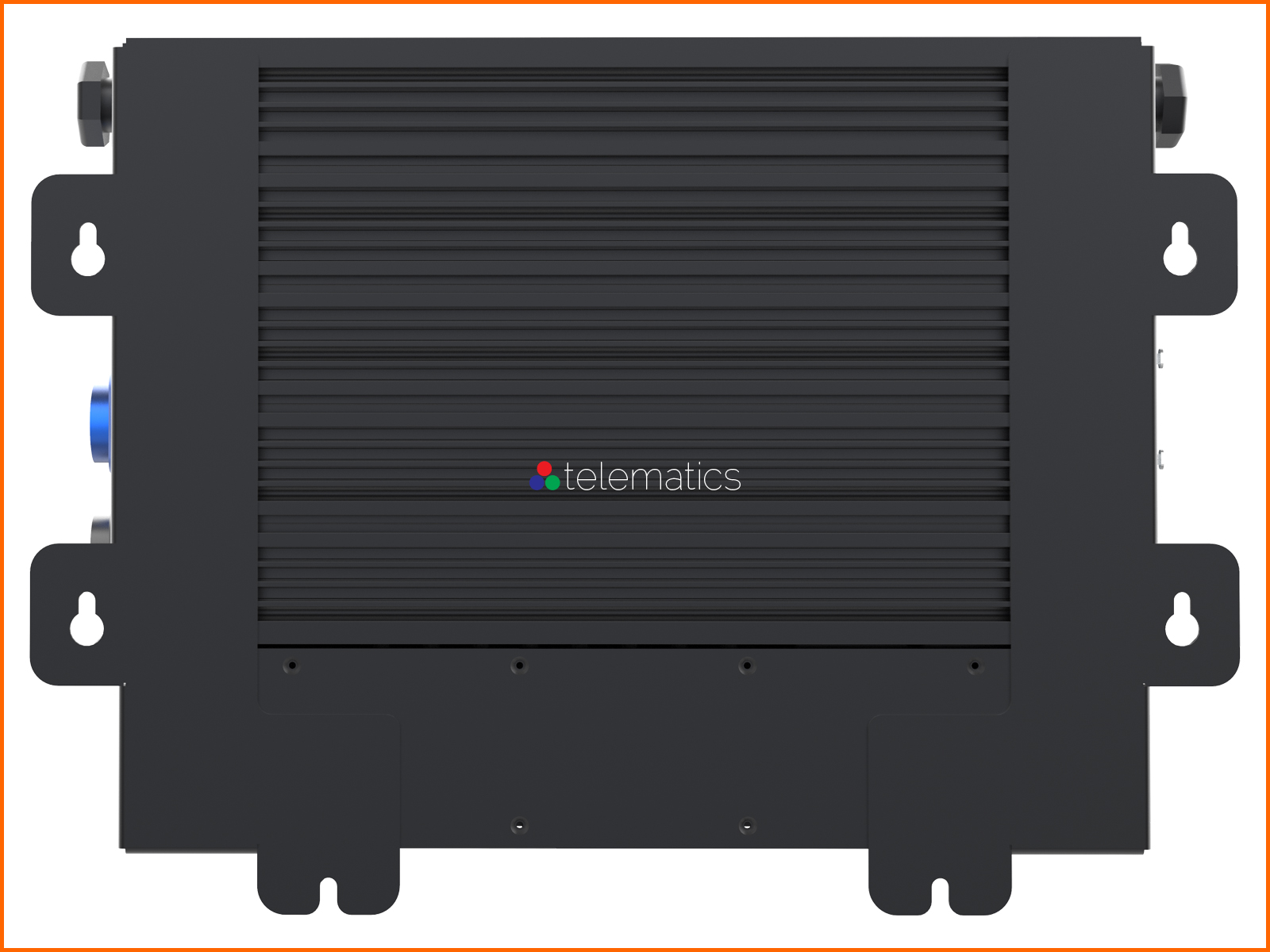

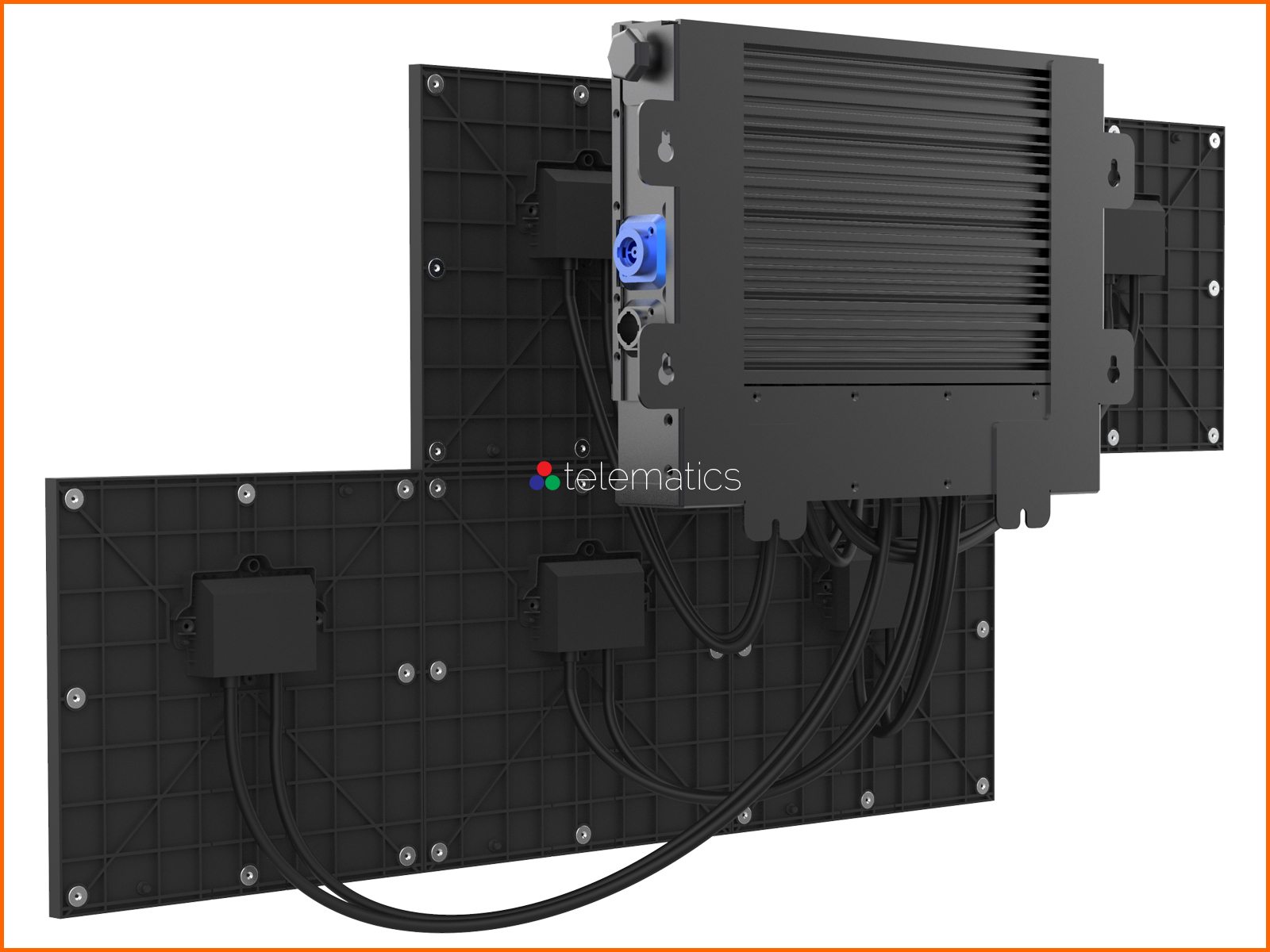

The Series QF is serviced from the front of the display by removing any of the eight LED modules that are connected to a remote power box. This feature allows for quick and easy replacement of a faulty or damaged component in the most challenging of installations. After all, the show must go on.

Pixel density is 3.906 millimetres which was, just a few years ago, as good as it got for an indoor installation. Today, the QF is matching that same resolution in an outdoor installation.

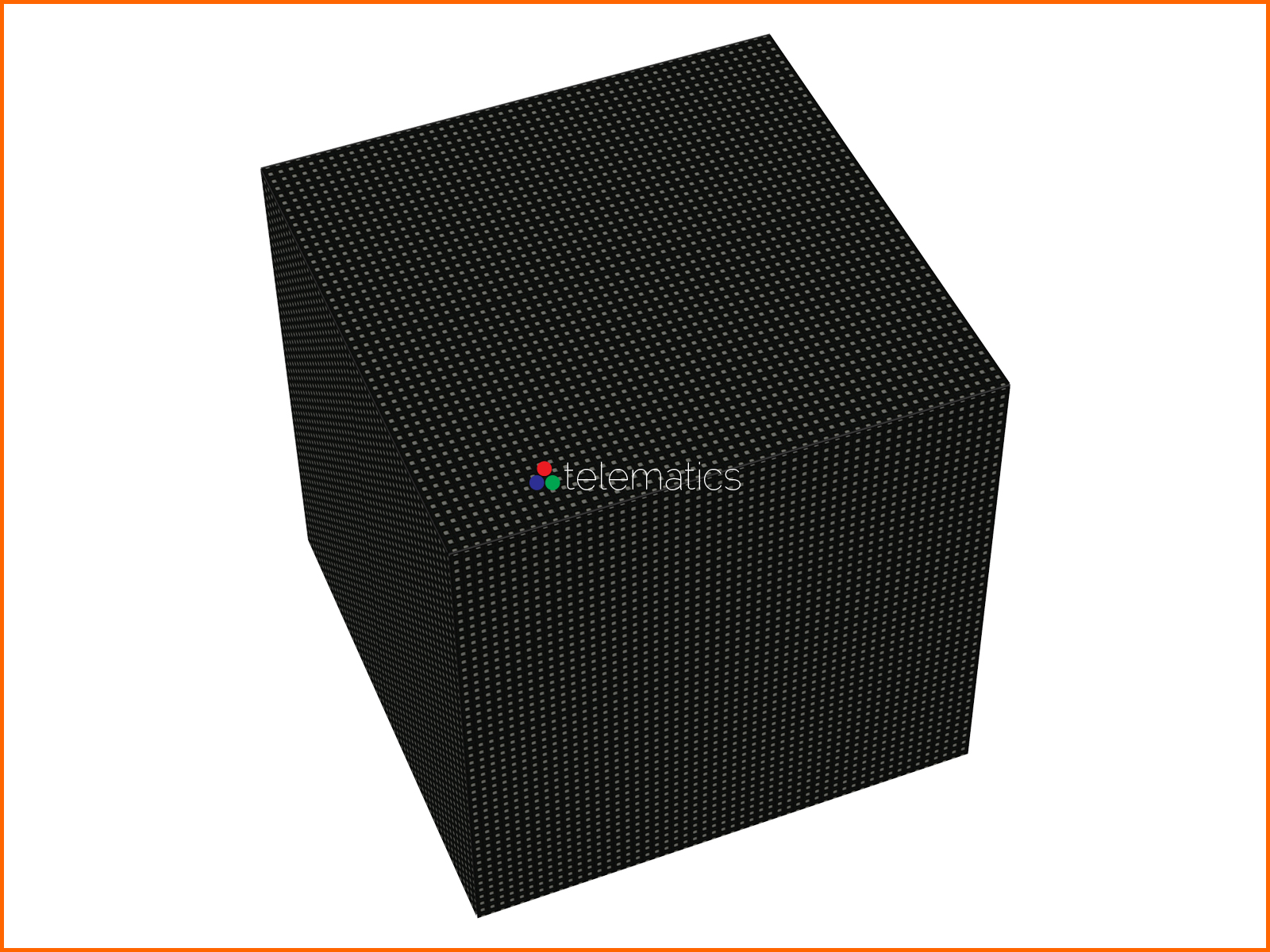

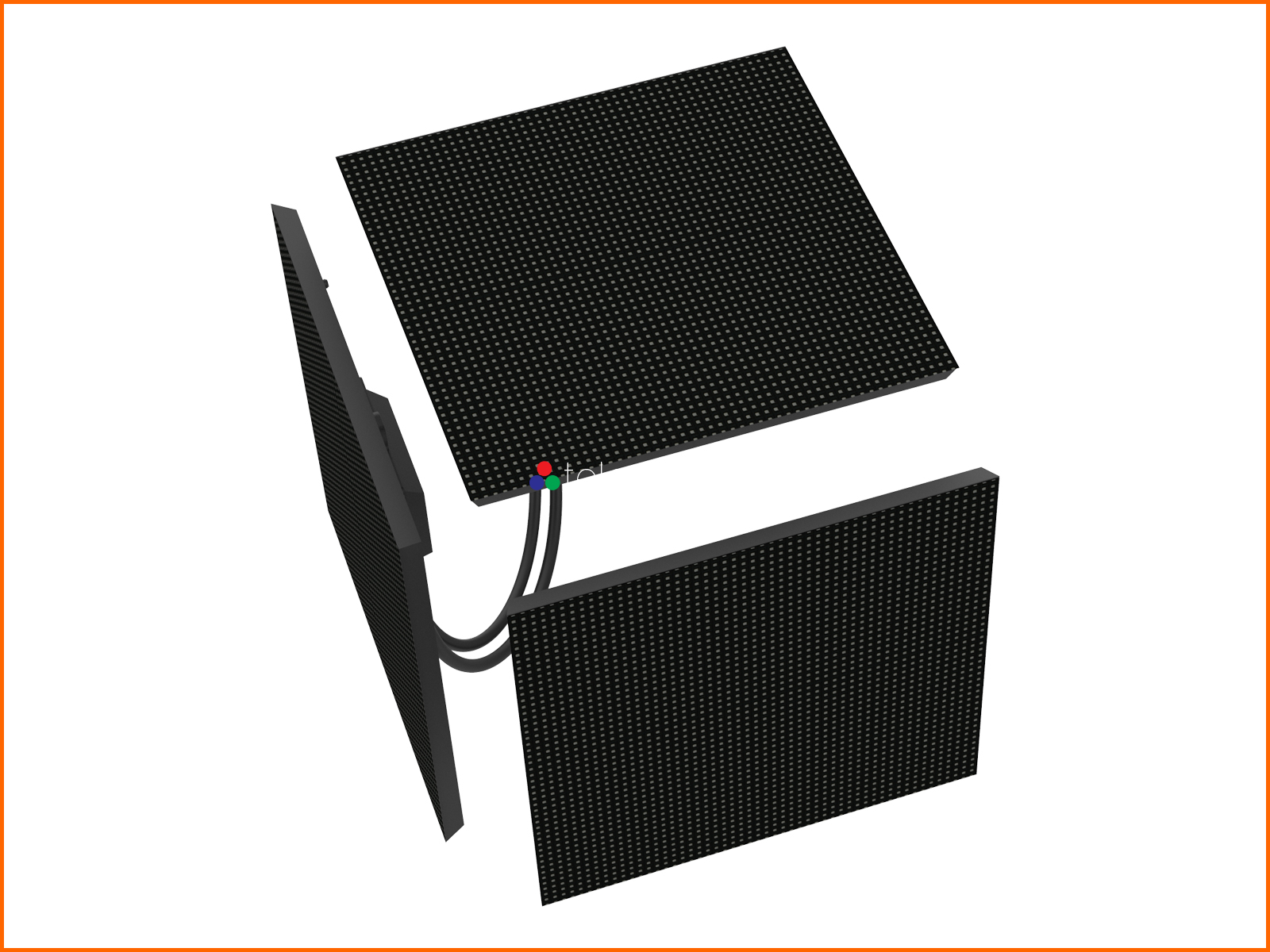

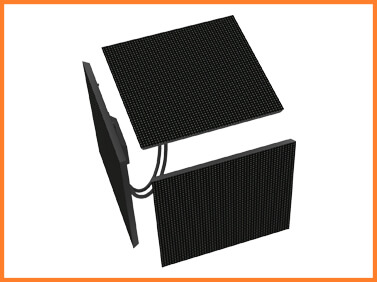

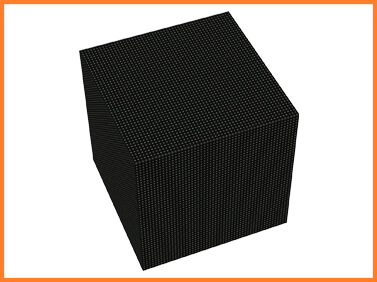

The modular nature of the QF means that you can build out a fragmented wall or create geometric columns and cubes. Or pretty much anything that your creative team has come up with. Nice!

Media is handled by any of our NovaStar controllers including the new wireless Taurus system that can be updated from your smartphone.

The Series QF is new for 2019 and our first deliveries are already underway.

Our Manufacturers

Desay is a public corporation (002920) established in 1983 and diversified in the fields of automotive electronics, advanced batteries, industrial automation, microelectronics and since 2001, a leader in optoelectronic LED production.

Desay's optoelectronic division has quietly emerged as an industry leader ranked #1 in Asia and #3 worldwide for the past decade with annual sales measured in tens of thousands of panels and cabinets.

The company owns 3 industrial zones with a total area over one and half million square meters. Huizhou is home to the Desay factory and offices with additional offices in Shenzhen.

Desay enjoys a well-earned reputation defined by developing and producing some of the highest-quality LED displays in the world.

Our Customers

For 19 years we have developed business relationships with thousands of people from every corner of the world.

Many are AV Professionals and Consultants who need to source premium equipment for their clients or their own rental inventory for the entertainment industry. Others are Architects and Designers looking for solutions to create fantastic high-resolution LED displays spanning a wall of an office or the facade of a building. And some are end-users prepared to take on the challenge of setting up their own digital displays for their storefronts.

In each case, we provide our customers with the answers they need and endeavor to offer solutions that are affordable, effective and reliable.

And we always keep their secrets to ourselves.
