The Desay Series M is what happens when a stage panel evolves into an installation panel.

Rugged and lightweight. Configured for 16:9 and 4:3 aspect ratios. Frame-mounted. What's not to like?

Pixels

Pixel to pixel spacing begins at an impressive 4.76 millimeters to create a display resolution of more than
44,000 LEDs per square meter.
Each millimeter of spacing supports one meter of viewing distance which means that the Series M4.7 looks great from just 5 meters away.

Dimensions

The Series M is a precision aluminum panel that weighs approximately
18 kilograms with XYZ dimensions of
800 * 900 * 65 millimeters.
When we convert those numbers to the Exchequer Standards of 1825 that works out to 32 * 35 * 3 inches
and a lightweight 37 pounds.

Viewing

Display brightness levels extend from 4000 cd/m² to 5000 cd/m².
Screen refresh ranges from 1920 Hz to 3840 Hz for flicker-free video.
Off-axis viewing is up to 70° which means that pretty much everyone in the room can see the Series M whether coming or going.

Performance

Colors are amazing with levels of red¹⁴ * green¹⁴ * blue¹⁴ that provide for a combined 4,400 billion colors and a silky 16,384 shades of grey.
Life expectancy is projected to be 100,000 hours which works out to just over 11 years. We look forward to seeing you again sometime in 2030.

Power

Rated power consumption is a modest 180 ~ 190 Watts per square meter and up to 560 Watts on full load depending on the model.
Variable voltage power supplies accept 100V ~ 240V. Our technicians will provide an electrical schematic specific to your project on request.

Installation

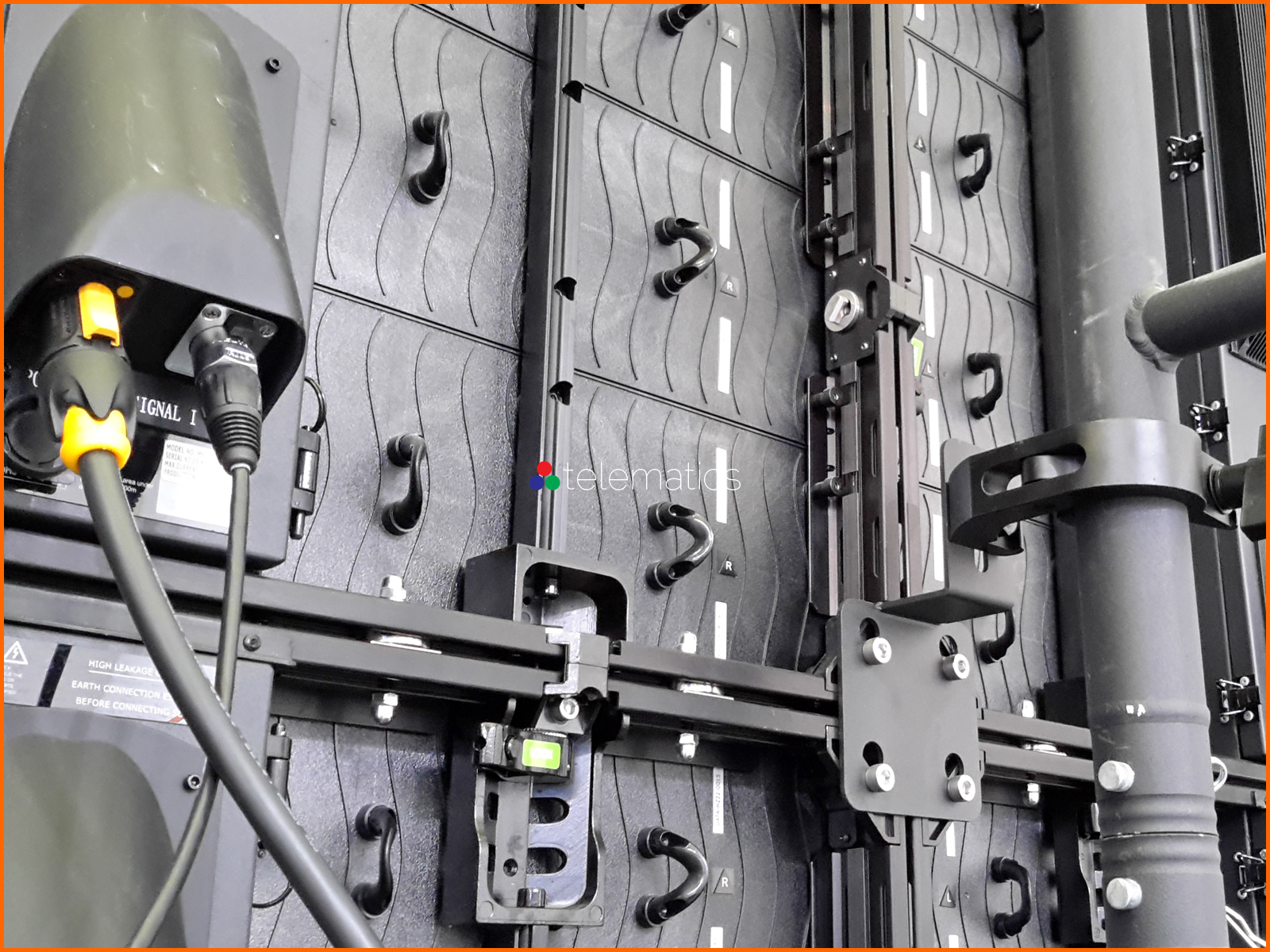

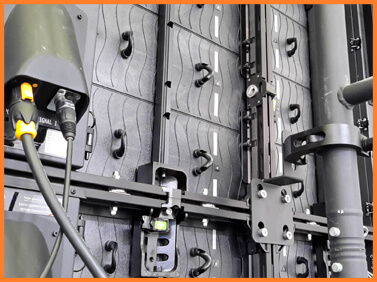

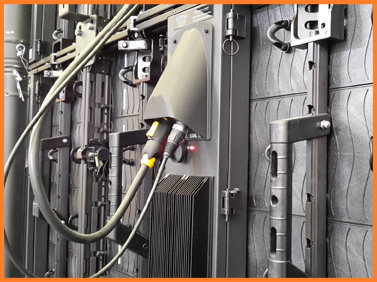

The Series M attaches to surrounding panels using permanent locking fasteners or optional stage hardware for quick release. Attach to a frame or use hanging bars or ground supports. Power and data cabling is simple and intuitive with quick-release Neutrik components.

Specifications · Desay Series M

At home on the stage. Or the range.

Therefore, in your deliberations, when seeking to determine the military conditions, let them be made the basis of a comparison. ~ Sun Tzu

Series	M4⁷⁶	M5⁵⁵	M6²⁵	M8³³	M10⁰⁰	M12⁵⁰
Pixels ^{mm · meters}
Resolution ^{· ctc distance · mm}	4.76	5.55	6.25	8.33	10.0	12.5
Resolution ^{· per linear meter}	210	180	160	120	100	80
Resolution ^{· per square meter}	44100	32400	25600	14400	10000	6400
Dimensions ^{mm · (inch)}
Width ^{· half or full panel}	800 ^(31.5)	800 ^(31.5)	800 ^(31.5)	800 ^(31.5)	800 ^(31.5)	800 ^(31.5)
Width ^{· half or full panel}	1200 ^(47.2)	1200 ^(47.2)	1200 ^(47.2)	1200 ^(47.2)	1200 ^(47.2)	1200 ^(47.2)

Height ^{· half panel}	450 ^(17.7)	450 ^(17.7)	450 ^(17.7)	450 ^(17.7)	450 ^(17.7)	450 ^(17.7)
Height ^{· full panel}	900 ^(35.4)	900 ^(35.4)	900 ^(35.4)	900 ^(35.4)	900 ^(35.4)	900 ^(35.4)

Depth ^{· at panel edge}	65 ^(2.6)	65 ^(2.6)	65 ^(2.6)	65 ^(2.6)	65 ^(2.6)	65 ^(2.6)
Depth ^{· at power box}	65 ^(2.6)	65 ^(2.6)	65 ^(2.6)	65 ^(2.6)	65 ^(2.6)	65 ^(2.6)
Weight ^{kilo · (pound)}
Panel ^{· full panel}	19.8 ^(43.6)	19.5 ^(43.0)	17.2 ^(38.0)	17.2 ^(38.0)	16.5 ^(36.4)	16.0 ^(35.3)

Viewing ^(upgrade)
Brightness ^{· candela/m²}	5000	5000	5000	5000	5000	5000

Refresh ^{· hertz}	1920 ⁽³⁸⁴⁰⁾	1920 ⁽³⁸⁴⁰⁾	1920 ⁽³⁸⁴⁰⁾	1920 ⁽³⁸⁴⁰⁾	1920 ⁽³⁸⁴⁰⁾	1920 ⁽³⁸⁴⁰⁾

Angle ^{· 50% brightness}	70° ↔ 70°	70° ↔ 70°	70° ↔ 70°	70° ↔ 70°	70° ↔ 70°	70° ↔ 70°
Angle ^{· 50% brightness}	45° ↕ 45°	15° ↕ 45°	15° ↕ 45°	30° ↕ 45°	50° ↕ 60°	40° ↕ 60°
Performance
Colors ^{· rgb · bit depth}	2¹⁴	2¹⁴	2¹⁴	2¹⁴	2¹⁴	2¹⁴
Control ^{· brightness levels}	255	255	255	255	255	255
Lifetime ^{· 50% brightness · years}	11.4	11.4	11.4	11.4	11.4	11.4
Power ^{square meter}
Watts ^{· (average draw)}	560 ^(35%)	560 ^(35%)	550 ^(35%)	540 ^(35%)	540 ^(35%)	530 ^(35%)

Voltage ^{· VAC · adaptable}	100 ⌁ 240	100 ⌁ 240	100 ⌁ 240	100 ⌁ 240	100 ⌁ 240	100 ⌁ 240
Installation
Wall ^{· custom steel frame}	⬚	⬚	⬚	⬚	⬚	⬚
Ceiling ^{· fly bar}	⭭	⭭	⭭	⭭	⭭	⭭
Floor ^{· floor support}	⭫	⭫	⭫	⭫	⭫	⭫

IP Code ^{· front · rear}	65 · 54	65 · 54	65 · 54	65 · 54	65 · 54	65 · 54
Operating ^{· celsius · (fahrenheit)}	-30 ^(-22) · 50 ⁽¹²²⁾	-30 ^(-22) · 50 ⁽¹²²⁾	-30 ^(-22) · 50 ⁽¹²²⁾	-30 ^(-22) · 50 ⁽¹²²⁾	-30 ^(-22) · 50 ⁽¹²²⁾	-30 ^(-22) · 50 ⁽¹²²⁾

Certifications

Desay Series M	ETL	FCC


Fine Print

Specifications	Desay and Telematics reserves the right to change any specifications without prior notice.

Factory Warranty	Faulty components to be repaired or exchanged for 2 years from the date of shipping.

Extended Factory Warranty	The Desay factory warranty may be extended to 5 years at a modest premium.

The Sales Pitch

So here's the deal...

Energy may be likened to the bending of a crossbow; decision, to the releasing of a trigger. ~ Sun Tzu

About Telematics

Telematics is a federally-incorporated company based in Vancouver since 2000. Our global partners manufacture innovative LED display panels, cabinets, curtains, interactive video floors and the systems that control them. We distribute the world's most advanced touch skins and rear projection films that turn any window into a massive display.

Our high-volume relationship with our manufacturers and low corporate profile allows us to provide aggressive pricing and personalized service to a world-wide network of principals and project managers in the audio-video and digital signage industry. We also sell directly to businesses and individuals who select and install their own systems with the assistance of local tradesmen and engineers.

Desay Series M

The Series M is equally at home in a permanent outdoor display or at that night's concert for sixty thousand people.

The dimensions of 800 * 900 millimeters create a perfect 16:9 aspect ratio when just two panels are used or a traditional 4:3 ratio with six or more.

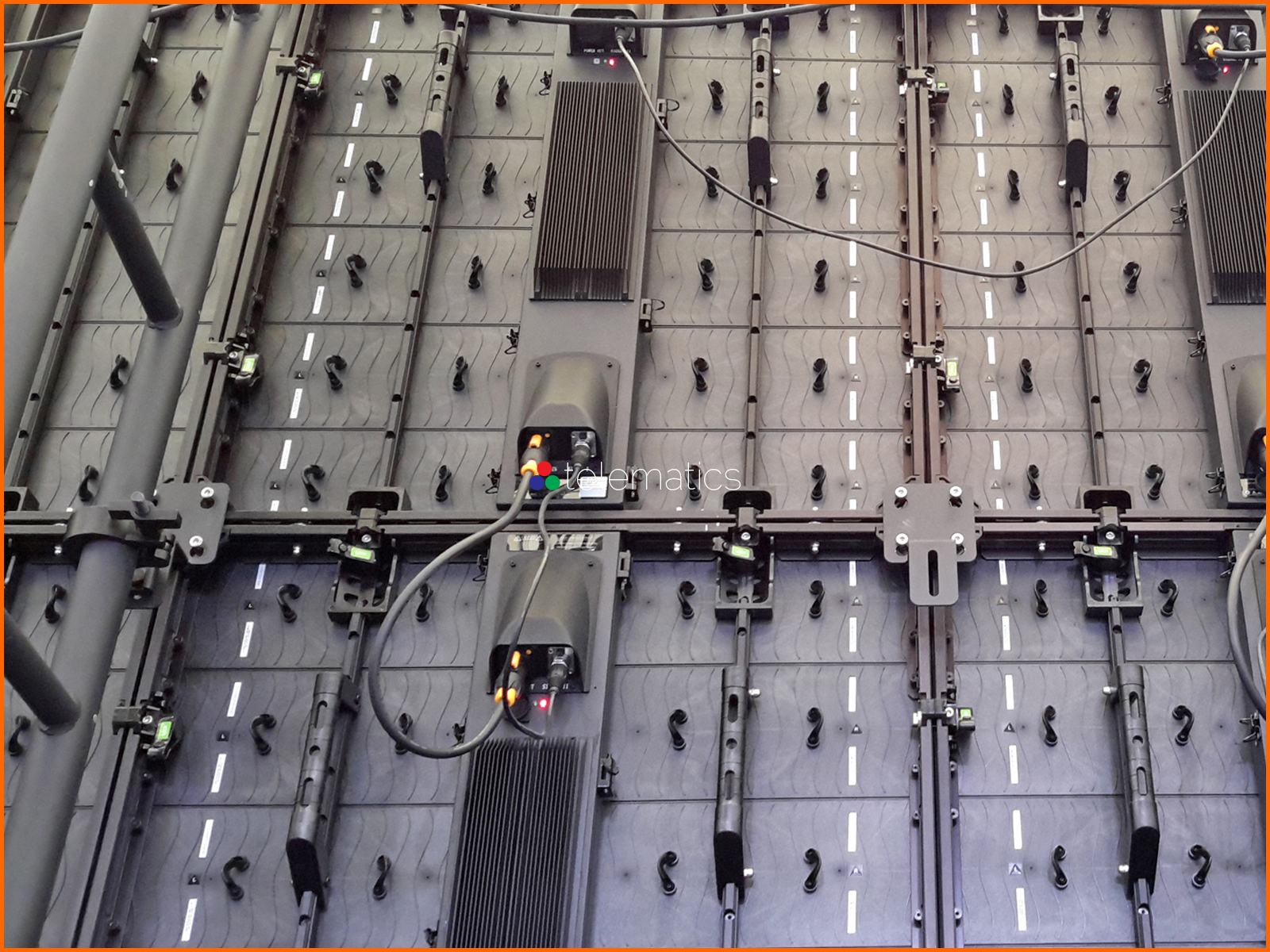

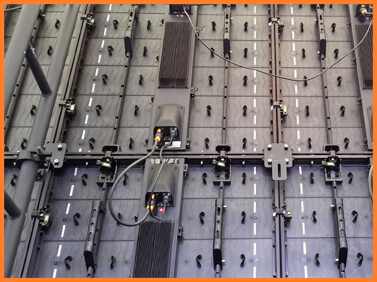

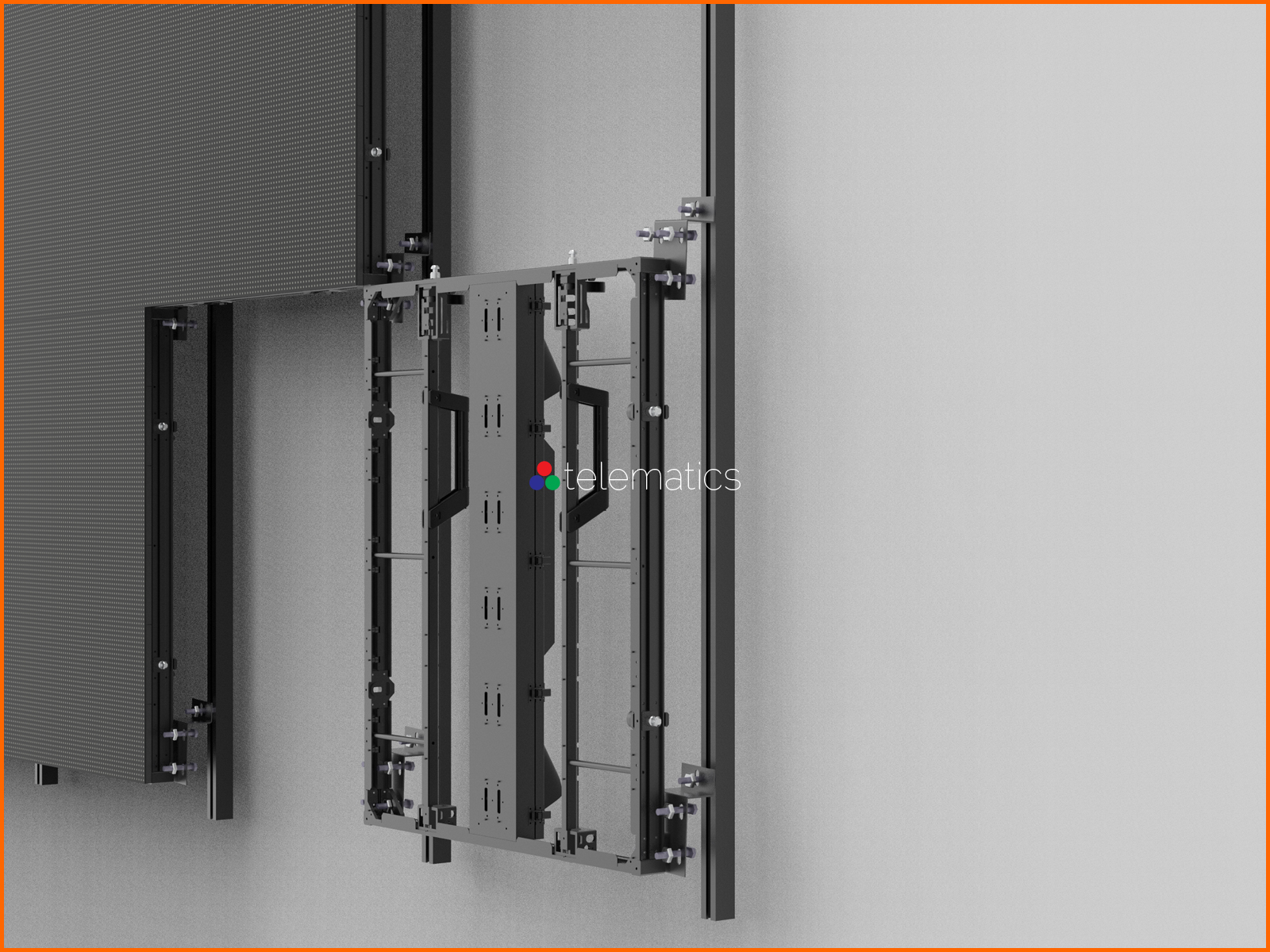

The Series M is serviced from the front of the display by removing one or more of the modules that fill out a single panel. This feature allows for permanent installations to be mounted tightly to walls, requiring extra space only for adequate thermal ventilation instead of technicians.

Pixel density starts at 6,400 and increases incrementally to seven times that number at 44,100 pixels per square meter across 6 models. Refresh rates are 1920 Hz to 3840 Hz and Neutrik power cables and data connectors join the panels together.

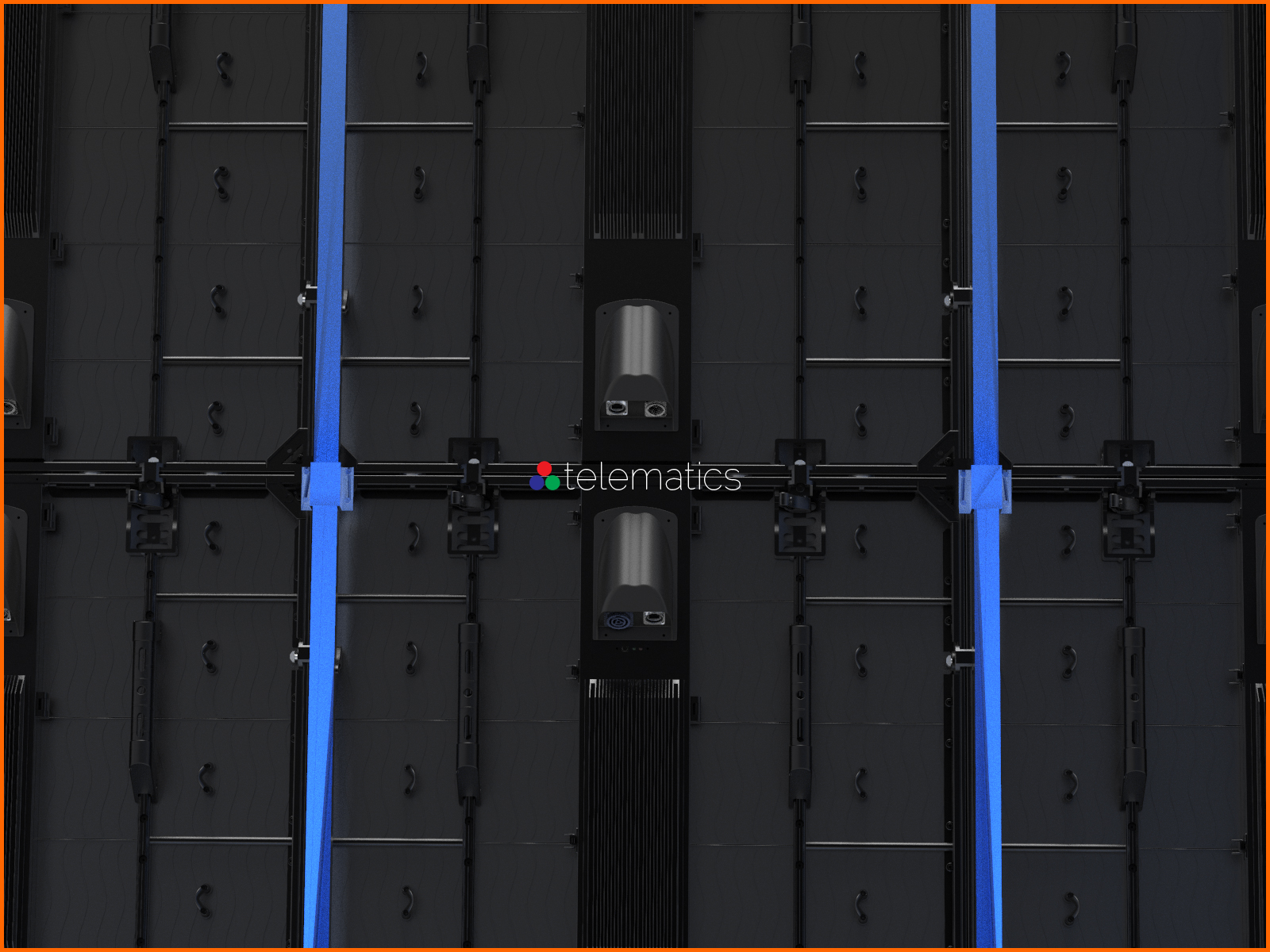

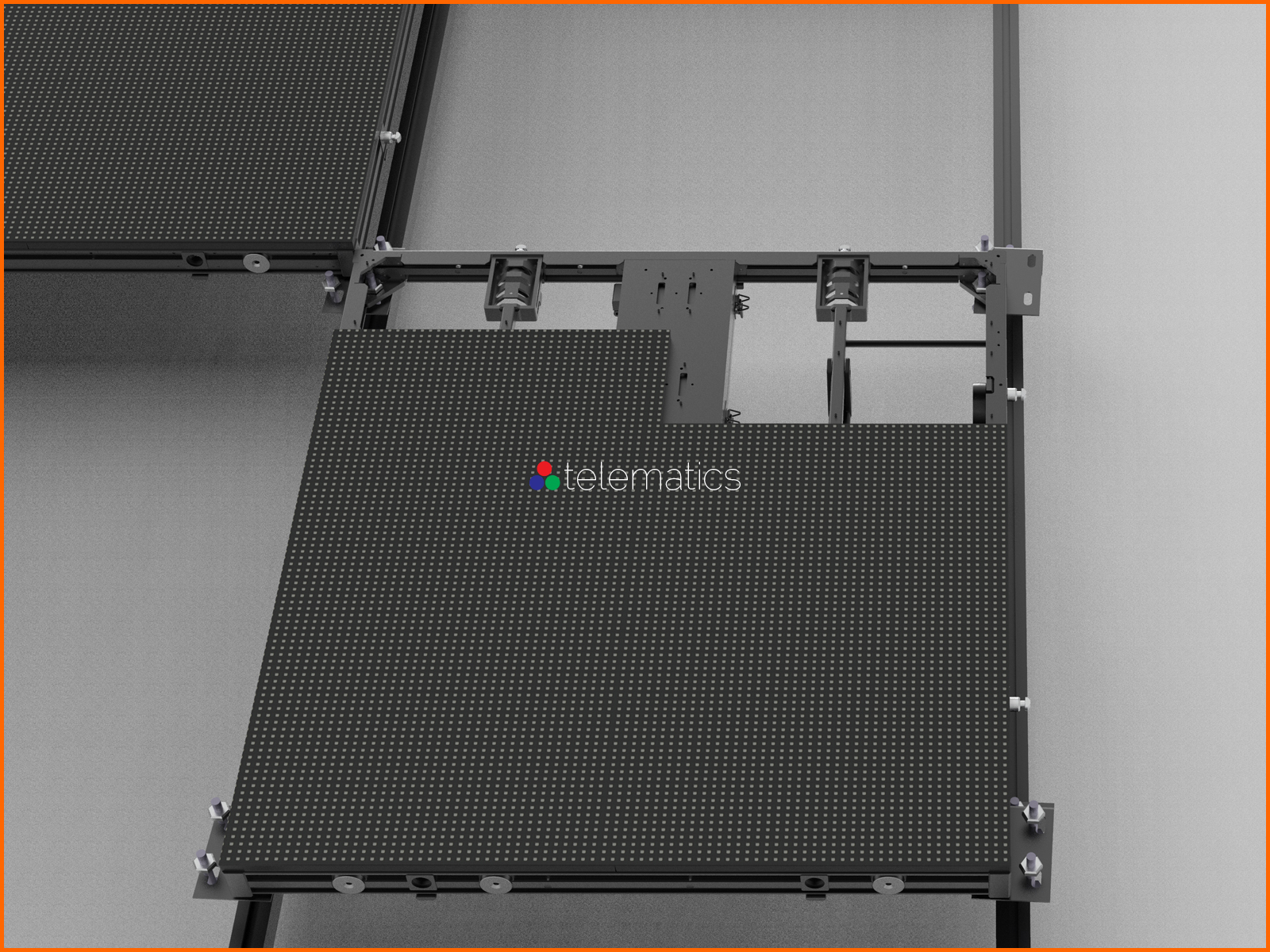

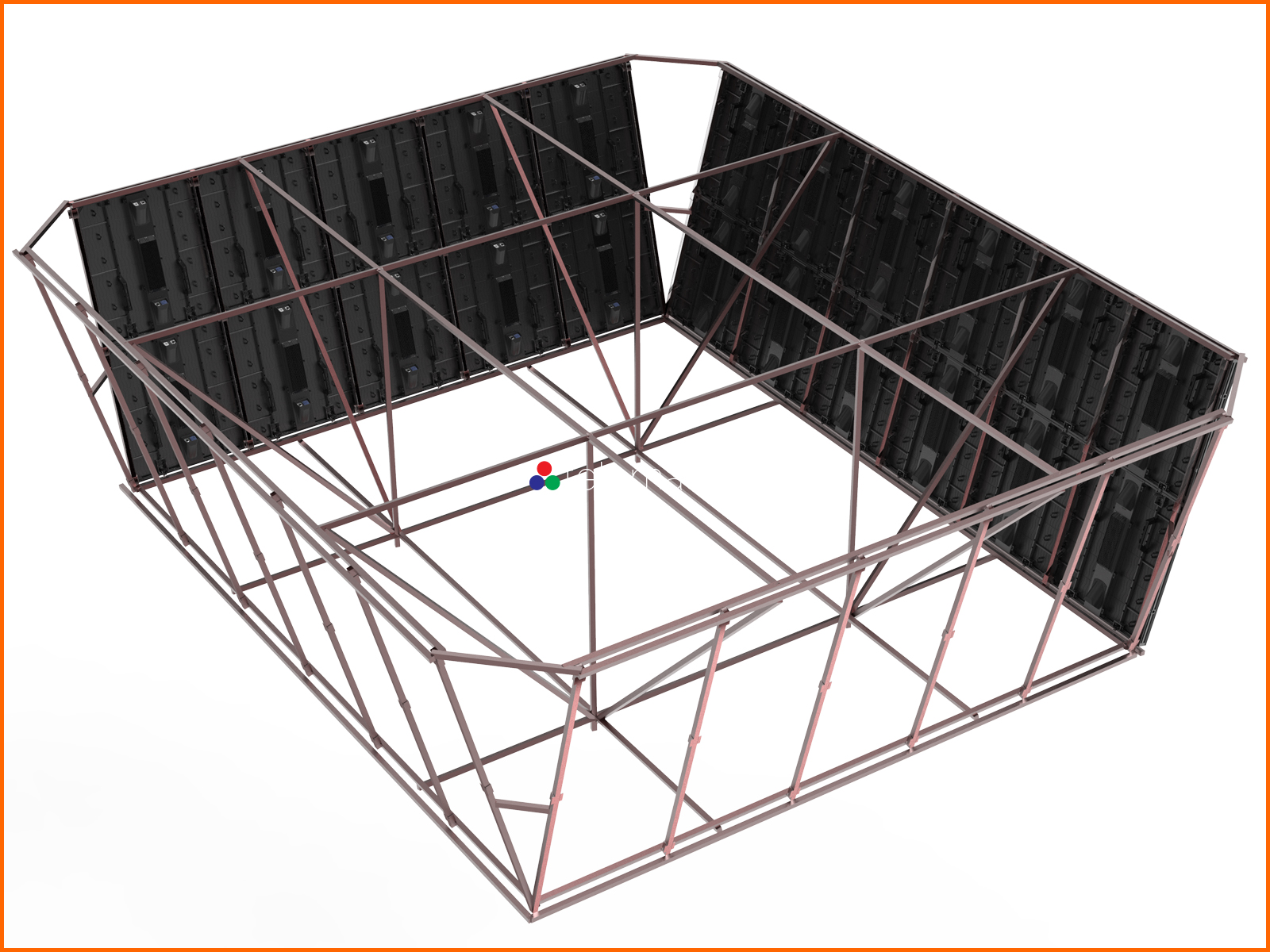

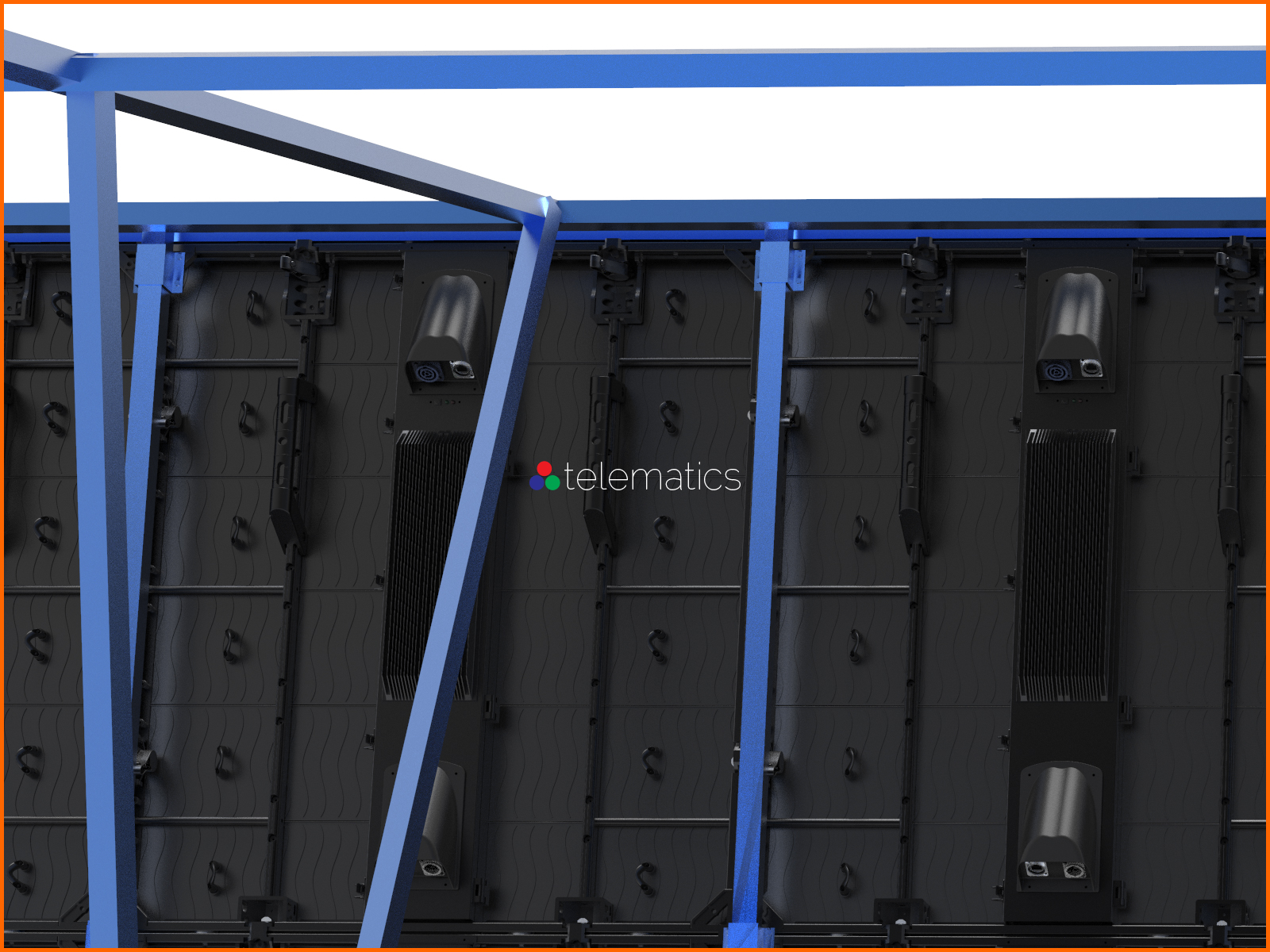

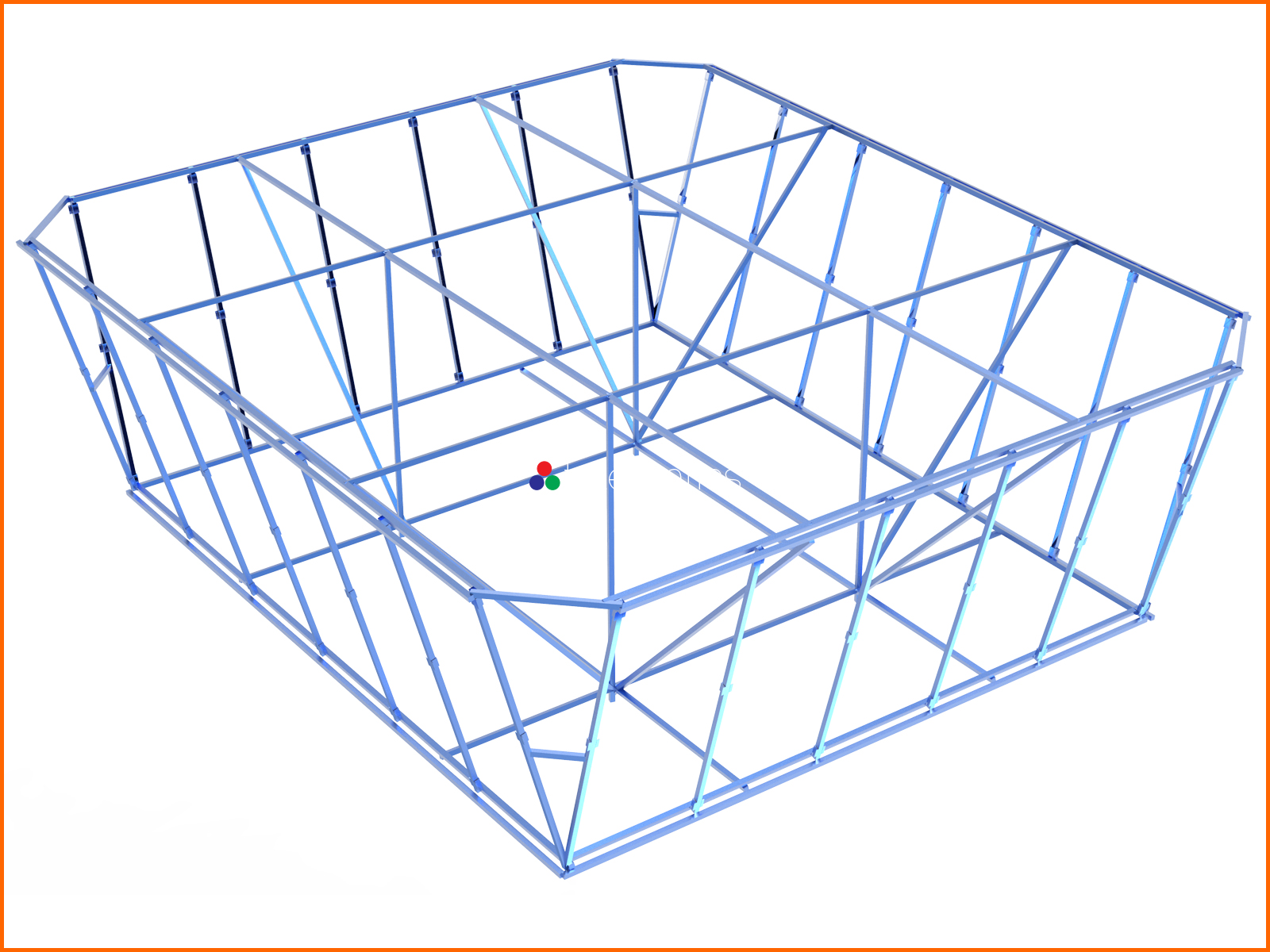

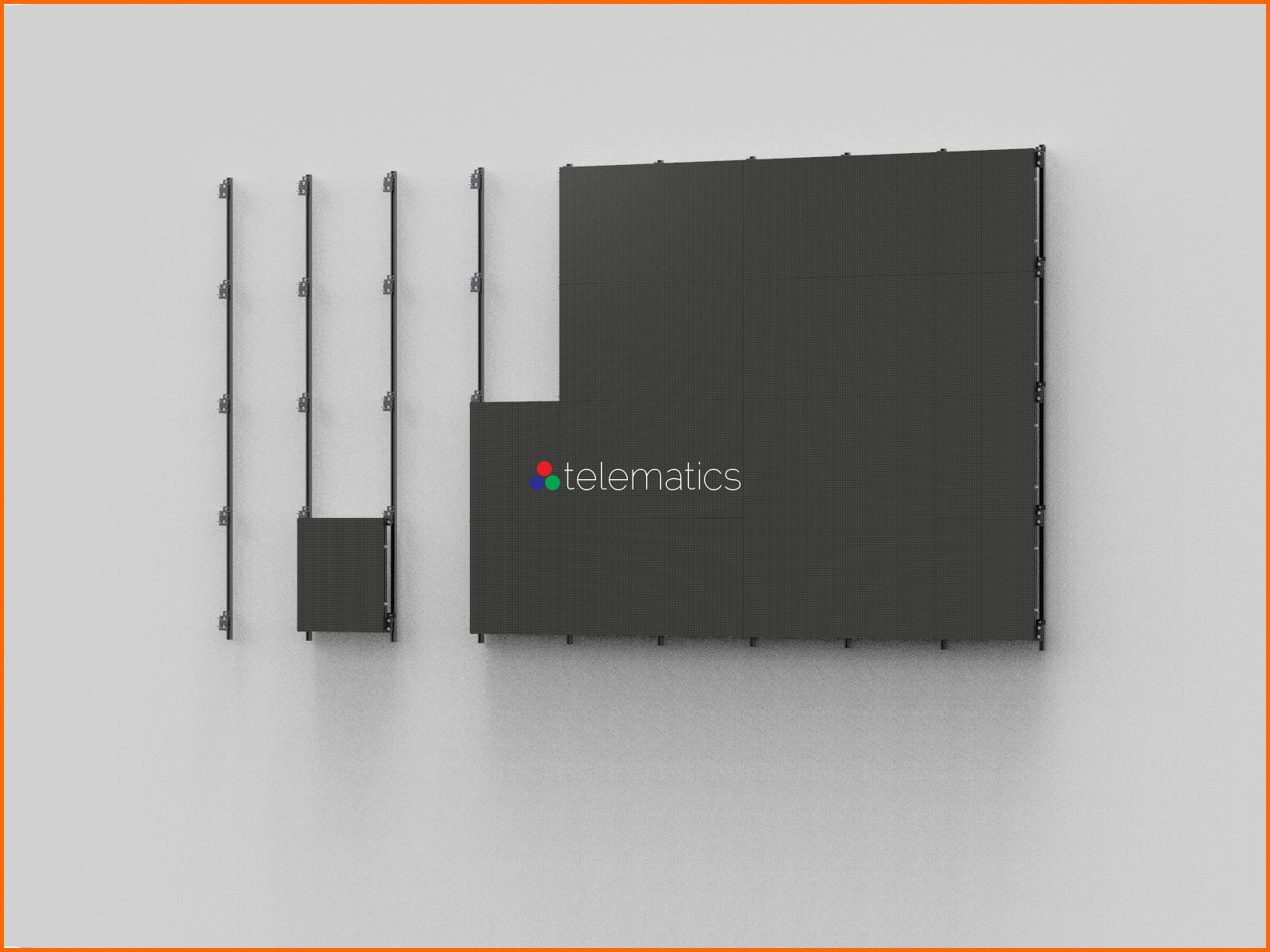

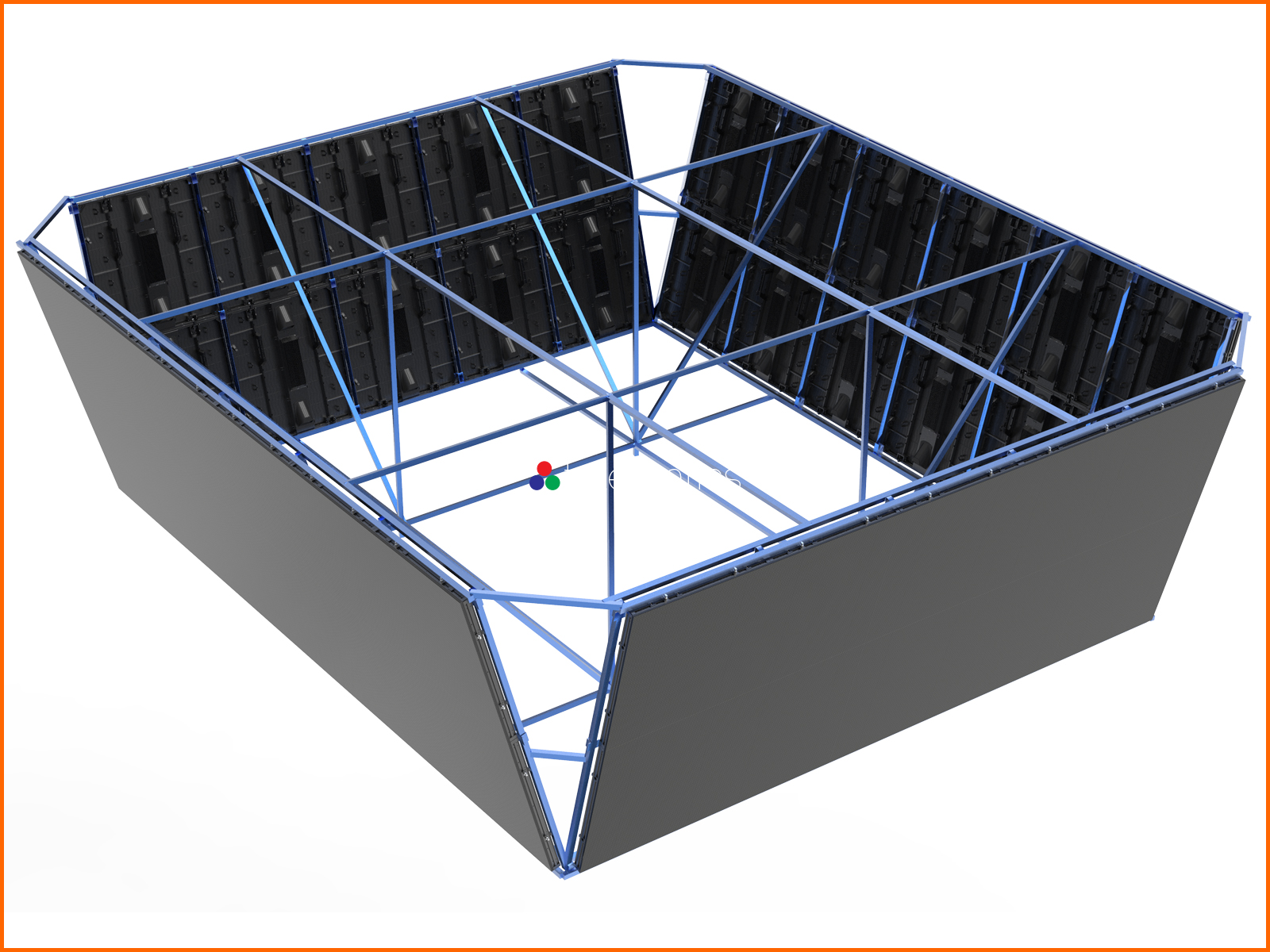

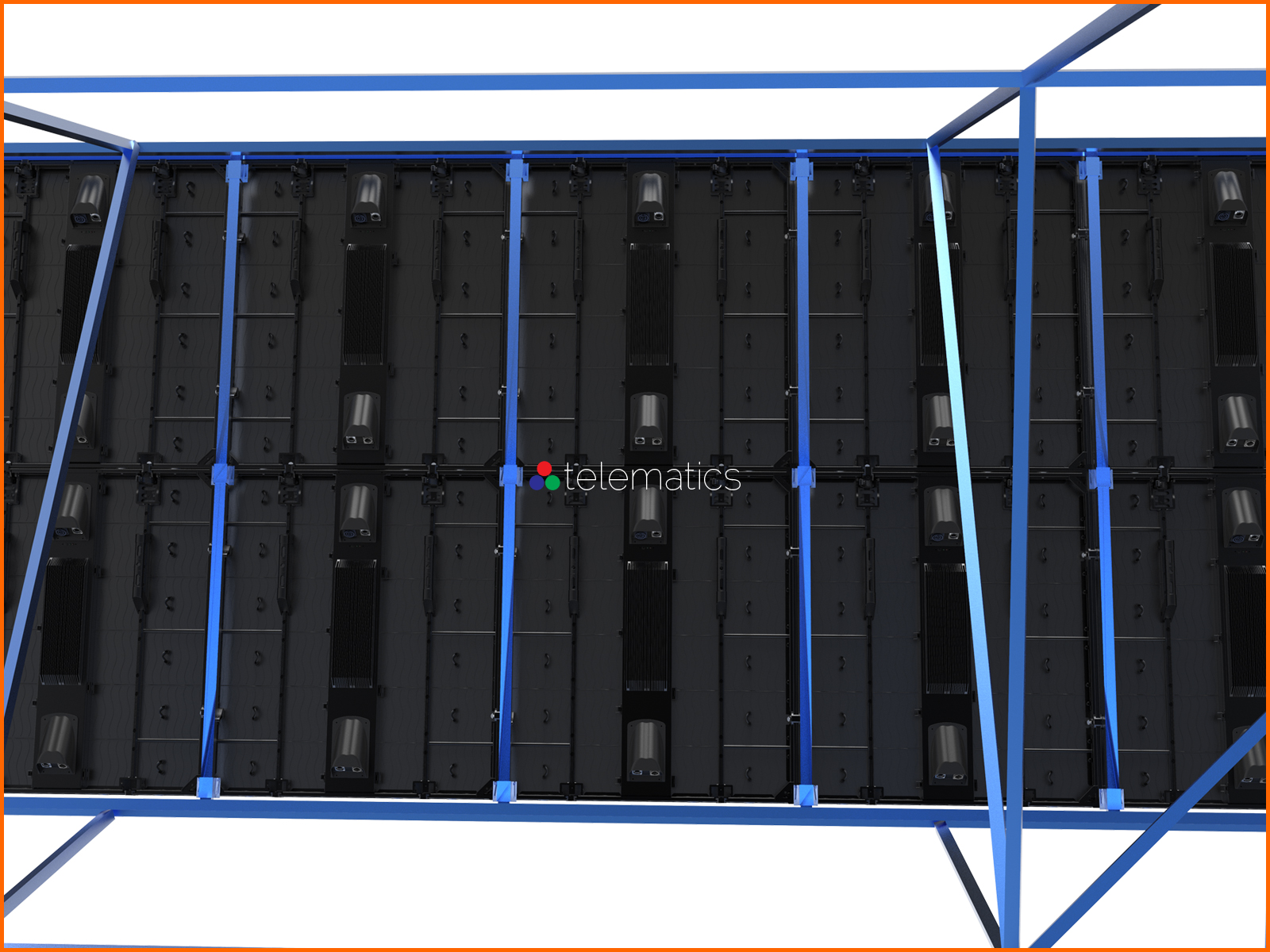

Install the Series M to a frame using the 4 corner anchors or assemble the panels using hanging bars or floor supports. Our technicians will provide mechanical drawings to create a steel frame locally or one can be built and shipped with your order.

Media is handled by any of our NovaStar controllers. If a network of displays is being deployed, content can be centrally-administered through an annual NovaStar VNNOX cloud publishing account.

The Series M is a cornerstone of the Desay lineup and has become the go-to panel for many of our outdoor installations as well as stage performances. Encore anyone?

Our Manufacturers

Desay is a public corporation (002920) established in 1983 and diversified in the fields of automotive electronics, advanced batteries, industrial automation, microelectronics and since 2001, a leader in optoelectronic LED production.

Desay's optoelectronic division has quietly emerged as an industry leader ranked #1 in Asia and #3 worldwide for the past decade with annual sales measured in tens of thousands of panels and cabinets.

The company owns 3 industrial zones with a total area over one and half million square meters. Huizhou is home to the Desay factory and offices with additional offices in Shenzhen.

Desay enjoys a well-earned reputation defined by developing and producing some of the highest-quality LED displays in the world.

Our Customers

For 19 years we have developed business relationships with thousands of people from every corner of the world.

Many are AV Professionals and Consultants who need to source premium equipment for their clients or their own rental inventory for the entertainment industry. Others are Architects and Designers looking for solutions to create fantastic high-resolution LED displays spanning a wall of an office or the facade of a building. And some are end-users prepared to take on the challenge of setting up their own digital displays for their storefronts.

In each case, we provide our customers with the answers they need and endeavor to offer solutions that are affordable, effective and reliable.

And we always keep their secrets to ourselves.

Our Cool Photos

A picture is worth a thousand clicks.

There are not more than five primary colors, yet in combination they produce more hues than can ever been seen.~ Sun Tzu

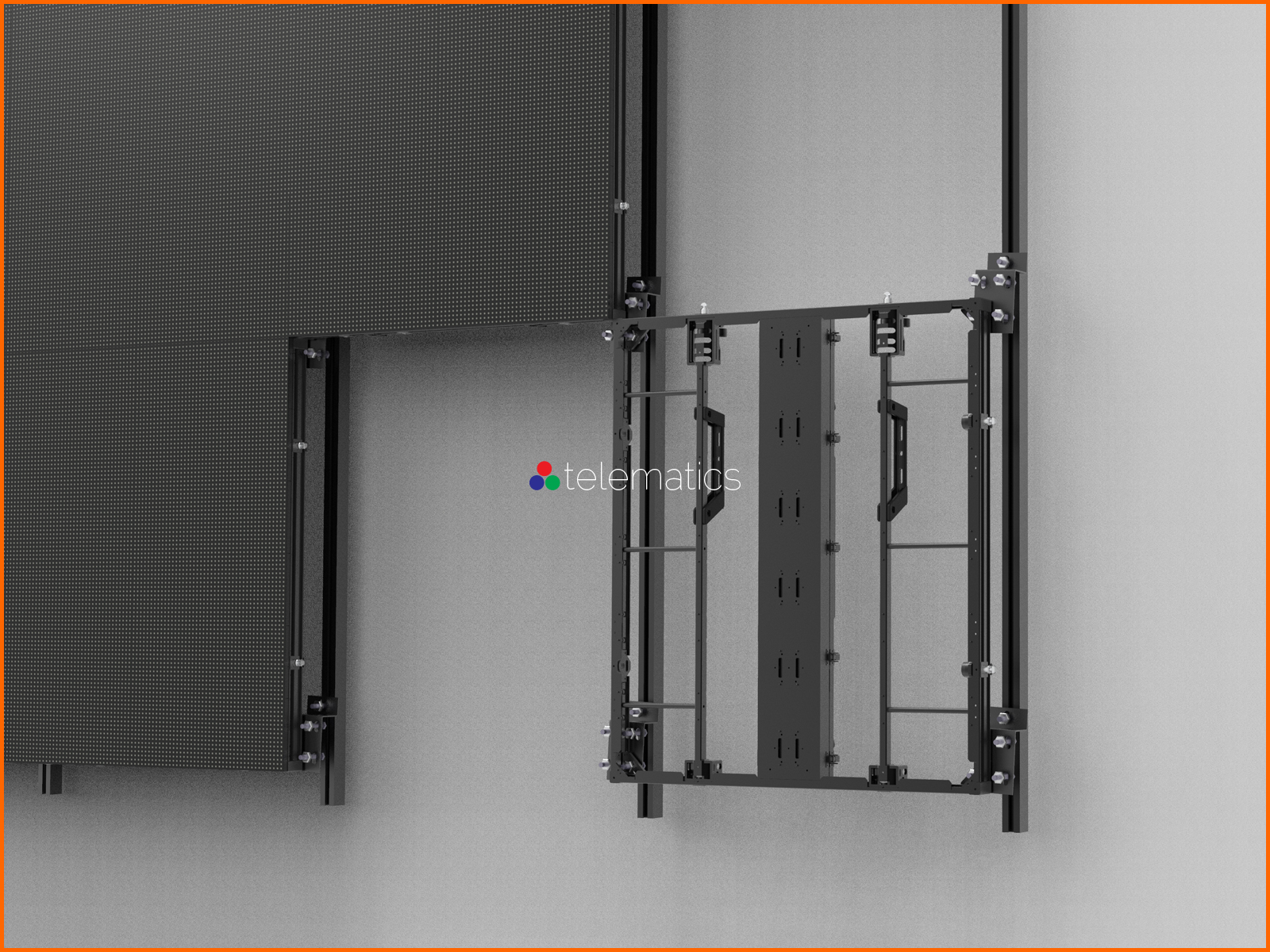

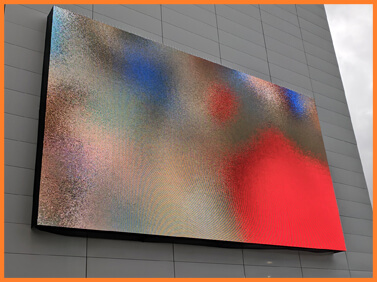

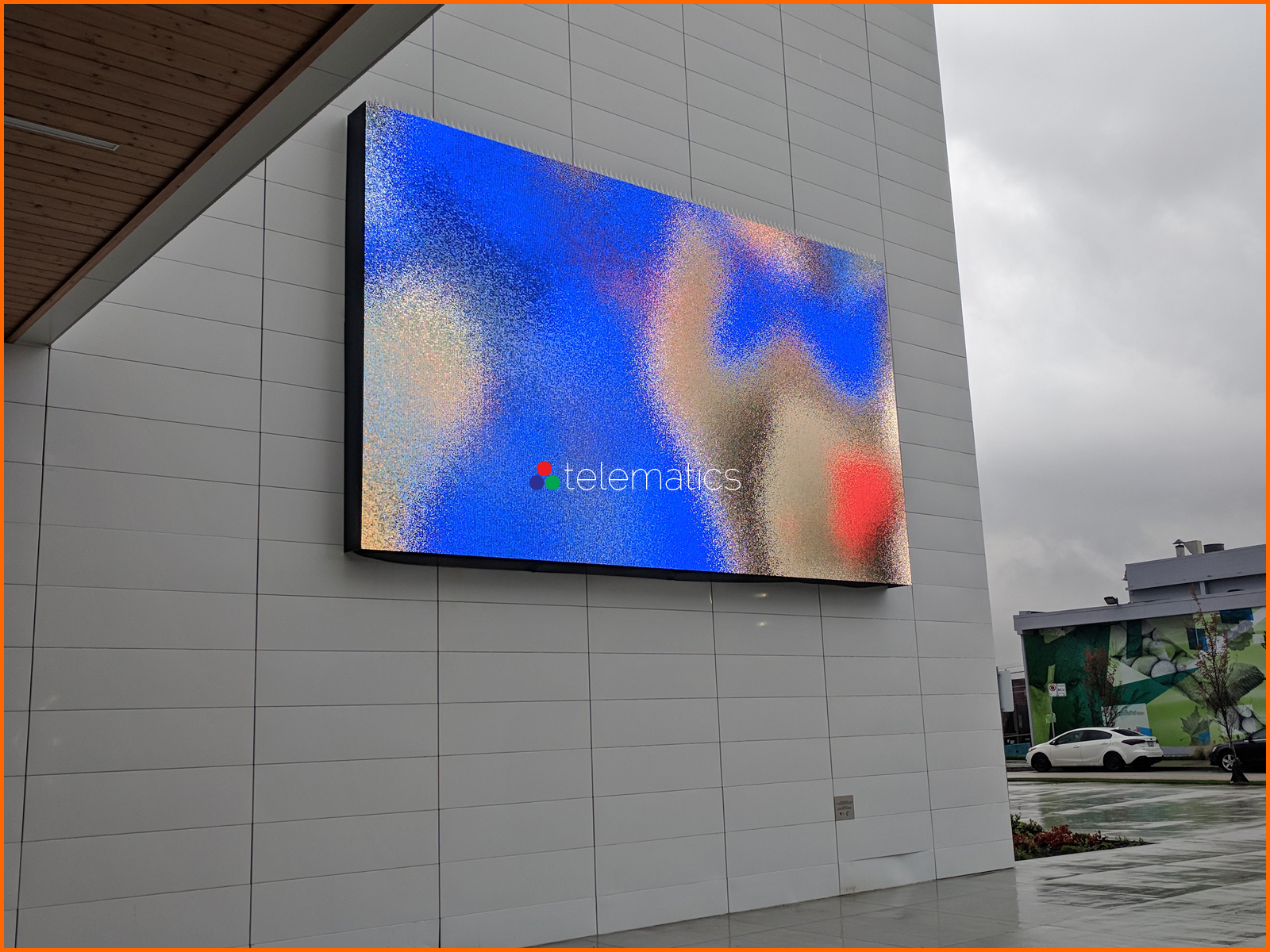

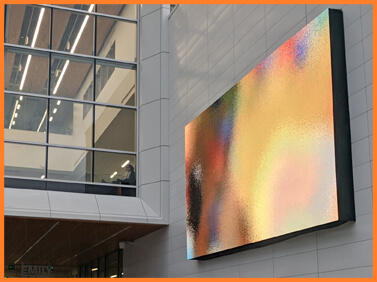

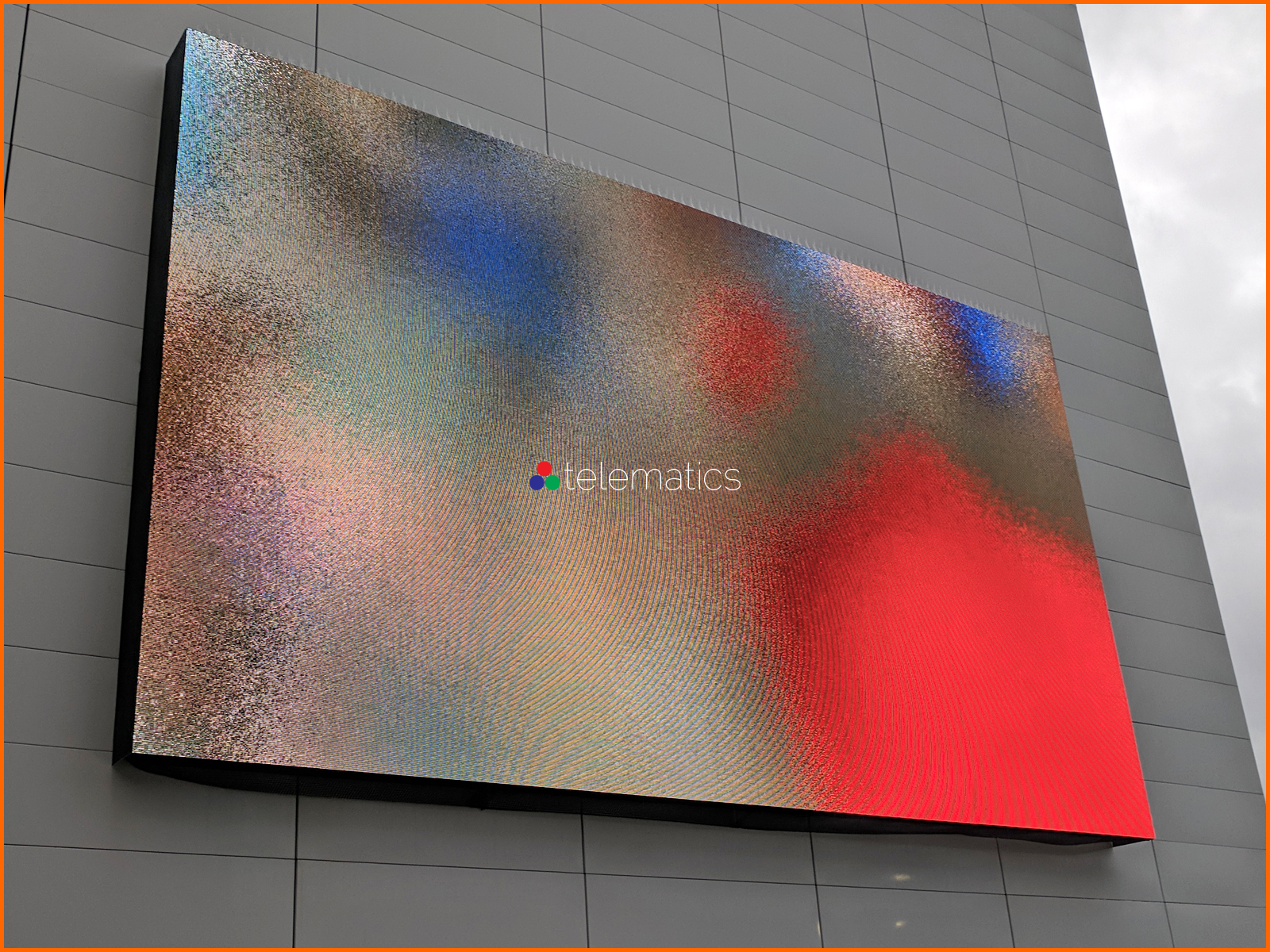

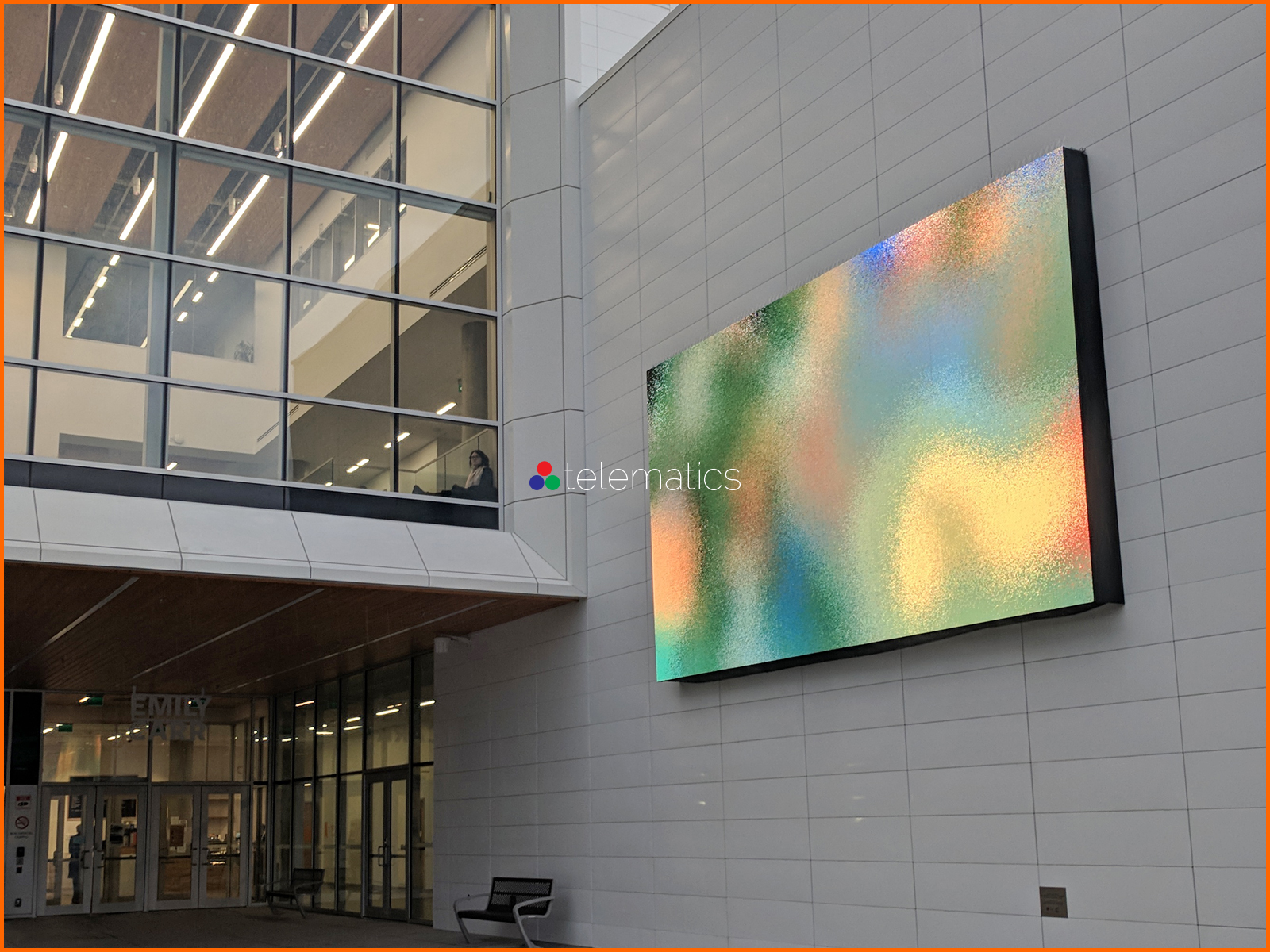

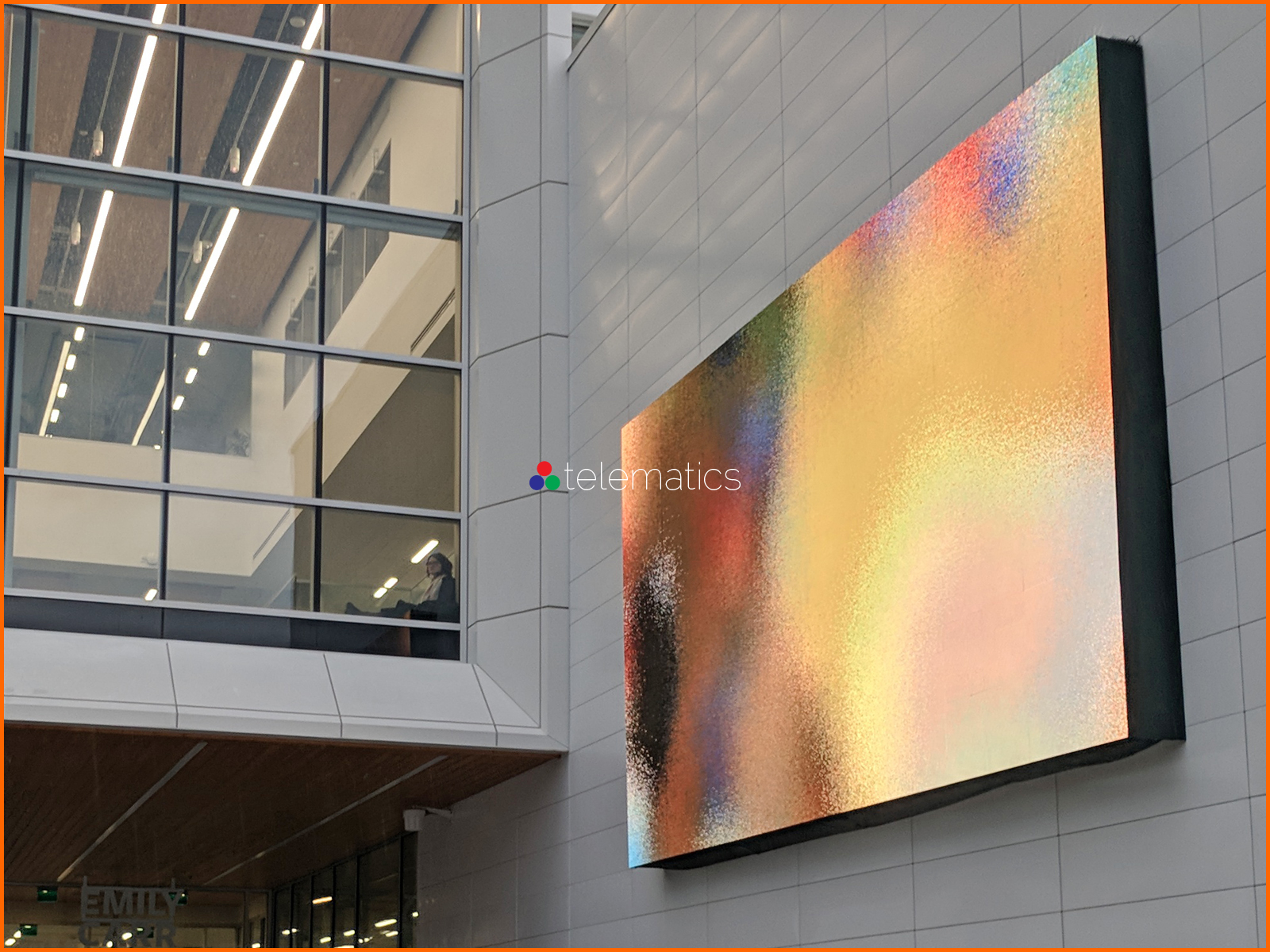

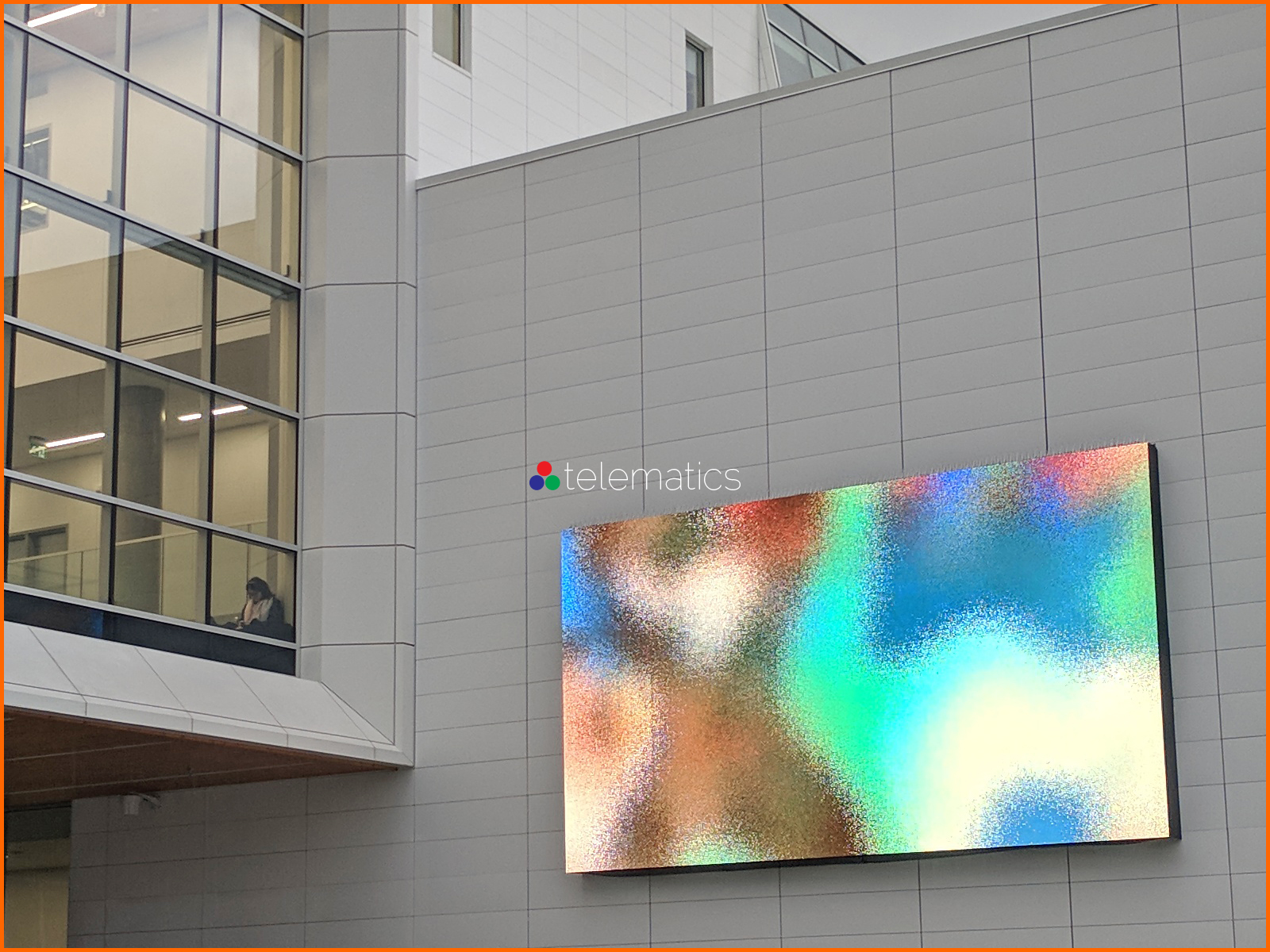

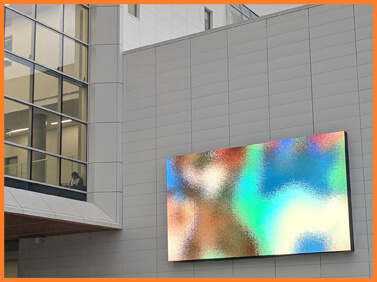

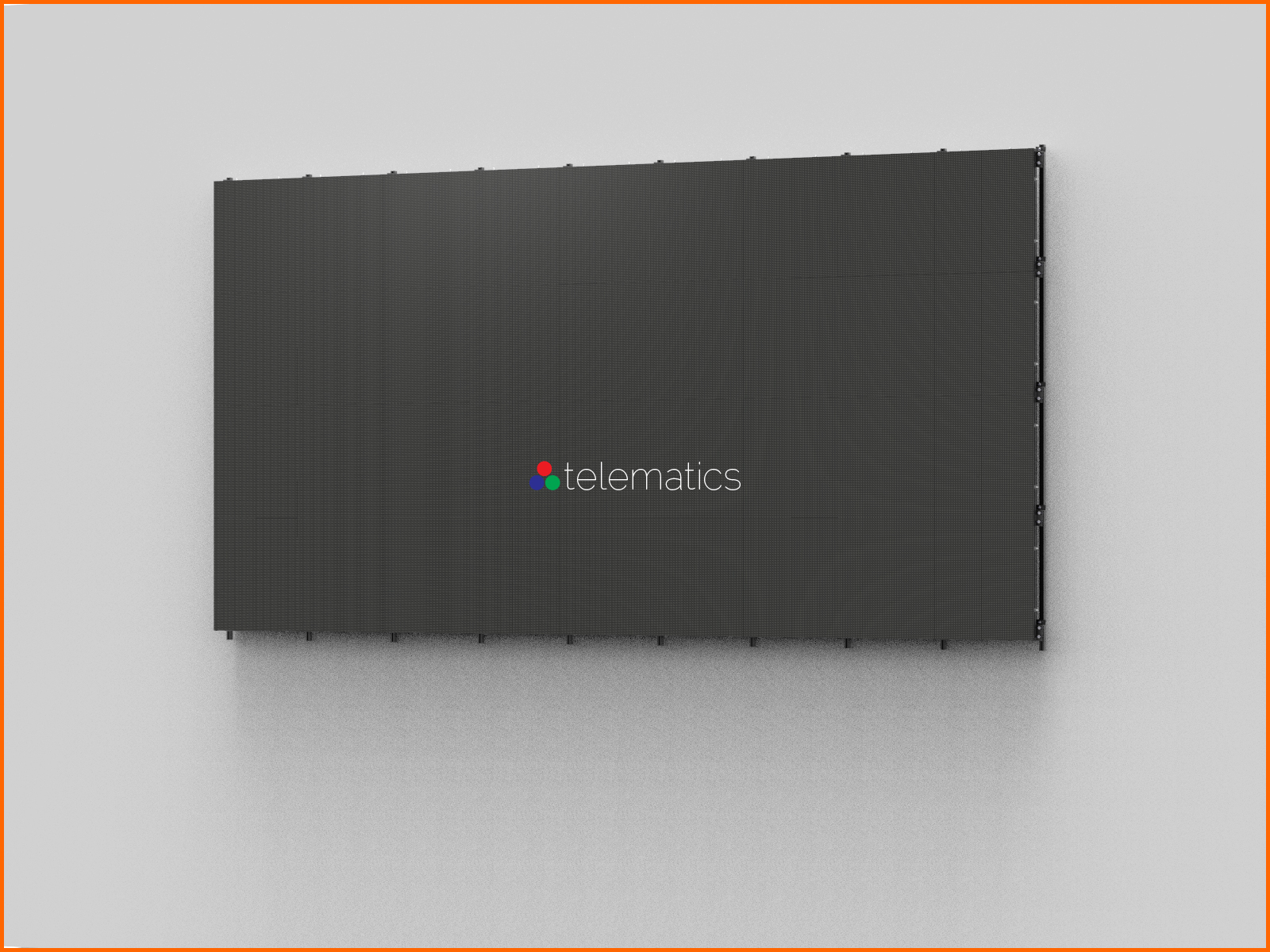

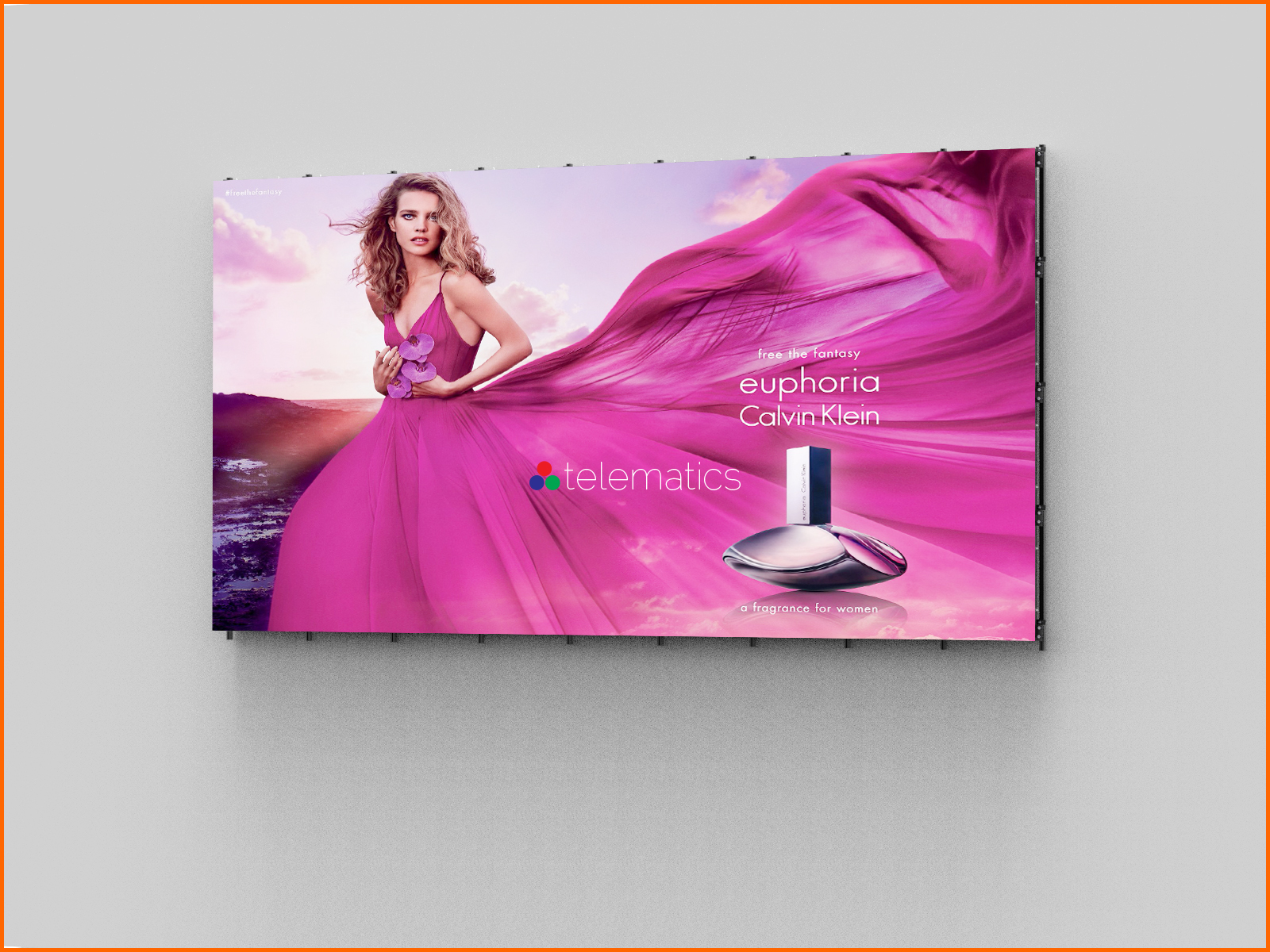

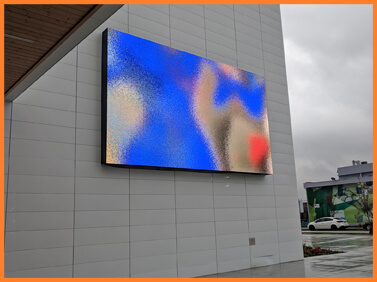

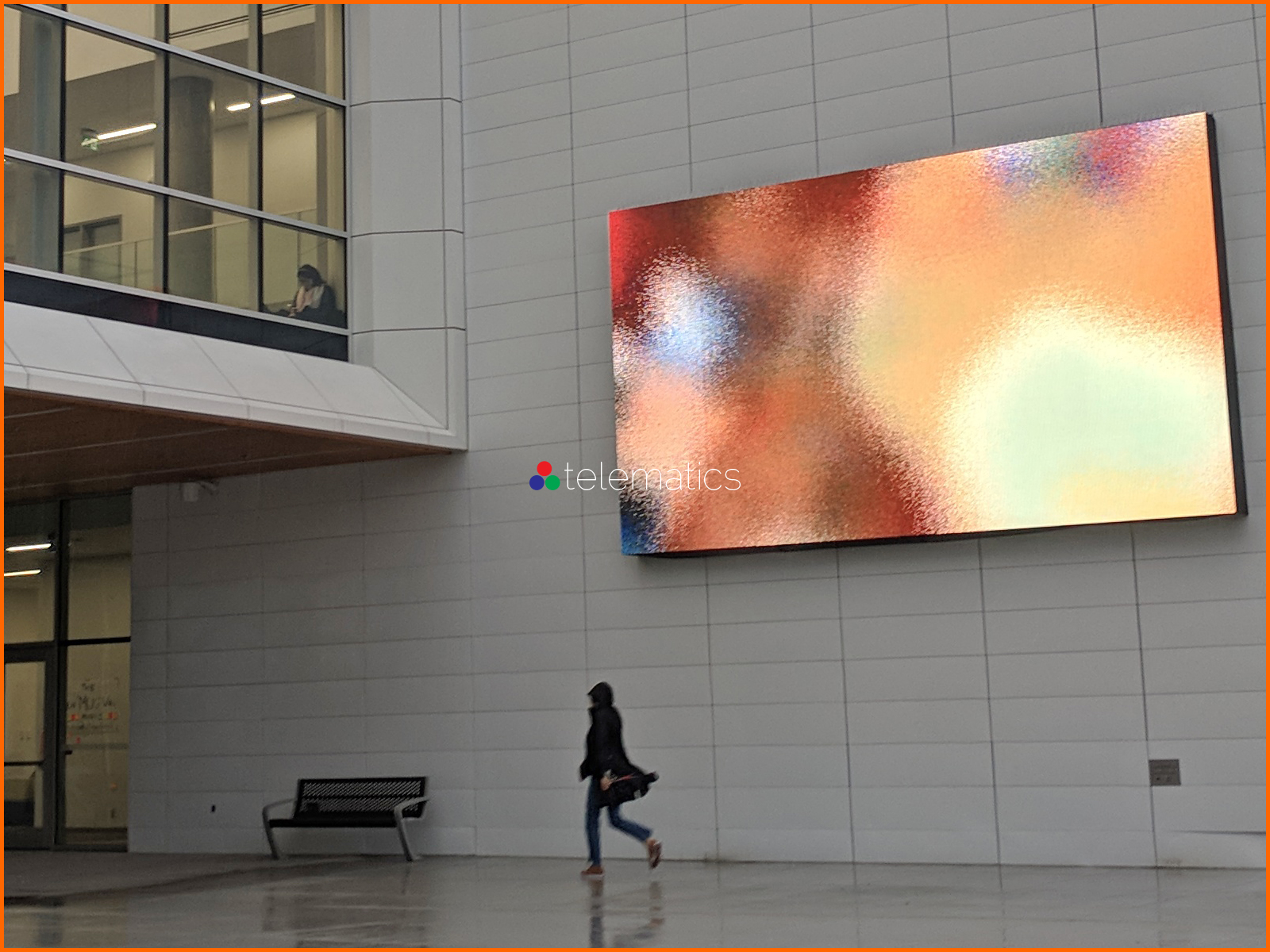

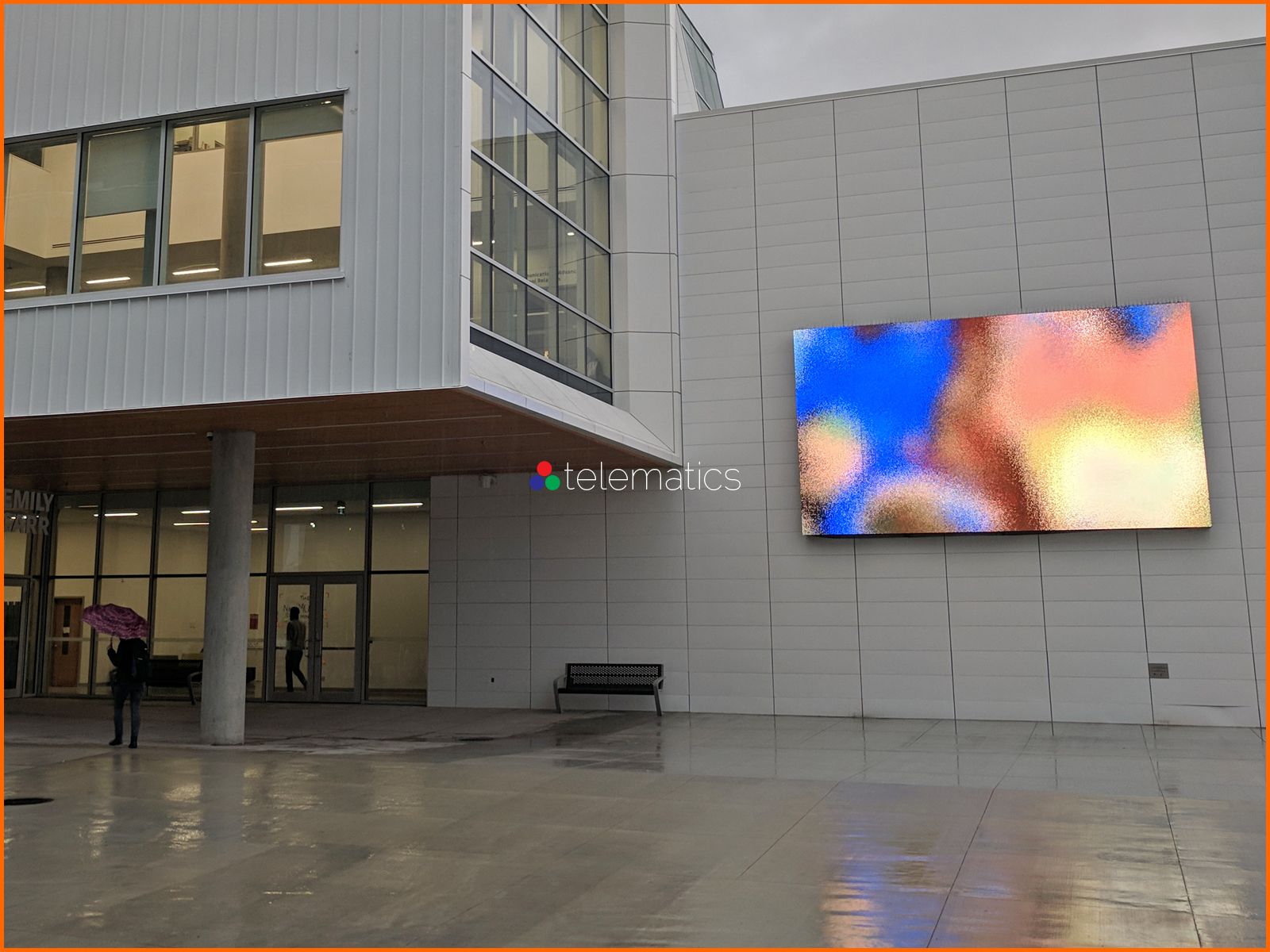

Series M Photos · Wall Mount ⁽⁶⁾

Series M

Series M

Series M

Series M

Series M

Series M

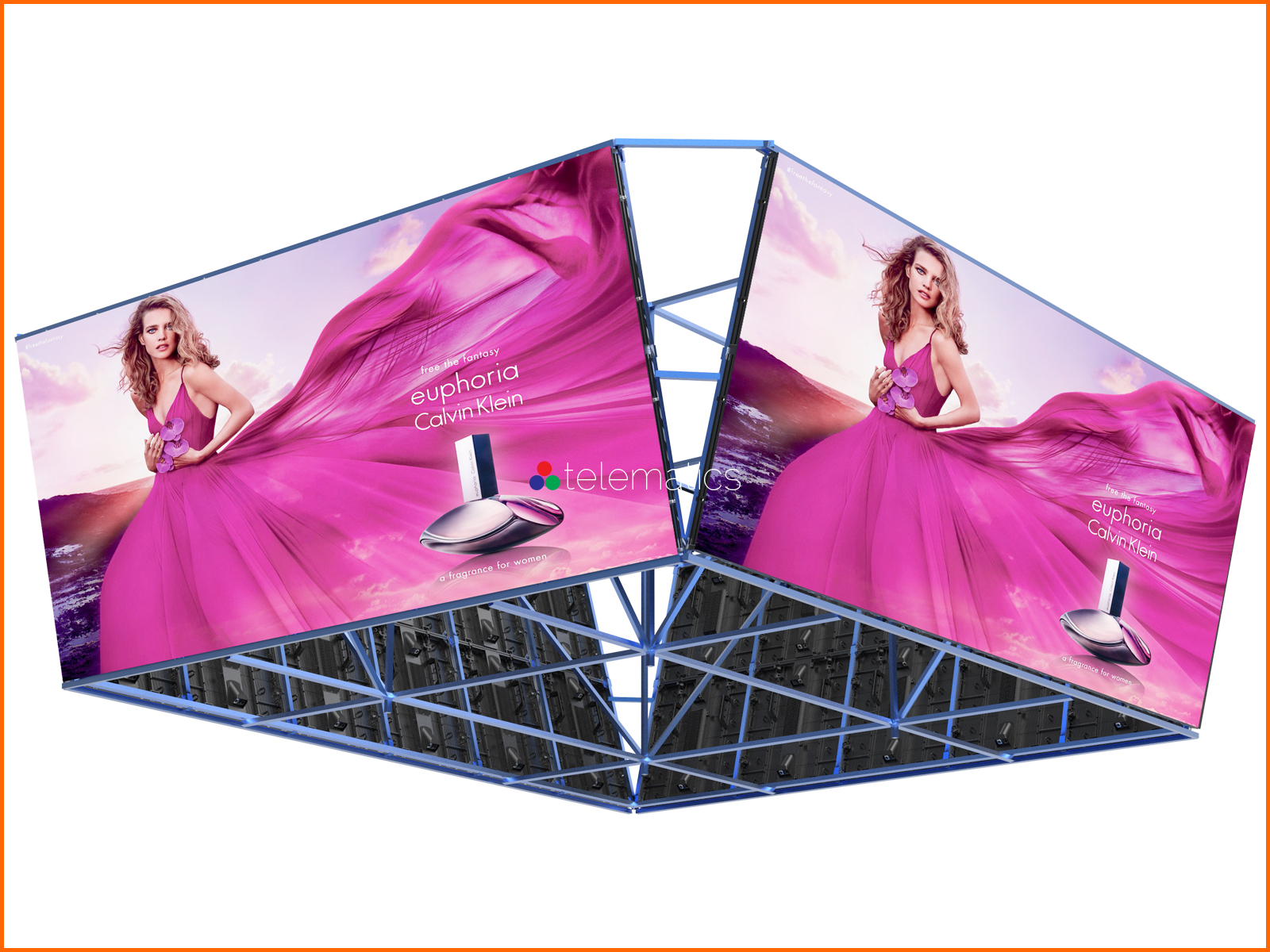

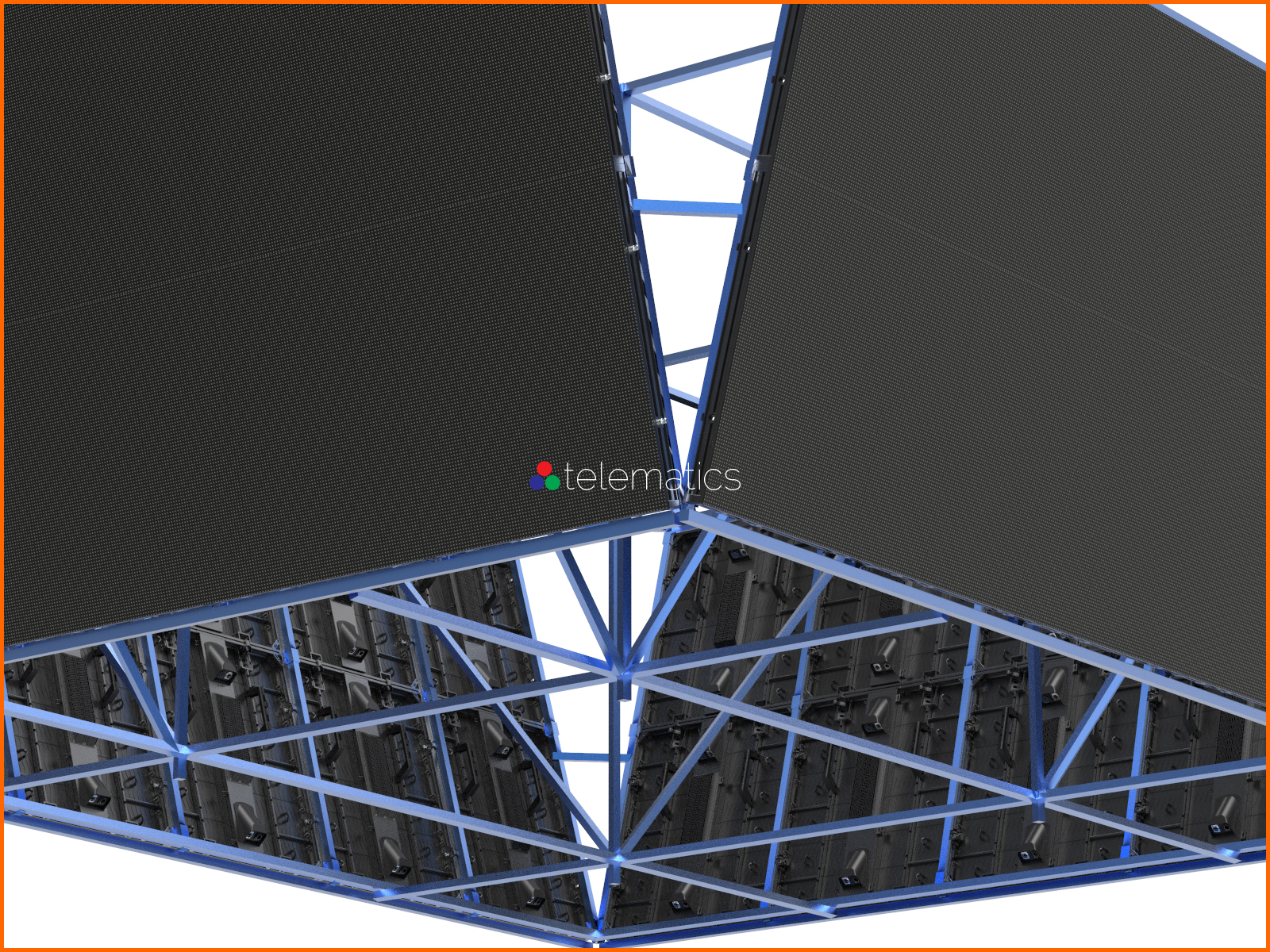

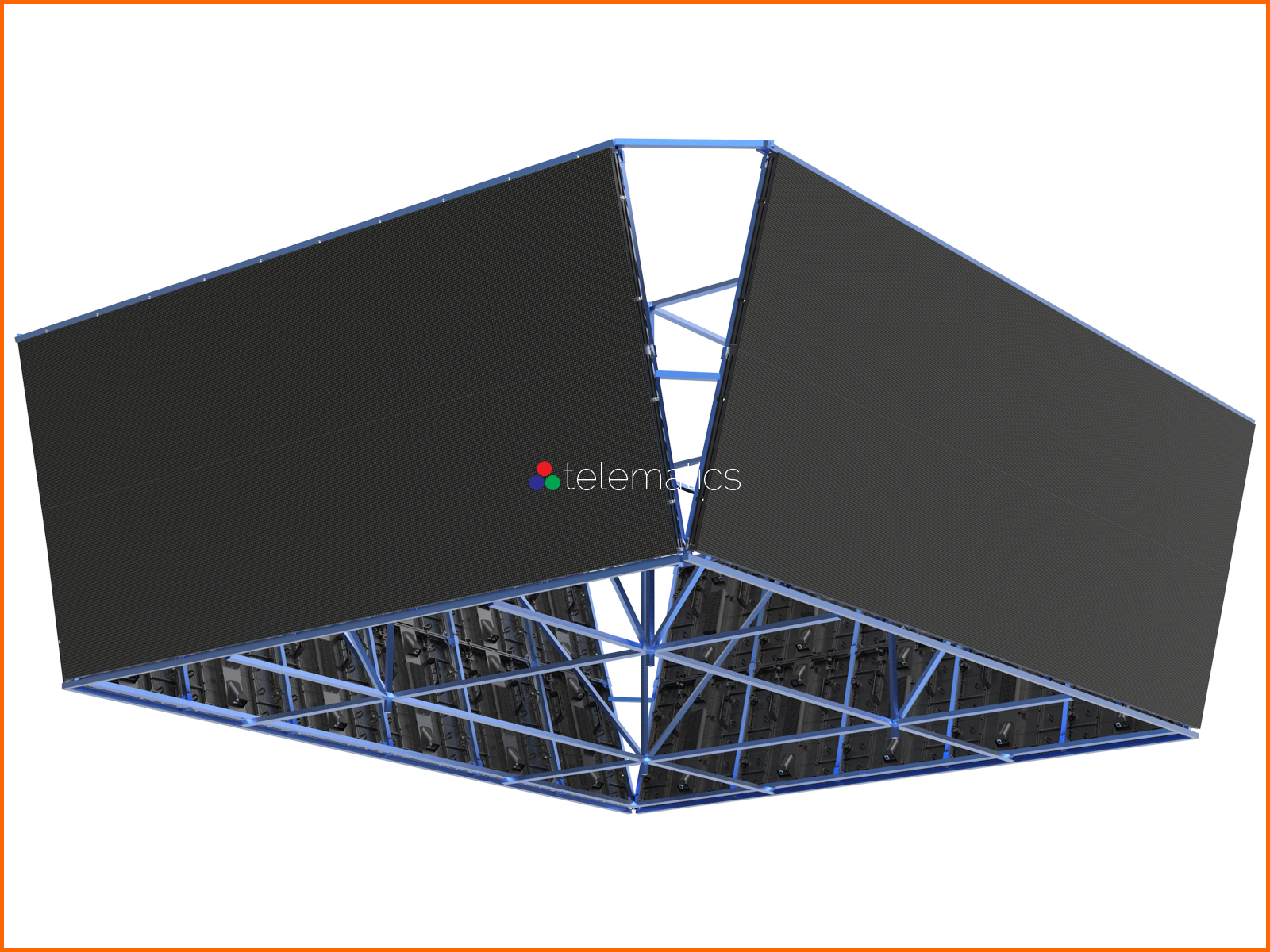

Series M Photos · Center Hung ⁽⁹⁾

Series M

Series M

Series M

Series M

Series M

Series M

· 2 ~ 5 year factory warranty

Series M

· custom aluminum panel

Series M

· wired · wireless · 4G

Series M

Series M Photos · University ⁽⁹⁾

Series M

Series M

Series M

Series M

Series M

Series M

· 2 ~ 5 year factory warranty

Series M

· custom aluminum panel

Series M

· wired · wireless · 4G

Series M

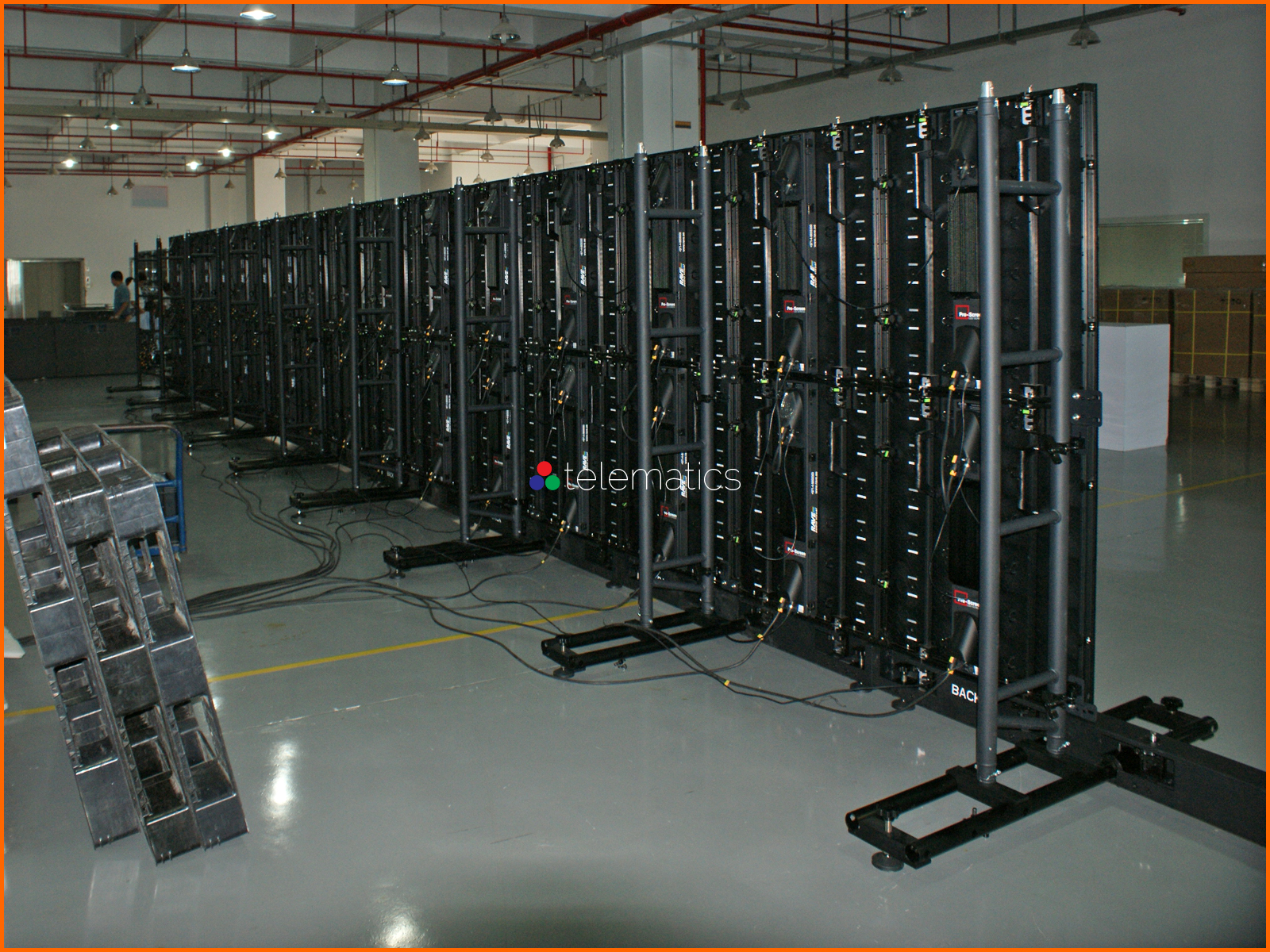

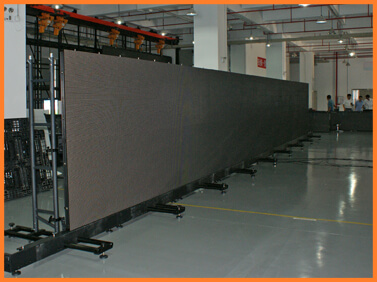

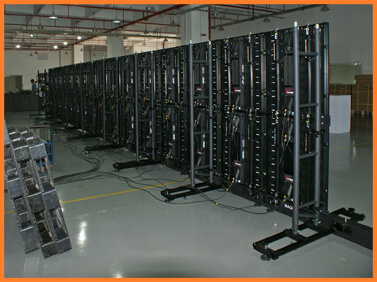

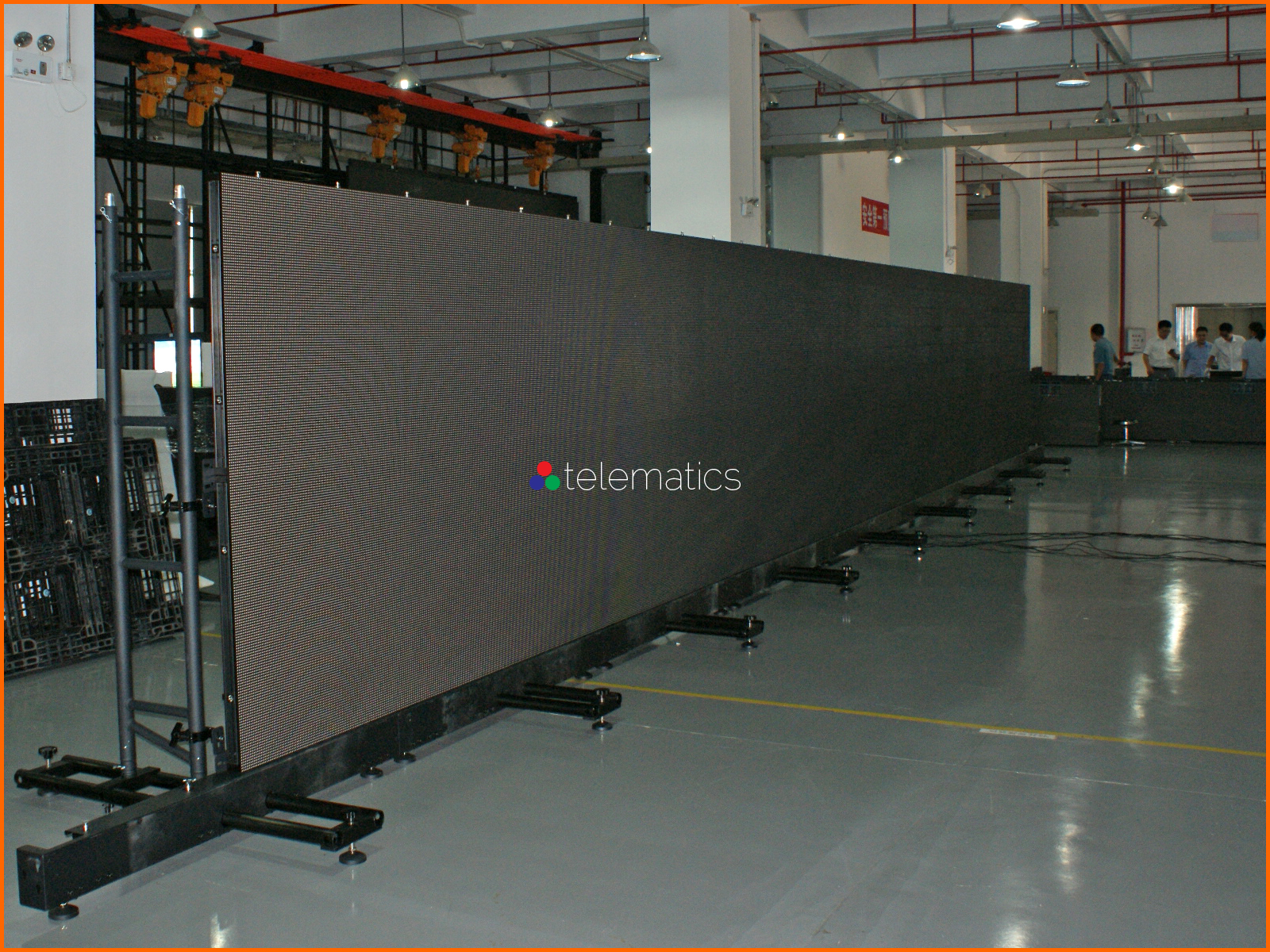

Series M Photos · Floor Support ⁽⁶⁾
