The Desay Series HL. Strike up the band.

There is work to be done, let's have fun, come on you son of a gun, take your stand. ~ George Gershwin

Pixels

Pixel to pixel spacing begins at an impressive 2.80 millimeters to create a display resolution of more than
127,000 LEDs per square meter.
Each millimeter of spacing supports one meter of viewing distance which means that the Series H2.8 looks great from just 3 meters away.

Dimensions

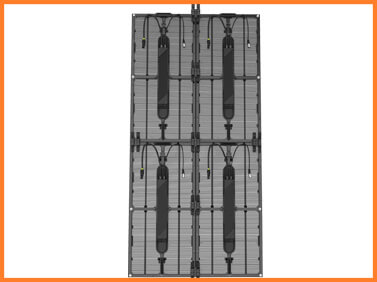

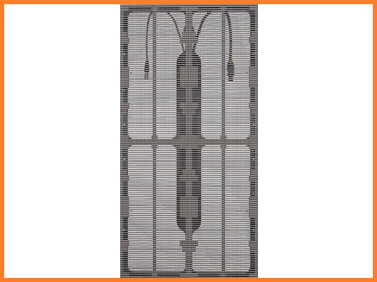

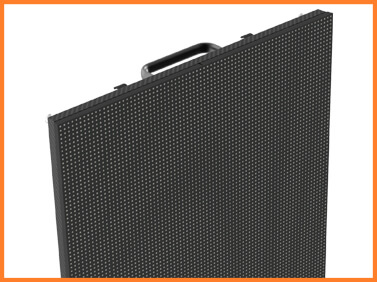

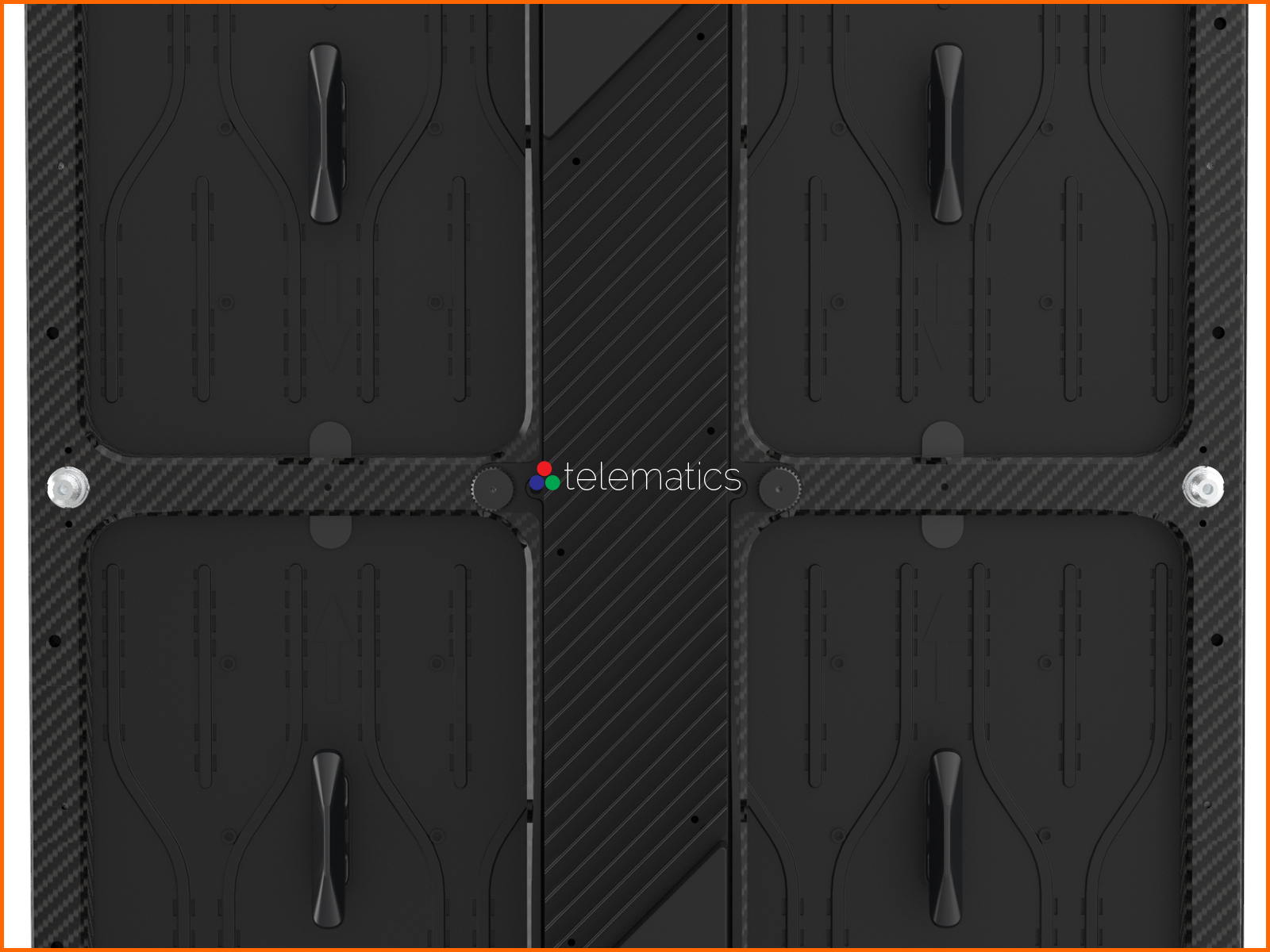

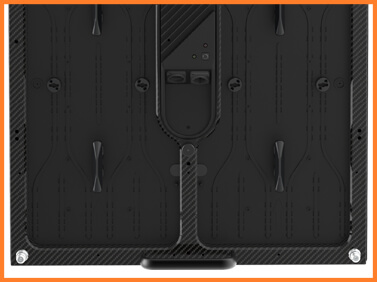

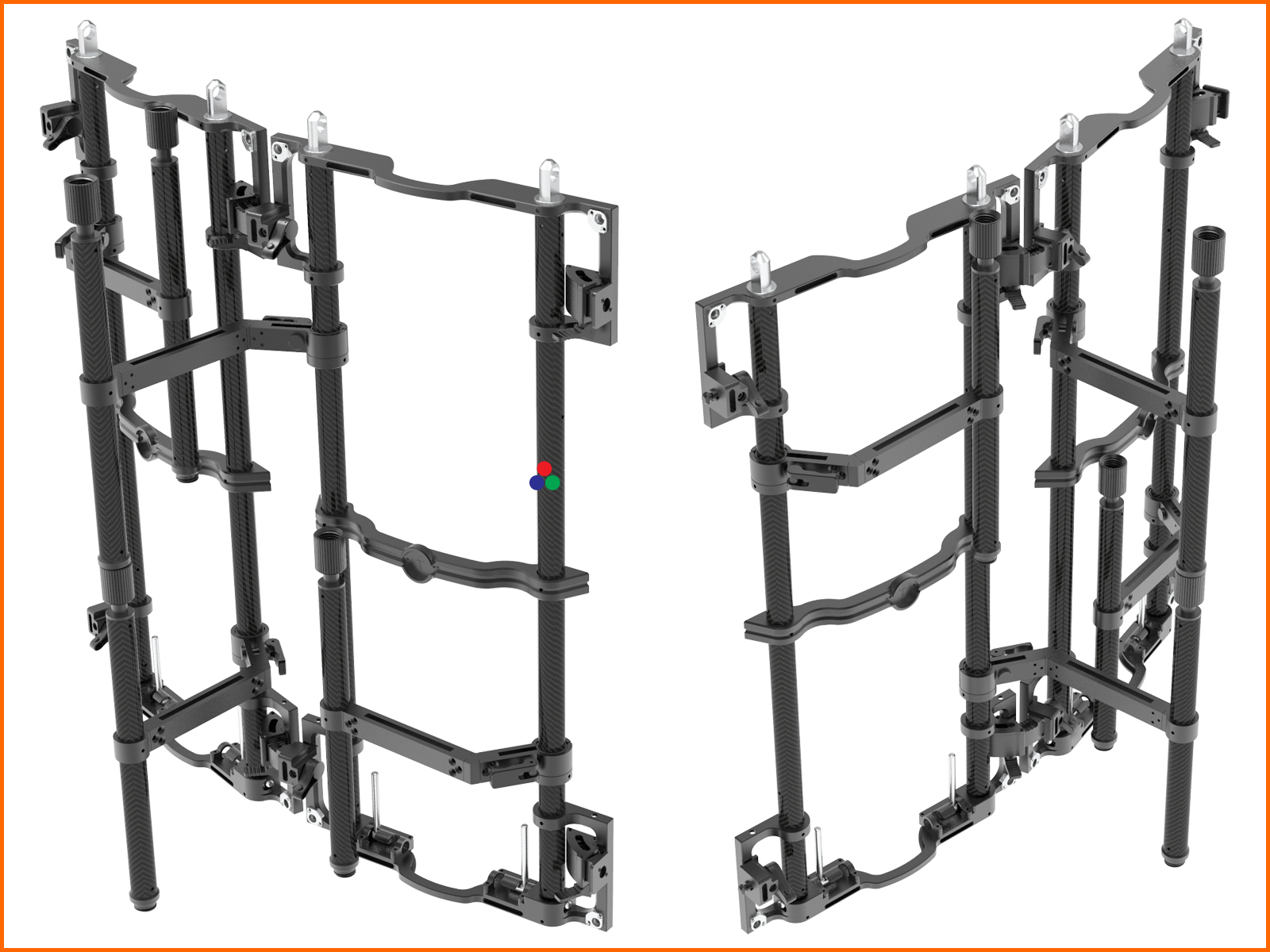

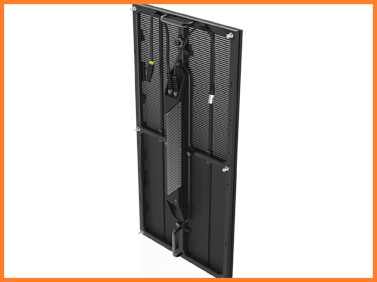

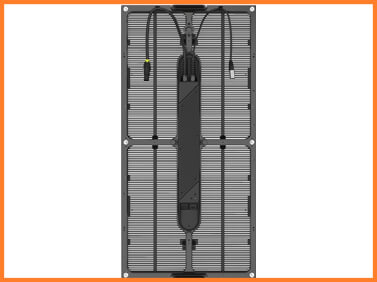

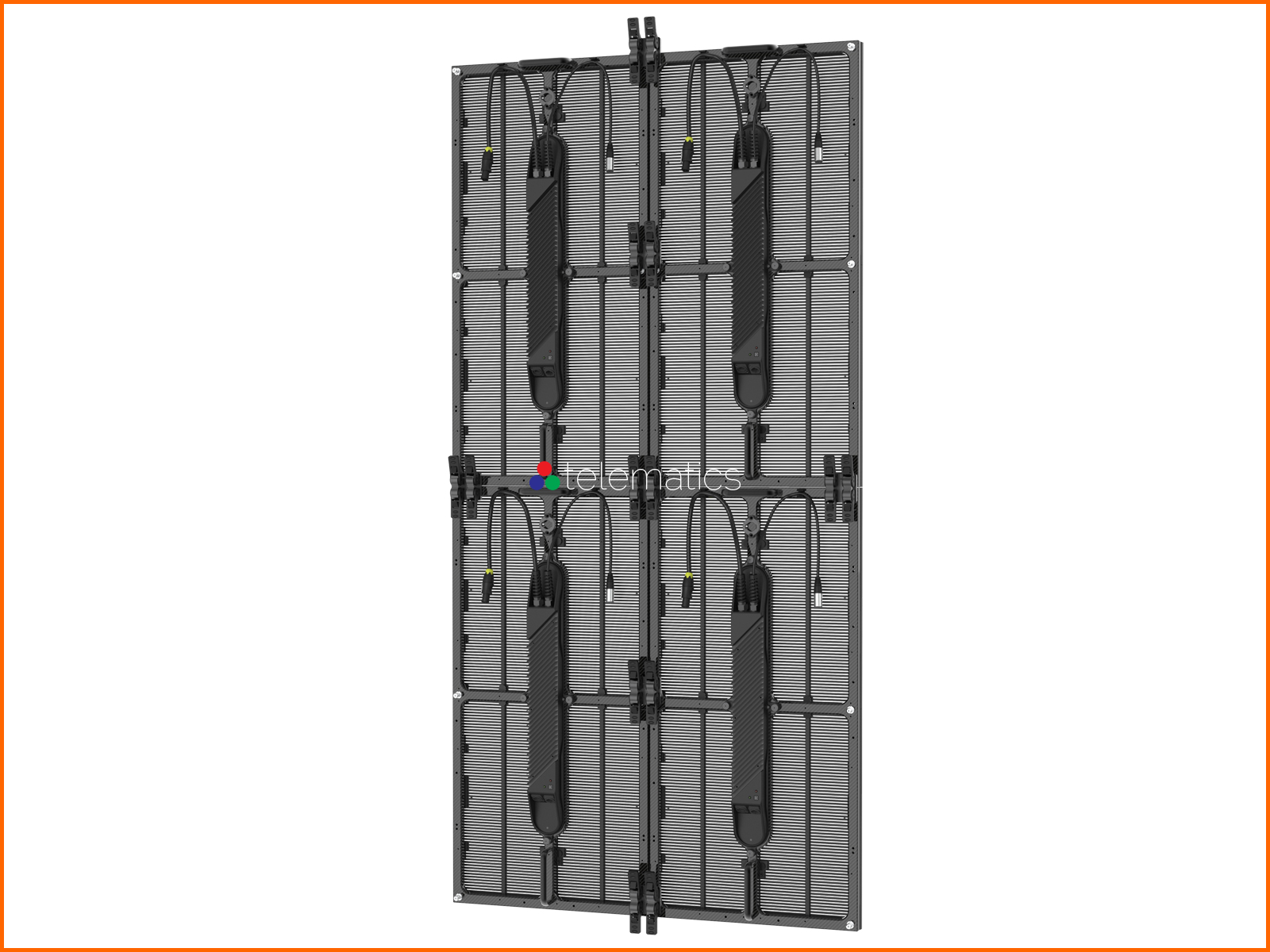

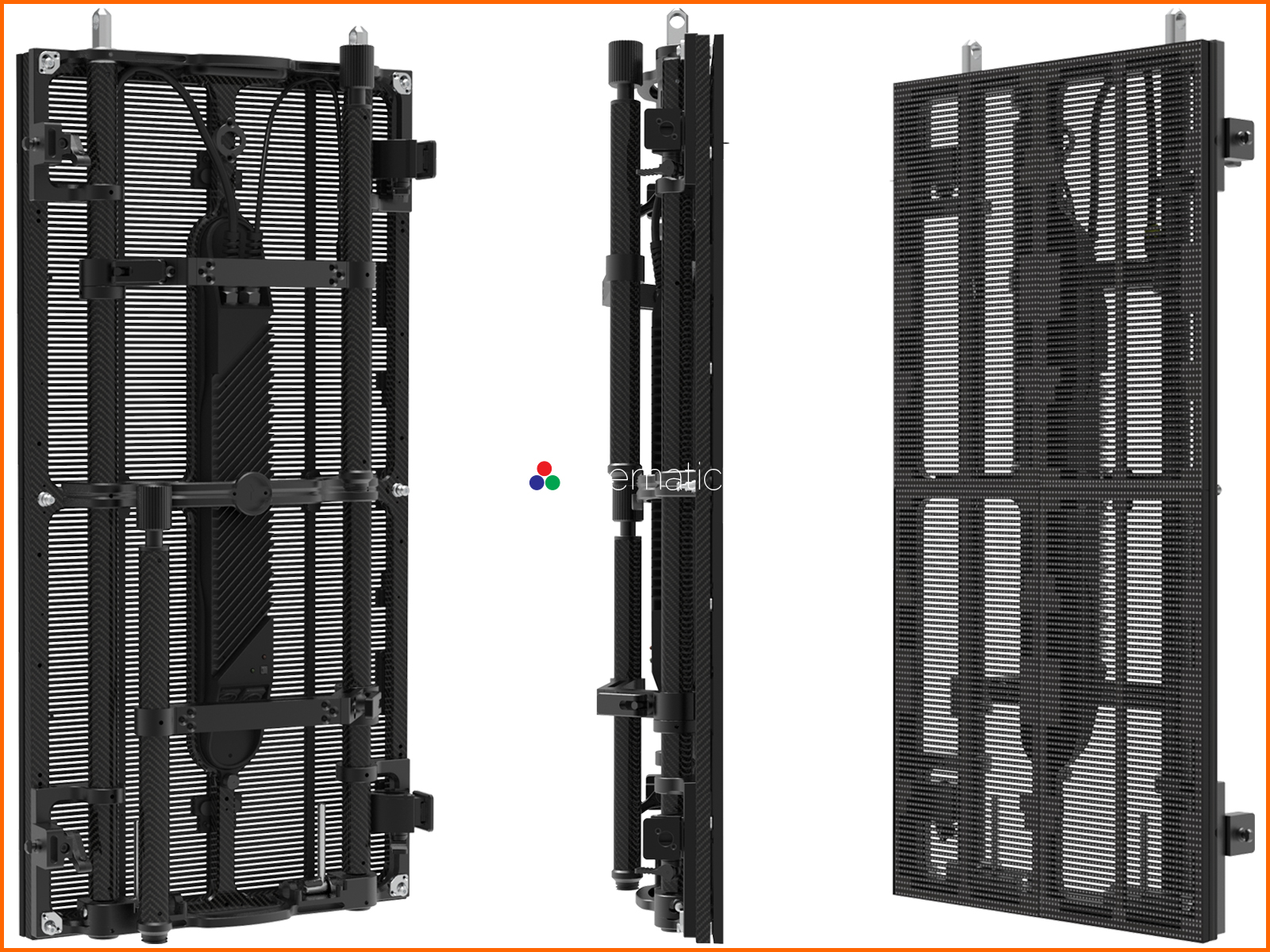

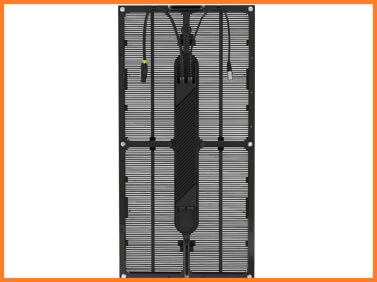

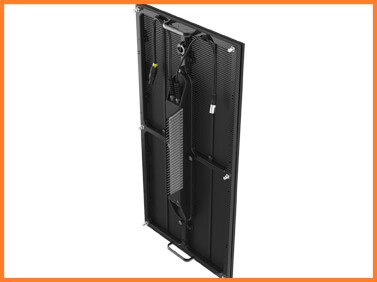

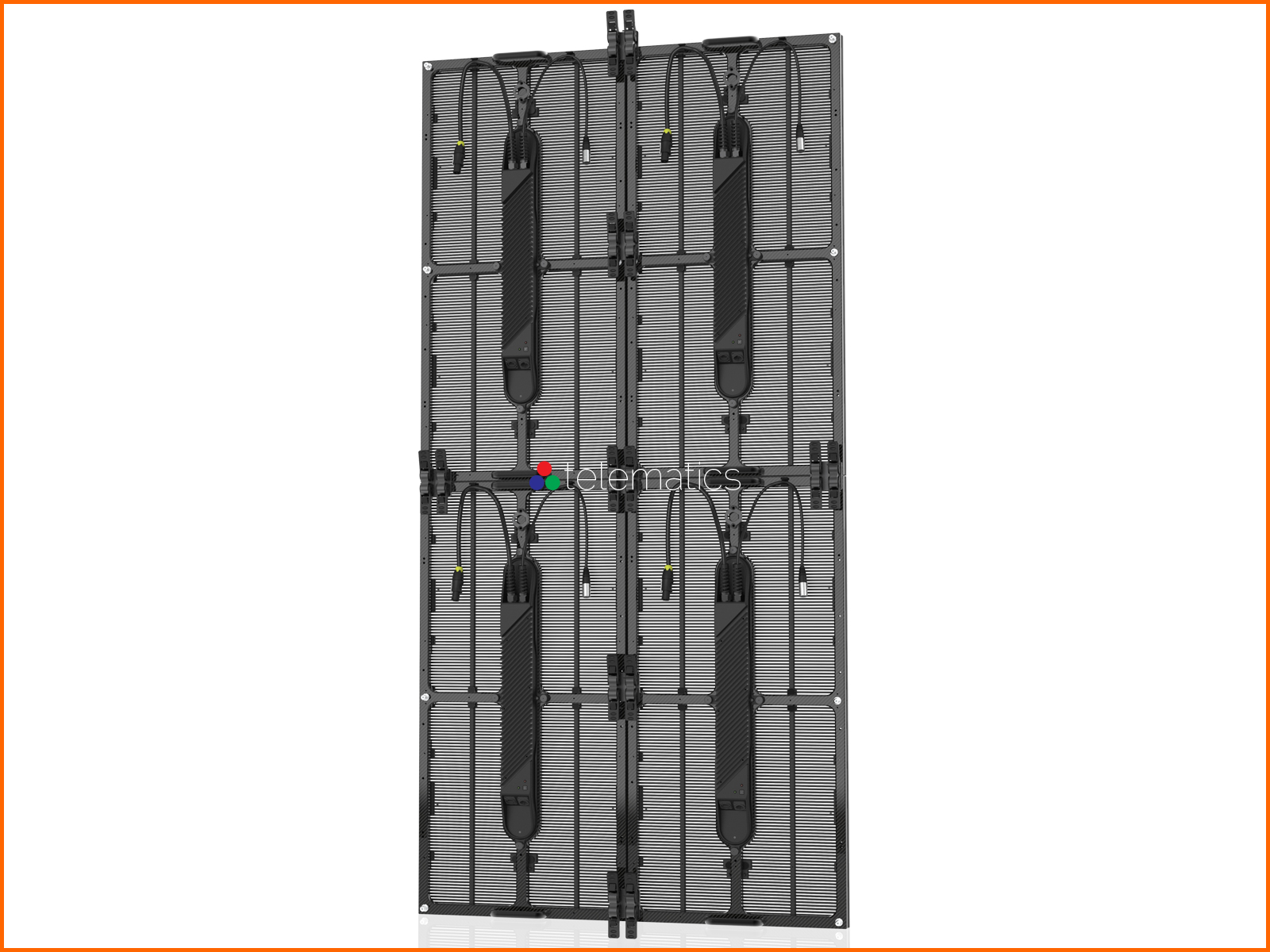

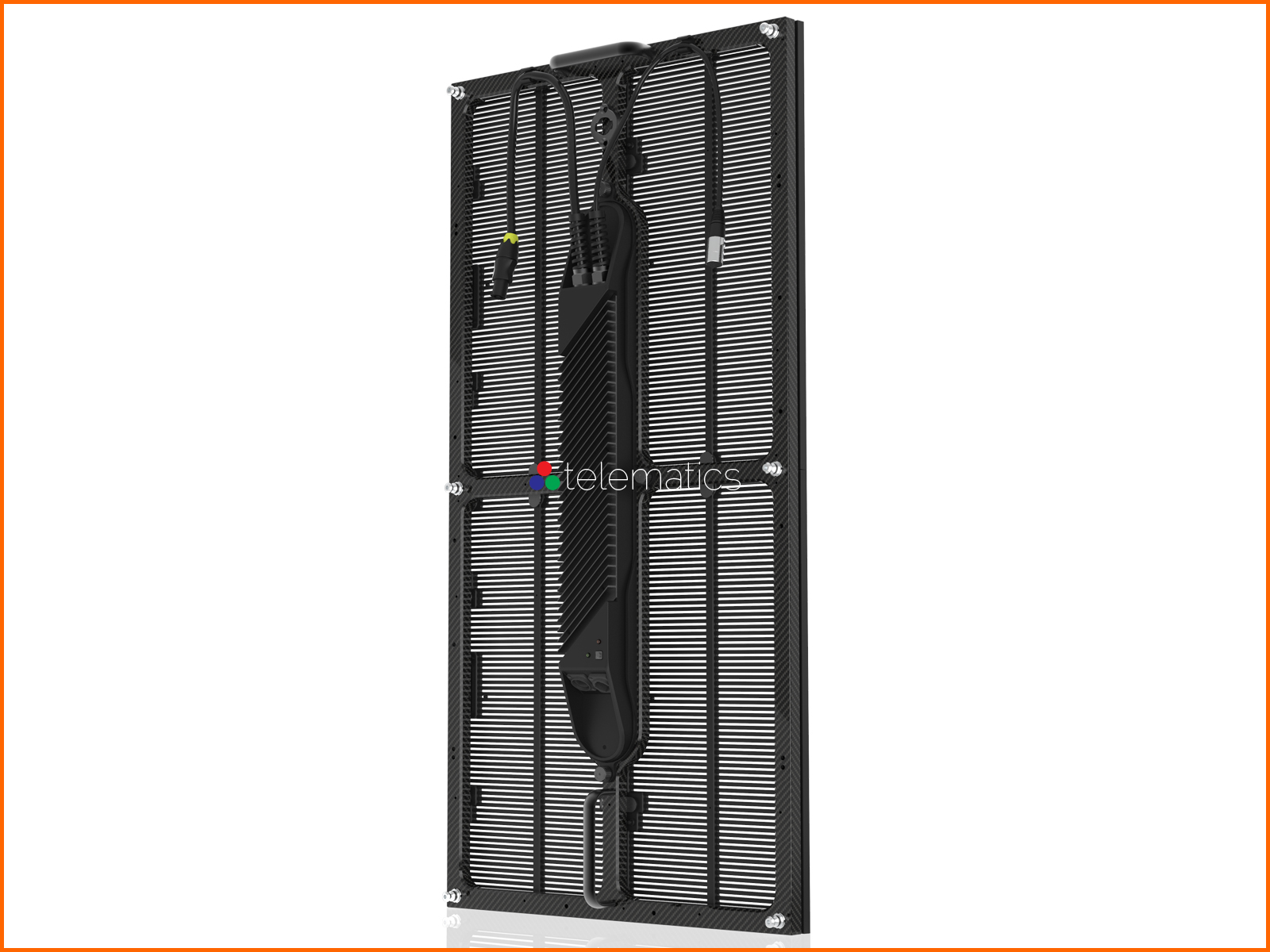

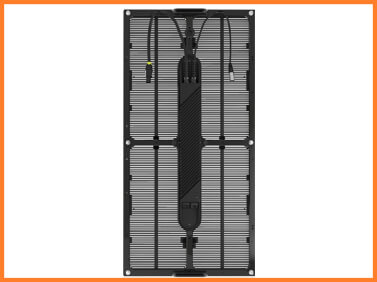

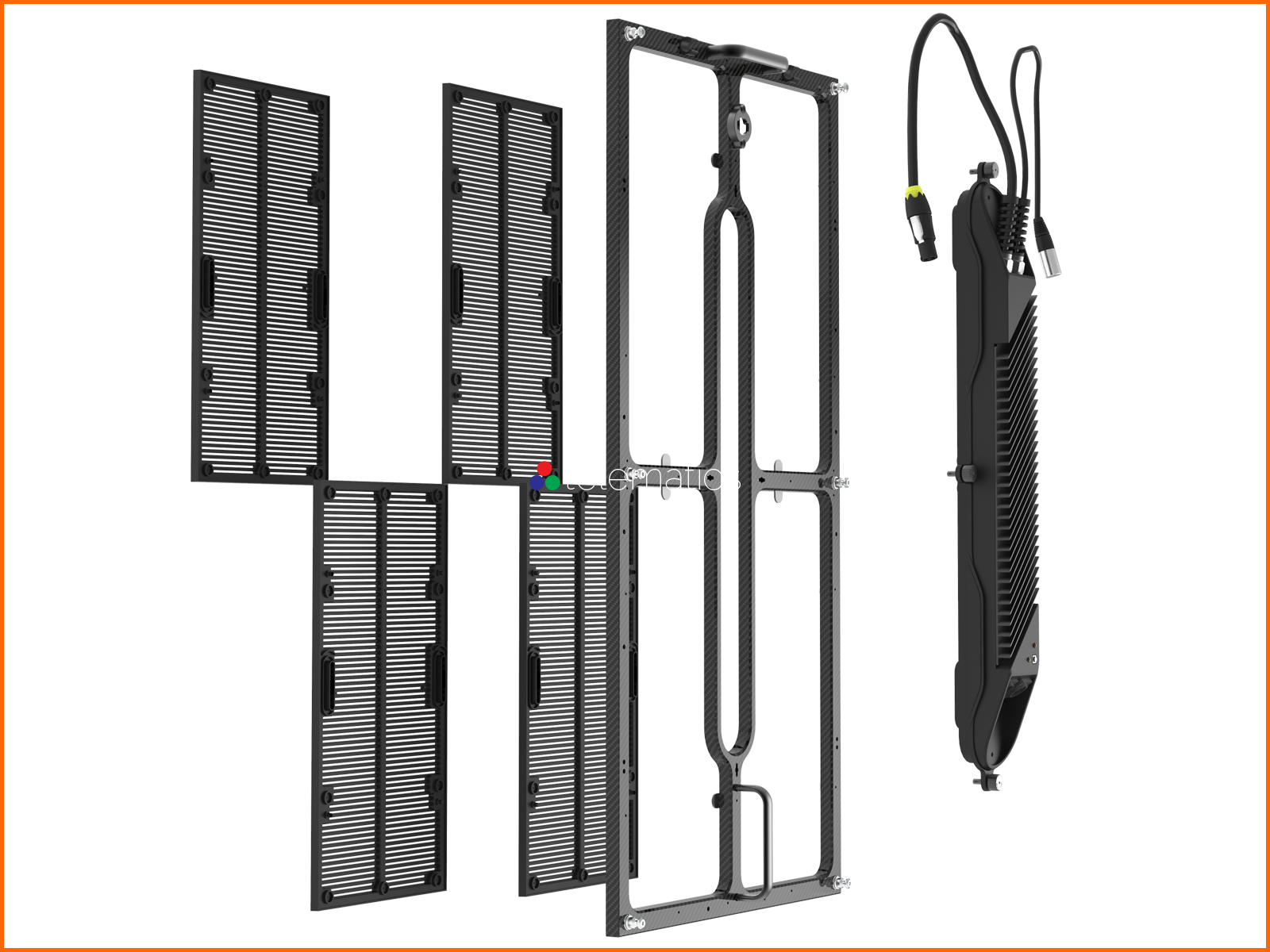

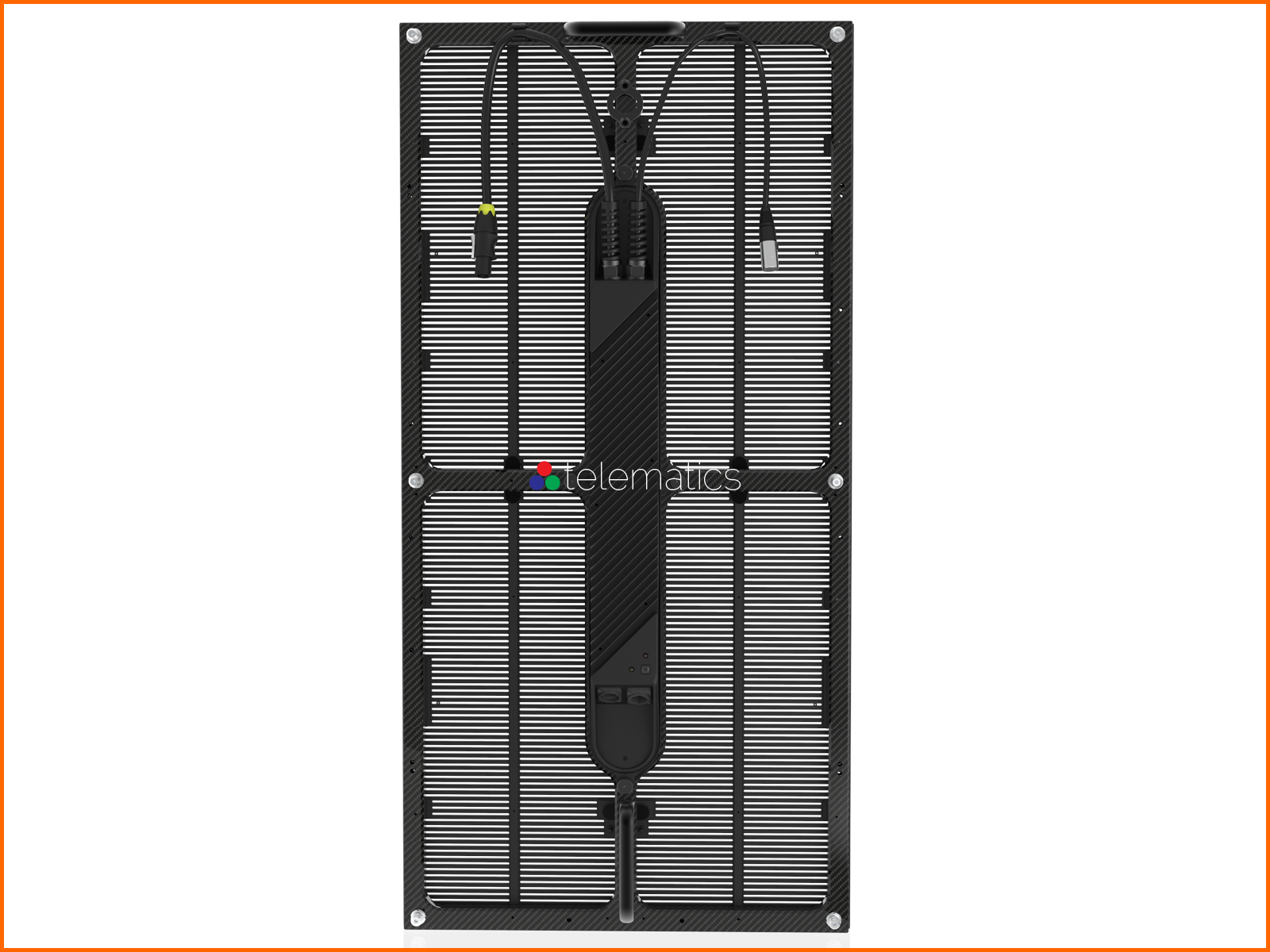

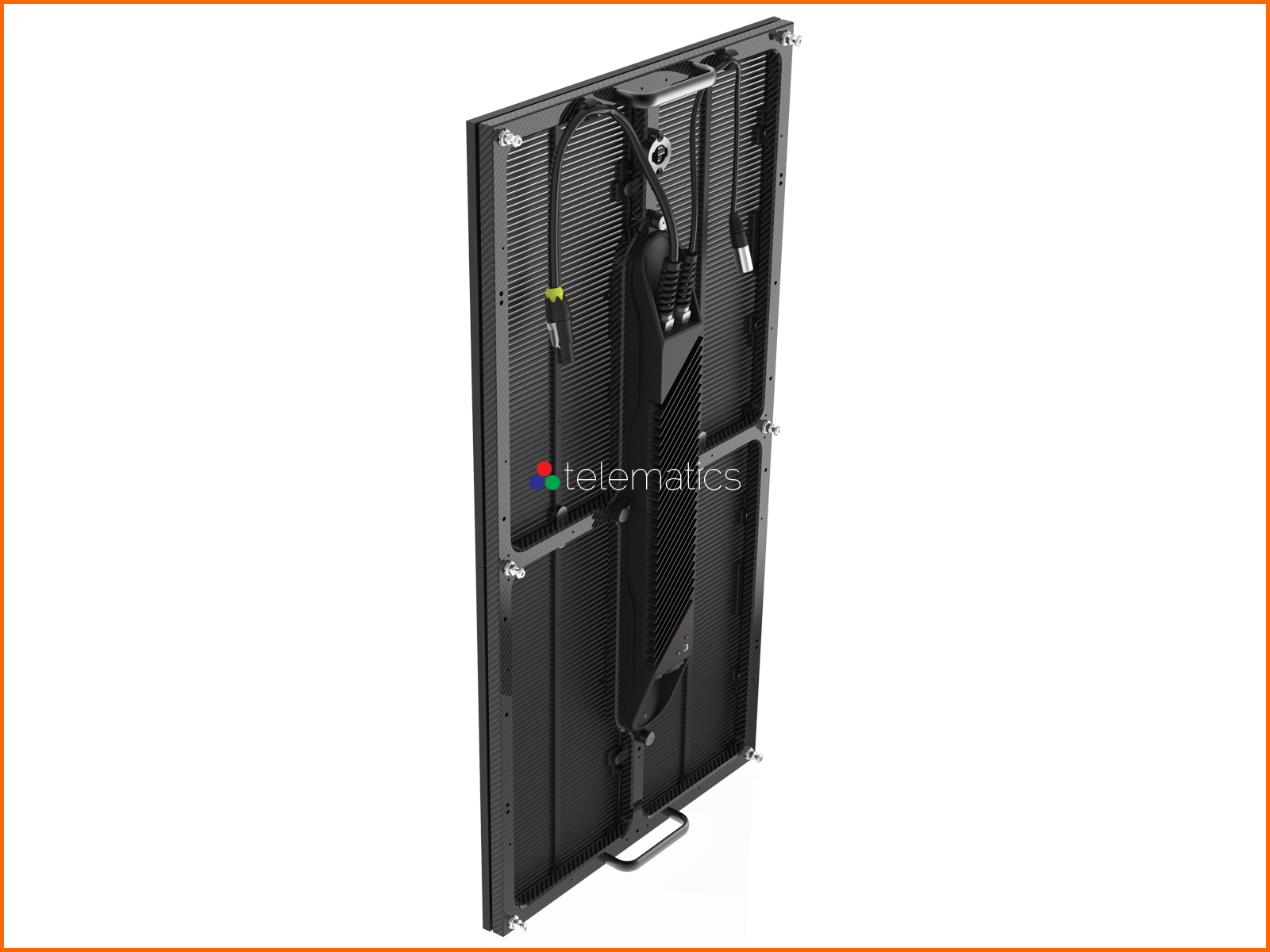

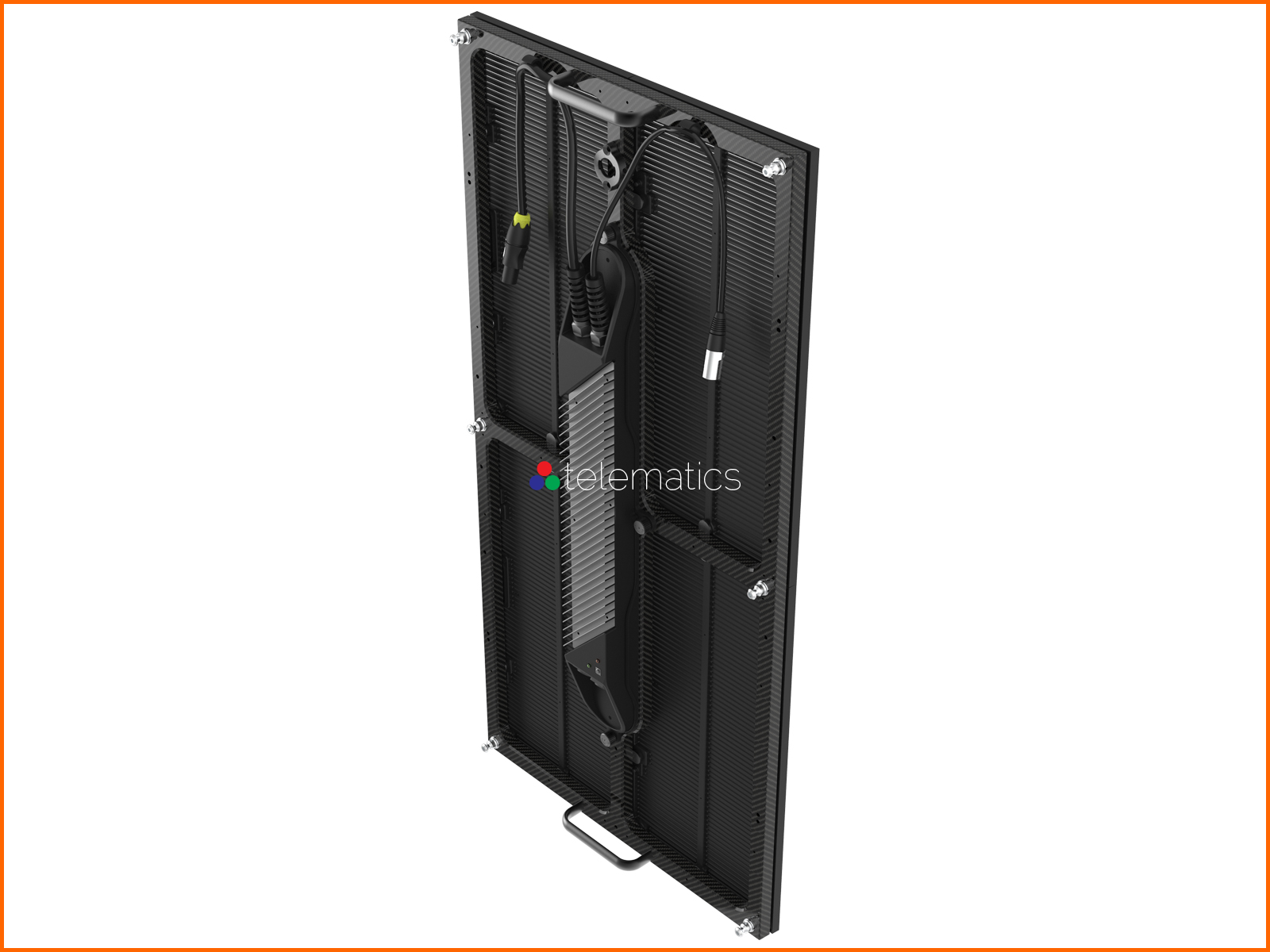

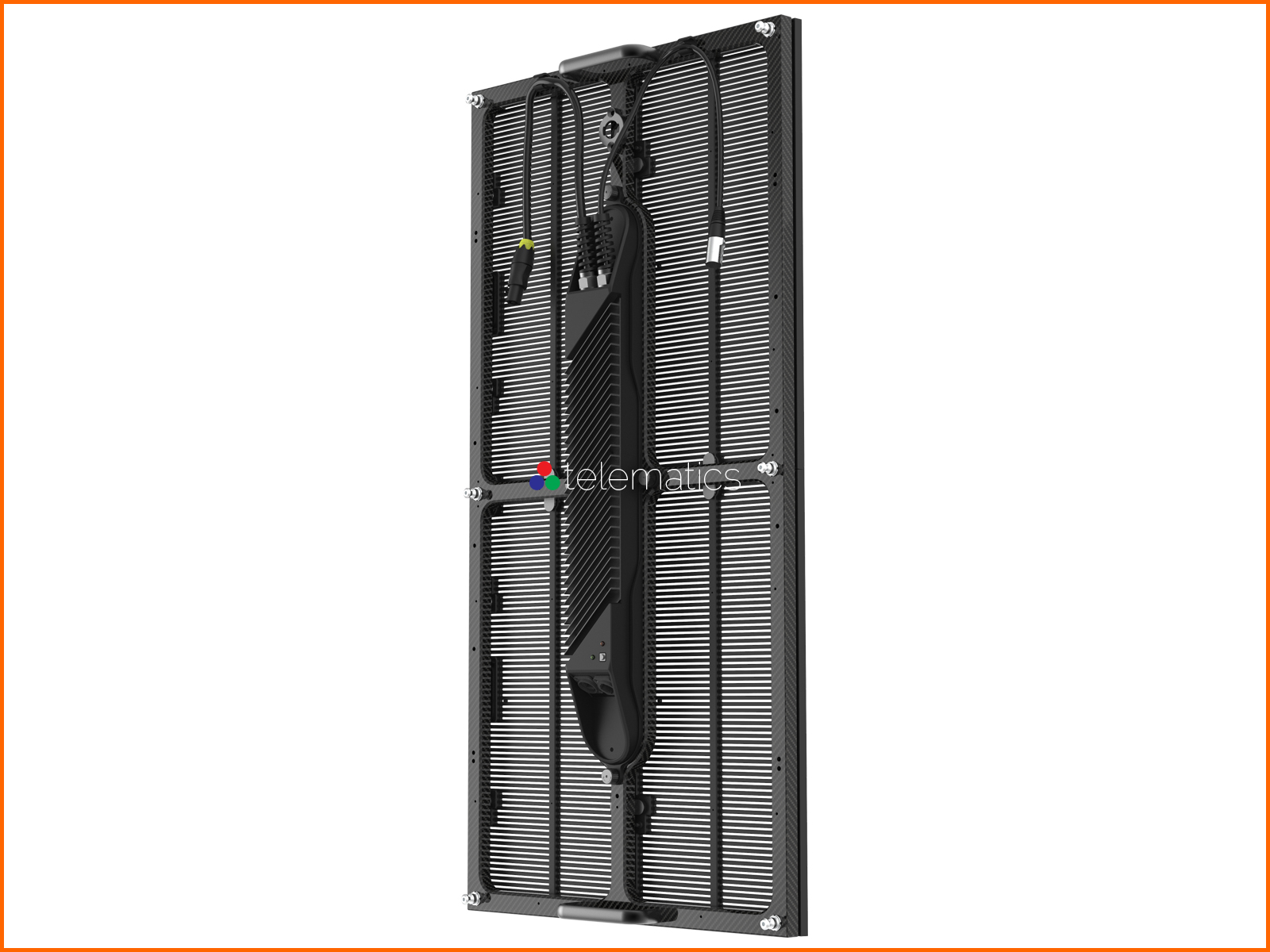

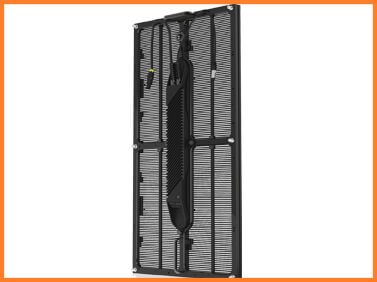

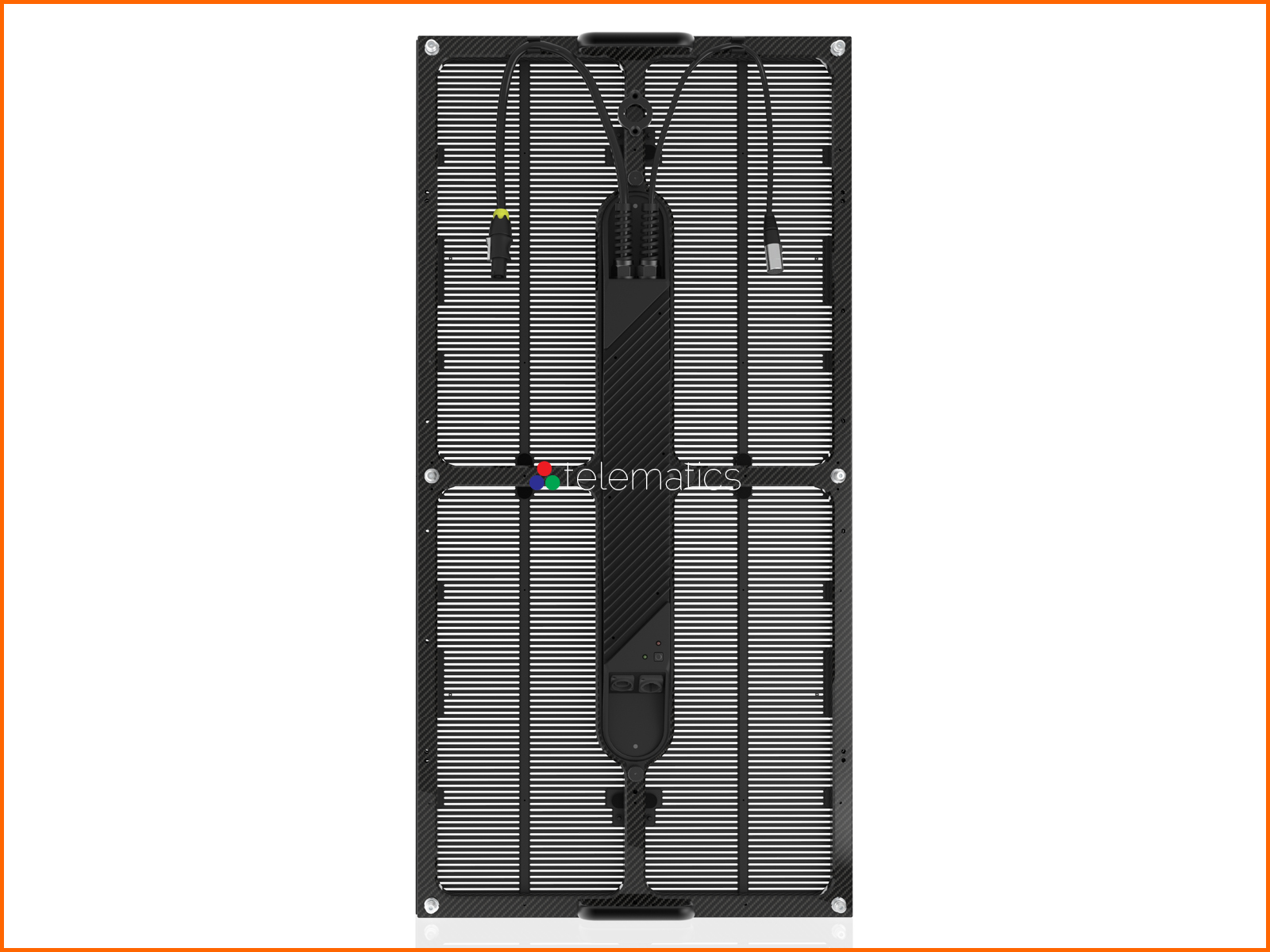

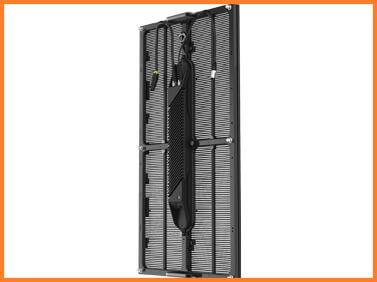

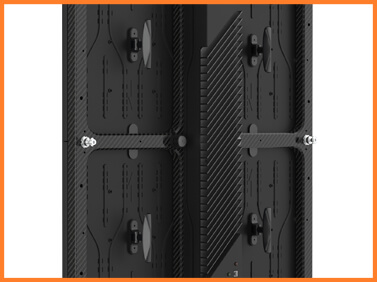

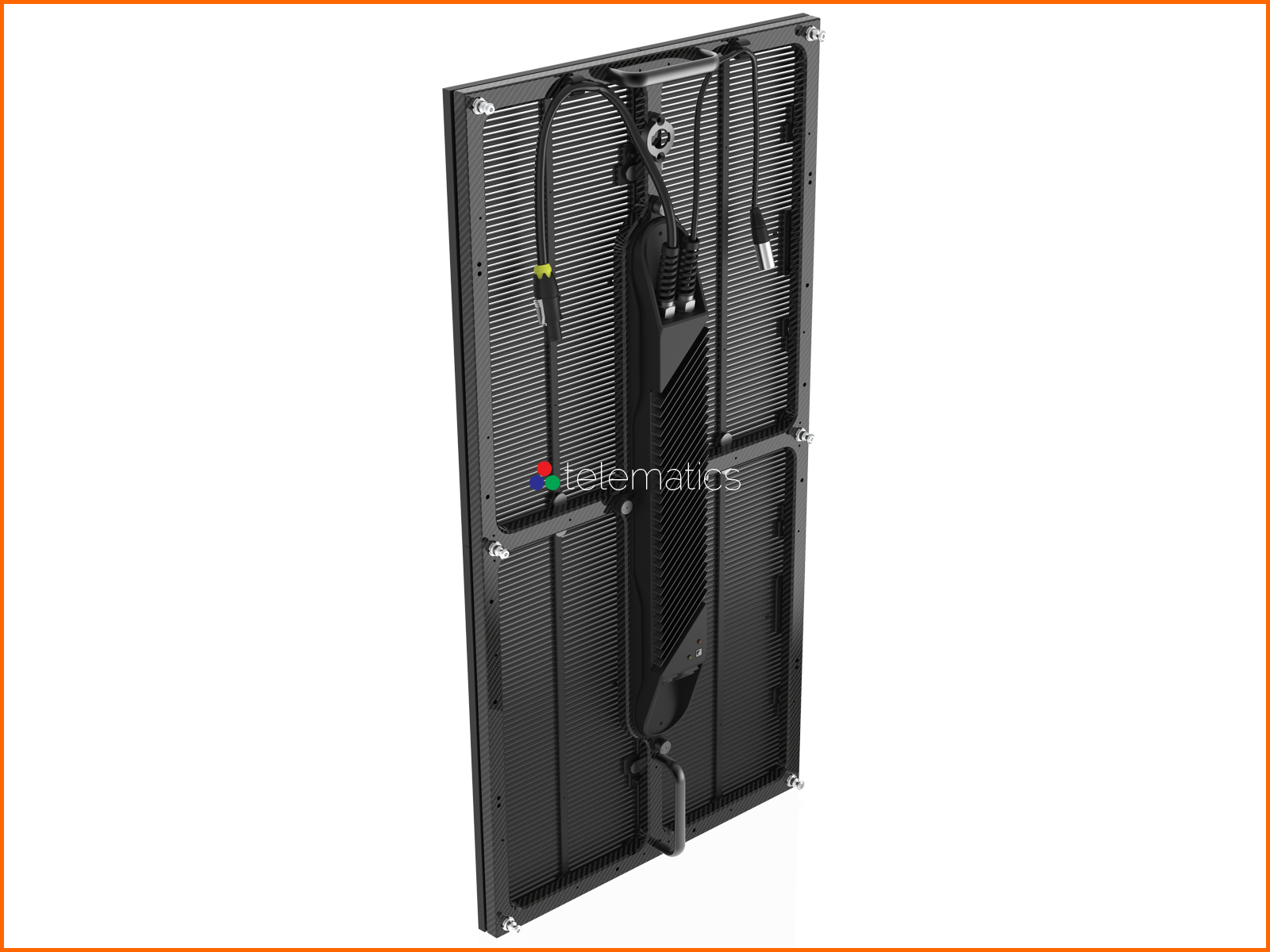

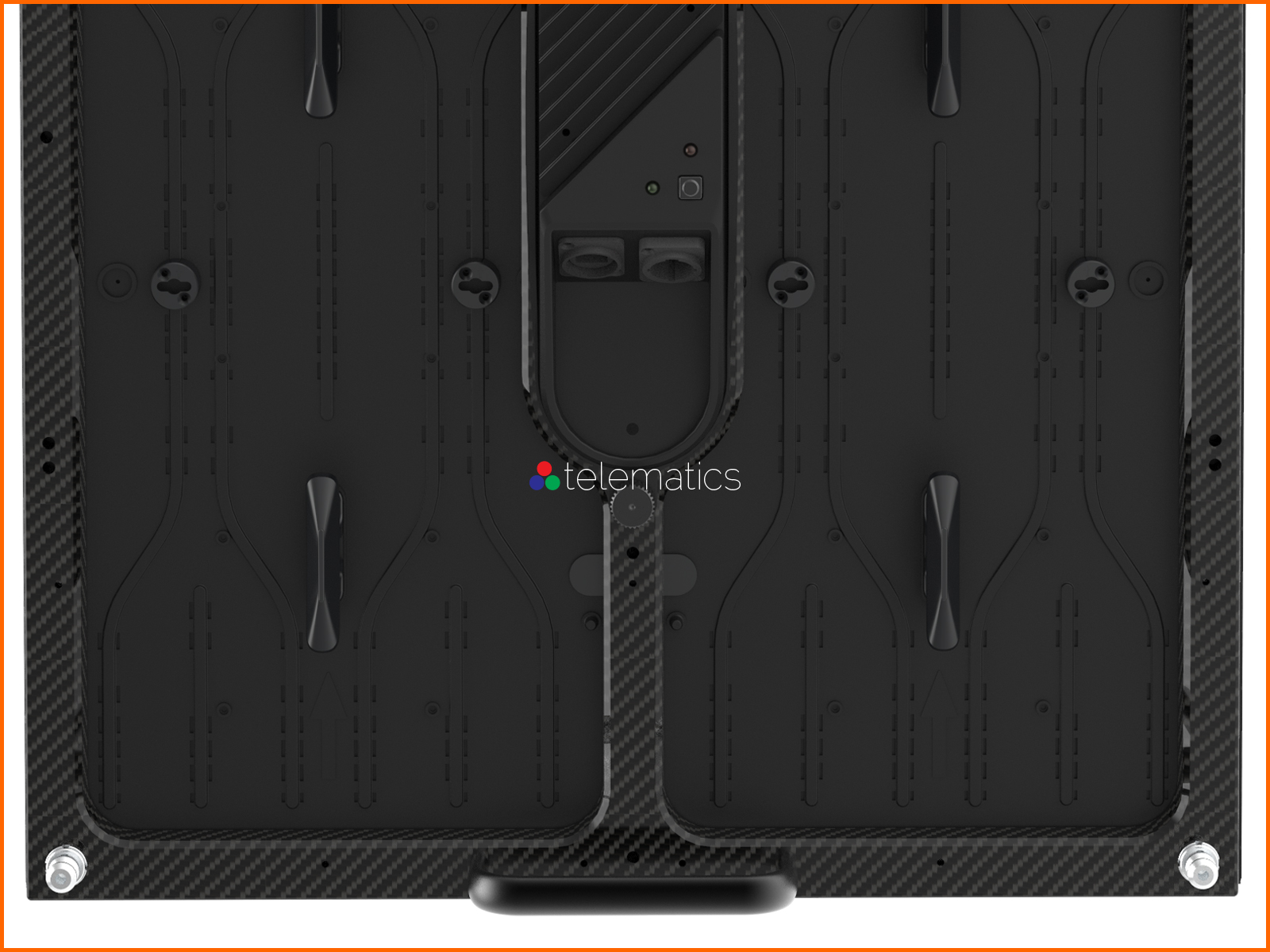

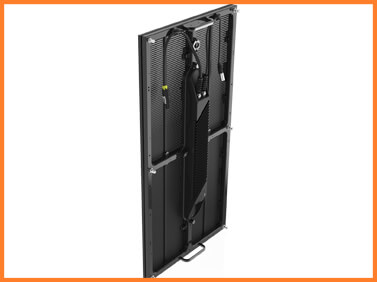

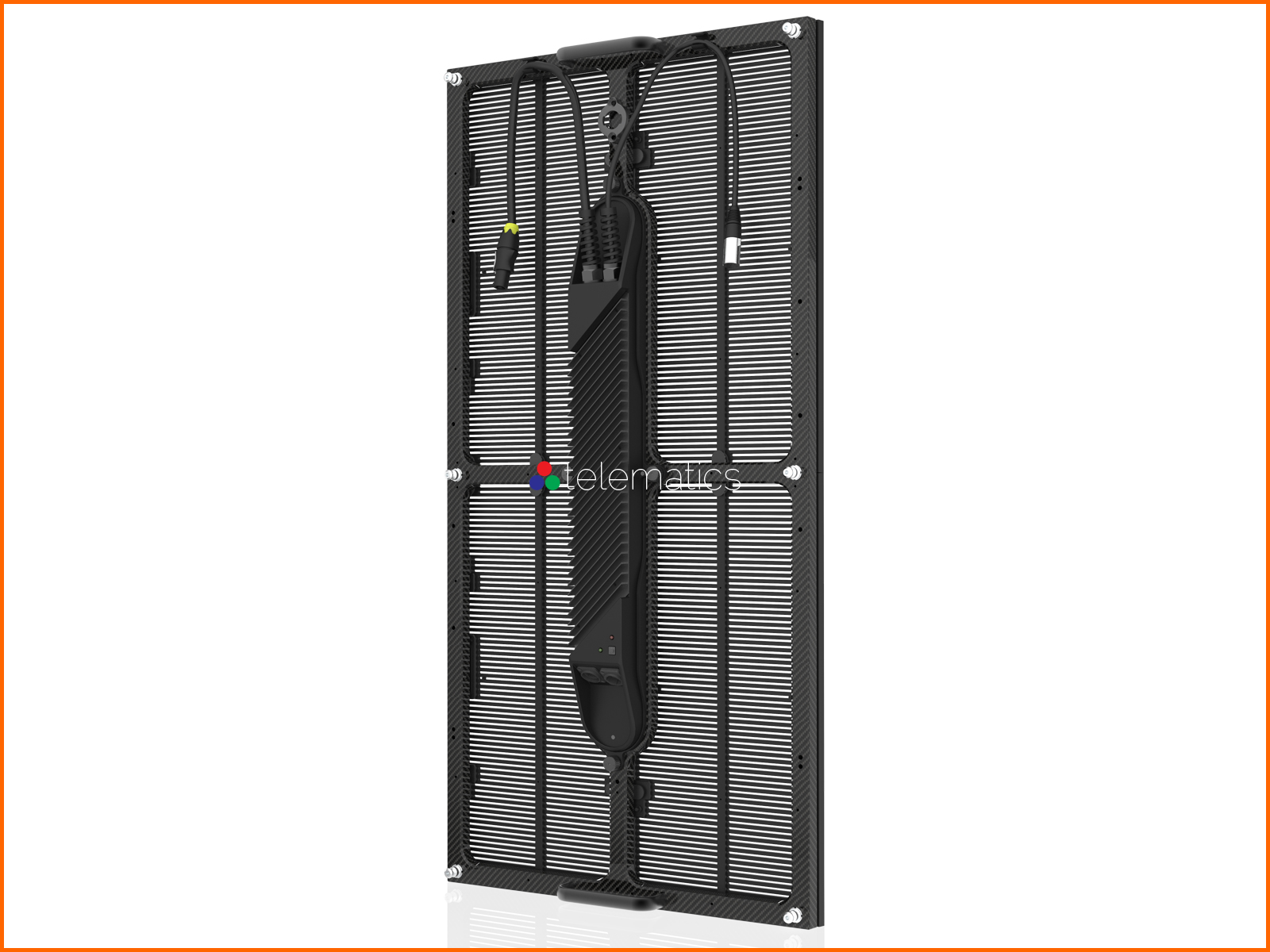

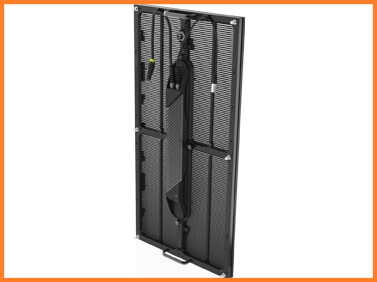

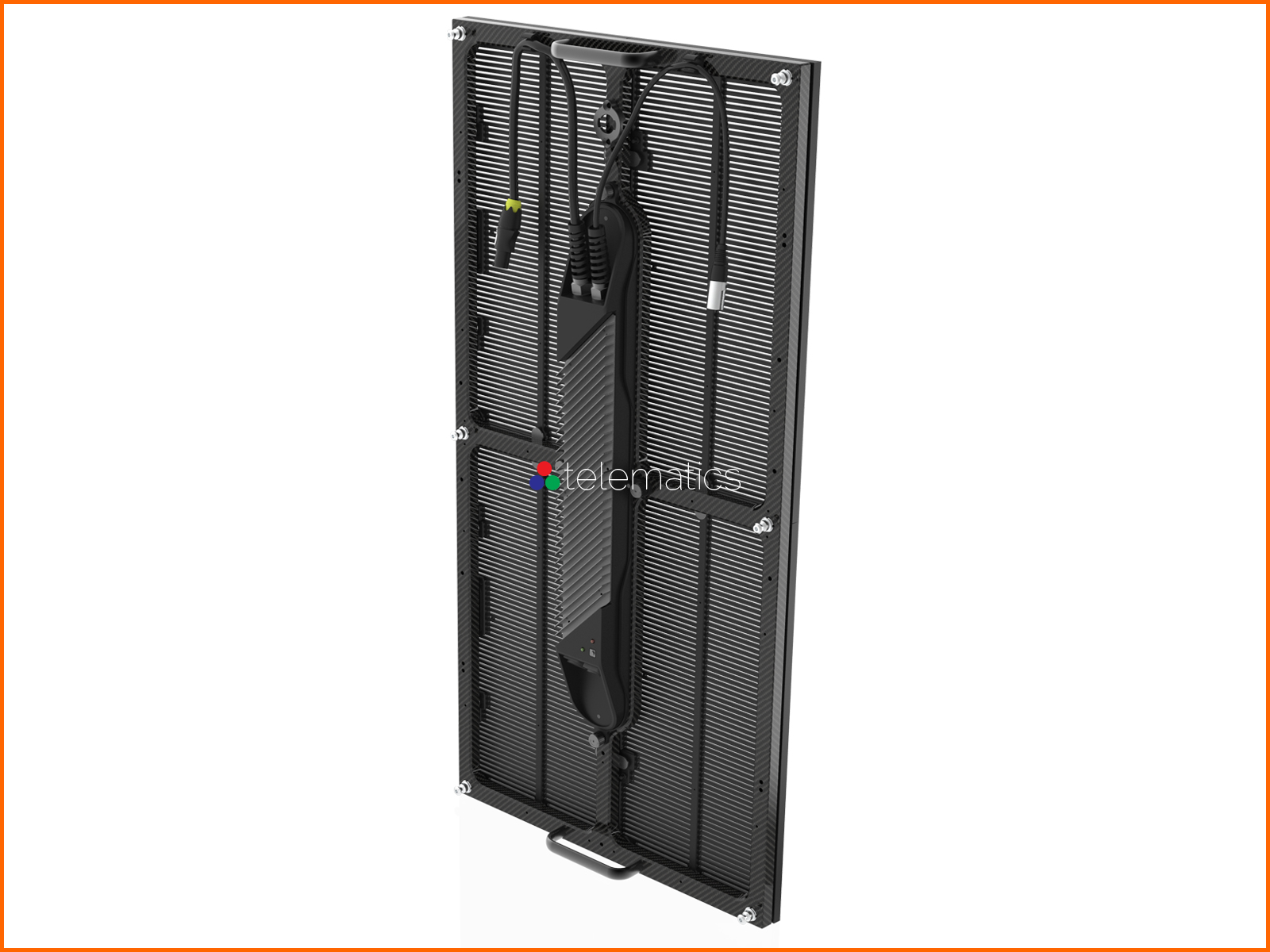

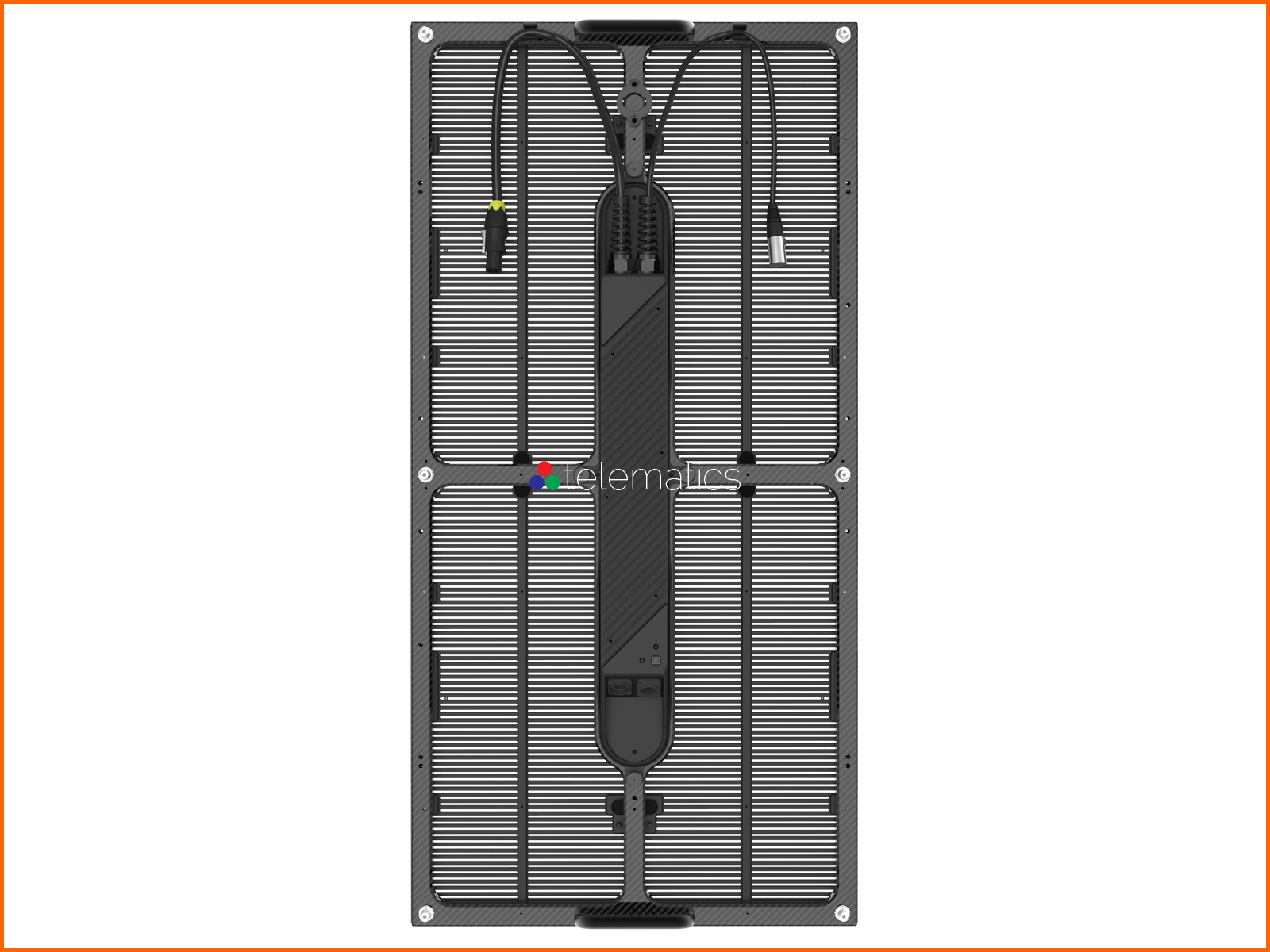

The Series H is a carbon fiber panel that weighs approximately
12 kilograms with XYZ dimensions of
1000 * 500 * 90 millimeters.
When we convert those numbers to the Exchequer Standards of 1825 that works out to 39 * 20 * 4 inches
and a featherweight 26 pounds.

Viewing

Display brightness levels extend from 1000 cd/m² to 5000 cd/m².
Screen refresh are exceptional at 3840 Hz for flicker-free video.
Off-axis viewing is 60° to 80° which means that pretty much everyone in the room can see the Series H whether coming or going.

Performance

Colors are amazing with levels of red¹⁴ * green¹⁴ * blue¹⁴ that provide for a combined 4,400 billion colors and a silky 16,384 shades of grey.
Life expectancy is projected to be 100,000 hours which works out to just over 11 years. We look forward to seeing you again sometime in 2030.

Power

Rated power consumption is a modest 182 ~ 245 Watts per square meter and up to 700 Watts on full load depending on the model.
Variable voltage power supplies accept 100V ~ 240V. Our technicians will provide an electrical schematic specific to your project on request.

Installation

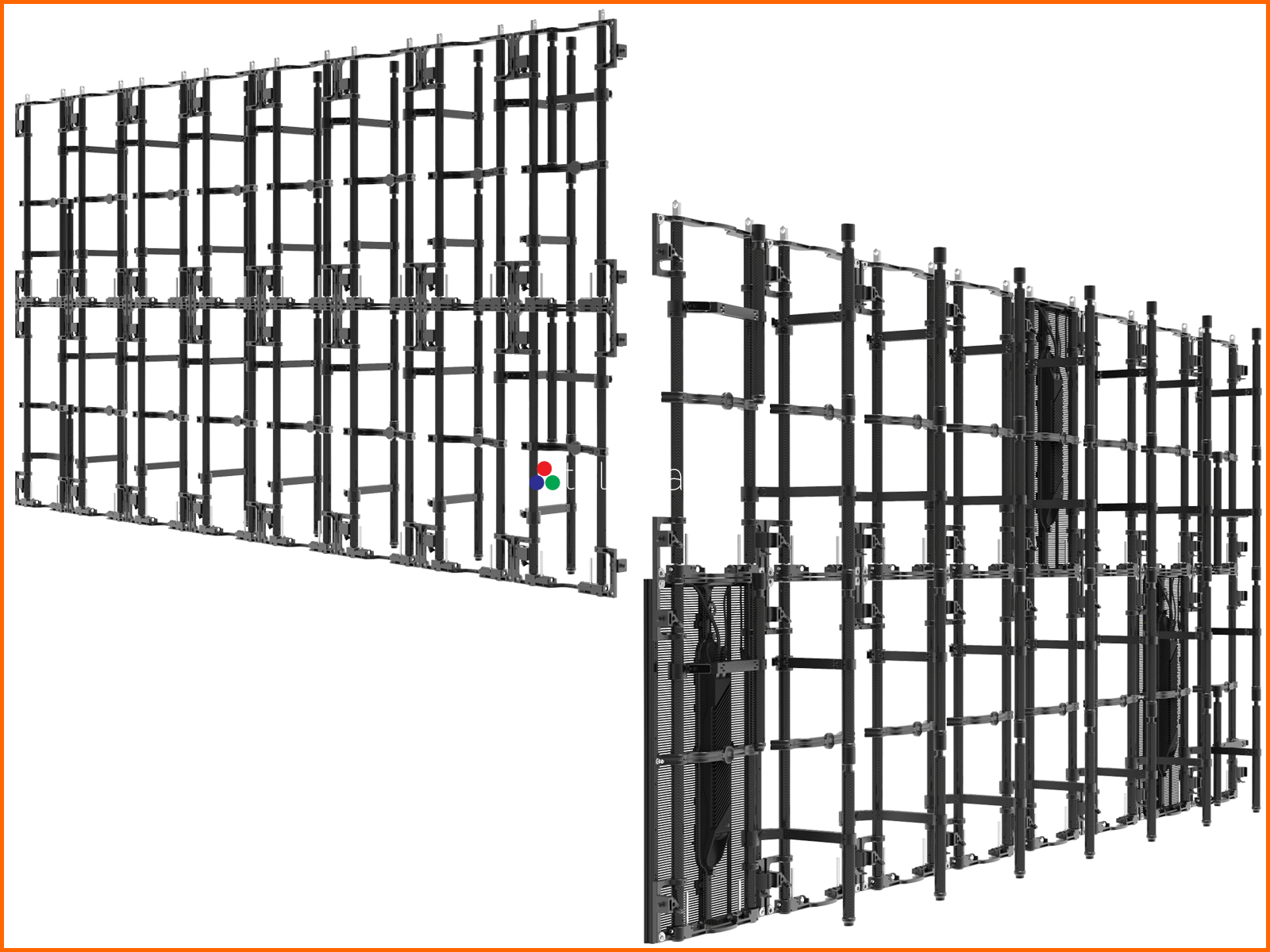

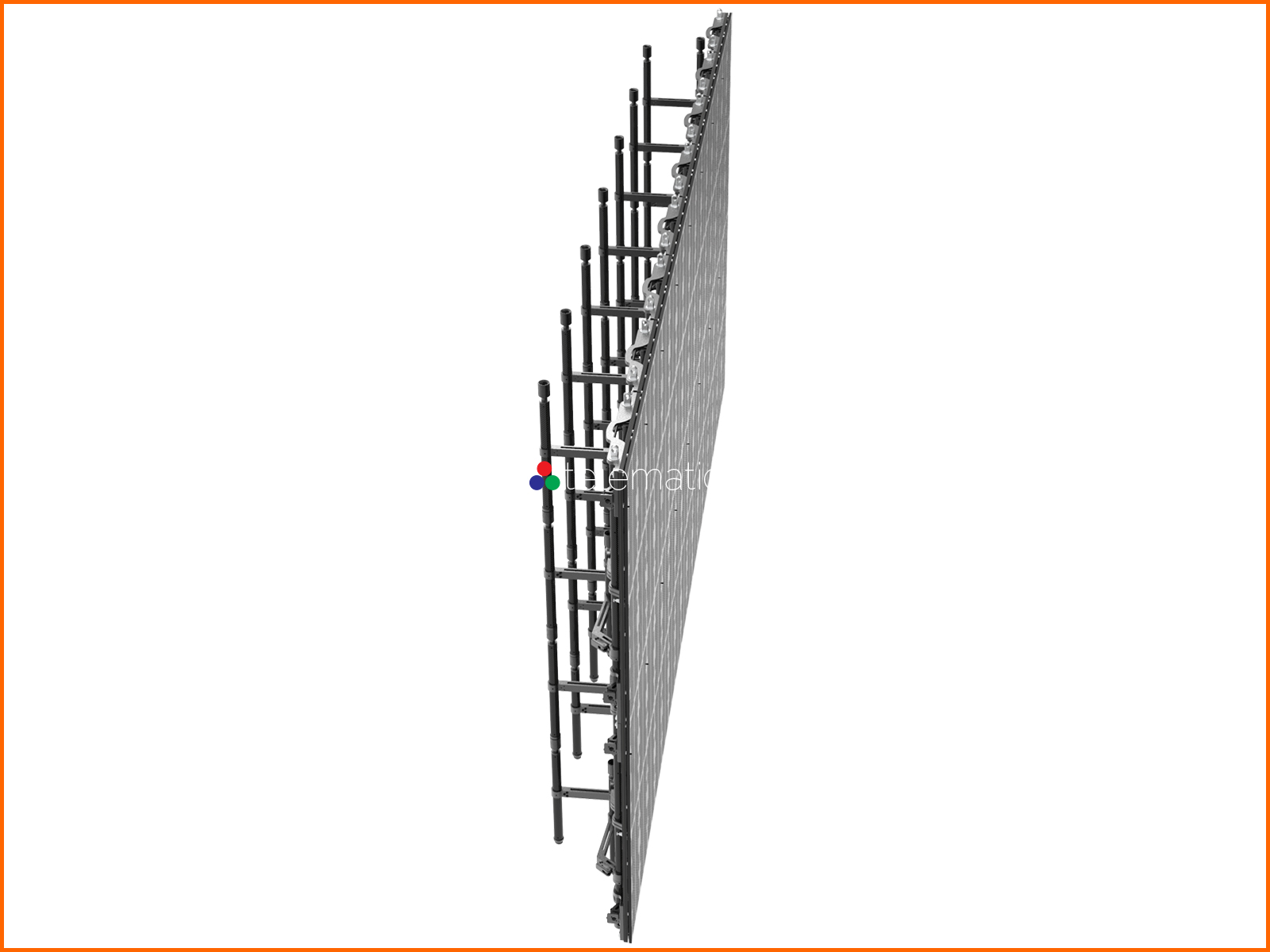

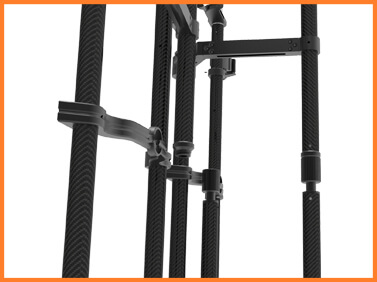

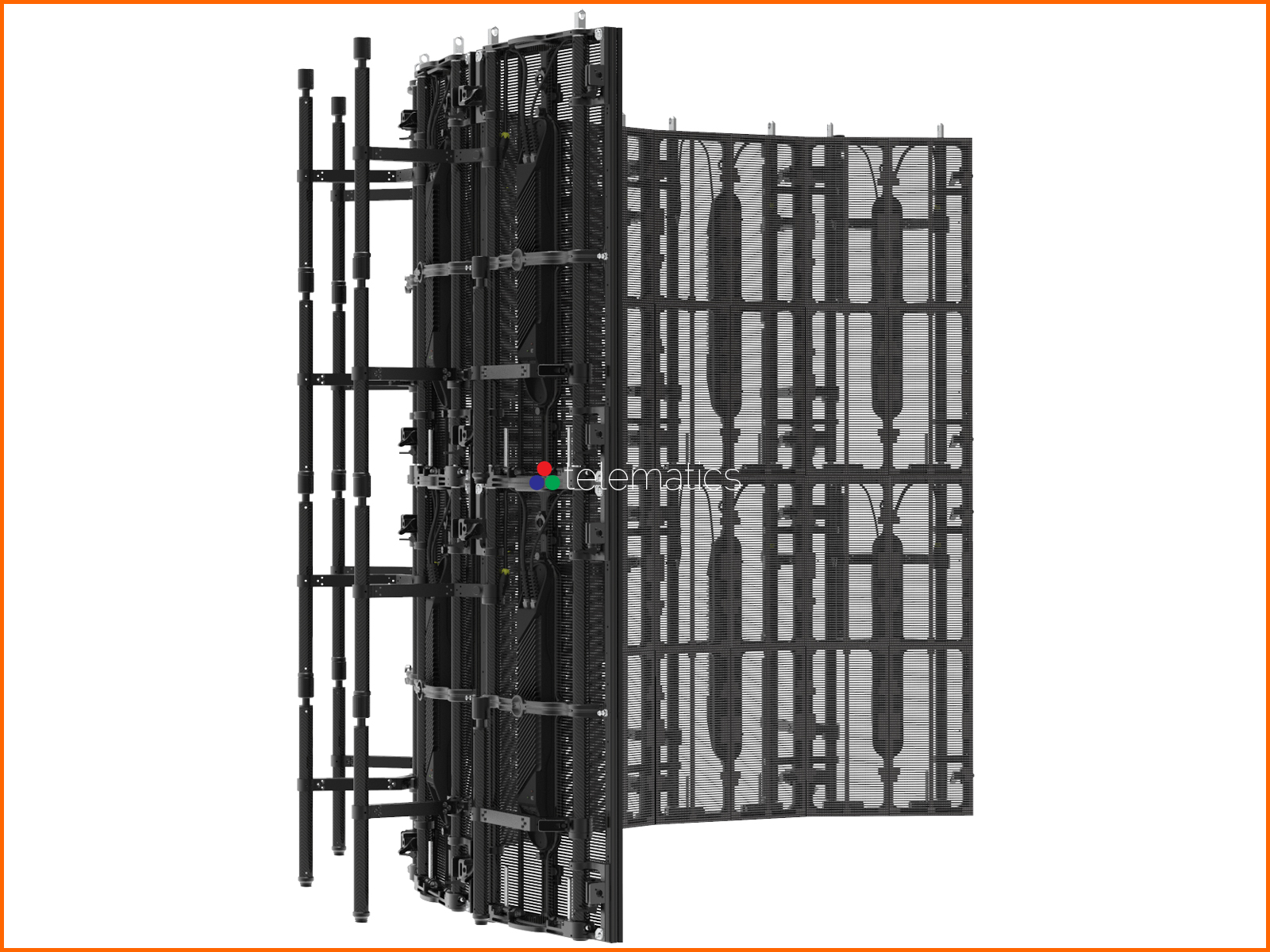

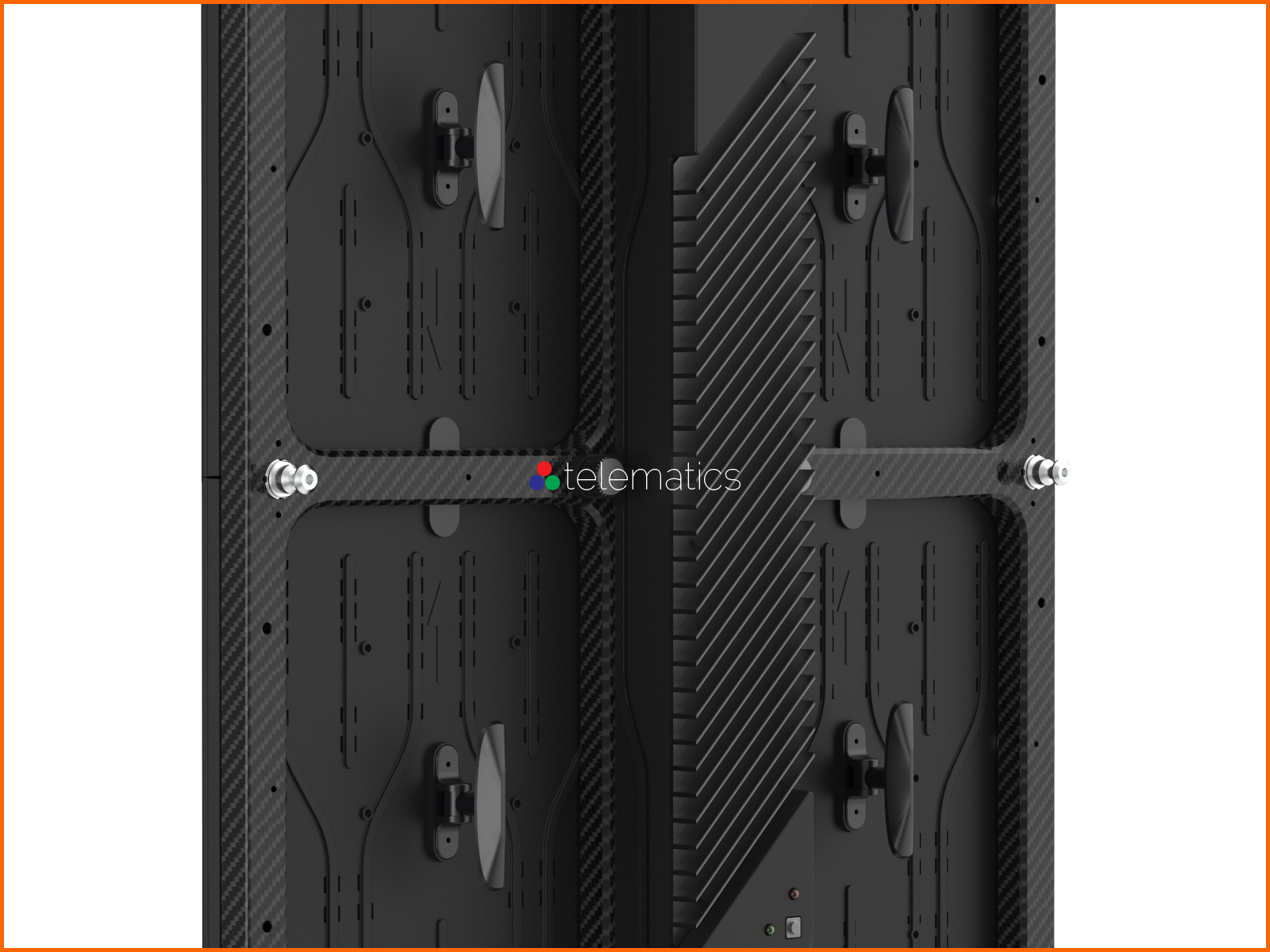

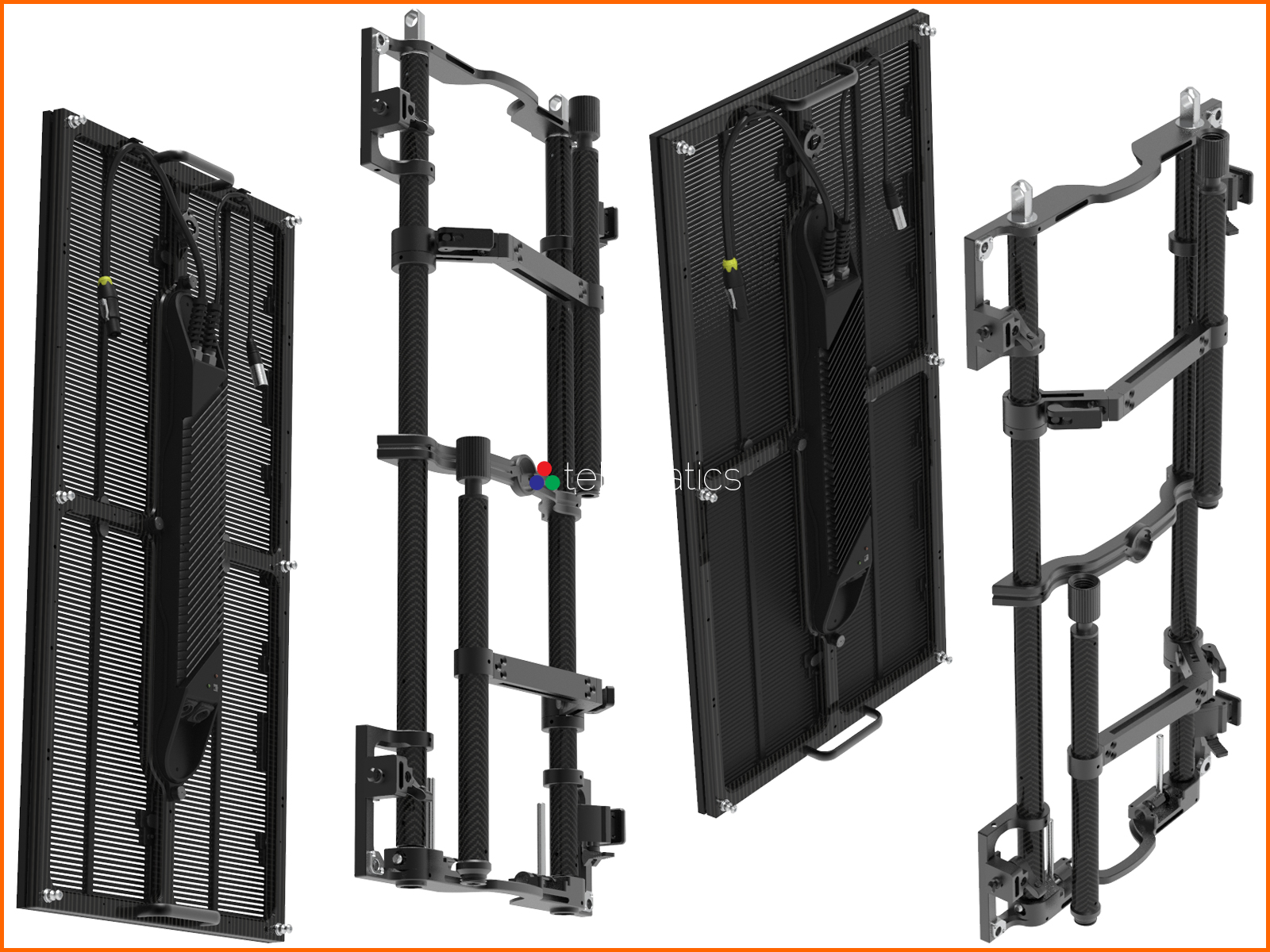

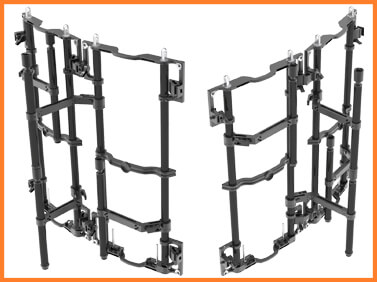

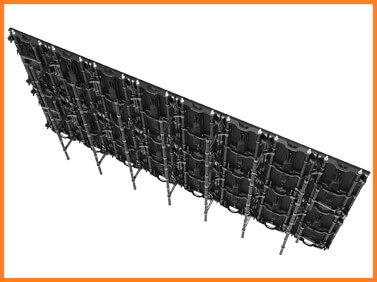

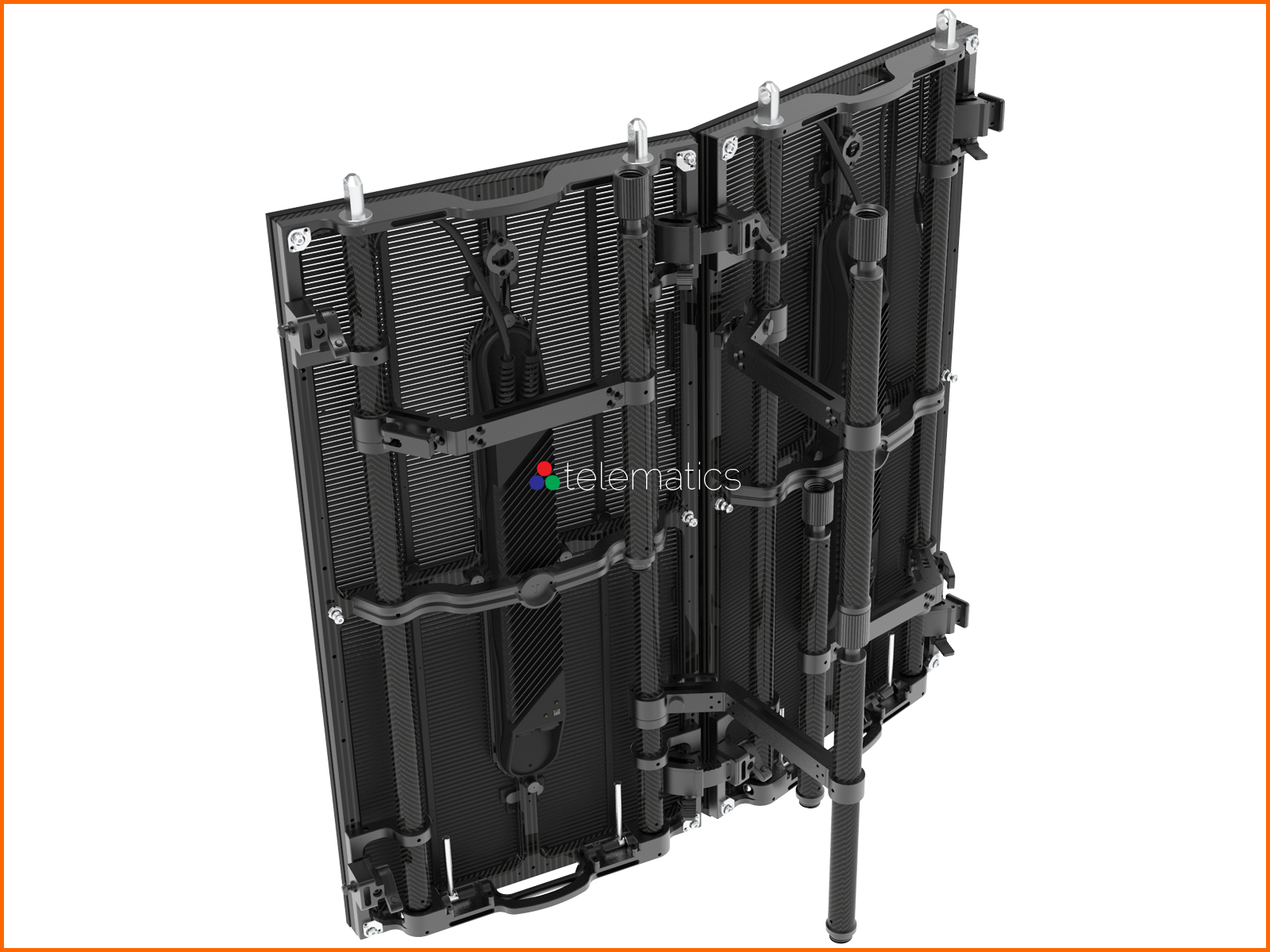

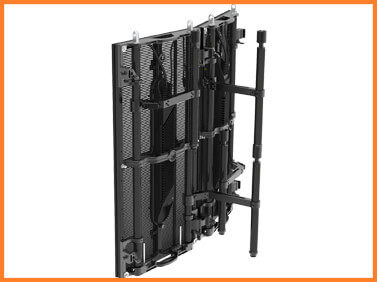

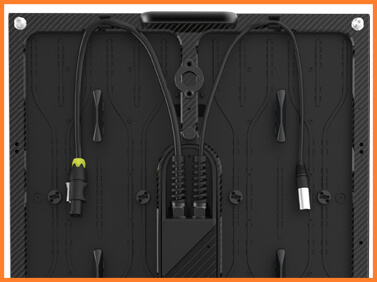

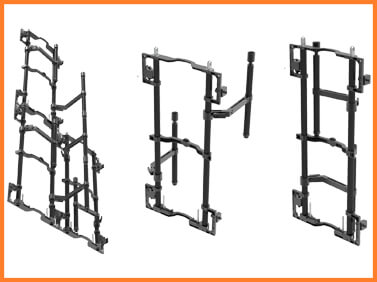

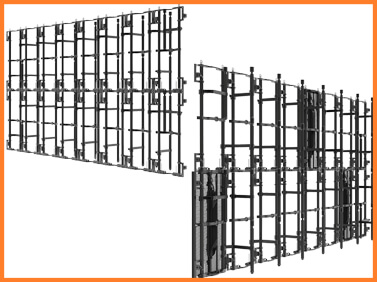

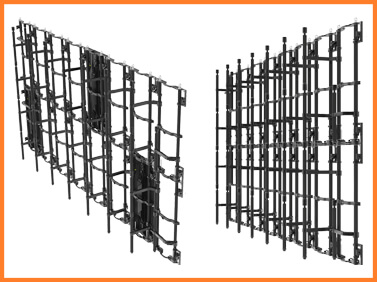

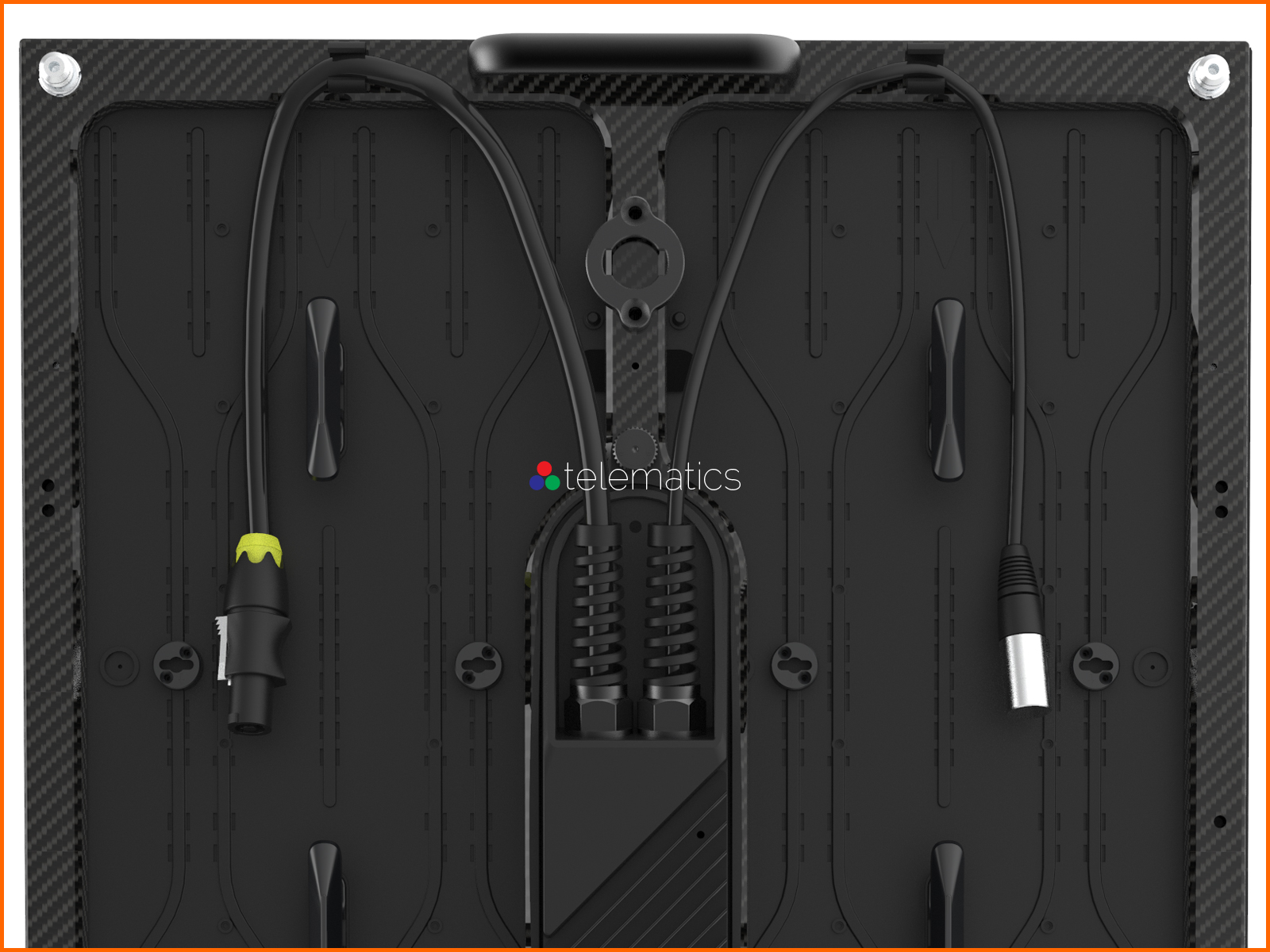

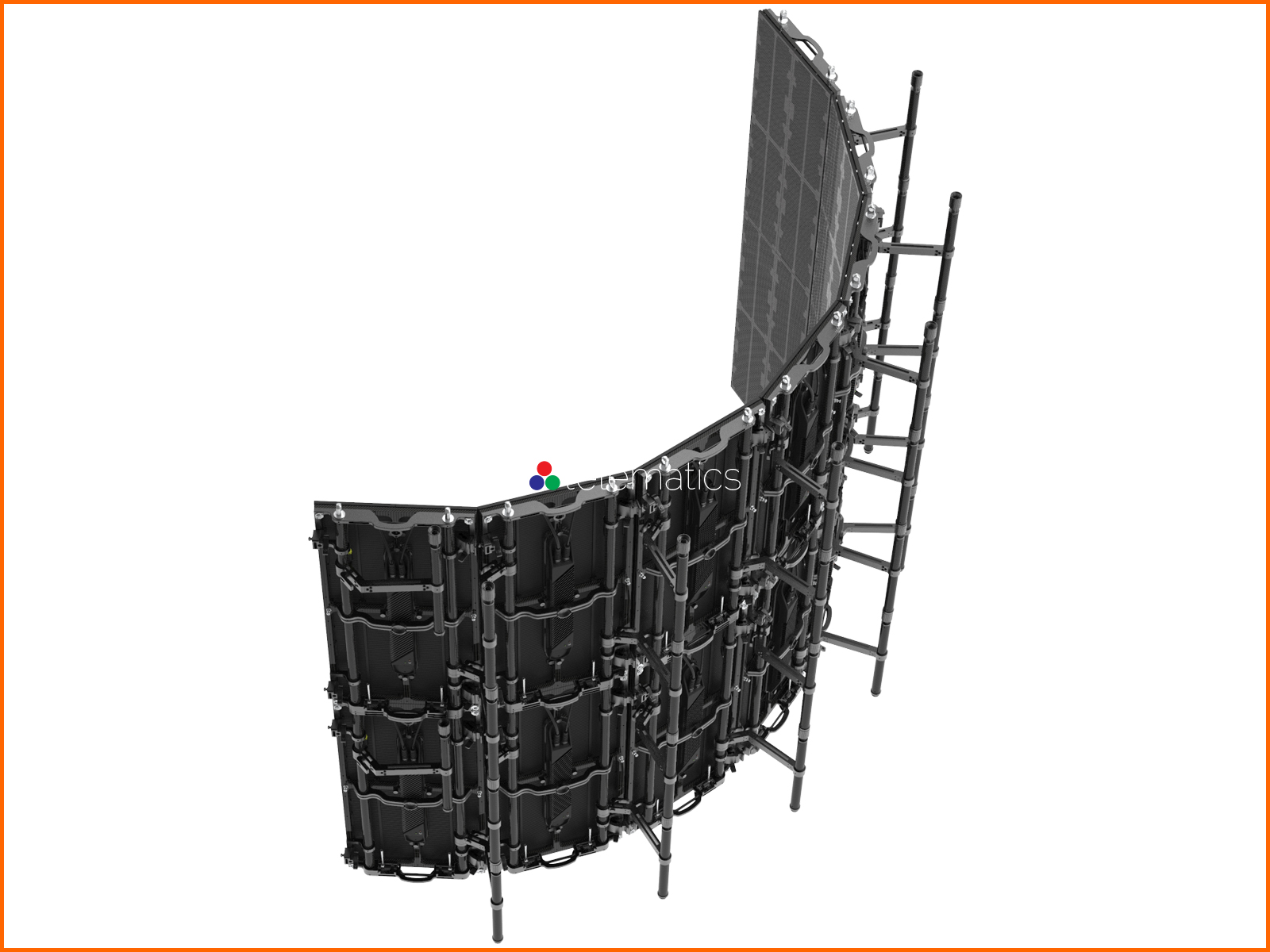

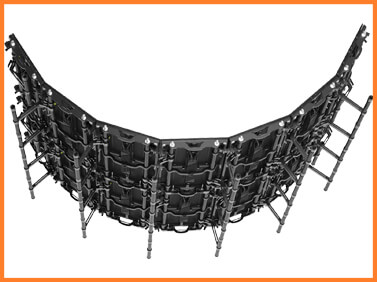

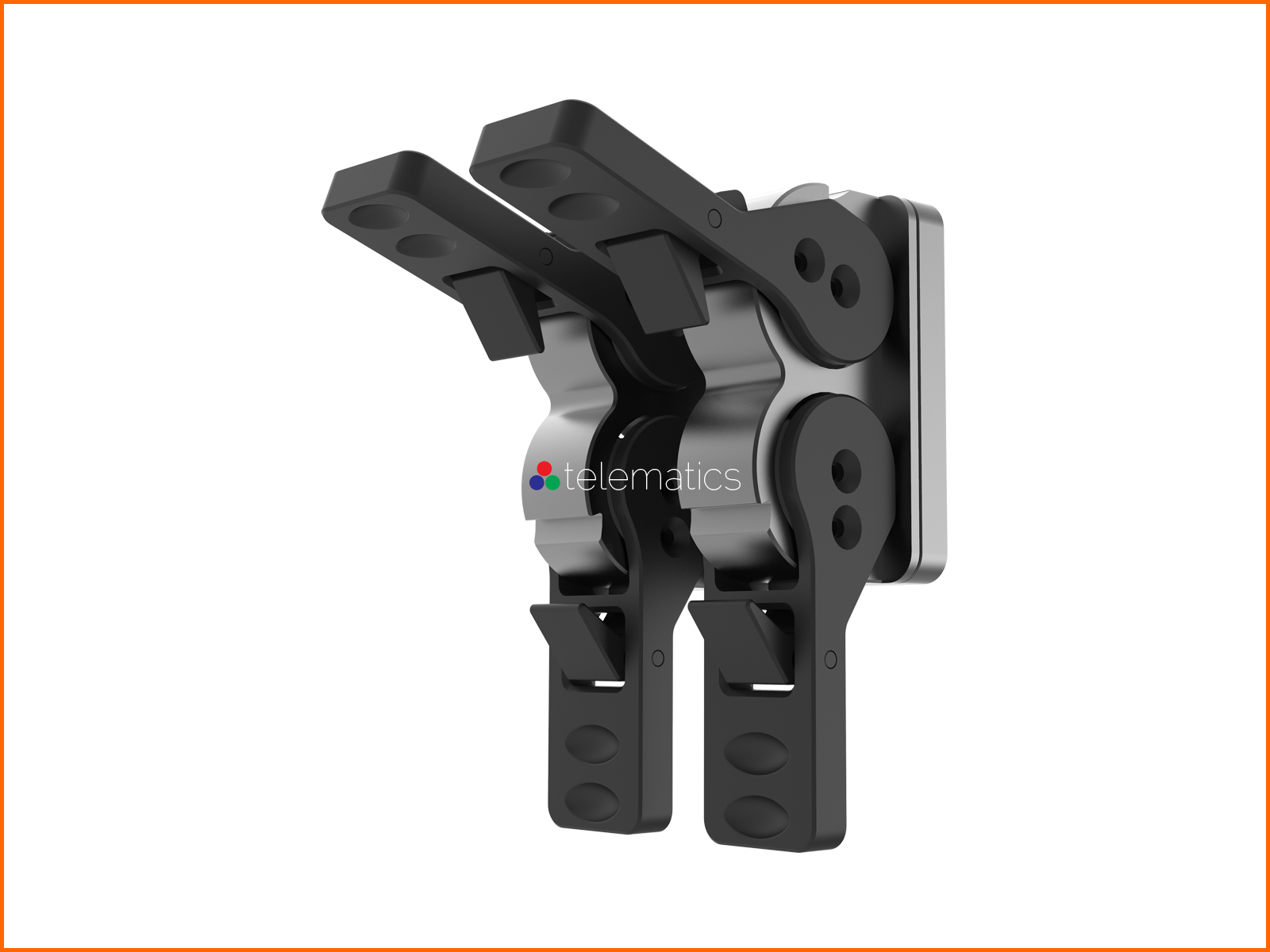

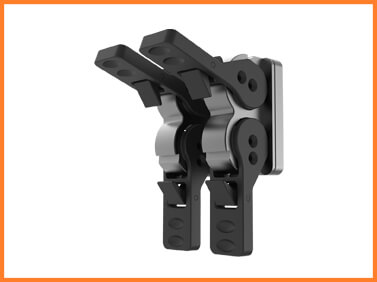

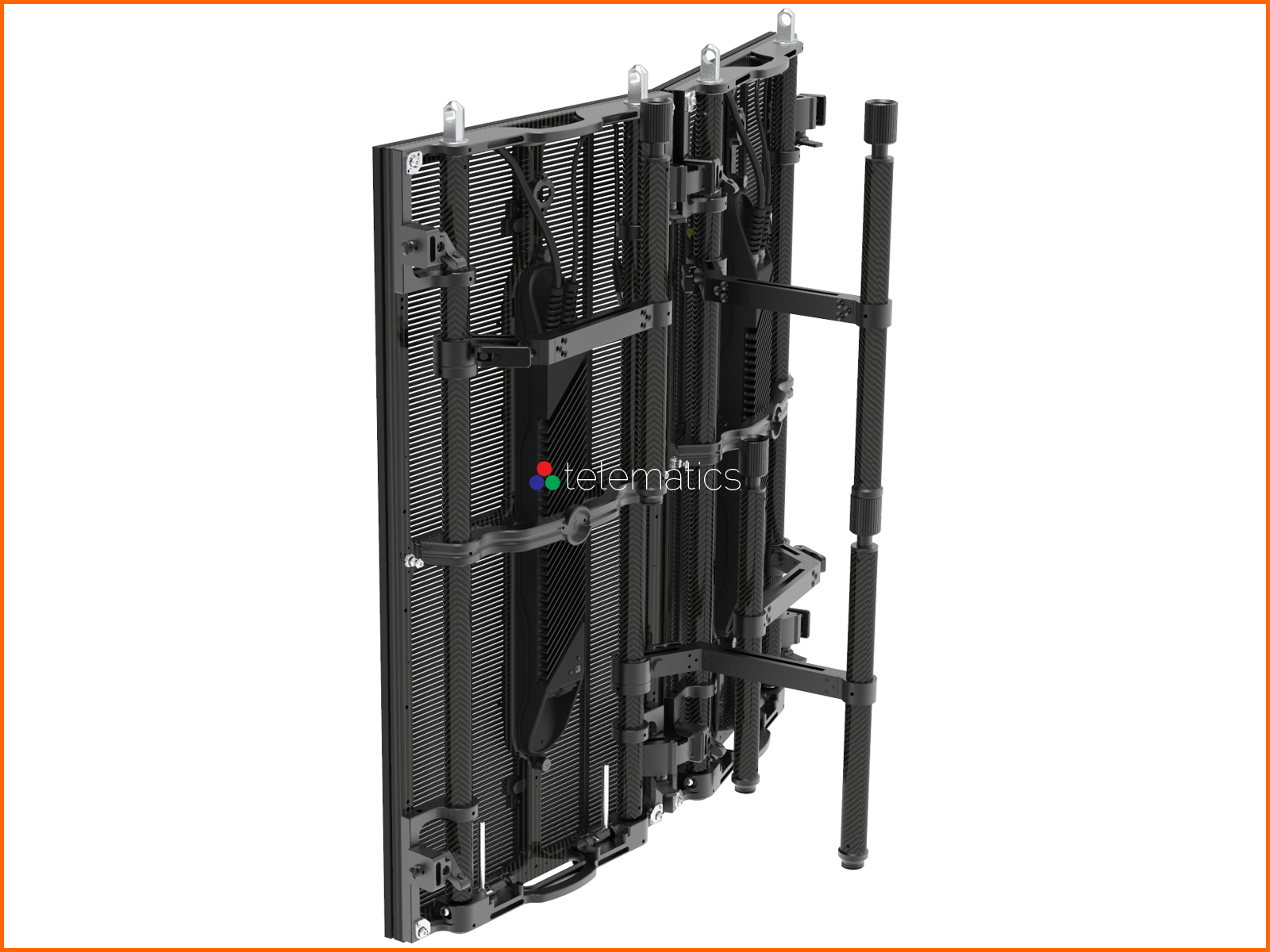

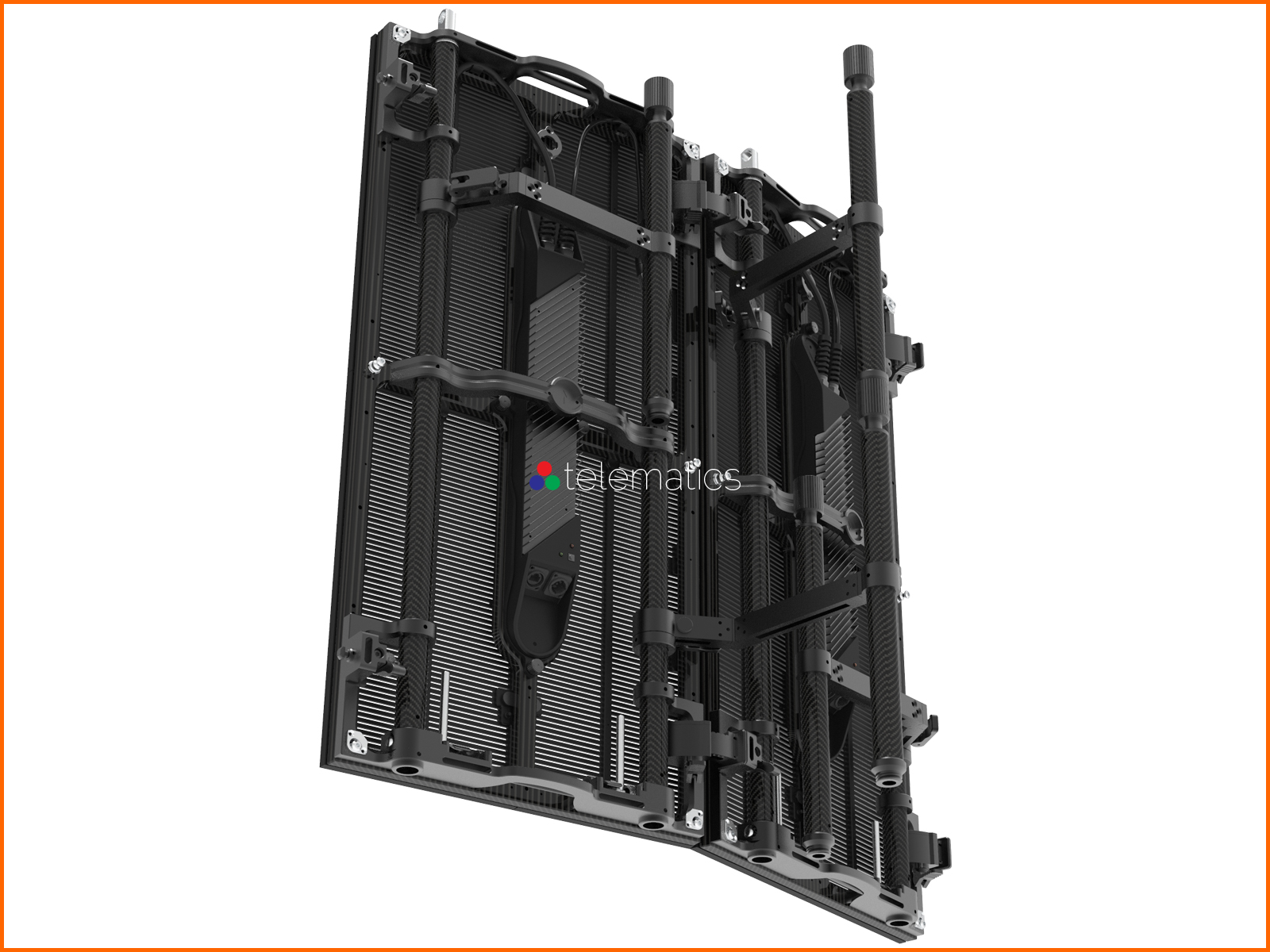

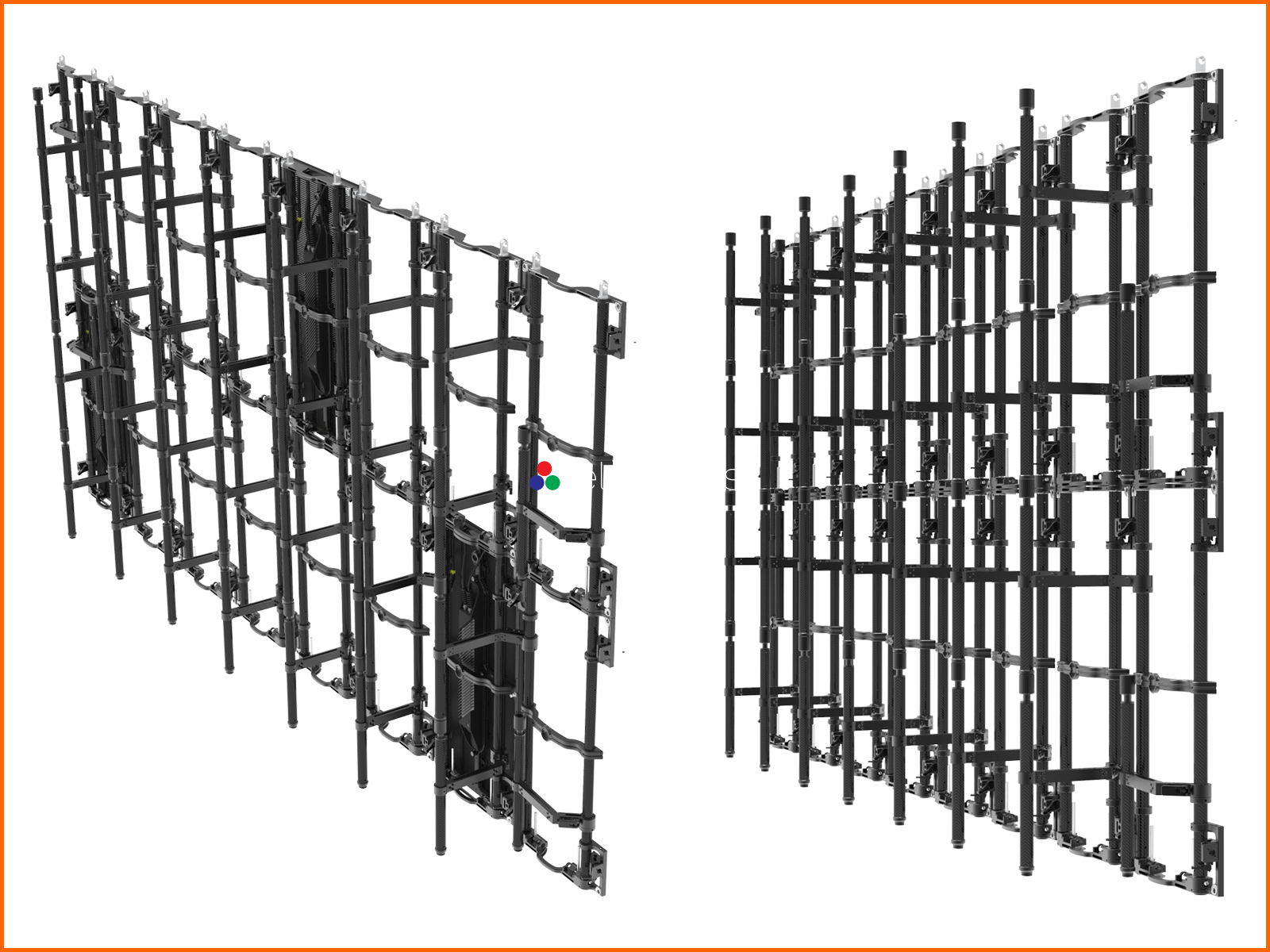

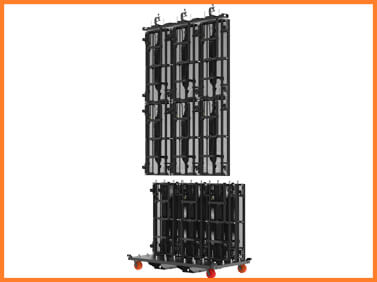

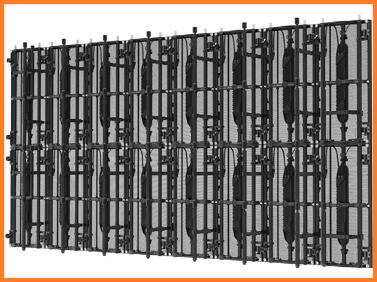

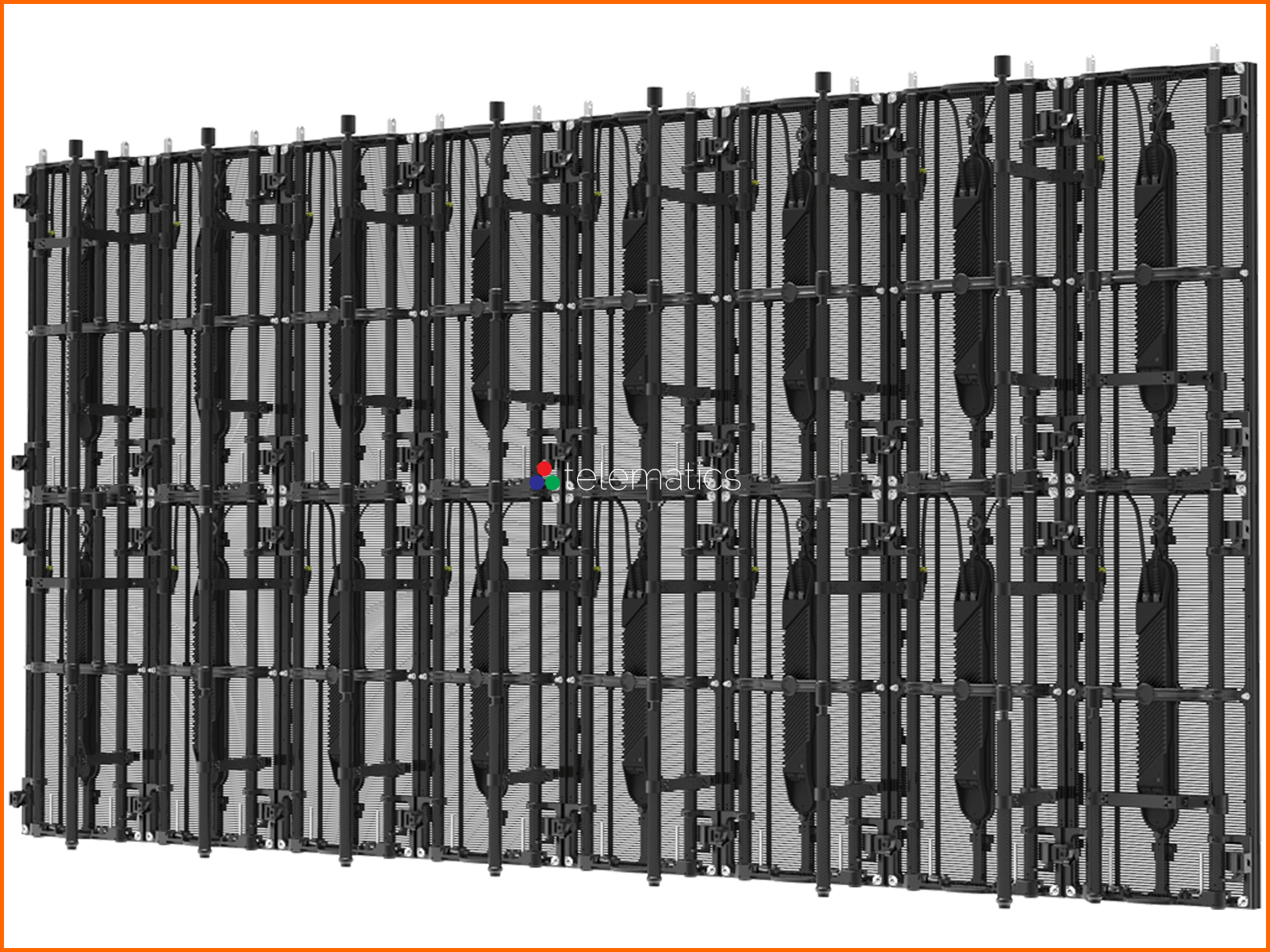

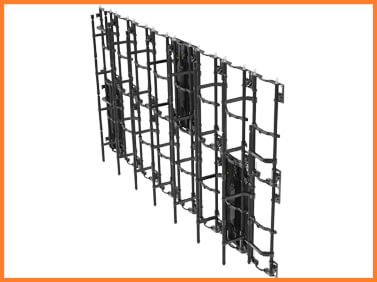

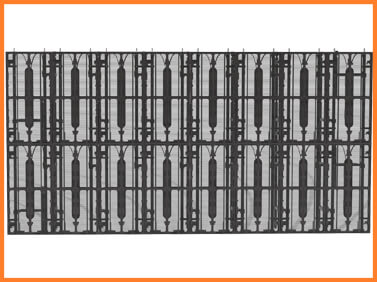

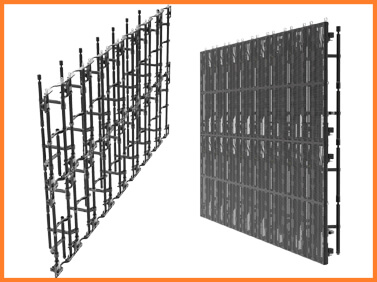

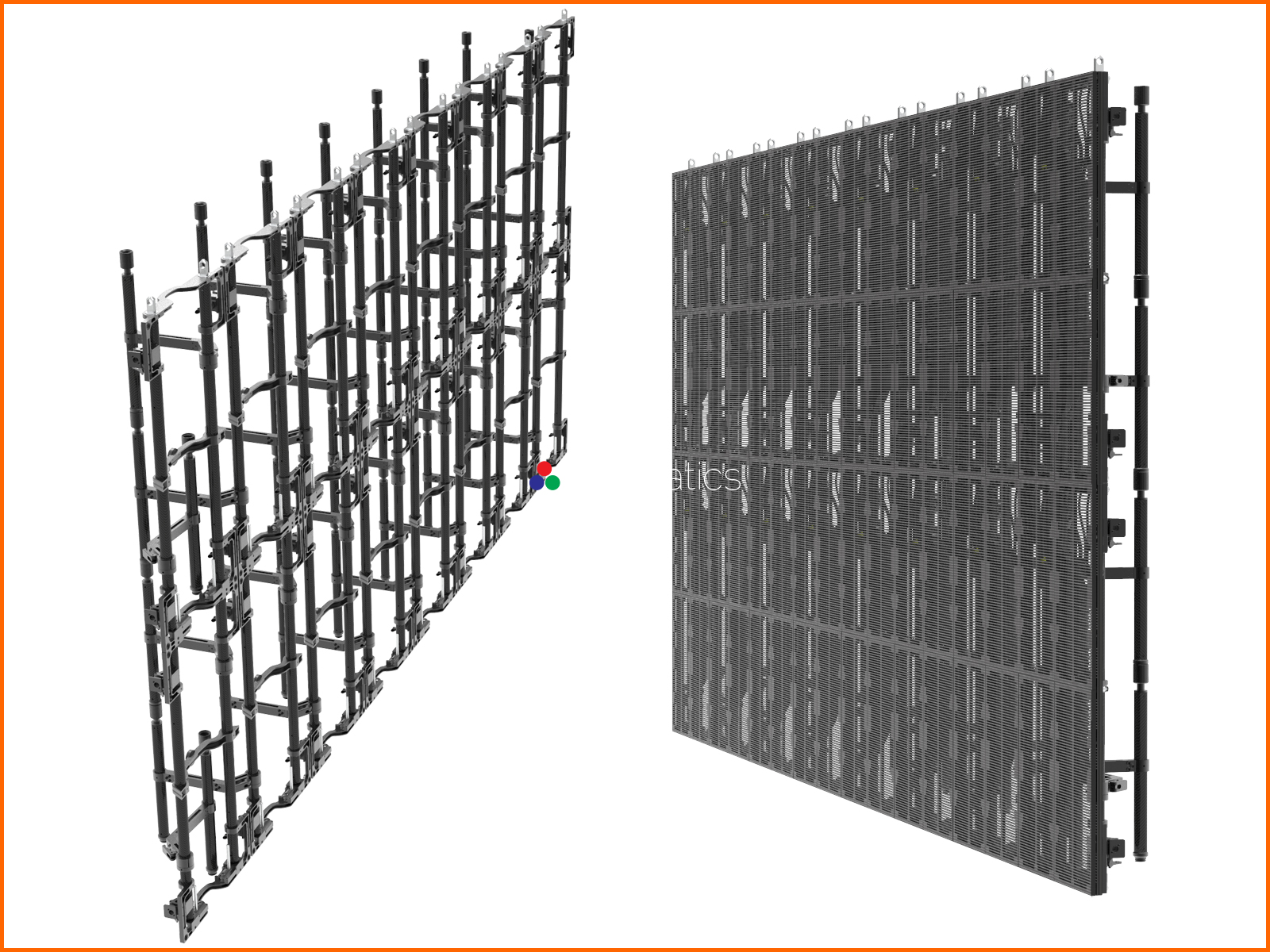

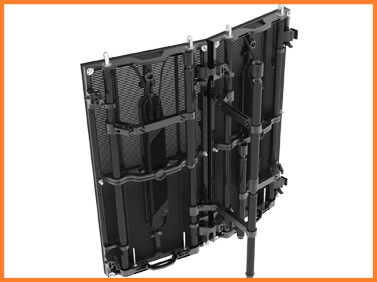

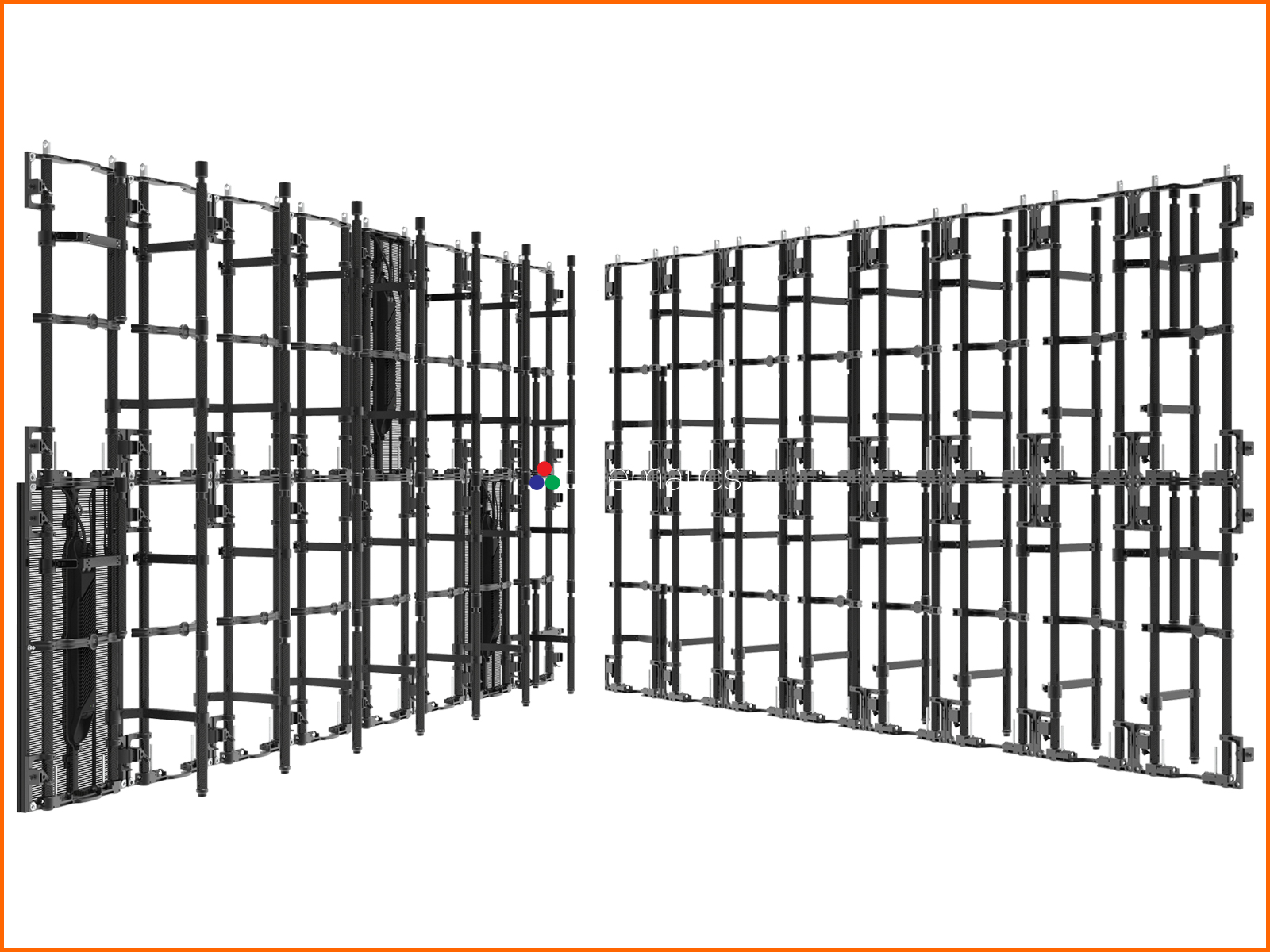

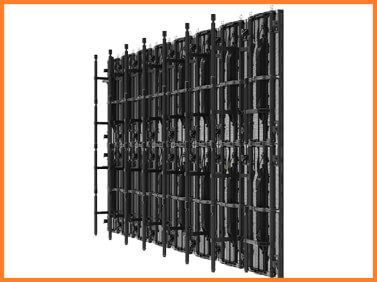

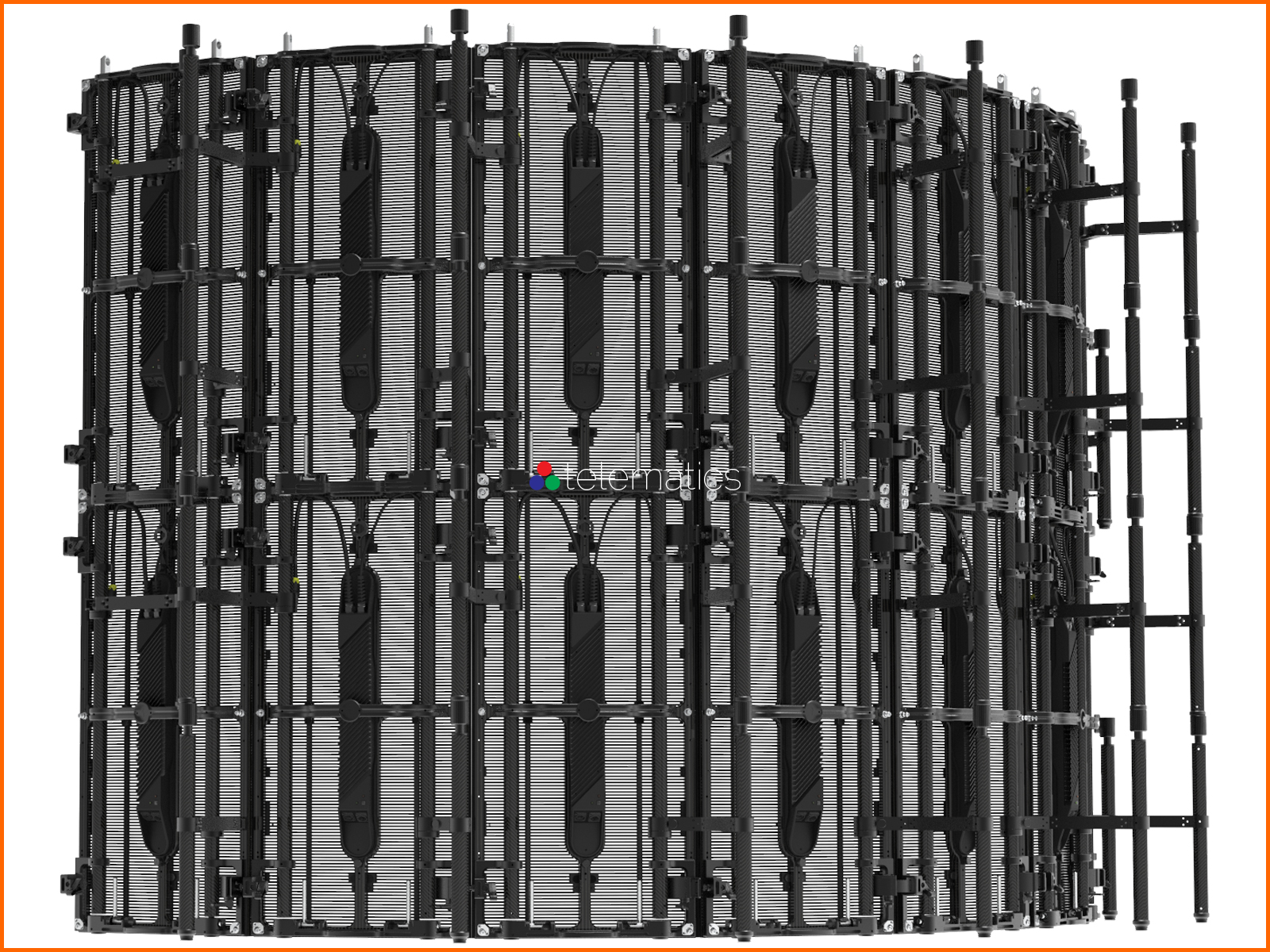

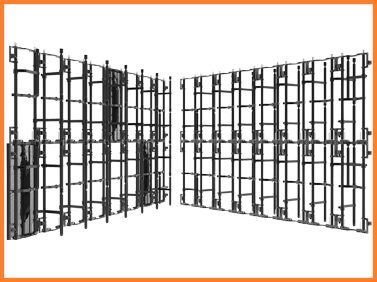

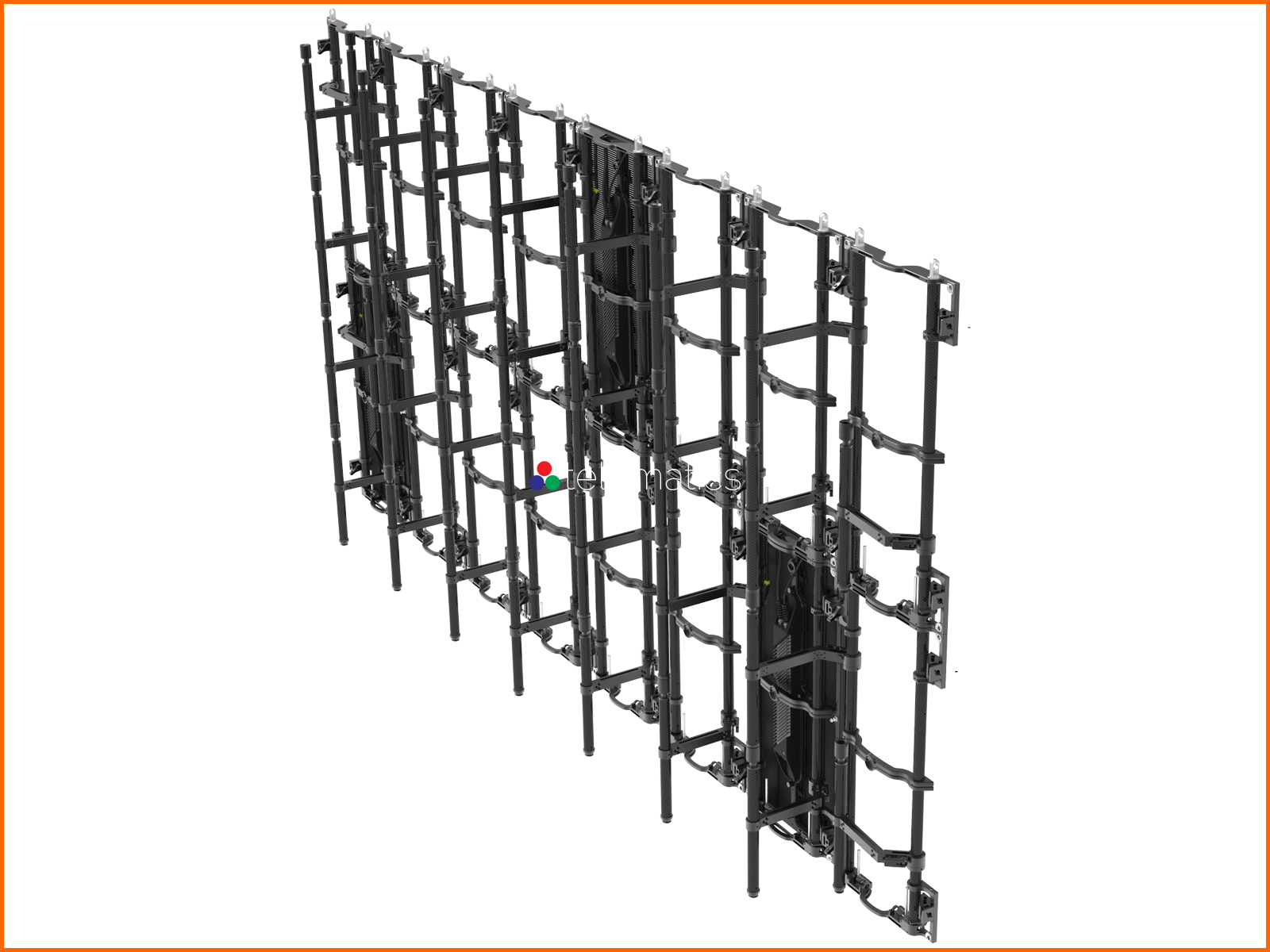

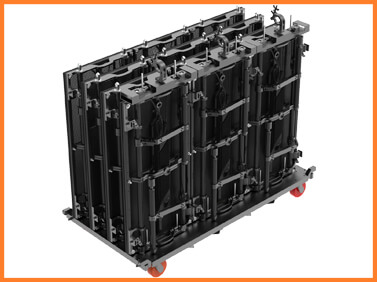

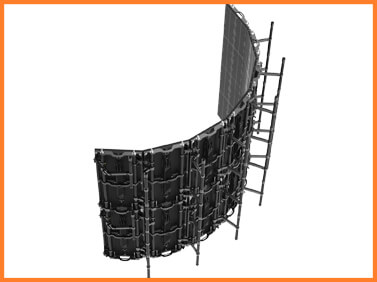

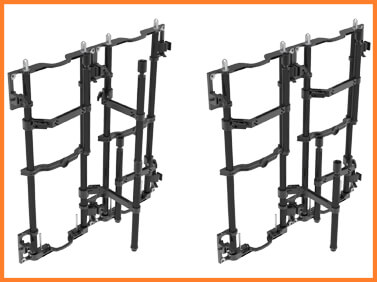

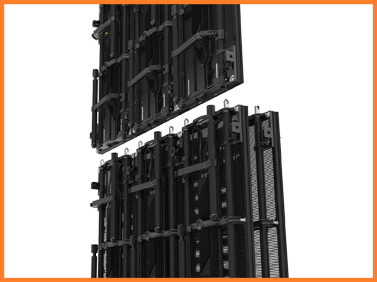

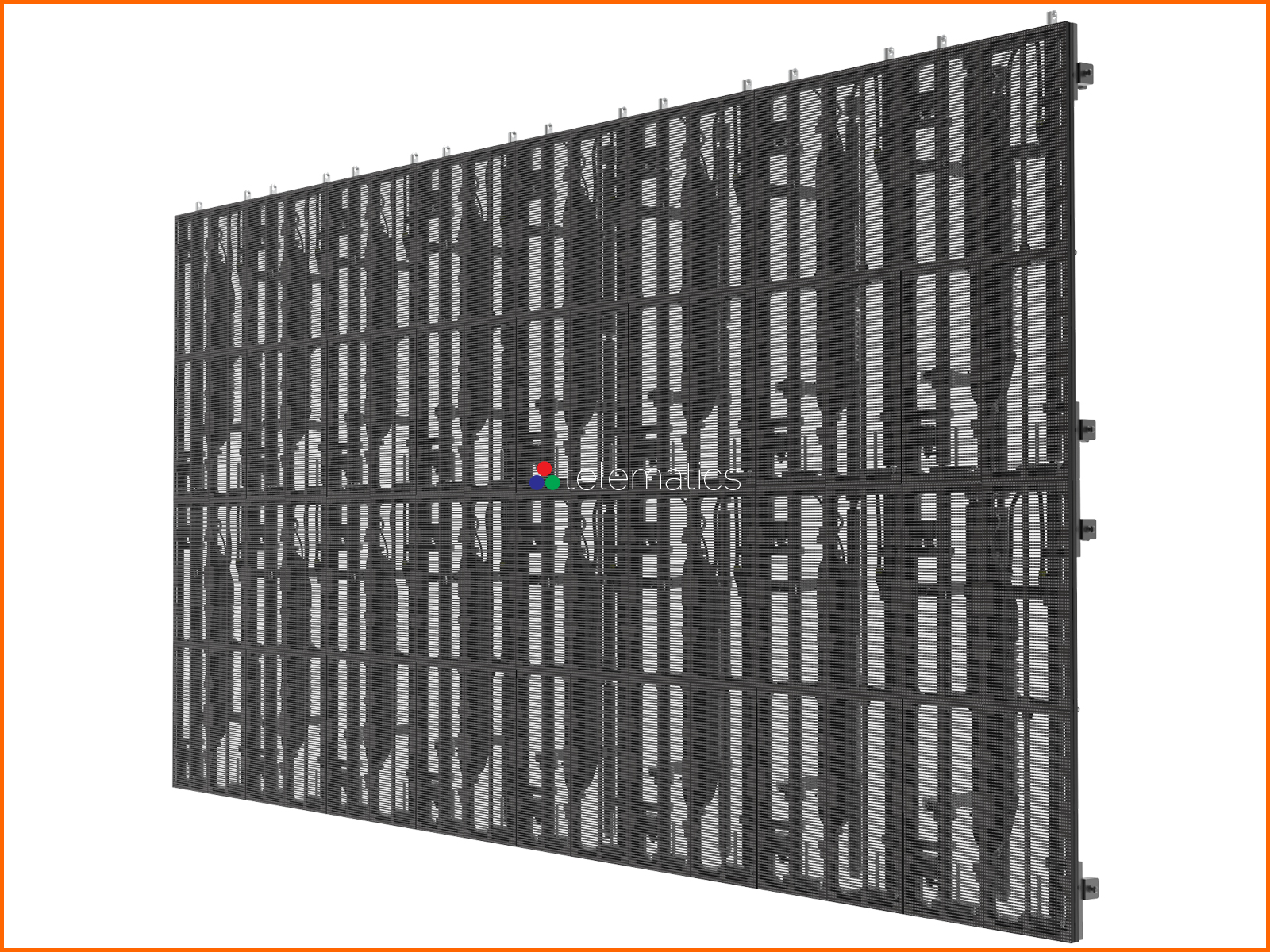

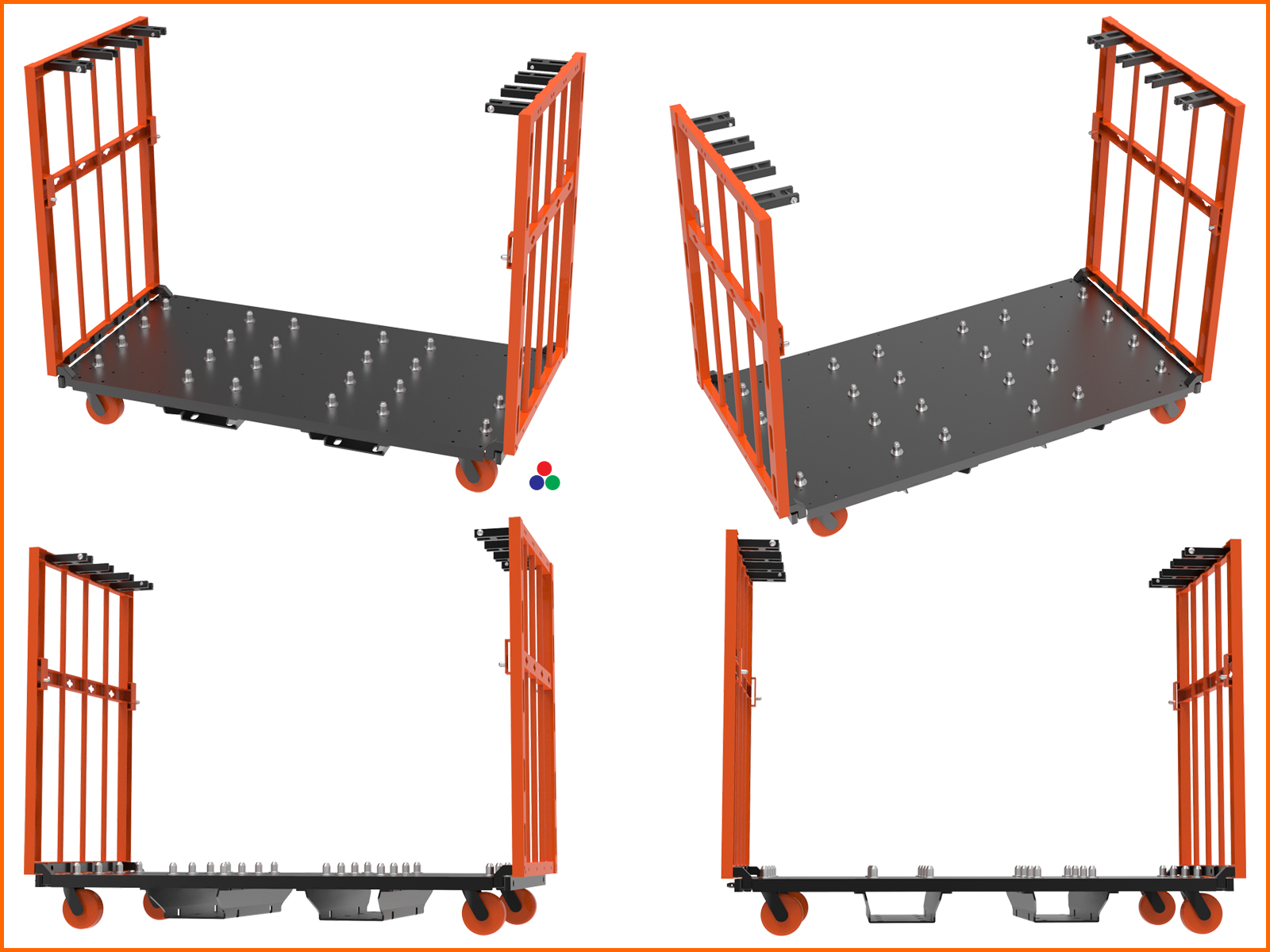

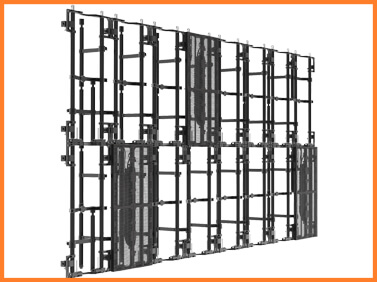

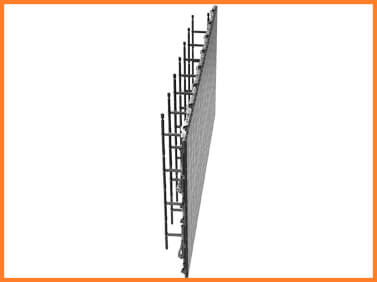

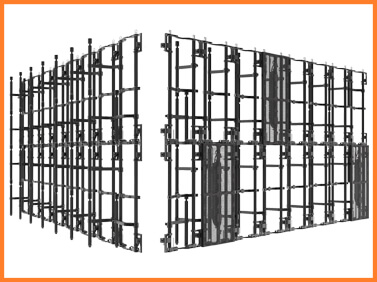

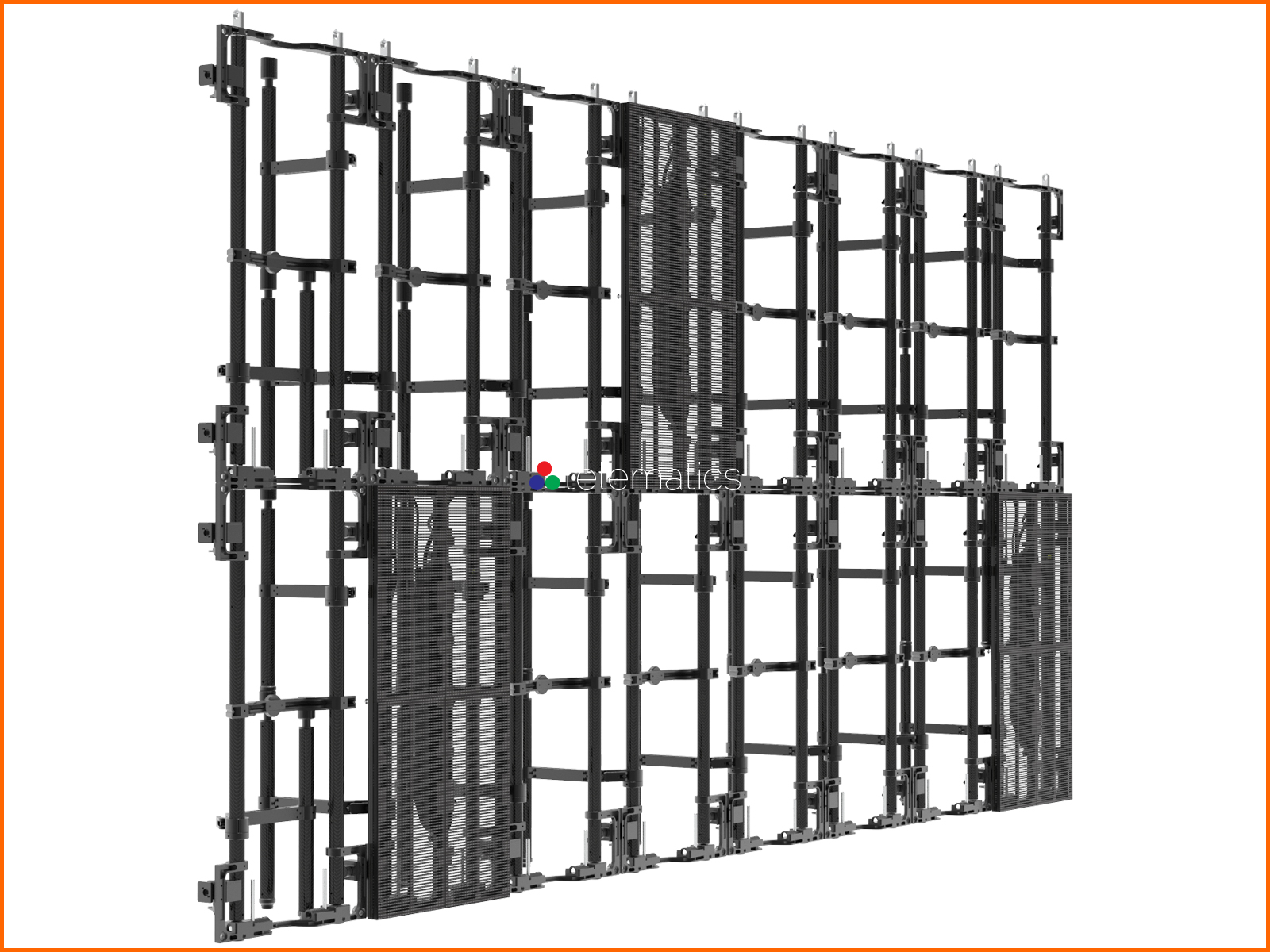

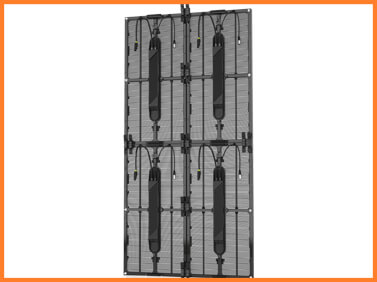

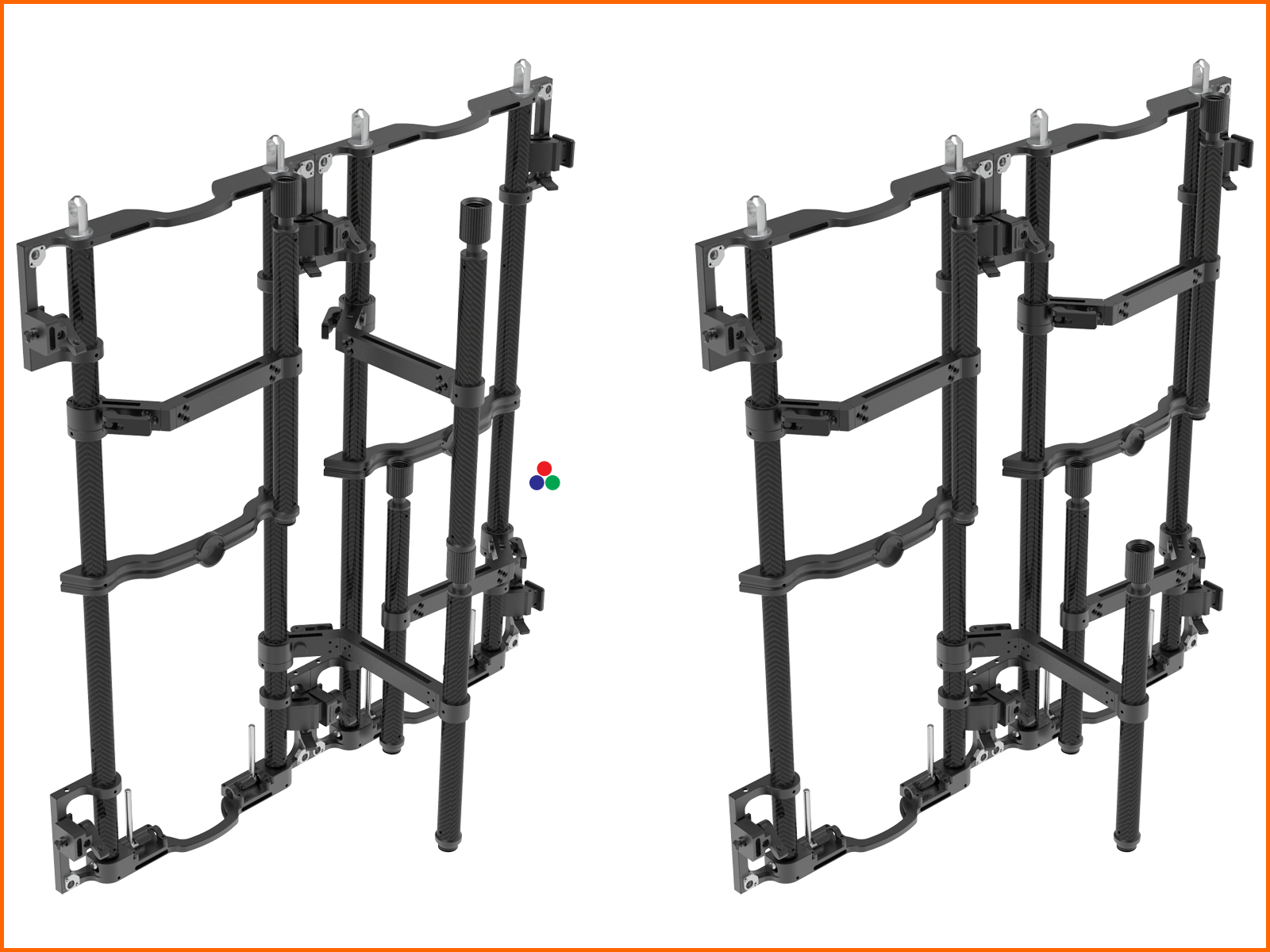

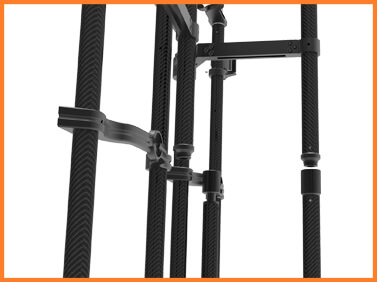

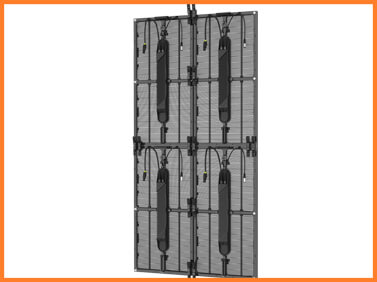

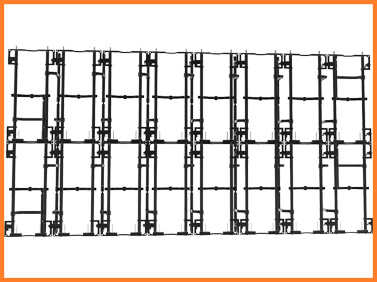

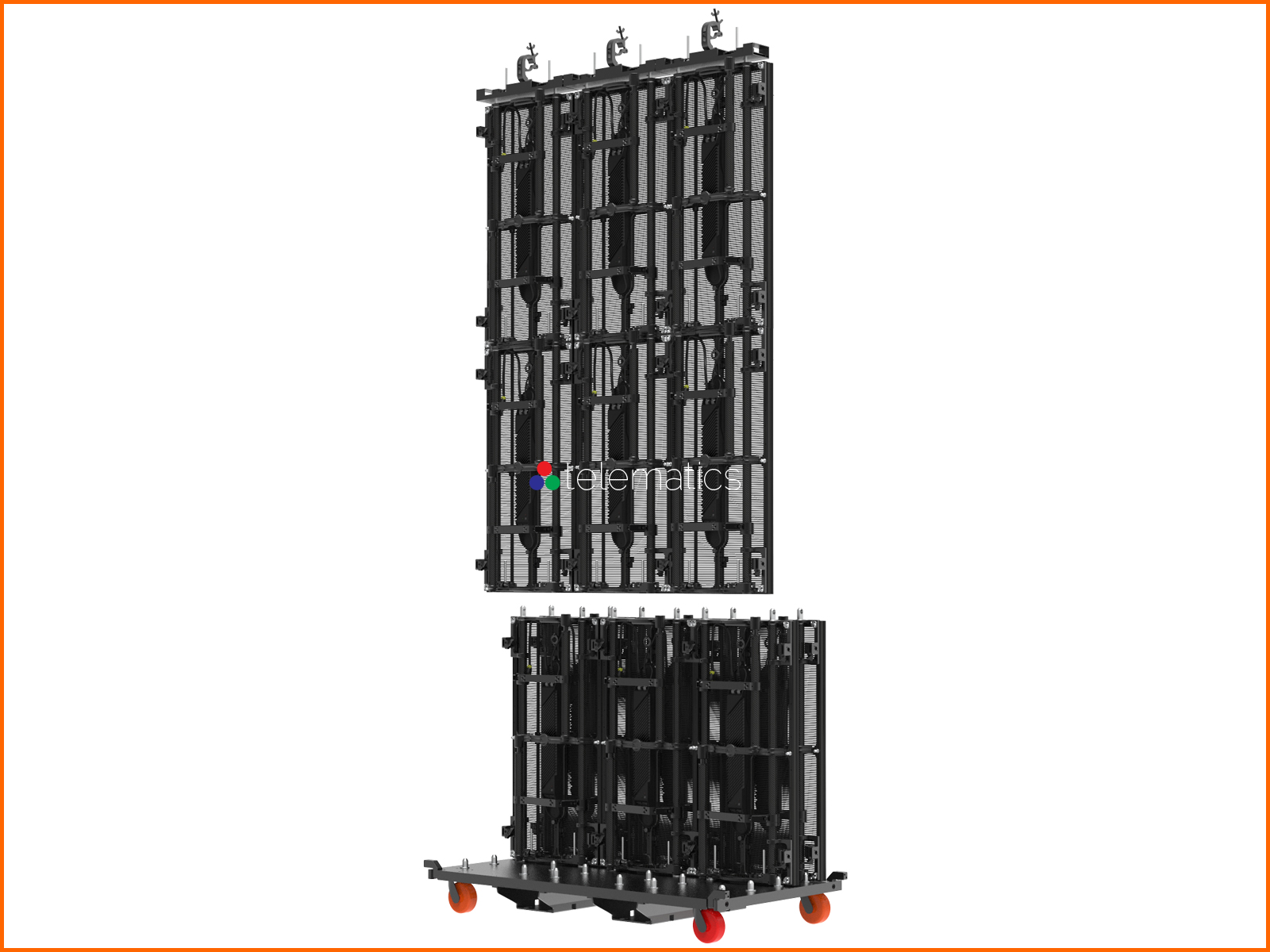

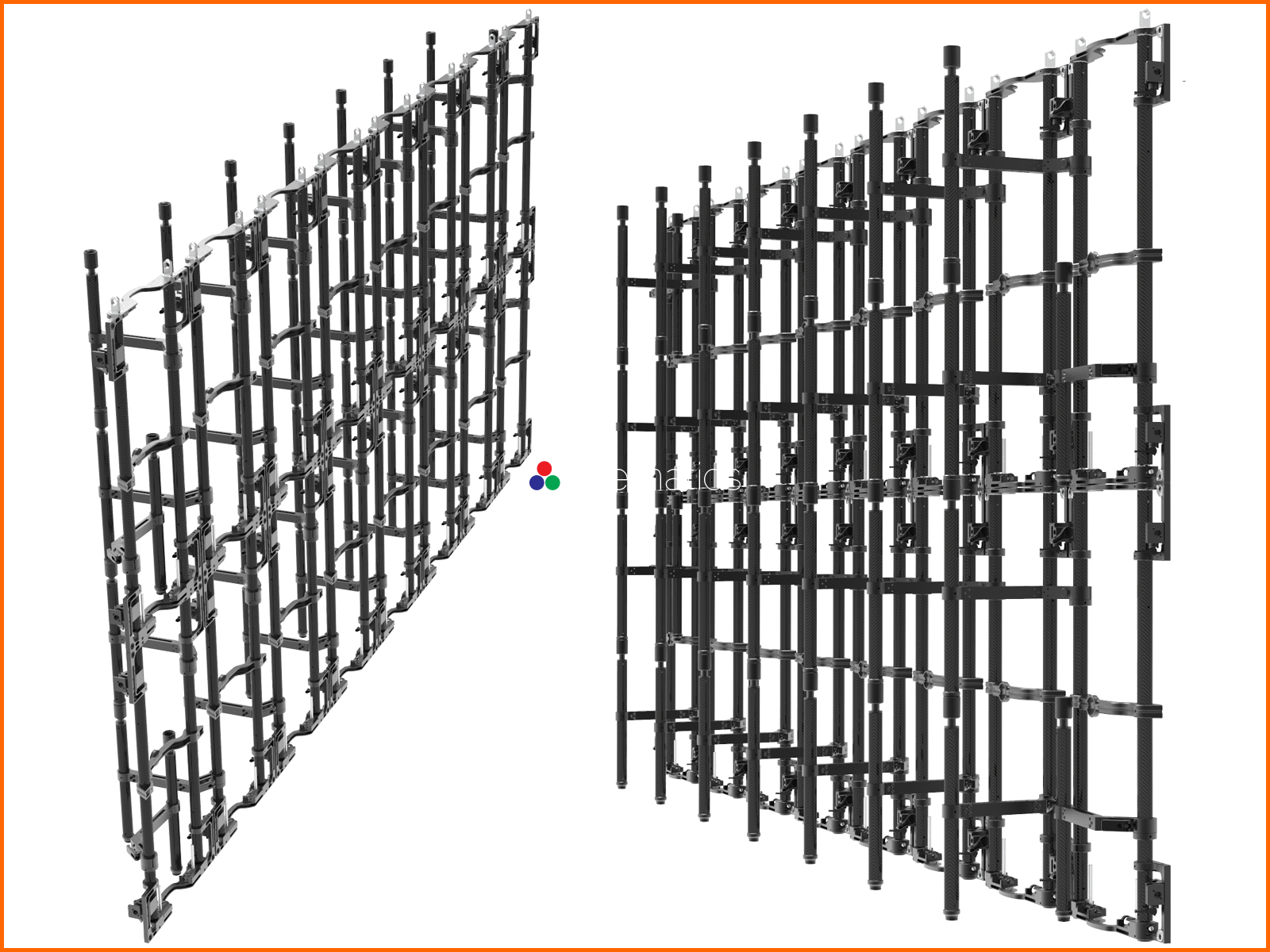

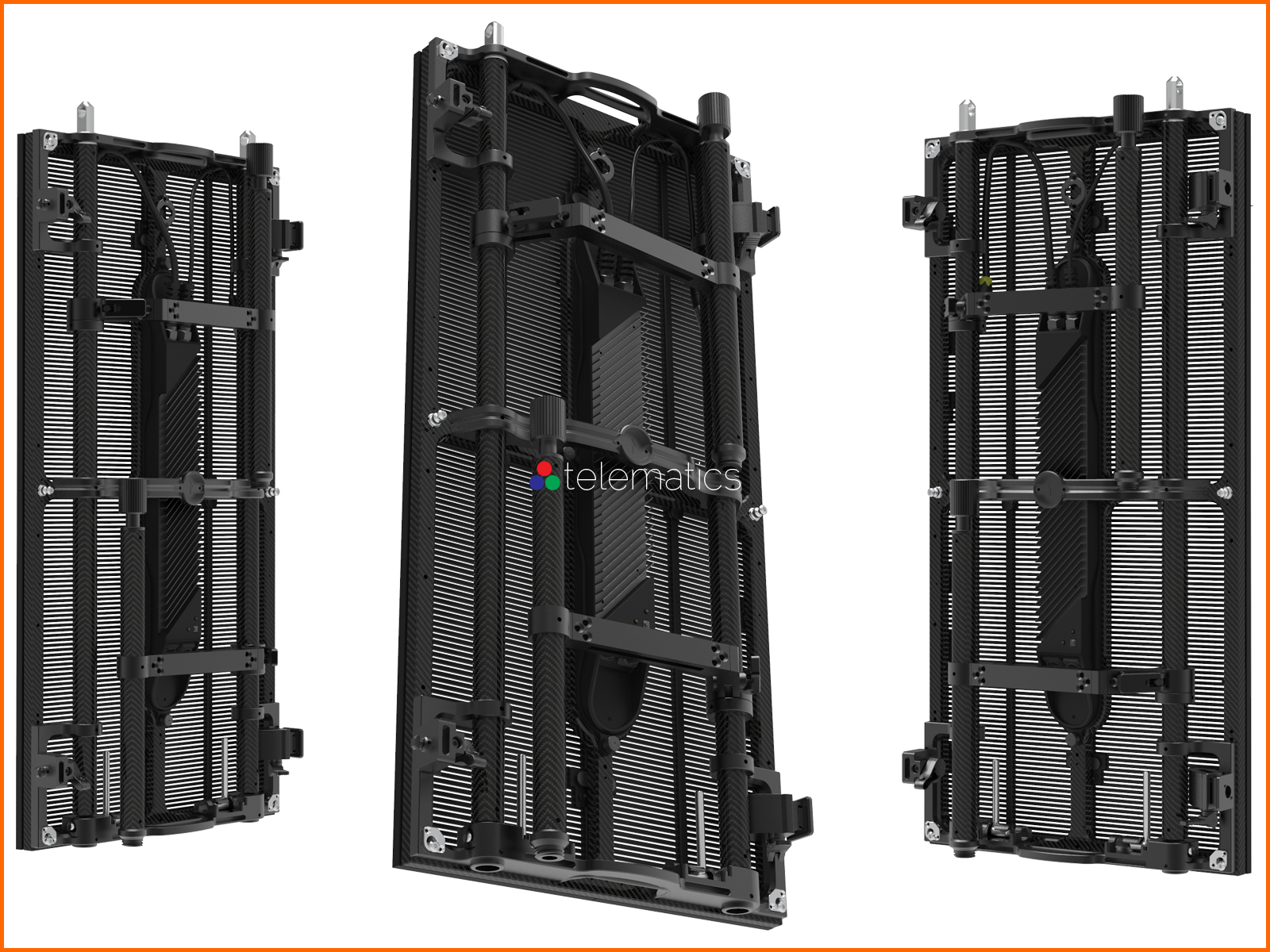

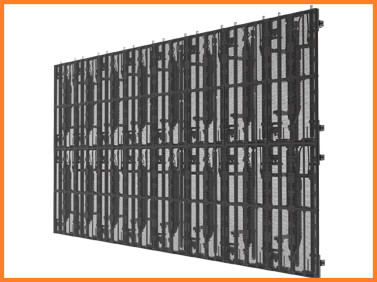

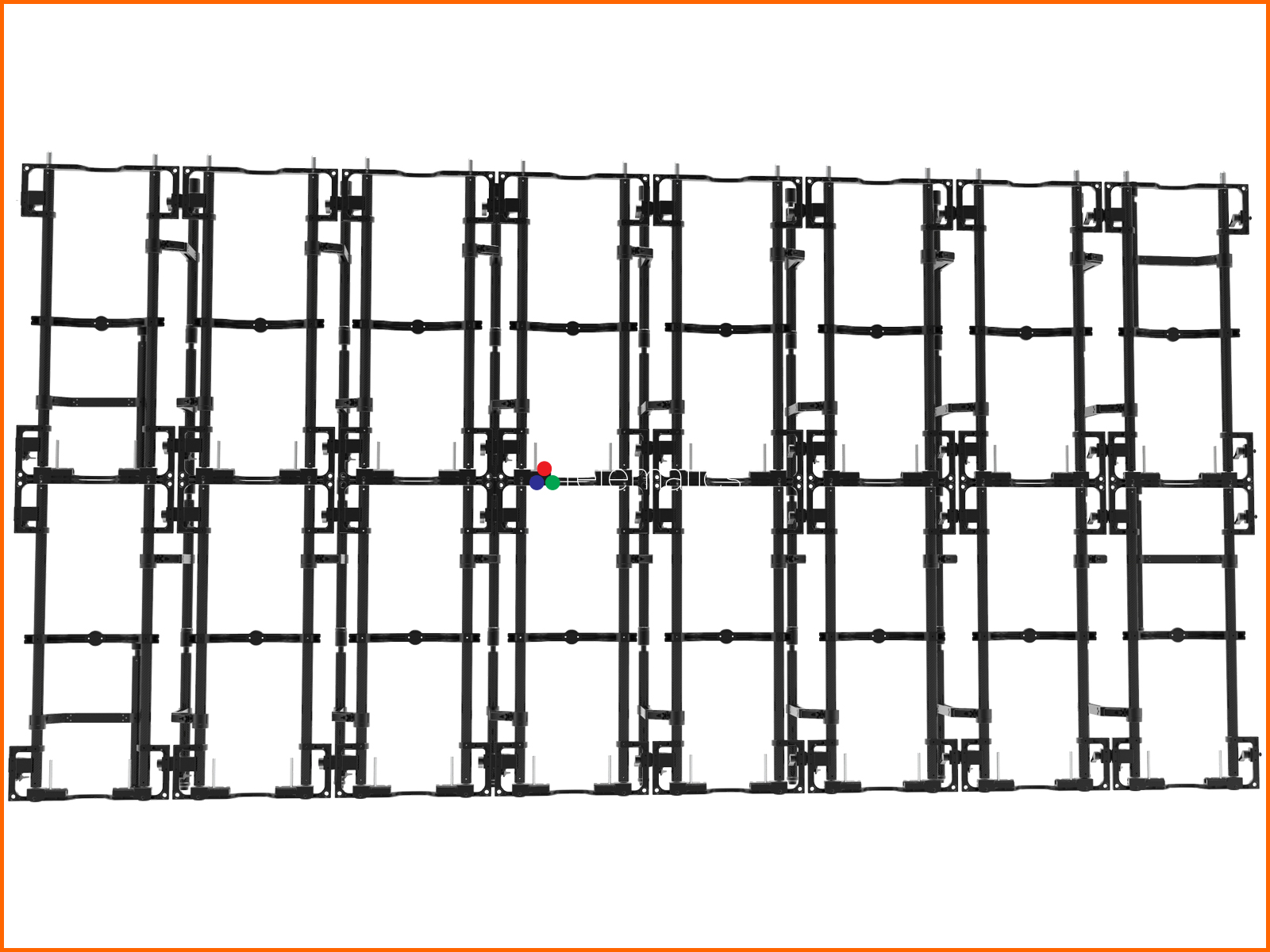

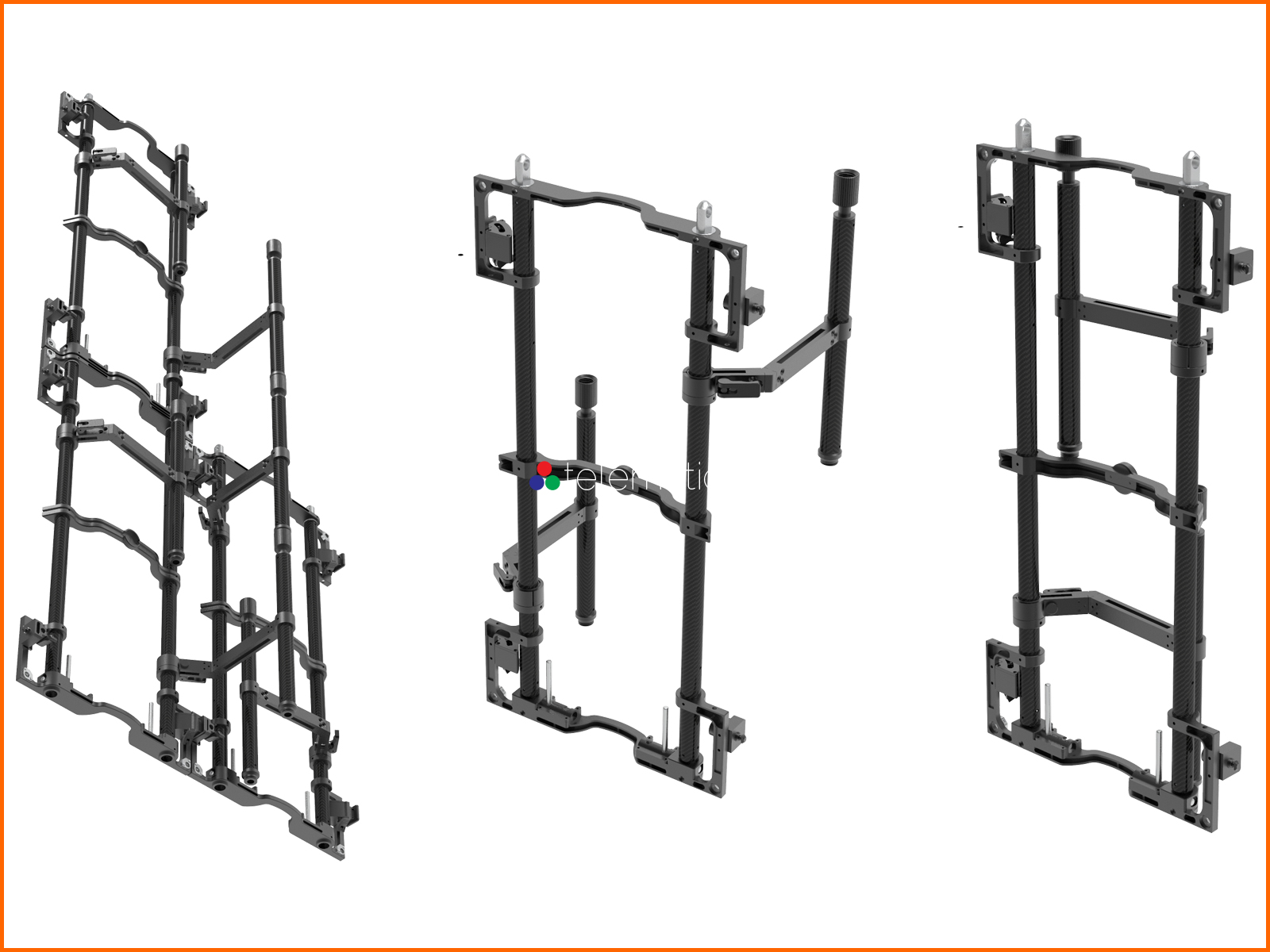

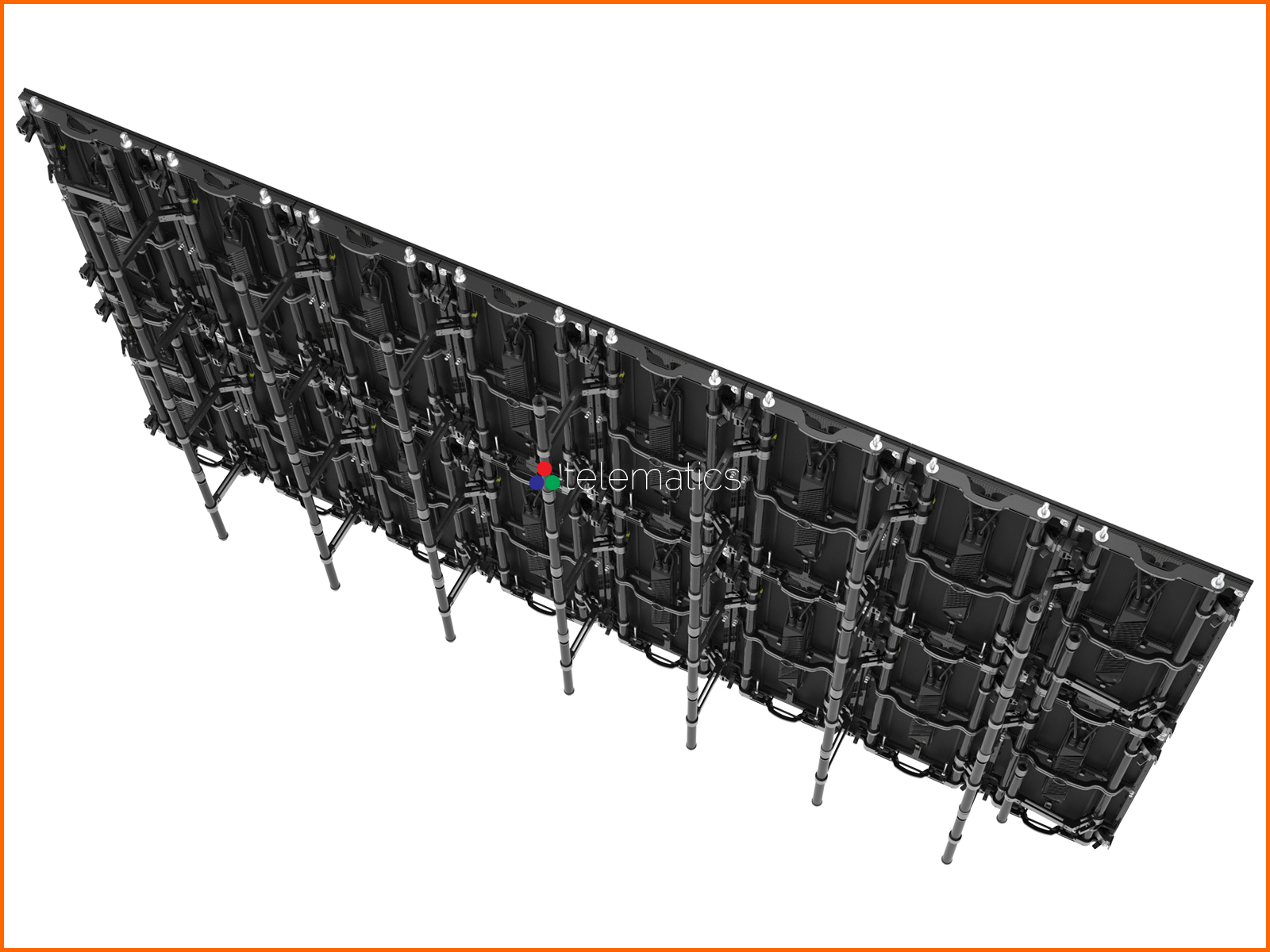

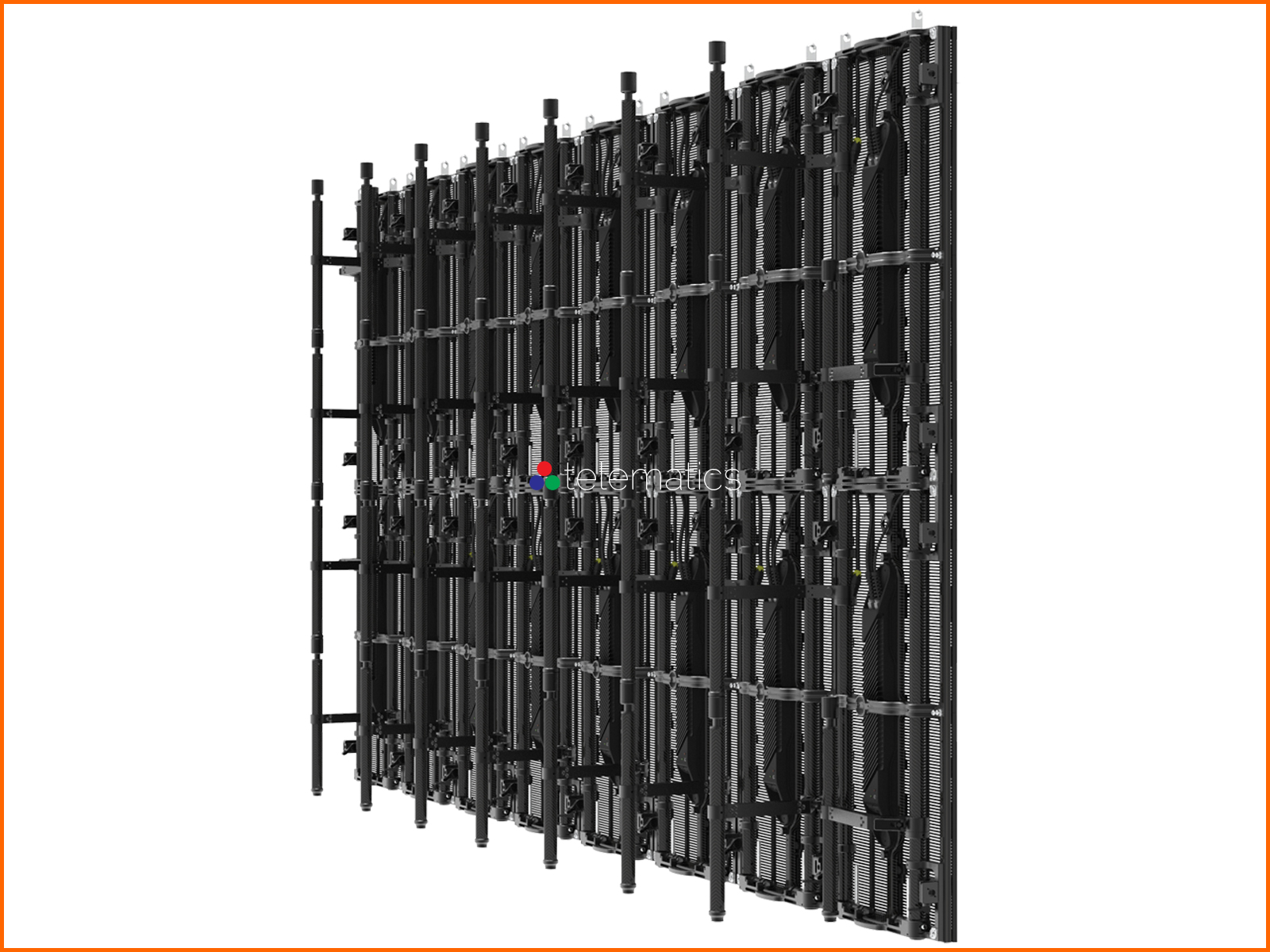

The Series H features a fast-locking patented flexible design that allows up to 5 degrees of concave and convex settings. Attach to a frame or use hanging bars or ground supports. Power and data cabling is simple and intuitive with quick-release Neutrik components.

Specifications · Desay Series HL

Carbon well captured.

Therefore, in your deliberations, when seeking to determine the military conditions, let them be made the basis of a comparison. ~ Sun Tzu

Series	H2^84ⁱ	H3^90ⁱ	H3⁹⁰	H4⁸⁰	H6⁹⁰	H10⁴¹
Pixels ^{mm · meters}
Resolution ^{· ctc distance · mm}	2.84	3.90	3.90	4.80	6.90	10.41
Resolution ^{· per linear meter}	357	256	256	208	144	96
Resolution ^{· per square meter}	127449	65536	65536	43264	20736	9216
Dimensions ^{mm · (inch)}
Width ^{· half or full panel}	500 ^(19.7)	500 ^(19.7)	500 ^(19.7)	500 ^(19.7)	500 ^(19.7)	500 ^(19.7)

Height ^{· half panel}	500 ^(19.7)	500 ^(19.7)	500 ^(19.7)	500 ^(19.7)	500 ^(19.7)	500 ^(19.7)
Height ^{· full panel}	1000 ^(39.4)	1000 ^(39.4)	1000 ^(39.4)	1000 ^(39.4)	1000 ^(39.4)	1000 ^(39.4)

Depth ^{· at panel edge}	33 ^(1.3)	33 ^(1.3)	33 ^(1.3)	33 ^(1.3)	33 ^(1.3)	33 ^(1.3)
Depth ^{· at single power box}	75 ^(2.9)	75 ^(2.9)	75 ^(2.9)	75 ^(2.9)	75 ^(2.9)	75 ^(2.9)
Depth ^{· at double power box}	90 ^(3.5)	90 ^(3.5)	90 ^(3.5)	90 ^(3.5)	90 ^(3.5)	90 ^(3.5)
Weight ^{kilo · (pound)}
Panel ^{· HL · half panel}	5.5 ^(12.1)	5.5 ^(12.1)	5.7 ^(12.7)	5.7 ^(12.7)	2.7 ^(6.1)	2.7 ^(6.1)
Panel ^{· HL · full panel}	11 ^(24.2)	11 ^(24.2)	11.5 ^(25.3)	11.5 ^(25.3)	5.5 ^(12.1)	5.5 ^(12.1)

Panel ^{· H · half panel}	6.3 ^(13.8)	6.3 ^(13.8)	6.4 ^(14.1)	6.4 ^(14.1)	4.9 ^(10.8)	4.9 ^(10.8)
Panel ^{· H · full panel}	12.5 ^(27.5)	12.5 ^(27.5)	12.8 ^(28.2)	12.8 ^(28.2)	9.8 ^(21.6)	9.8 ^(21.6)
Viewing ^(upgrade)
Brightness ^{· candela/m²}	1000 ⁽¹²⁰⁰⁾	1000 ⁽¹²⁰⁰⁾	5000	5000	4500	4000

Refresh ^{· hertz}	1920 ⁽³⁸⁴⁰⁾	1920 ⁽³⁸⁴⁰⁾	1920 ⁽³⁸⁴⁰⁾	1920 ⁽³⁸⁴⁰⁾	1920 ⁽³⁸⁴⁰⁾	1920 ⁽³⁸⁴⁰⁾

Angle ^{· 50% brightness}	80° ↔ 80°	80° ↔ 80°	70° ↔ 70°	70° ↔ 70°	80° ↔ 80°	80° ↔ 80°
Angle ^{· 50% brightness}	70° ↕ 70°	70° ↕ 70°	50° ↕ 50°	25° ↕ 45°	80° ↕ 80°	80° ↕ 80°
Performance
Colors ^{· rgb · bit depth}	2¹³	2¹⁴	2¹⁴	2¹⁴	2¹⁴	2¹⁴
Control ^{· brightness levels}	255	255	255	255	255	255
Lifetime ^{· 50% brightness · years}	11.4	11.4	11.4	11.4	11.4	11.4
Power ^{square meter}
Watts ^{· 1 PSU · (average draw)}	520 ^(35%)	510 ^(35%)	550 ^(35%)	550 ^(35%)	570 ^(35%)	570 ^(35%)
Watts ^{· 2 PSU · (average draw)}	650 ^(35%)	640 ^(35%)	680 ^(35%)	680 ^(35%)	700 ^(35%)	700 ^(35%)

Voltage ^{· VAC · adaptable}	100 ⌁ 240	100 ⌁ 240	100 ⌁ 240	100 ⌁ 240	100 ⌁ 240	100 ⌁ 240
Installation
Wall ^{· custom steel frame}	⬚	⬚	⬚	⬚	⬚	⬚
Ceiling ^{· fly bar}	⭭	⭭	⭭	⭭	⭭	⭭
Floor ^{· floor support}	⭫	⭫	⭫	⭫	⭫	⭫

IP Code ^{· front · rear}	30 · 40	30 · 40	65 · 65	65 · 65	65 · 65	65 · 65
Operating ^{· celsius · (fahrenheit)}	-10 ⁽¹⁴⁾ · 40 ⁽¹⁰⁴⁾	-10 ⁽¹⁴⁾ · 40 ⁽¹⁰⁴⁾	-20 ^(-4) · 45 ⁽¹¹³⁾	-20 ^(-4) · 45 ⁽¹¹³⁾	-20 ^(-4) · 45 ⁽¹¹³⁾	-20 ^(-4) · 45 ⁽¹¹³⁾

Fine Print

Specifications	Desay and Telematics reserves the right to change any specifications without prior notice.

Factory Warranty	Faulty components to be repaired or exchanged for 2 years from the date of shipping.

Extended Factory Warranty	The Desay factory warranty may be extended to 5 years at a modest premium.

The Sales Pitch

So here's the deal...

Energy may be likened to the bending of a crossbow; decision, to the releasing of a trigger. ~ Sun Tzu

Desay Series HL

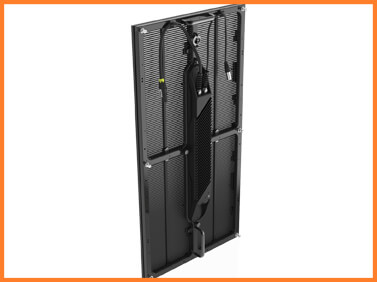

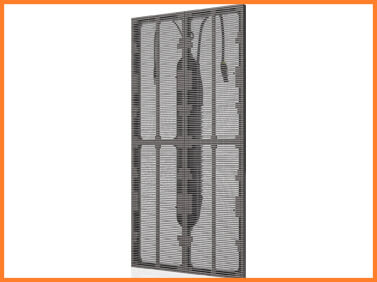

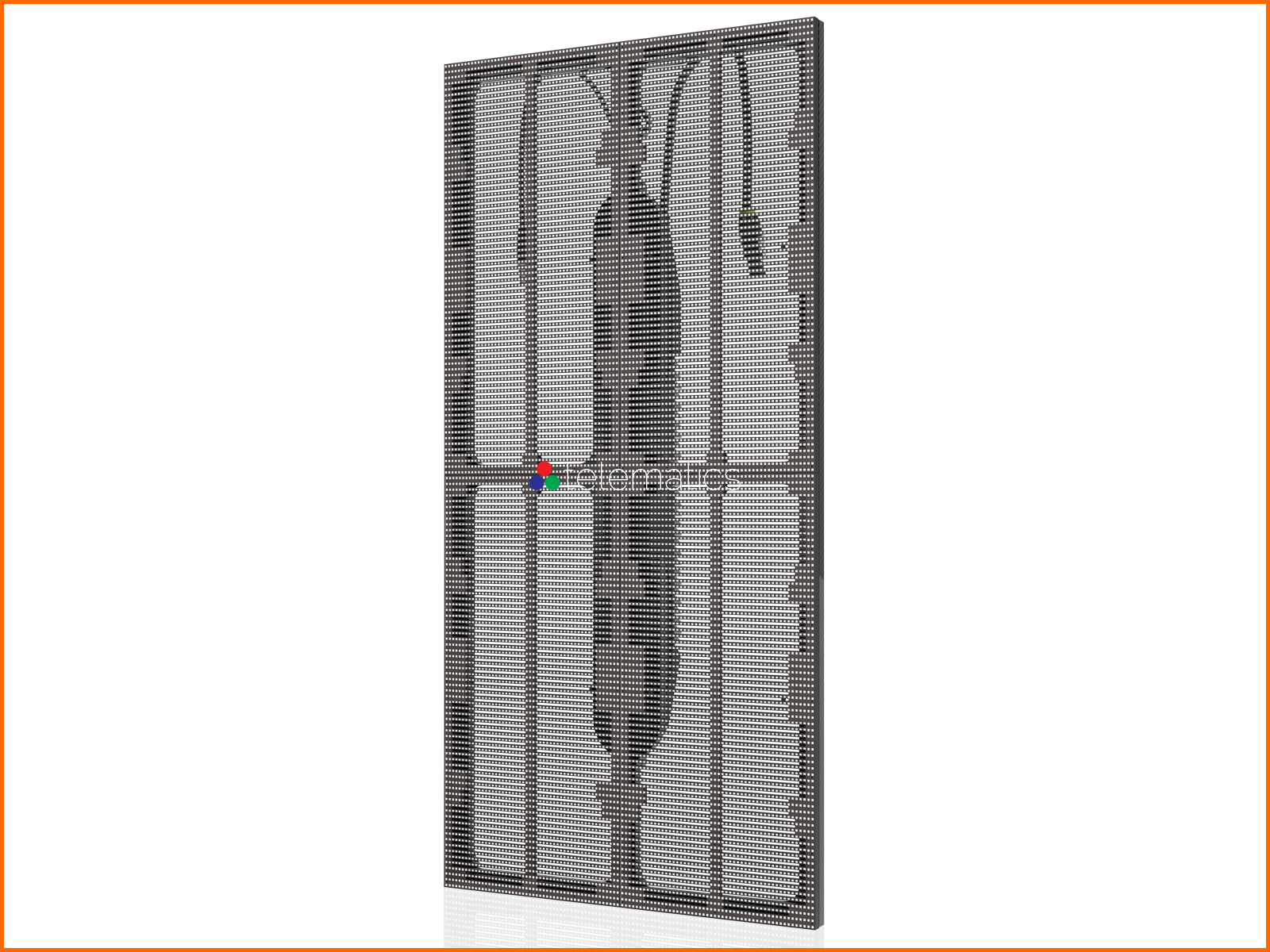

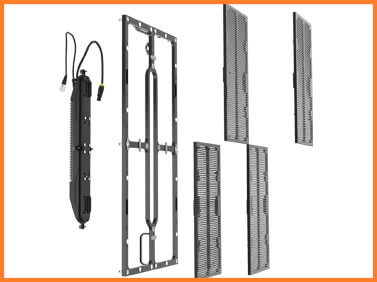

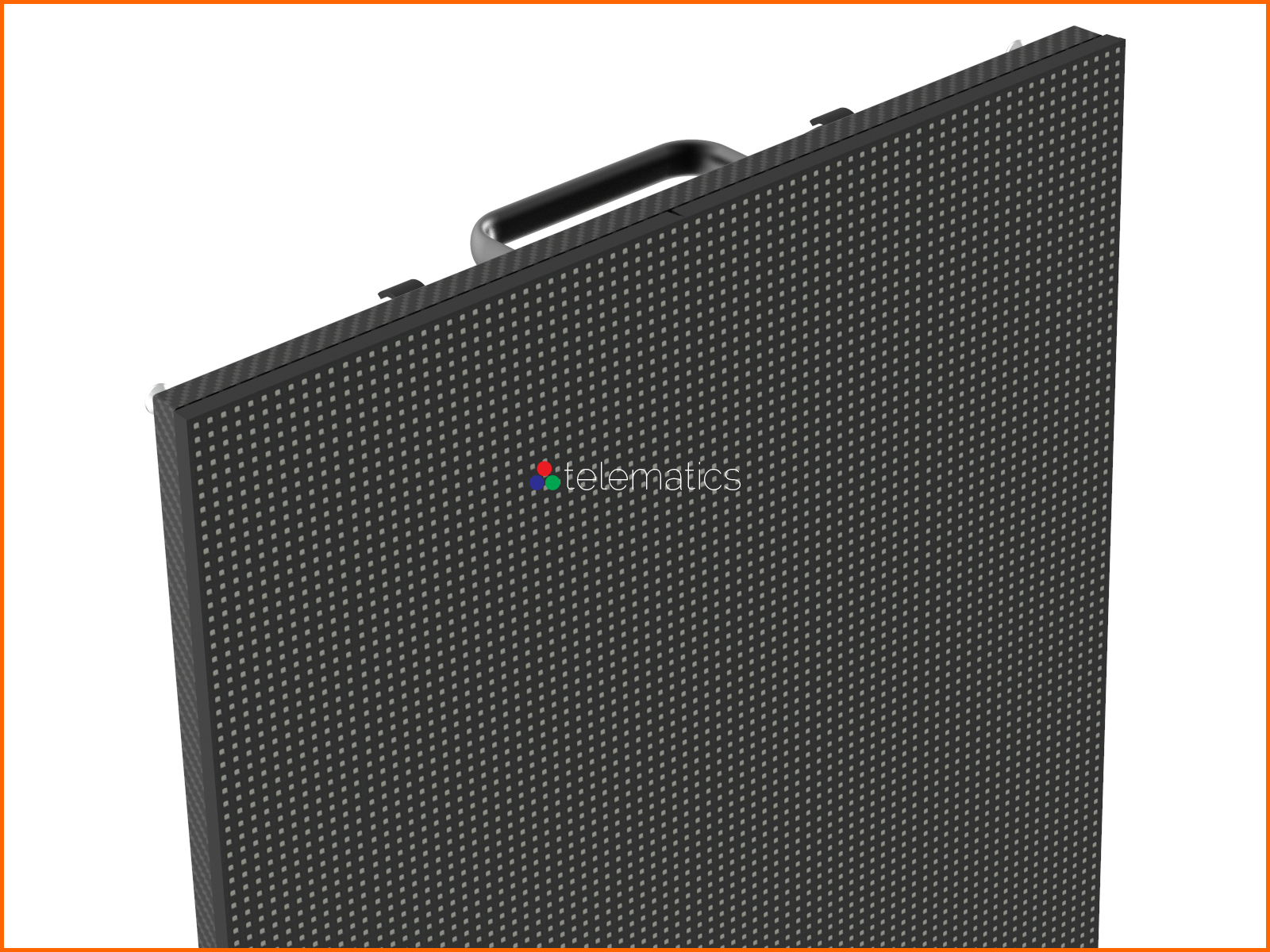

The Series HL is one more step towards the ultimate performance panel for the stage and complements our already very awesome Series X and Series M panels.

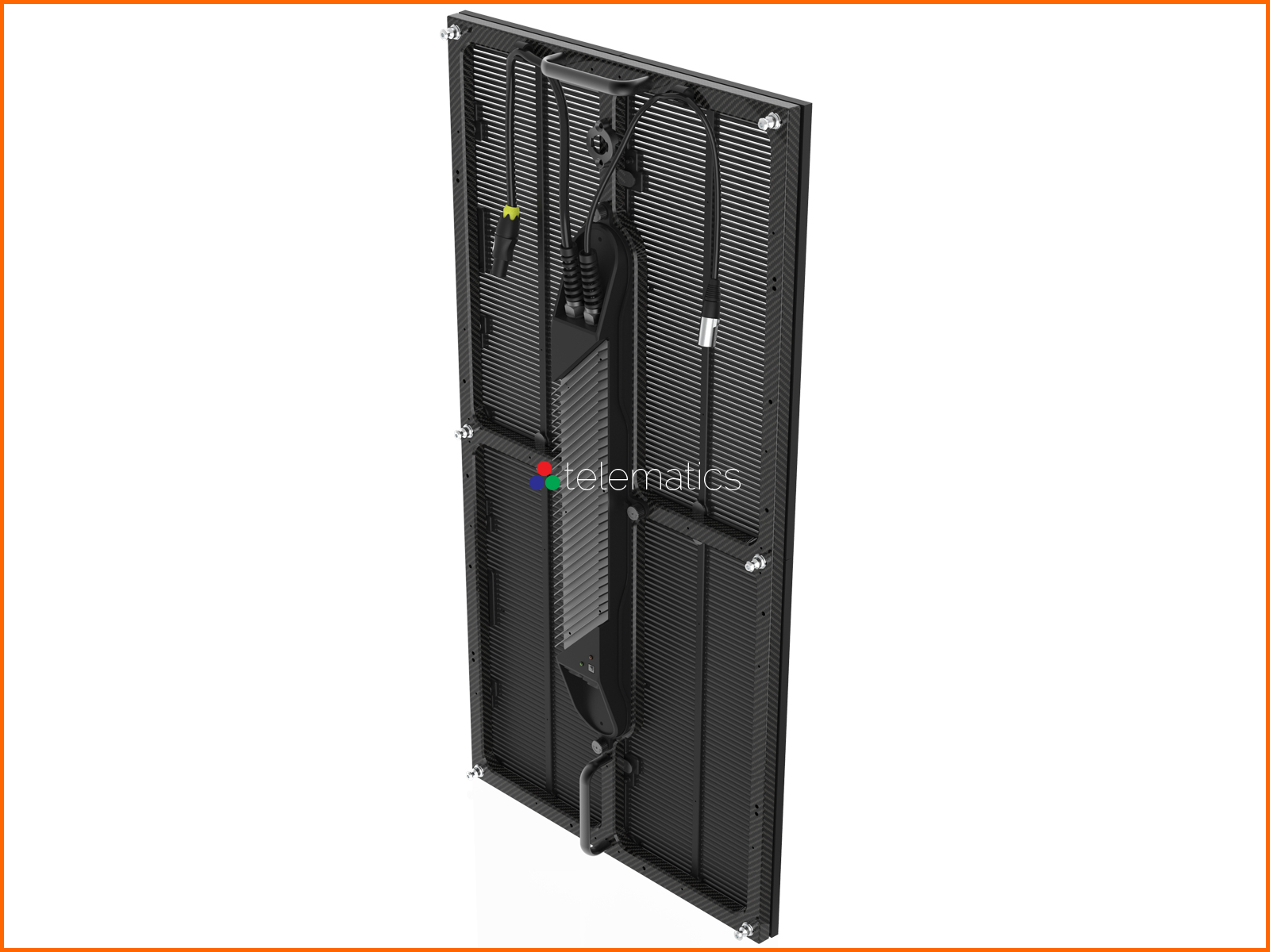

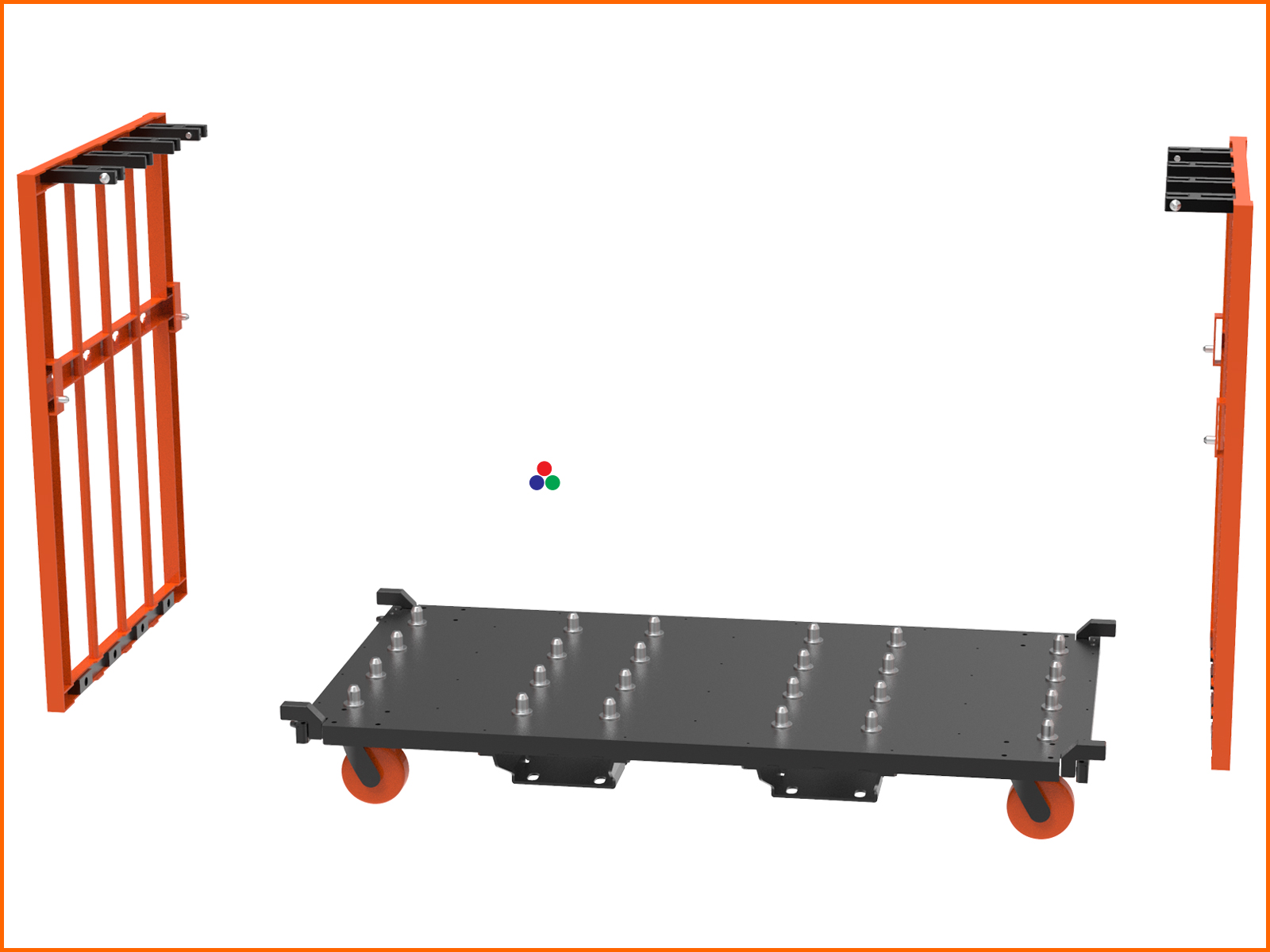

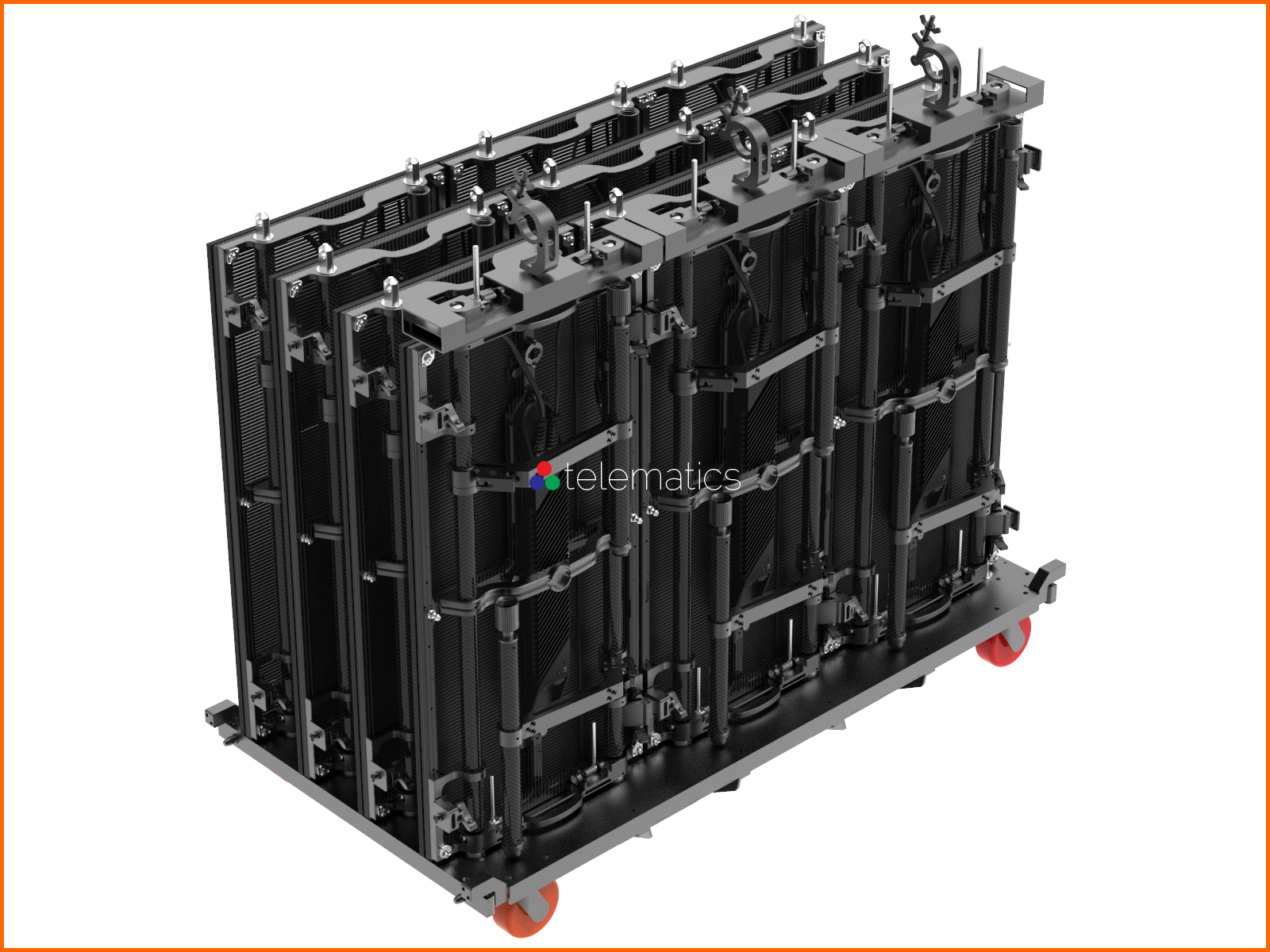

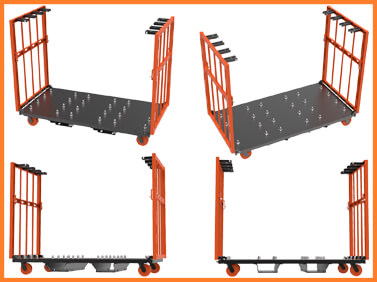

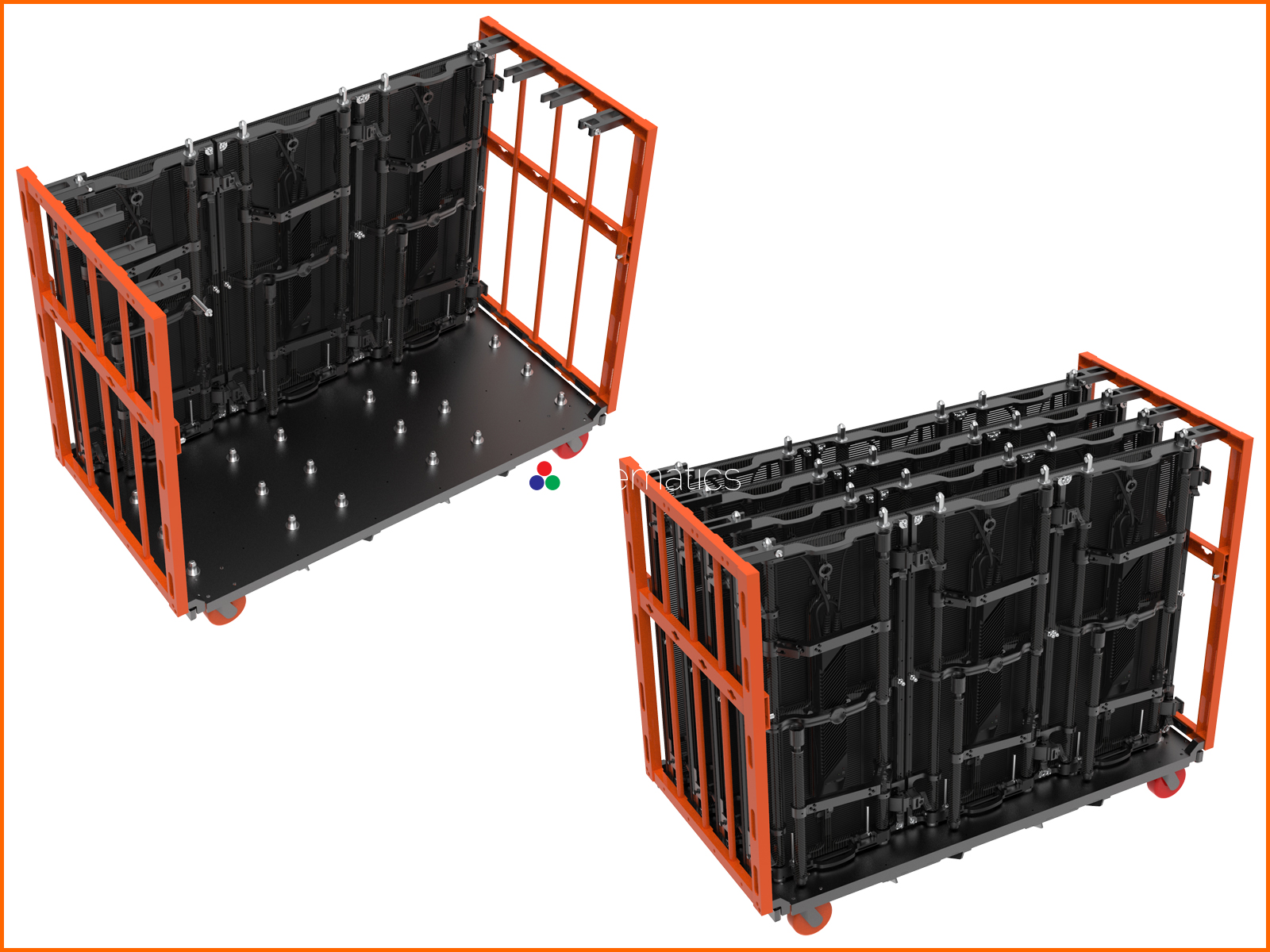

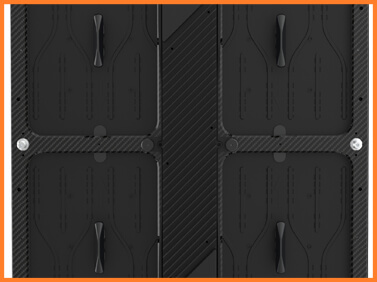

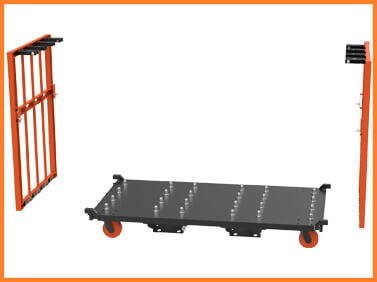

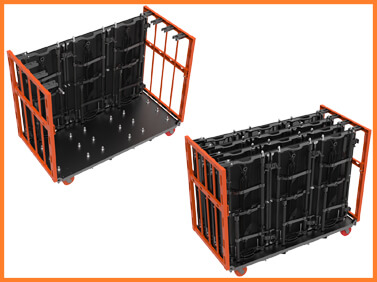

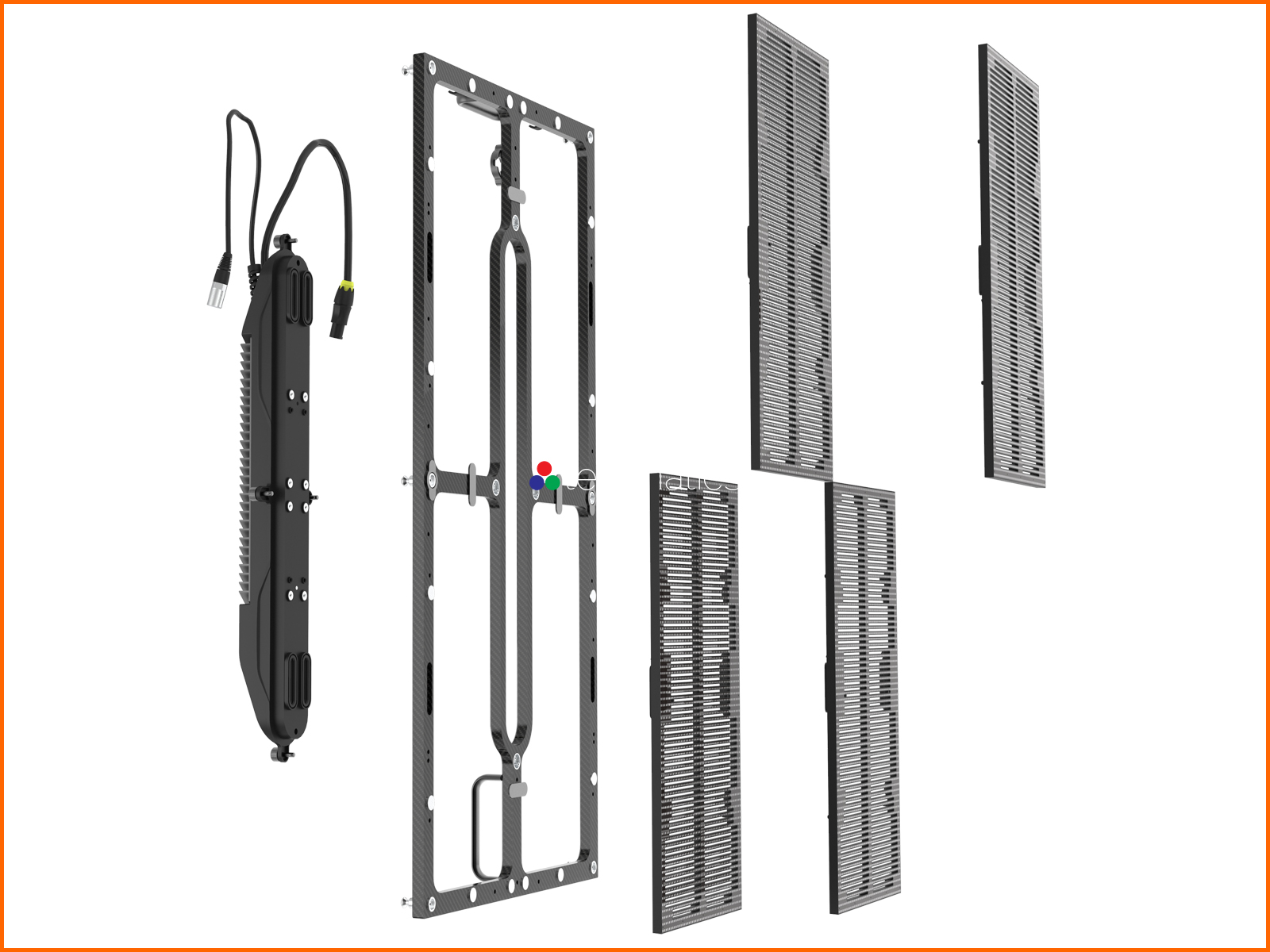

The extra-large dimensions of 500 * 1000 millimeters clearly save time on setup and tear-down, but would otherwise be a little less inviting if we used aluminum. Which is why we use Carbon Fiber to bring the weight down to just 5 or 6 kilograms per panel. Your roadies will be giddy with delight.

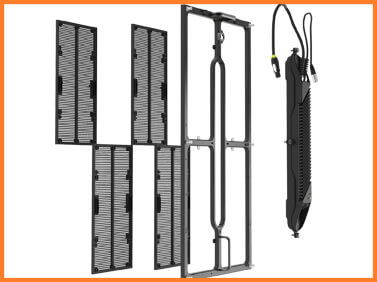

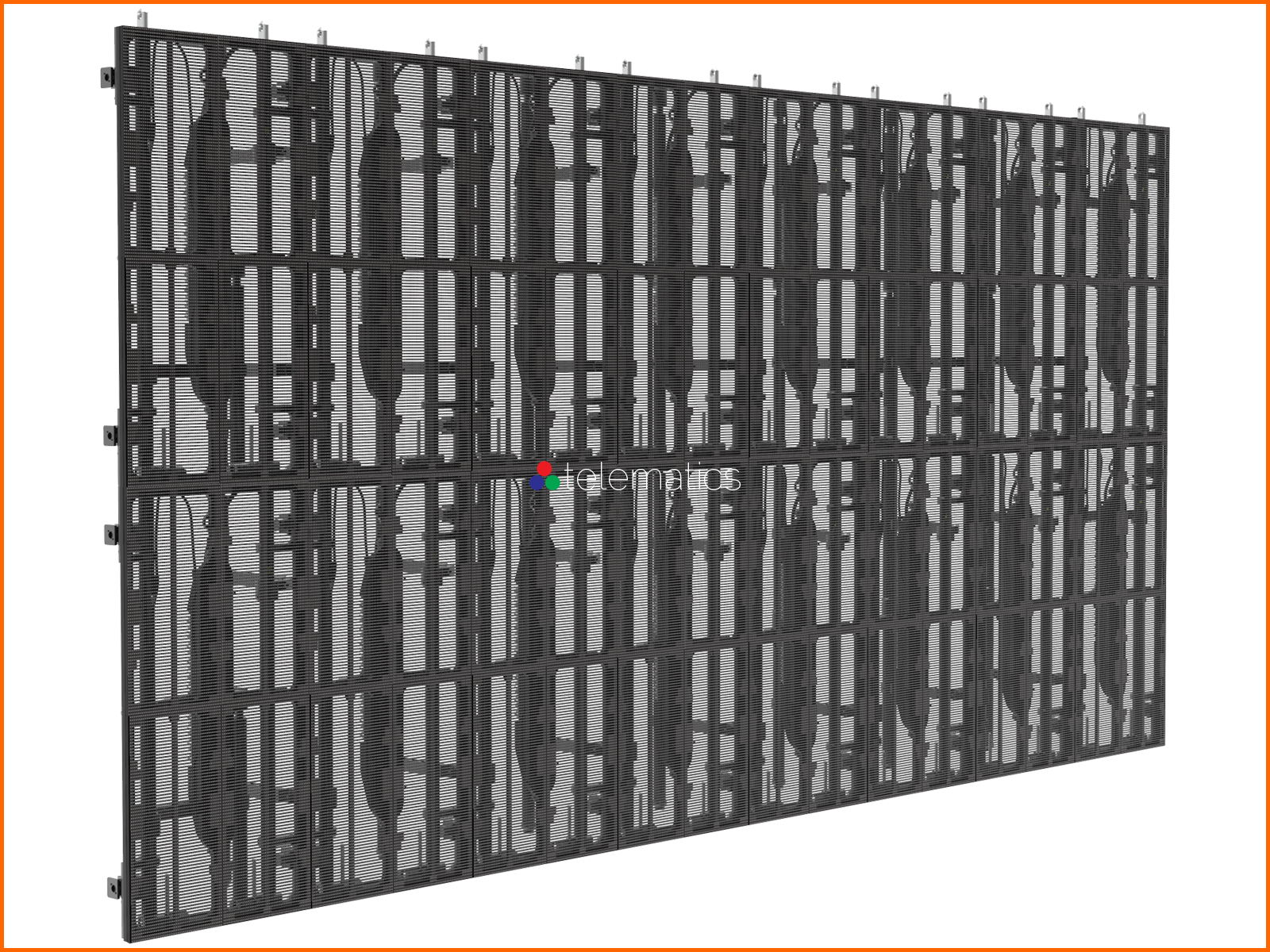

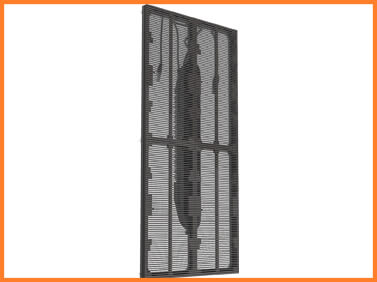

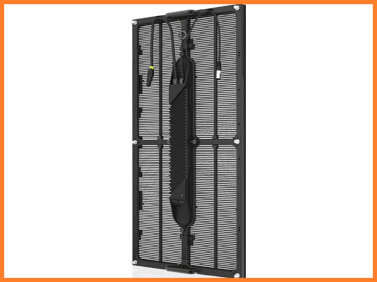

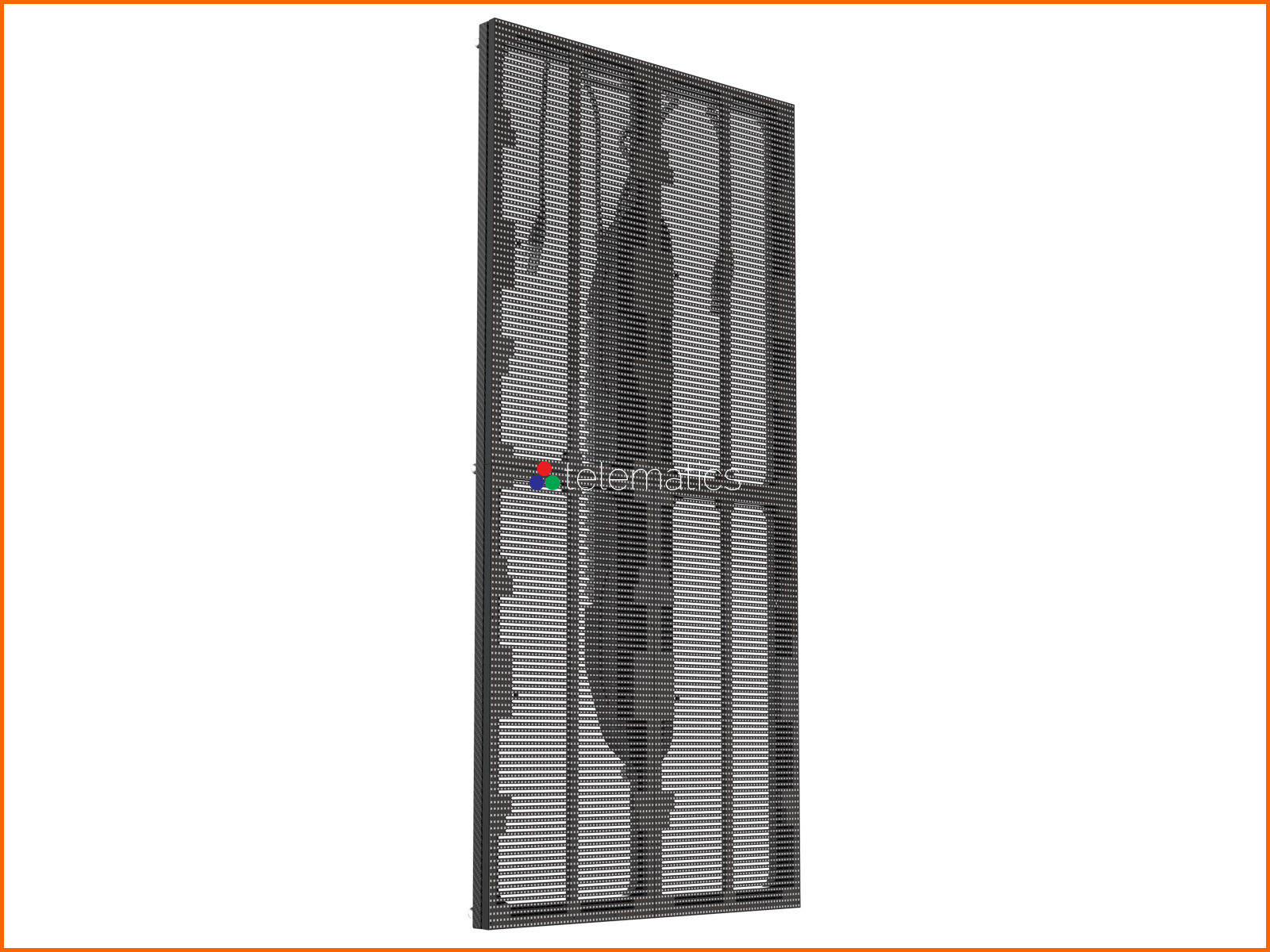

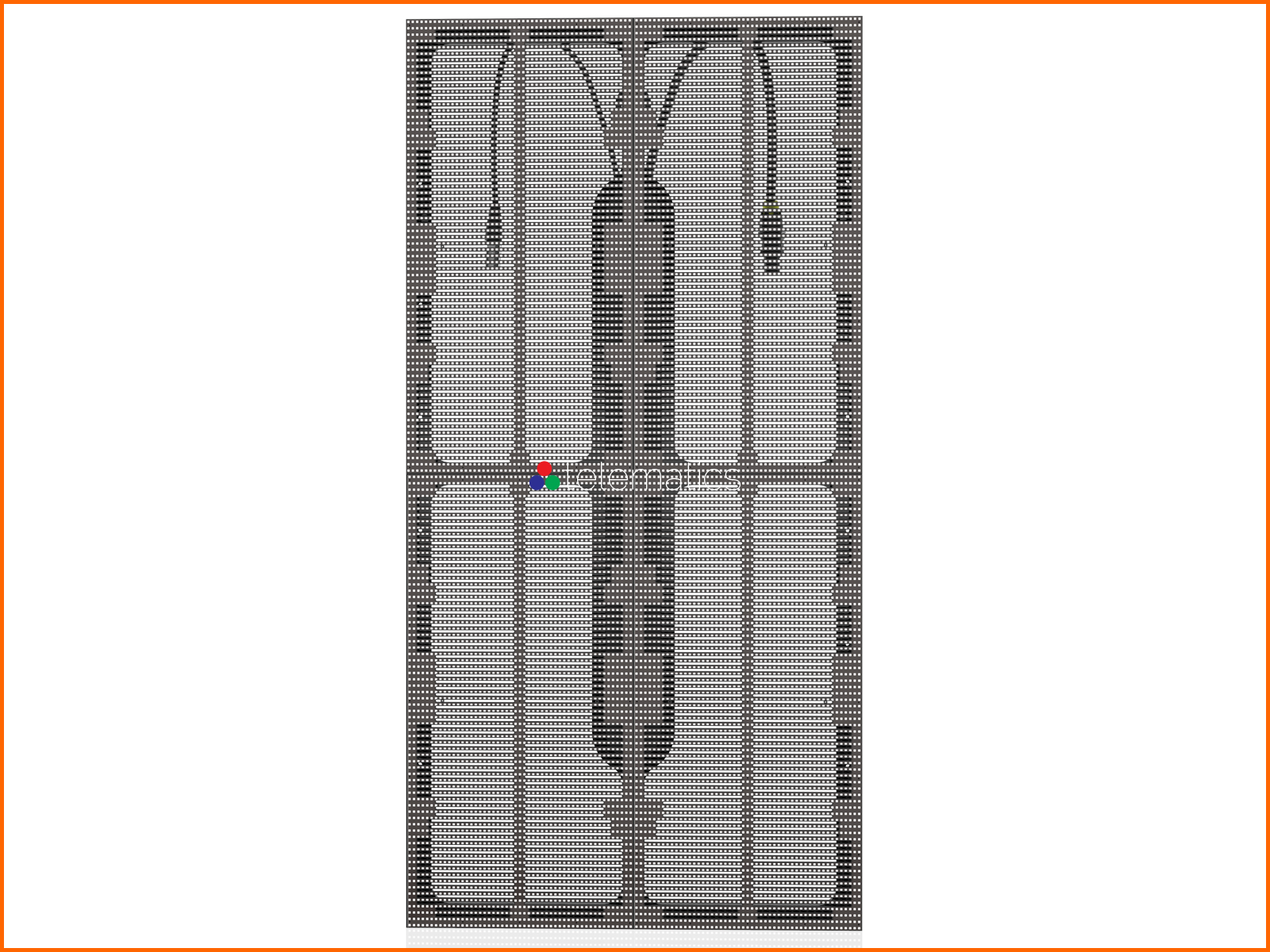

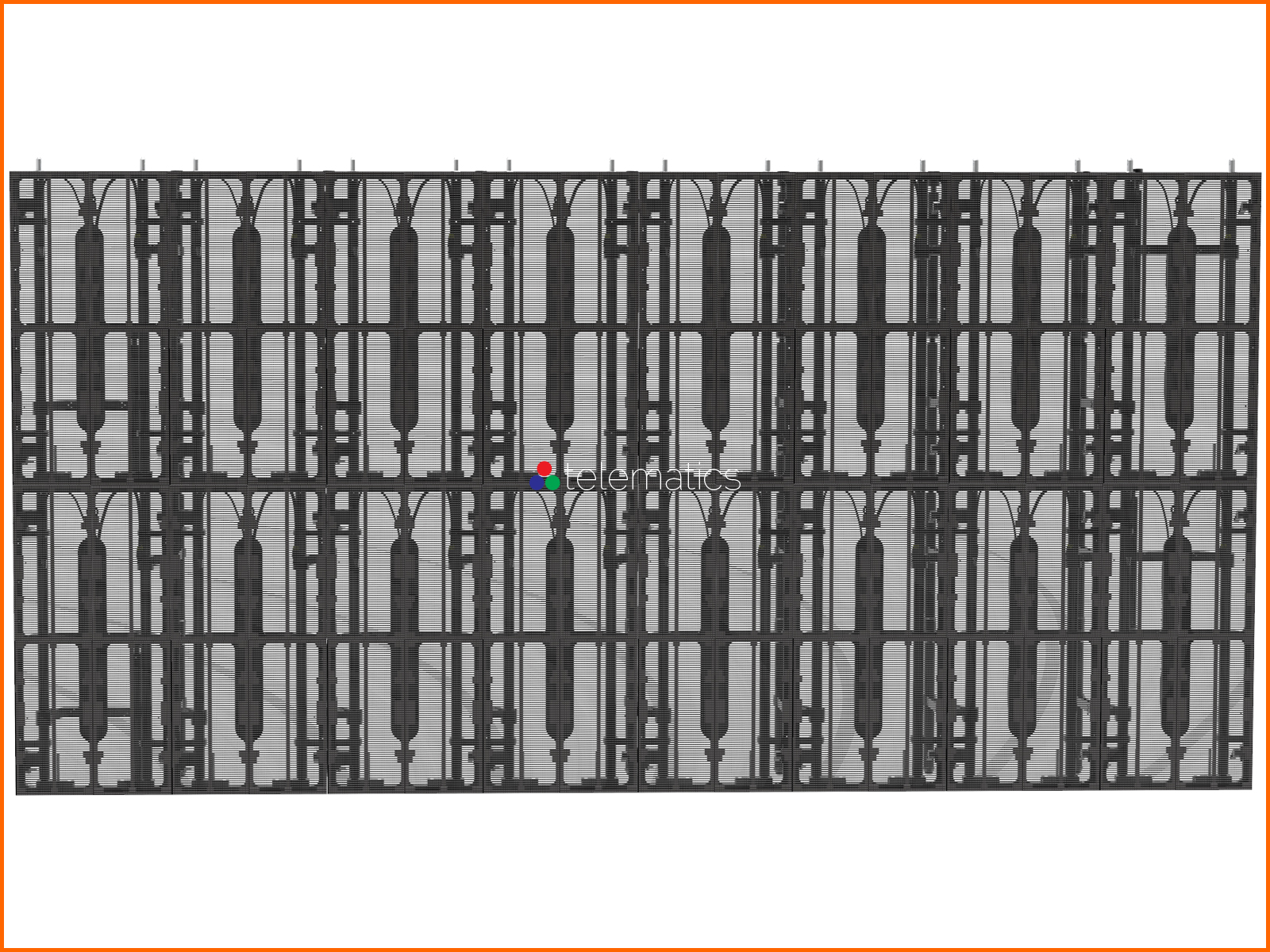

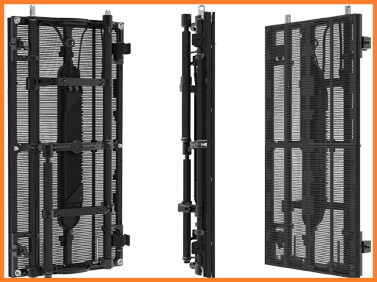

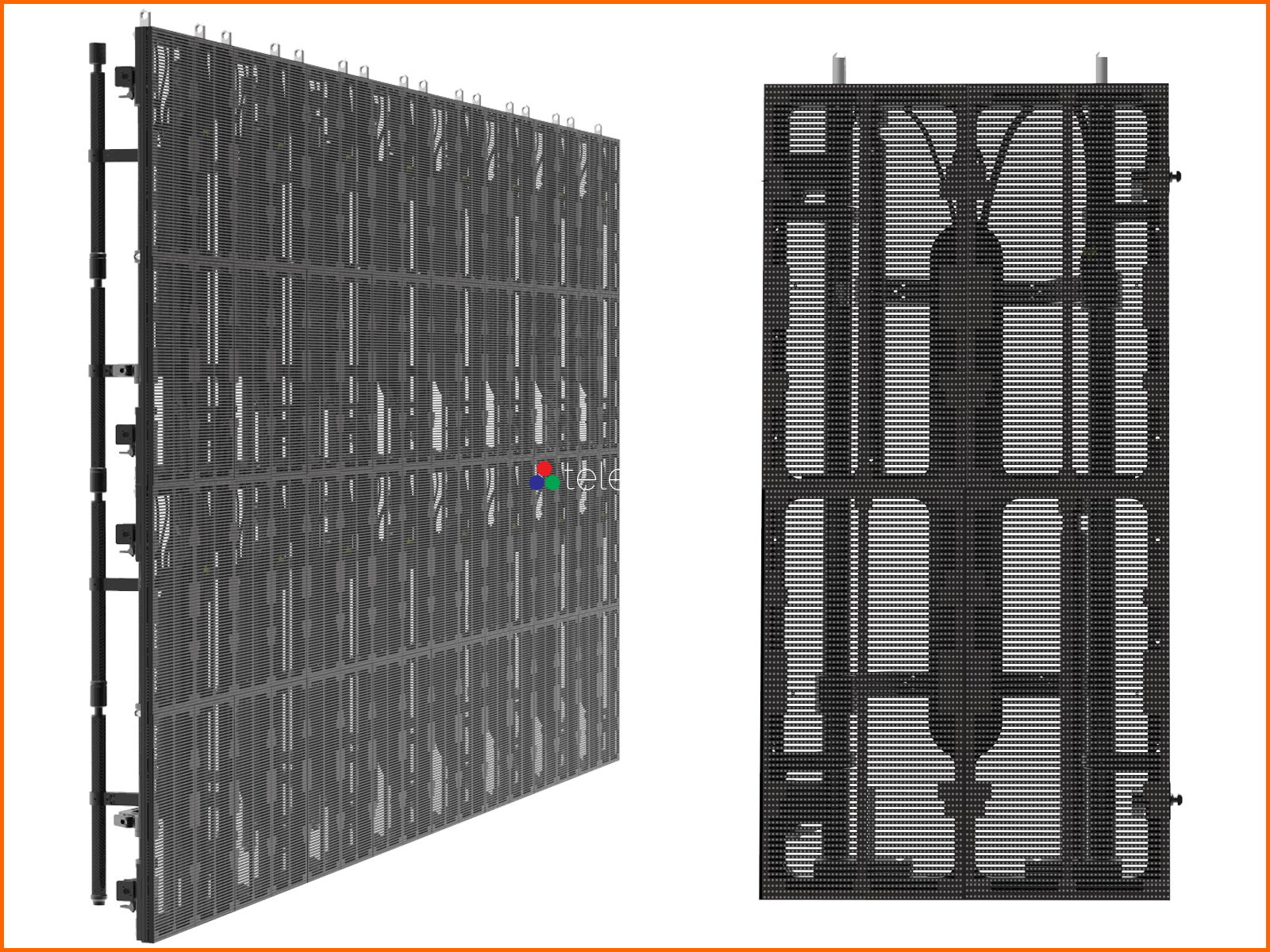

With the Series HL, Desay has covered more bases than Willy Mays. Choose a fine-pixel indoor panel or a fine-pixel outdoor panel. We even have a broad-pixel mesh panel for pretty much any application you can come up with.

Pixel density begins at 20,736 and reaches 127,449 pixels per square meter. Refresh rates are 3840 Hz and Neutrik power cables and data connectors join the panels together.

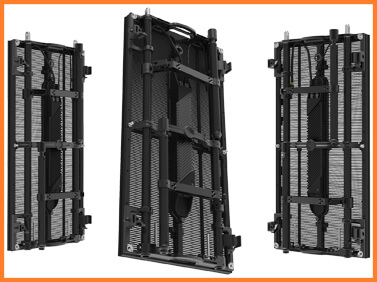

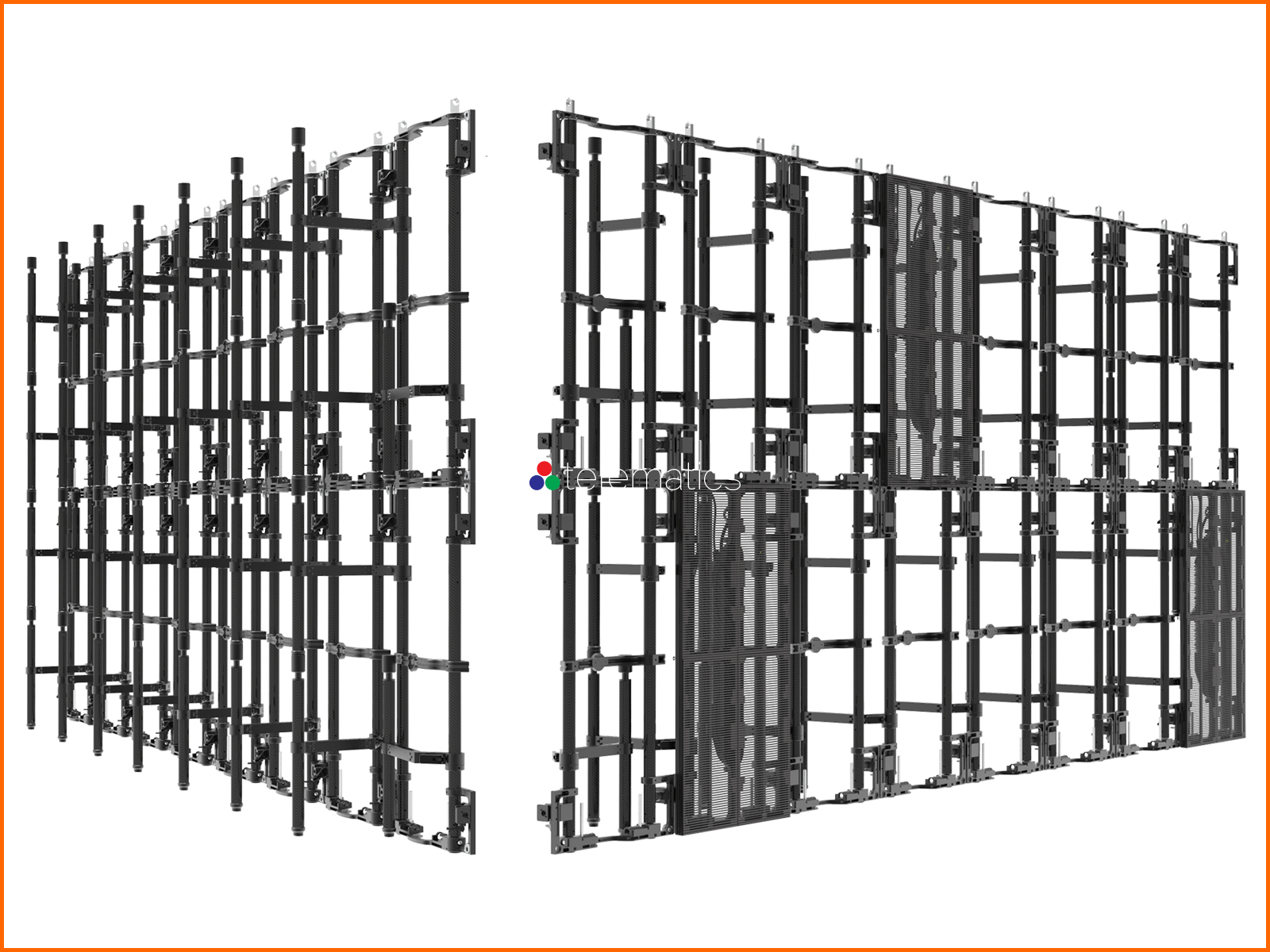

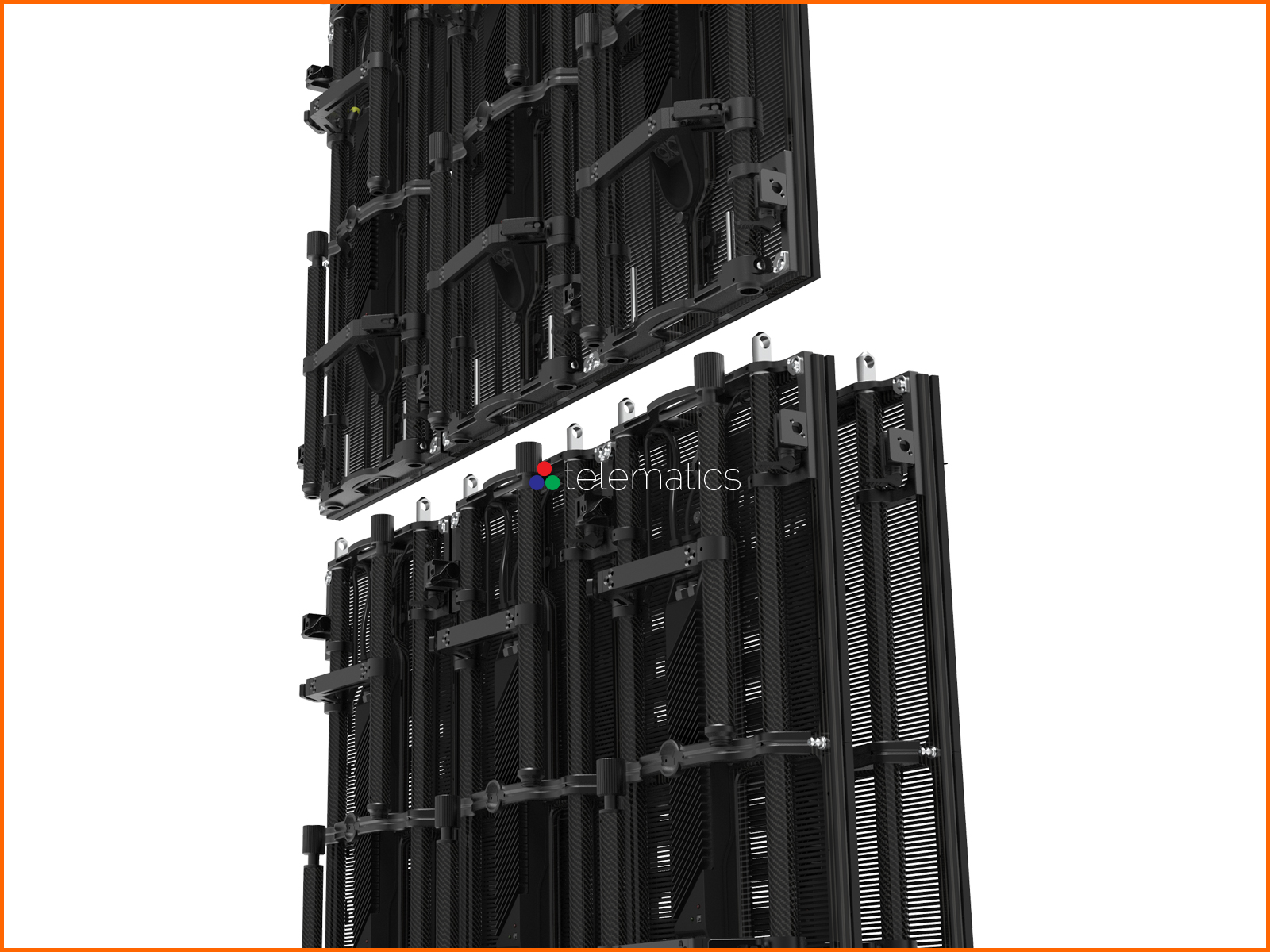

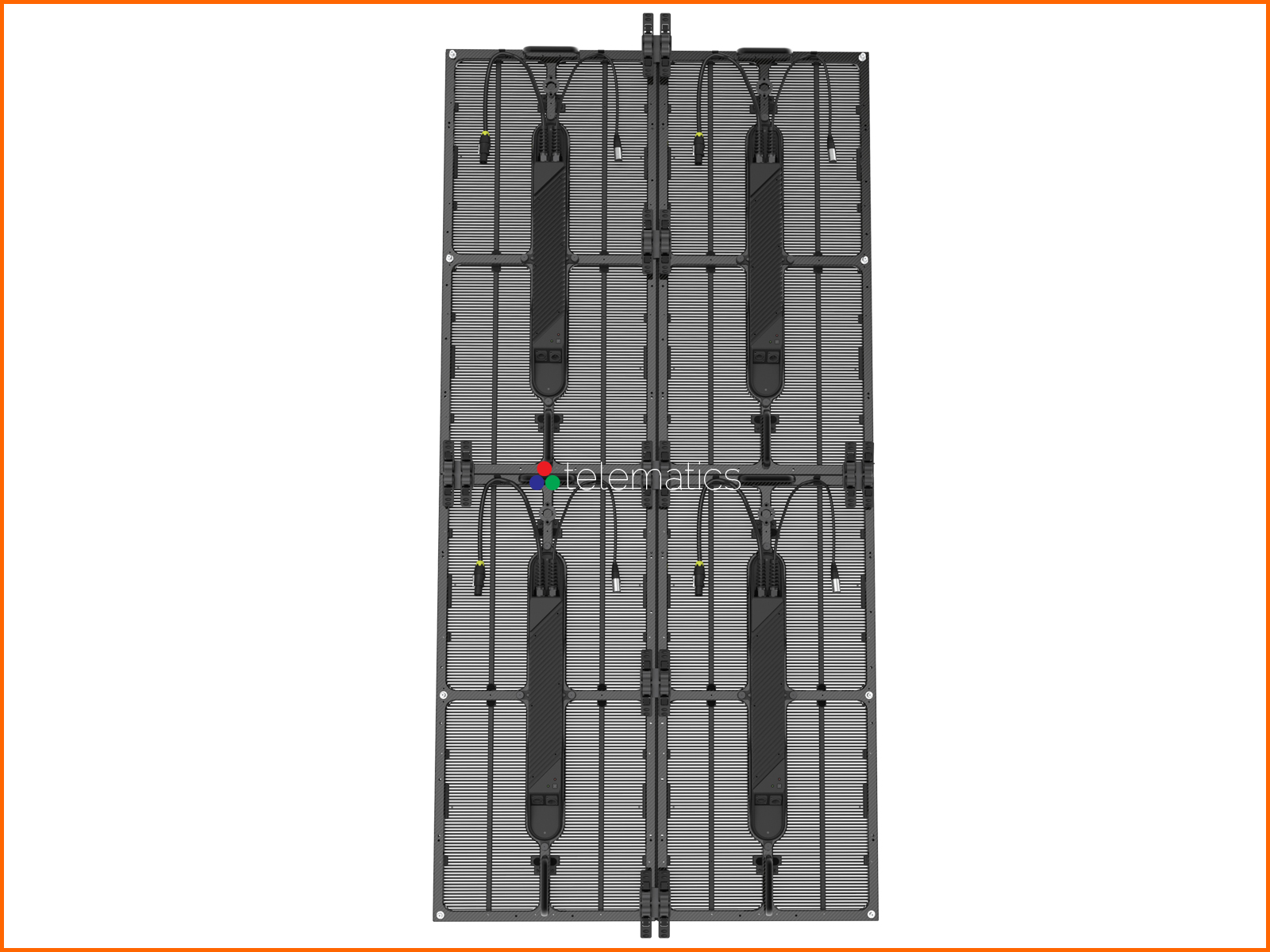

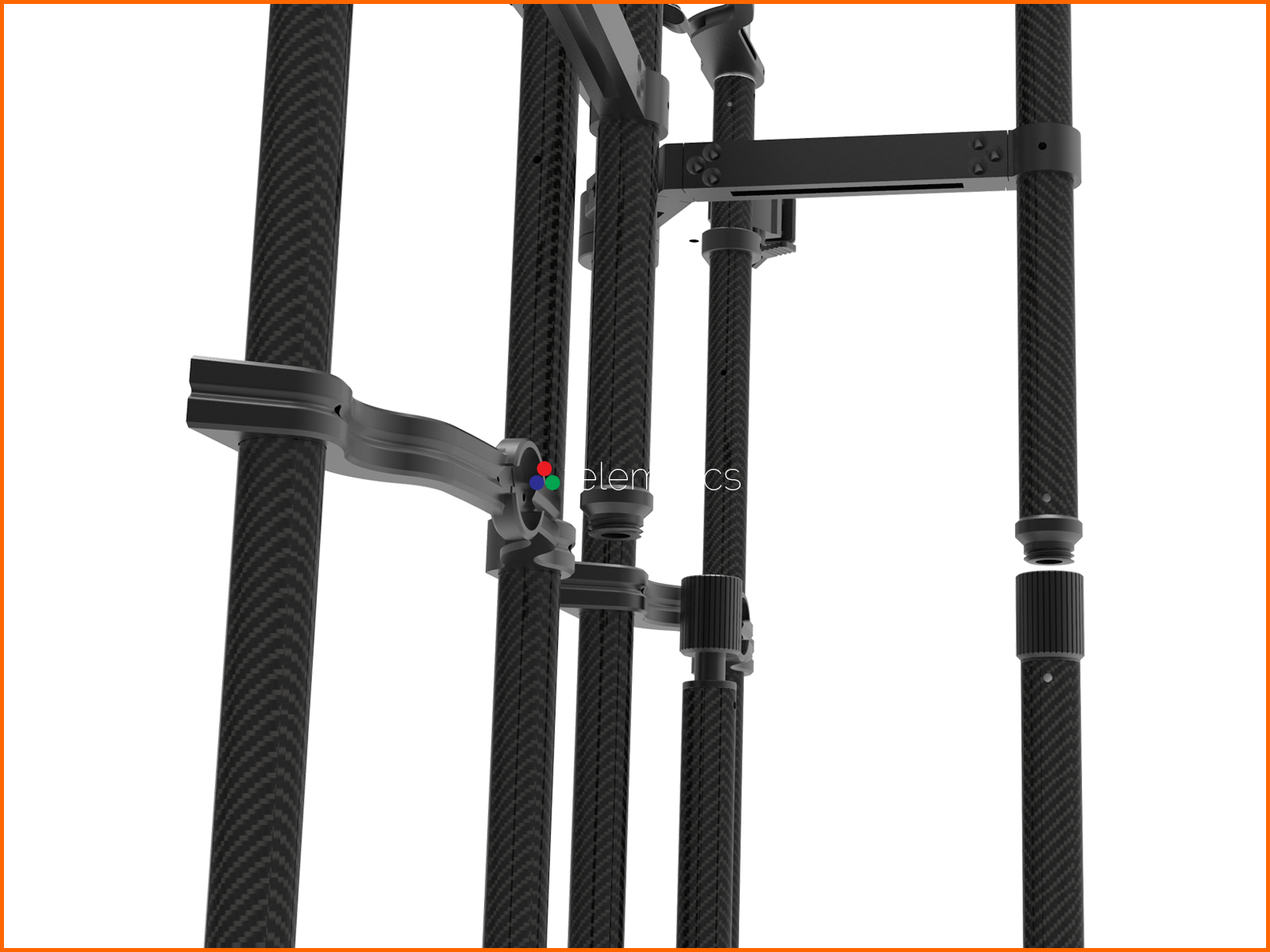

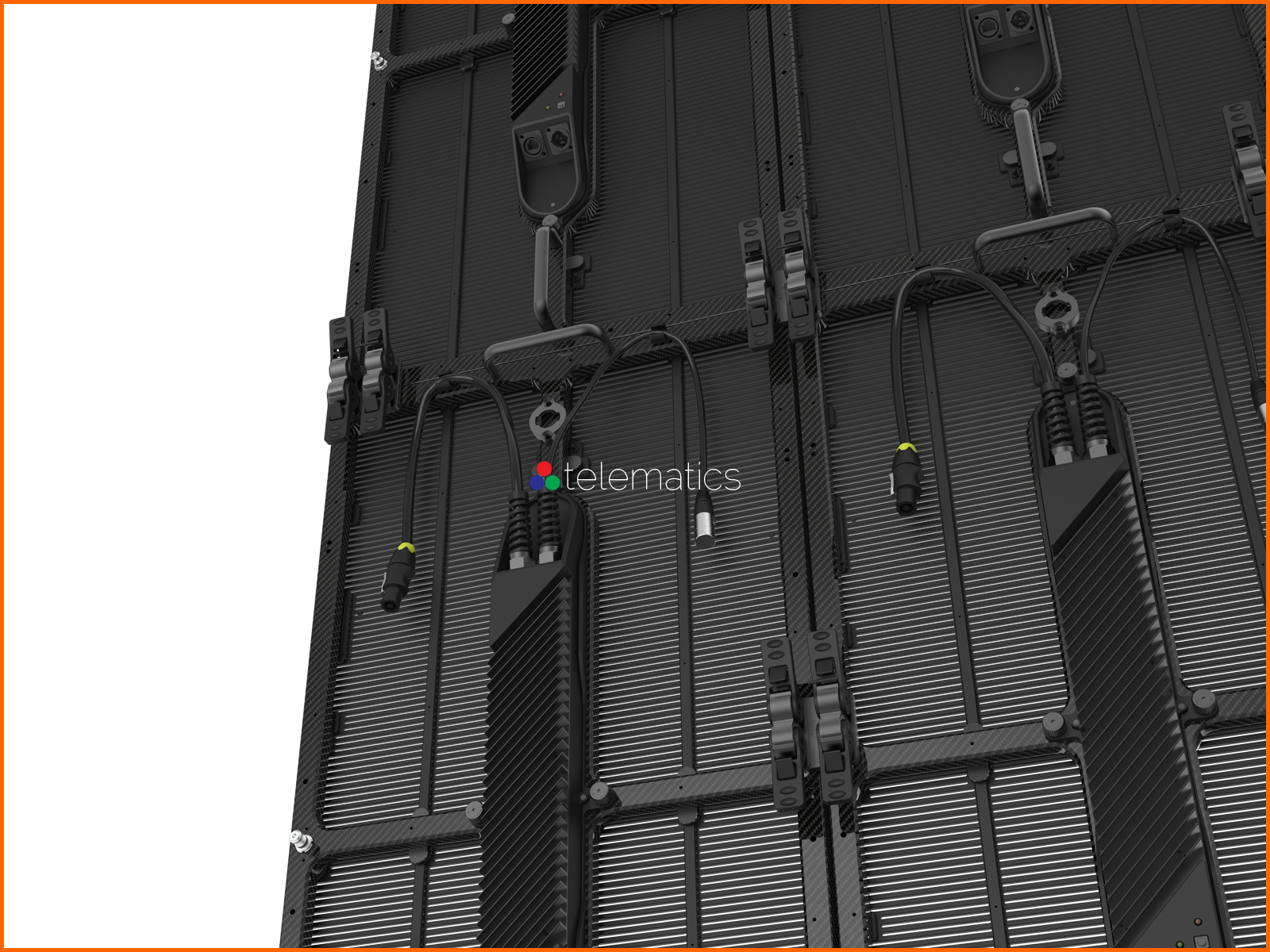

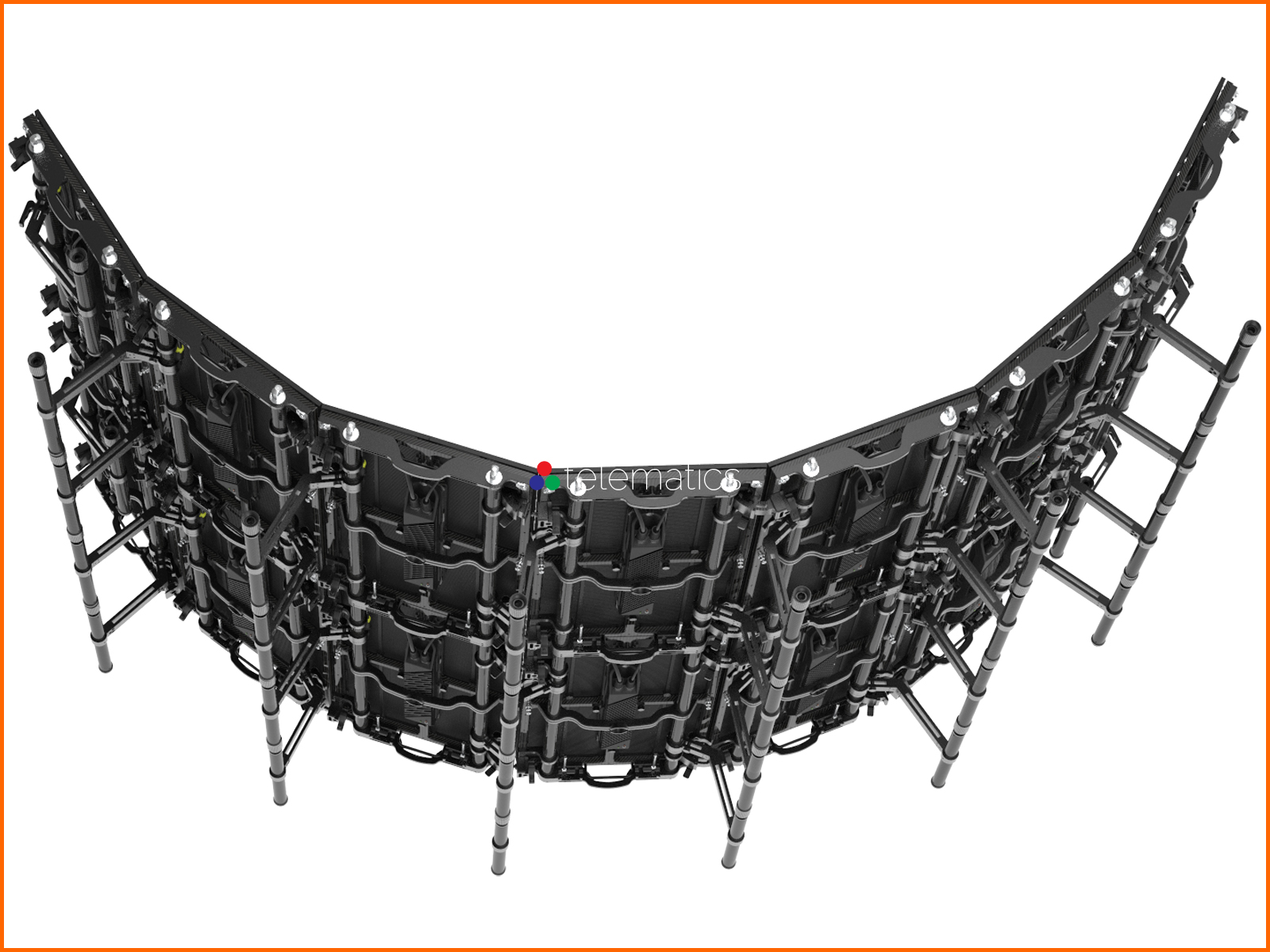

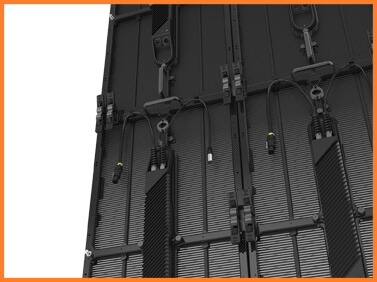

Connect the Series H using Desay's new patented push to lock and pull to unlock system. And if a lovely flat display is not what you had in mind, specify 3° or 5° concave and convex angles for something more flexible.

If you are looking to hit it out of the park with Brompton Technology’s High Dynamic Range (HDR) in your next display, the Desay Series H is the first of our panels to offer a combination of the Tessera M2 or Tessera SX40 LED Processors and the Brompton Tessera R2 Receiver Cards.

Content can also be handled by any of our NovaStar controllers. Good chance that might be one of our 4K controllers or the new Taurus Series.

The Series HL is our newest addition to the Desay family and like any demanding stage parents we can't wait to get our little darling out on tour with the band!
